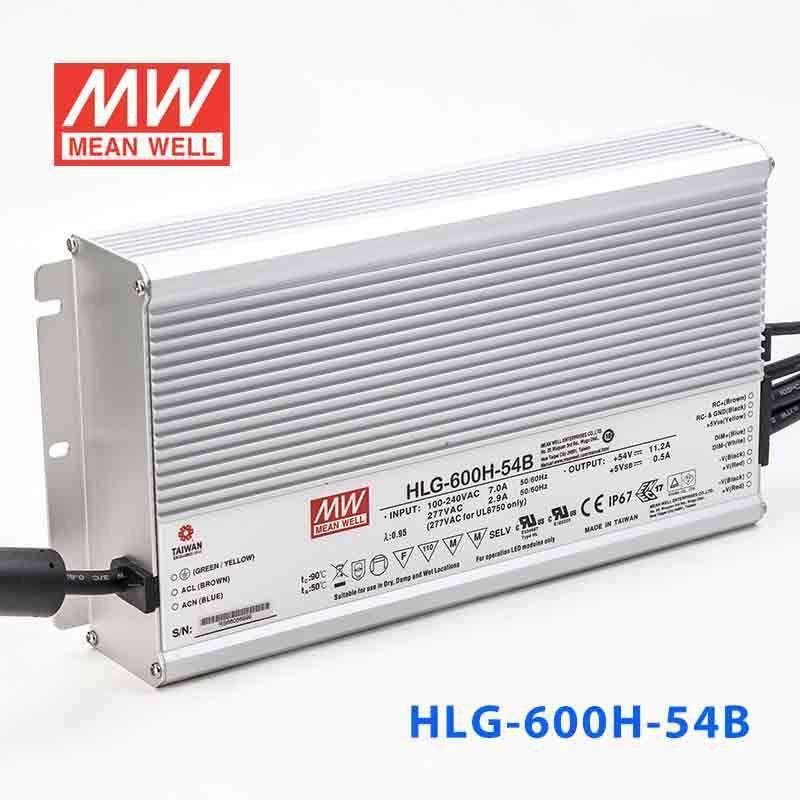

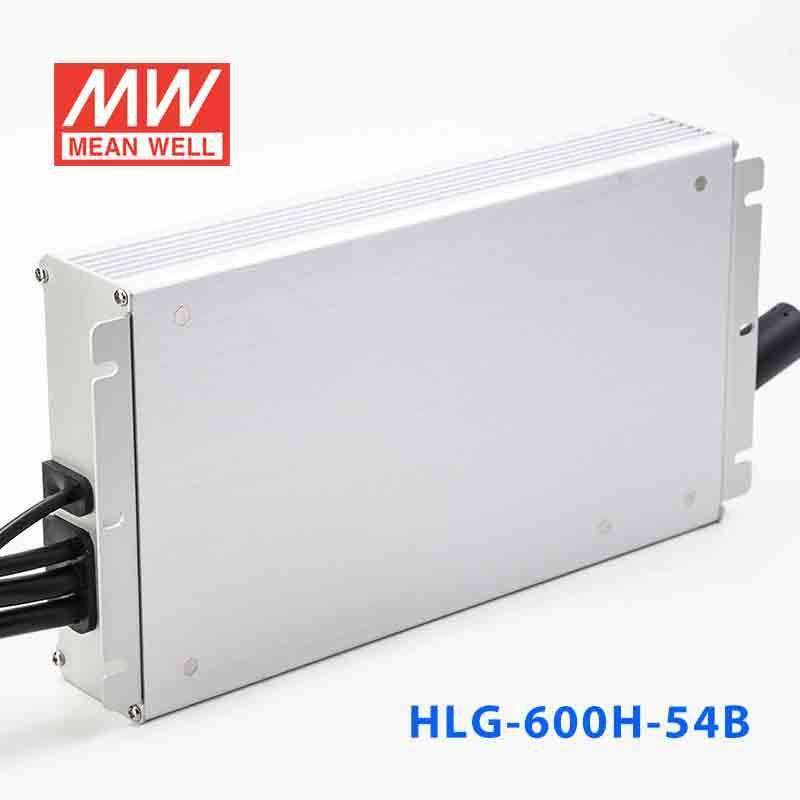

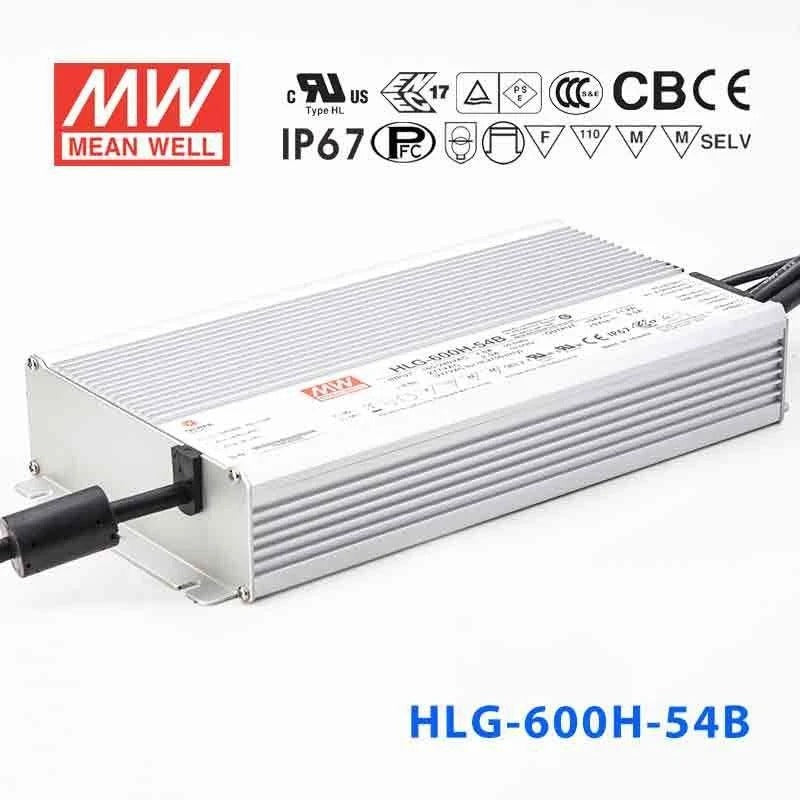

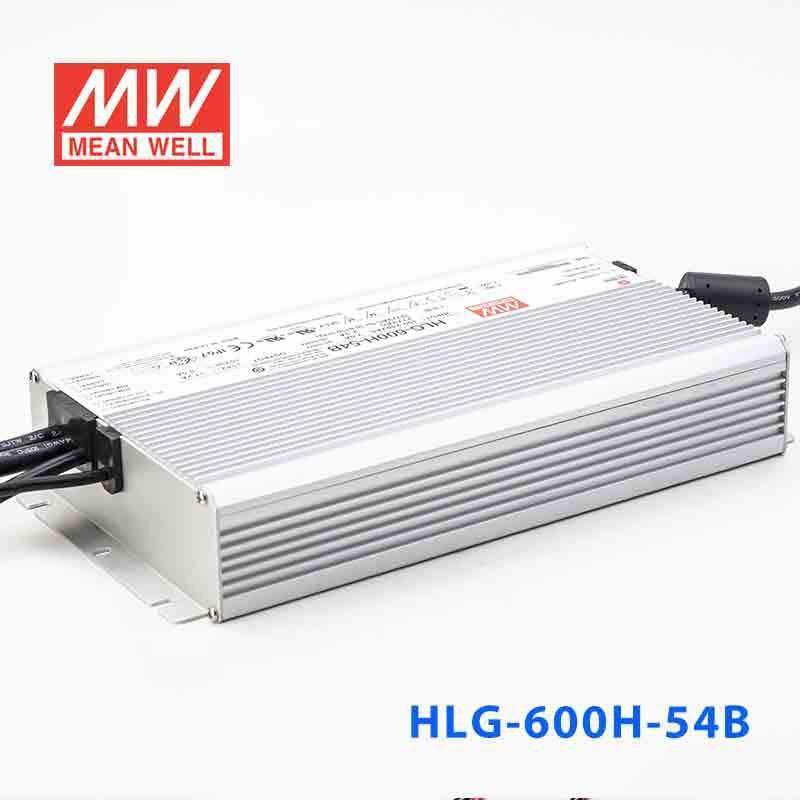

Mean Well HLG-600H-54B Power Supply 600W 54V- Dimmable

SKU: HLG-600H-54B
View all file downloads
On Backorder
Backorder - we will contact you with ETA once your order is placed
Frequently bought together:

Mean Well HLG-600H-54B Power Supply 600W 54V- Dimmable - Overview

General Specification

HLG-600H series is a 600W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-600H operates from 90 — 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96%, with the fanless design, the entire series is able to operate for -40°C — +90°C case temperature under free air convection. The design of metal housing and IP67/1P65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-600H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Standby power consumption <0.5W at remote off
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
  • Typical lifetime > 62000 hours
  • 7 years warranty

Applications

  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type "HL" for use in Class I
  • Division 2 hazardous (Classified) location.

Mean Well HLG-600H-54B Power Supply 600W 54V- Dimmable - Specification

Brand Mean Well
Unit of Measure item
Warranty Period 7 year
Output Voltage 54 V
Rated Current 11.2 A
Power Rating 600 W
No. of Output 1
Operation Mode Constant Current, Constant Voltage
Dimming Control 10V PWM, 1-10V, Resistance
Series HLG Series
Waterproof IP67
Standards Met CB, CCC, CE, EAC, PSE, RCM, TUV, UL
Input 90V~305V
Operating Temperature -40°C~90°C
Dimensions Length:280mm | Width:144mm | Height:48.5mm |
