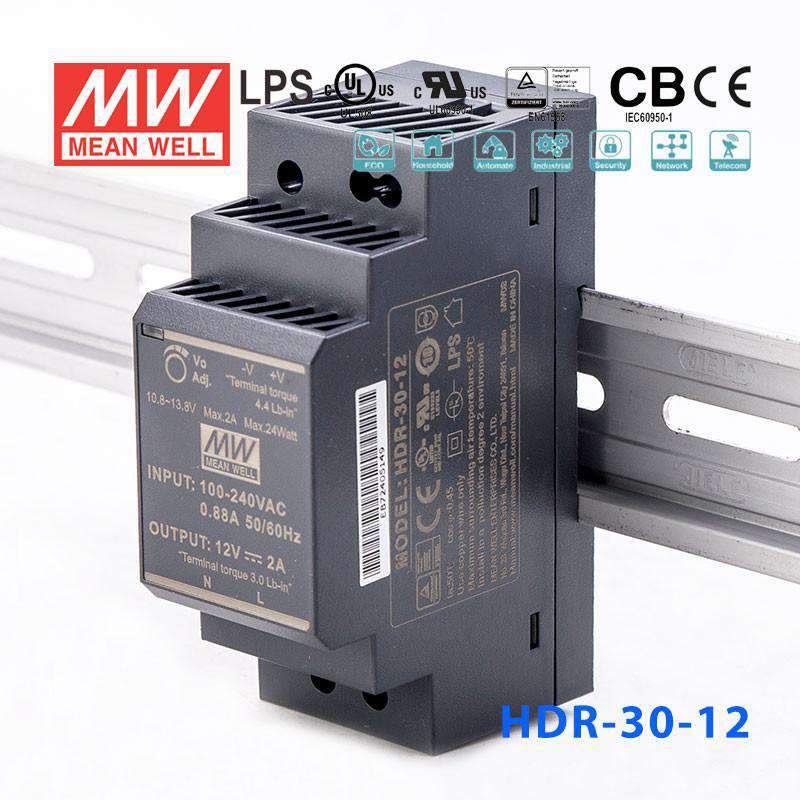

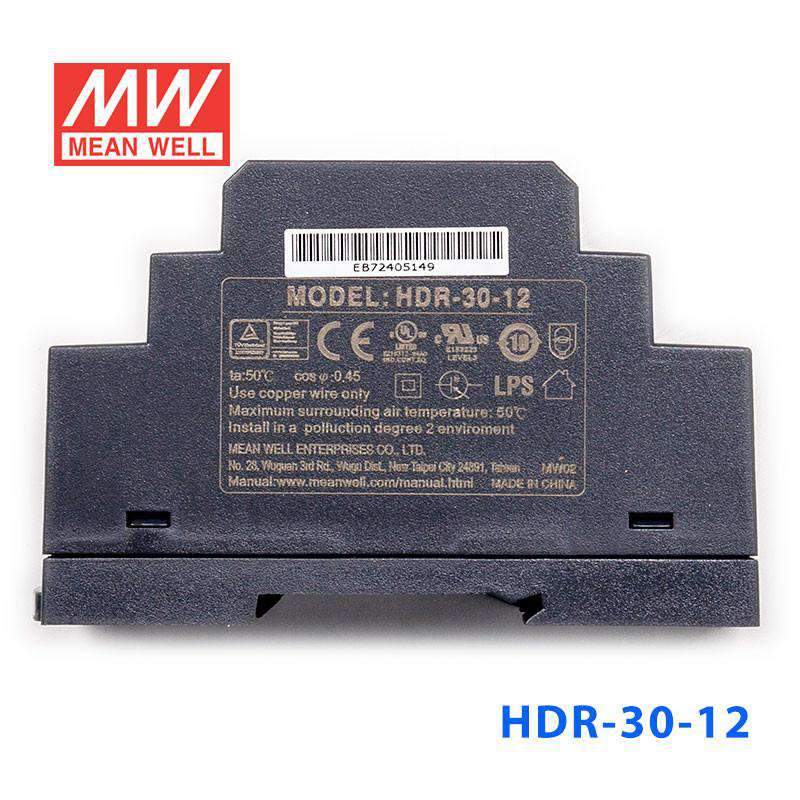

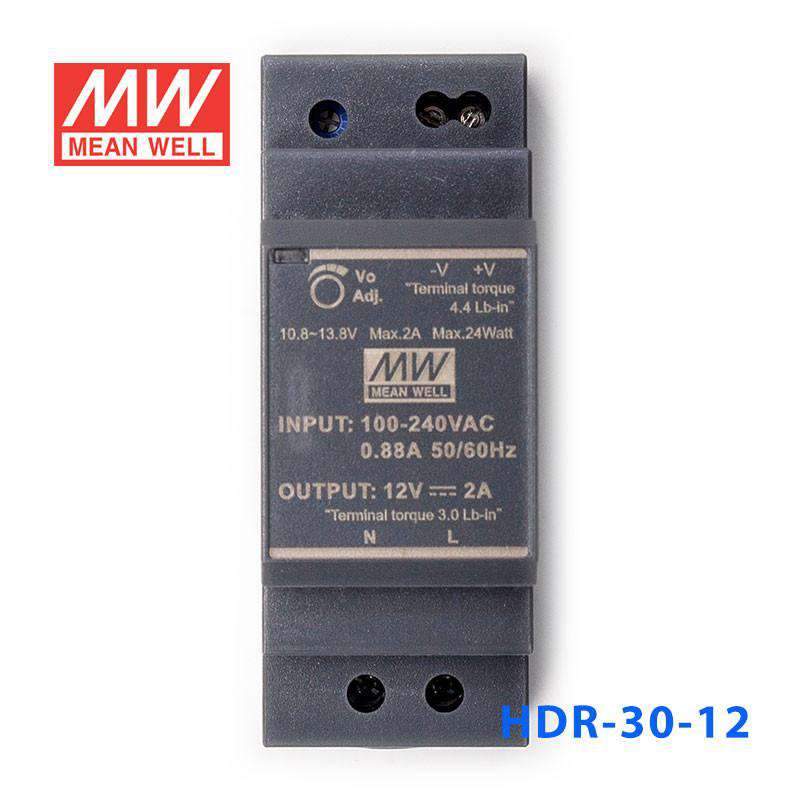

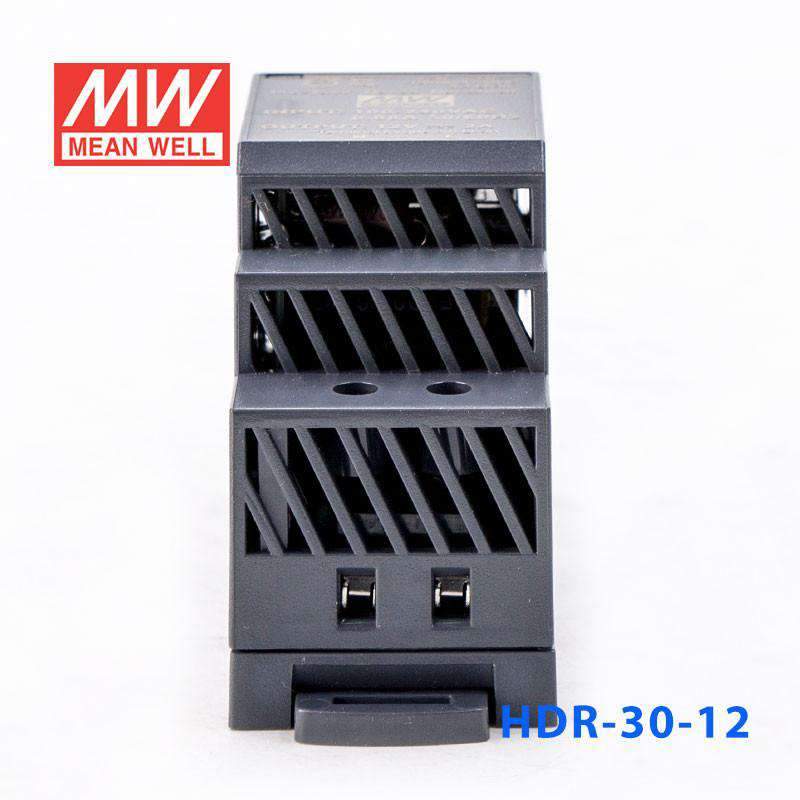

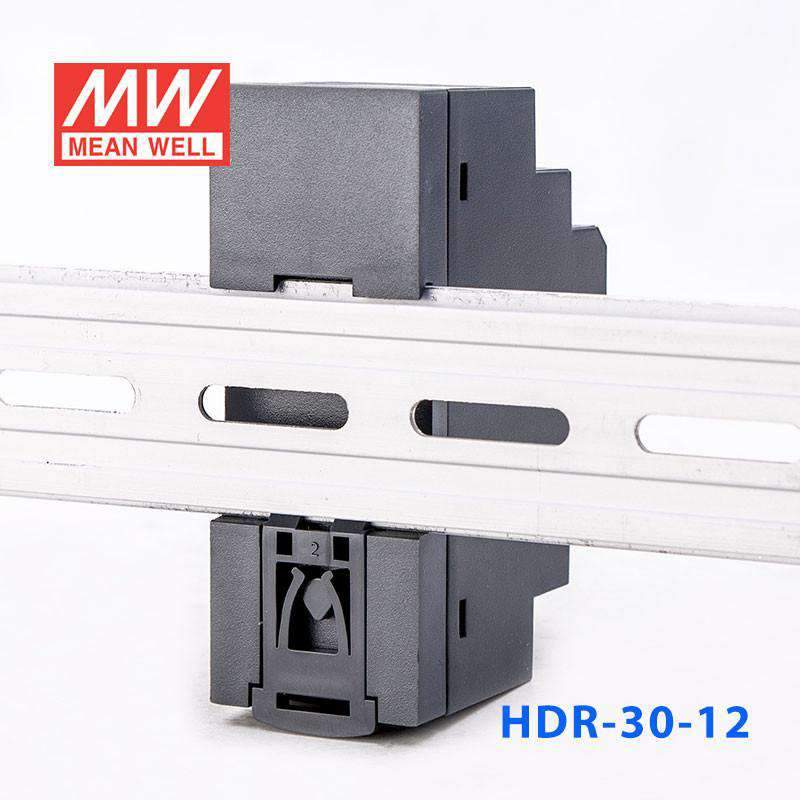

Mean Well HDR-30-12 Ultra Slim Step Shape Power Supply 30W 12V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HDR-30-12 Ultra Slim Step Shape Power Supply 30W 12V - DI...
Description
Description
The HDR-30 is a 30W Mean Well power converter (input range: 85~264VAC, operating temperature: -30~+70°).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70°
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating24 Watt
-
Output Voltage12 Volt
-
Rated Current2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.54 in
-
Width2.15 in
-
Height1.38 in
-
Weight0.29 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 12V control panel loads is the HDR-30-12 appropriate for?
At 24W and 2A on a 12V output, the HDR-30-12 suits small-to-medium 12V loads such as relay driver circuits, panel indicator systems, and auxiliary power for 12V communication modules in DIN rail enclosures. Its slim step-shape profile allows tight panel layouts.
How does the HDR-30-12 compare to other 30W-class HDR 12V models?
The HDR-30-12 outputs 24W / 2A at 12V. Other 30-class siblings include HDR-30-15 at 30W / 2A (15V), HDR-30-24 at 36W / 1.5A (24V), HDR-30-48 at 36W / 0.75A (48V), and HDR-30-5 at 15W / 3A (5V). All share DIN rail mounting but differ in voltage and wattage.
What certifications does the HDR-30-12 carry?
The HDR-30-12 holds BSMI, CB, CE, cUL, EAC, c-RCM, TÜV, and UL certifications with a 3-year warranty. The isolation class II design and adjustable DC output are standard features across the HDR-30 series.
Is the HDR-30-12 suitable for use in environments with wide temperature swings?
The HDR-30-12 is rated -30°C to +70°C, covering cold outdoor enclosures and warm industrial panels. Since it has no IP rating, it must always be installed inside a suitable control cabinet.
Other HDR-30 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HDR-30-5 Ultra Slim Step Shape Power Supply 15W 5V - DIN Rail | 15W | 5V | 3A | Indoor | $17.46 | View |
| Mean Well HDR-30-24 Ultra Slim Step Shape Power Supply 30W 24V - DIN Rail | 36W | 24V | 1.5A | Indoor | $16.05 | View |
| Mean Well HDR-30-48 Ultra Slim Step Shape Power Supply 30W 48V - DIN Rail | 36W | 48V | 0.75A | Indoor | $18.31 | View |
| Mean Well HDR-30-15 Ultra Slim Step Shape Power Supply 30W 15V - DIN Rail | 30W | 15V | 2A | Indoor | $18.31 | View |
