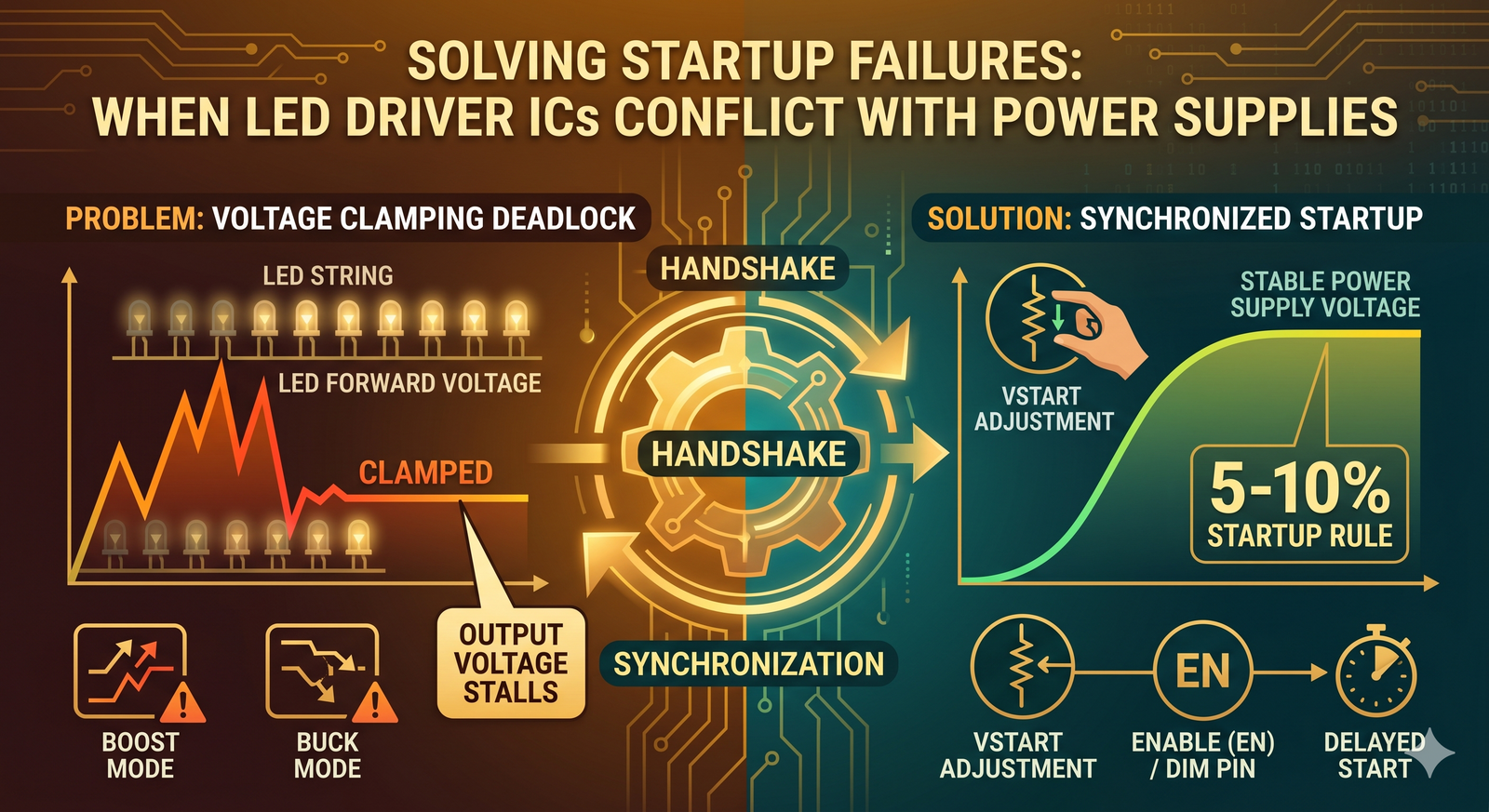

In modern LED lighting design, the combination of a Switching Power Supply (S.P.S.) and a DC-DC driver IC is standard. However, engineers often encounter a frustrating issue: the power supply turns on, but the output voltage becomes "clamped" at a low level, and the LEDs fail to illuminate.
This typically happens because the driver IC attempts to draw full power before the power supply has finished establishing its rated output voltage.
The Root Cause: Mismatched Startup Profiles
The behavior varies depending on whether your driver IC is operating in Boost or Buck mode.
1. Boost Mode Driver ICs
Boost drivers are designed to step up voltage. Often, their startup threshold is significantly lower than the total LED forward voltage.
- The Problem: The IC may trigger at just 50% of the PSU’s rated voltage. To meet the power demand at this lower voltage, the IC demands double the rated current (P = V x I).
- The Result: If the PSU cannot provide this massive current spike during its ramp-up phase, it protects itself by limiting current, causing the system to hang.
2. Buck Mode Driver ICs
Buck drivers step down voltage. Issues arise when the PSU voltage is much higher than the LED string voltage (e.g., a 48V PSU driving a 24V LED string).
- The Problem: As the PSU voltage rises and hits the LED conduction point (24V), the driver immediately demands full power.
- The Result: The power supply enters Constant Current (C.C.) mode prematurely. The voltage becomes "clamped" at the LED's forward voltage level, never reaching the 48V required for the driver to operate efficiently.
Technical Solutions & Recommendations
To ensure a smooth startup, the "handshake" between the PSU and the Driver IC must be synchronized.
- For Boost Drivers: Use the DIM or Enable (EN) pin to delay startup. By using a voltage divider V(start)= (V(dim)/R(b)) * (R(a)+R(b)), you can set the driver to wait until the PSU voltage is established.
- The 5-10% Rule: Always set the Driver IC startup voltage V(start) to be 5–10% higher than the total LED forward voltage.
- For Buck Drivers: Select a PSU voltage that is as close to the LED string voltage as possible. Additionally, ensure the PSU has enough "headroom" by following the formula: PSU Power = LED Power/0.85.
- Soft Start: Incorporate a soft-start function to gradually increase the current demand, allowing the PSU to stabilize.
Application Scenario: High-Bay Industrial Lighting
Consider an industrial high-bay light using a 48V PSU and a Buck-mode driver for a 30V LED array. Without adjustment, the PSU might get stuck at 30V during startup, causing the lights to flicker or stay dim.
By adjusting the EN pin resistors to ensure the driver only activates once the PSU hits 45V, the PSU is allowed to fully "wake up" before it takes on the load. This simple resistor change eliminates "clamping" and ensures 100% startup reliability.
Conclusion
Startup failure is rarely a sign of a faulty component; it is usually a timing conflict. By delaying the Driver IC's activation until the power supply is stable, you can prevent over-current protection from triggering and ensure your LED system performs reliably every time the switch is flipped.
