Dimming interface
Triac
Dimming range:
0-100%
Input voltage
200-240VAC
Output voltage
10-54VDC
CC output:
500mA-1750mA
Output power
5W-50W
working temperature
-30℃～55℃
Dimension
133x90x30mm(LxWxH)
Package Size
135x92x32mm(LxWxH)
Weight (G.W)
340g
Features Universal AC input / Full range 2 pole AC inlet IEC320-C8 Medical safety approved (2 x MOPP between primary to secondary) Low leakage current <50uA No load power consumption < 0.1W High efficiency up to 88% Class II power (without earth pin) Protections: Short circuit / Overload / Over voltage Fully enclosed plastic case LED indicator for power on...
Features Universal AC input / Full range Built-in active PFC function Protections: Short circuit / Overload / Over voltage / Over Temp. Vo can be trimmed 20~110% by 1~5.5VDC external control signal Built-in fan speed control Vo can be trimmed 20~110% by 1~5.5VDC external control signal Forced air cooling by built-in DC fan Built-in remote sense and ON/OFF control Built-in...
Features AC input selectable by switch 100% full load burn-in test LED indicator for power on Built-in remote sense function Forced air cooling by built-in DC fan Protections: Short circuit / Overload / Over voltage / Over temperature 2 years warranty General Specification AC input voltage range 90~132VAC / 180~264VAC selected by switch (600~1000W) AC inrush current (max.) Cold start,...
Features AC input selectable by switch 100% full load burn-in test LED indicator for power on Built-in remote sense function Forced air cooling by built-in DC fan Protections: Short circuit / Overload / Over voltage / Over temperature 2 years warranty General Specification AC input voltage range 90~132VAC / 180~264VAC selected by switch (600~1000W) AC inrush current (max.) Cold start,...
Features True sine wave output (THD<3%) High surge power up to 400W High efficiency up to 88% Fanless design, cooling by free air convention Built-in remote ON-OFF control Front panel indicator for operation status Power ON-OFF switch Protections: Short circuit / Overload / Over voltage 3 years warranty General Specification AC output voltage range 100/110/115/120VAC;200/220/230/240VAC adjustable via setting button on...
Features Universal AC input / Full range 2 pole AC inlet IEC320-C8 Medical safety approved (2 x MOPP between primary to secondary) Low leakage current <50uA No load power consumption < 0.1W High efficiency up to 91.5% Class II power (with earth pin) Protections: Short circuit / Overload / Over voltage / Over temperature Fully enclosed plastic case LED indicator...

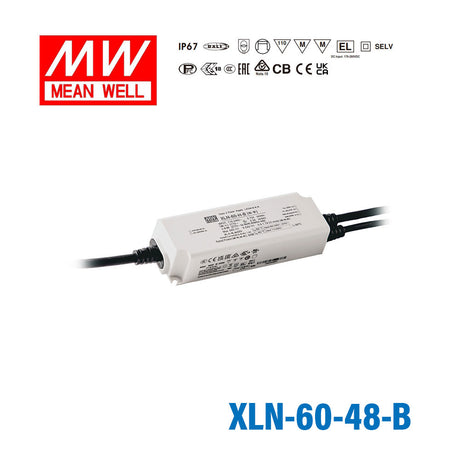

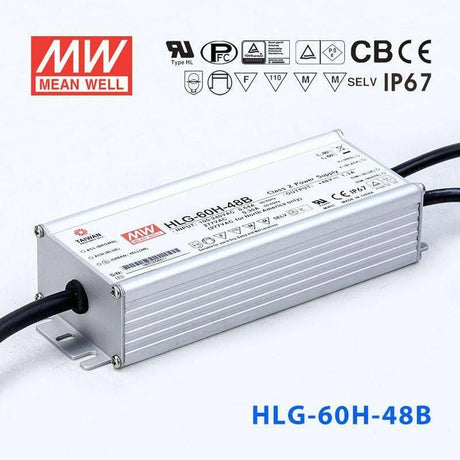

Features Constant Current mode output Metal housing with Class design Built-in active PFC function IP67 / IP65 design for indoor or outdoor installations Function options: output adjustable via potentiometer; 3 in 1 dimming; Smart timer dimming Typical lifetime>62000 hours 7 years warranty General Specification AC input voltage range 90~305VAC;127~431VDC AC inrush current Cold start, 70 at 230VAC Over voltage protection...
