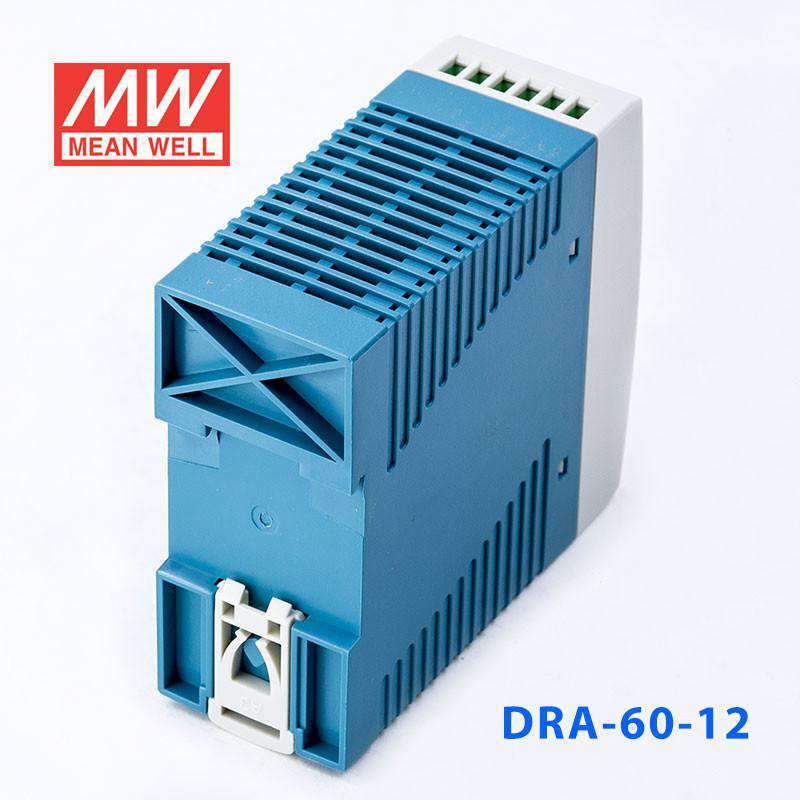

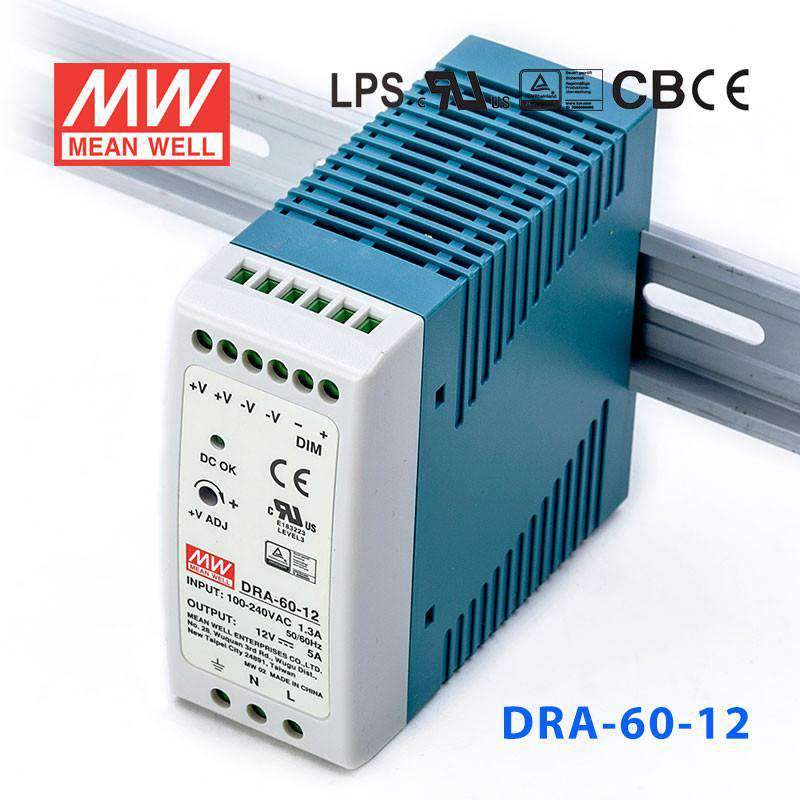

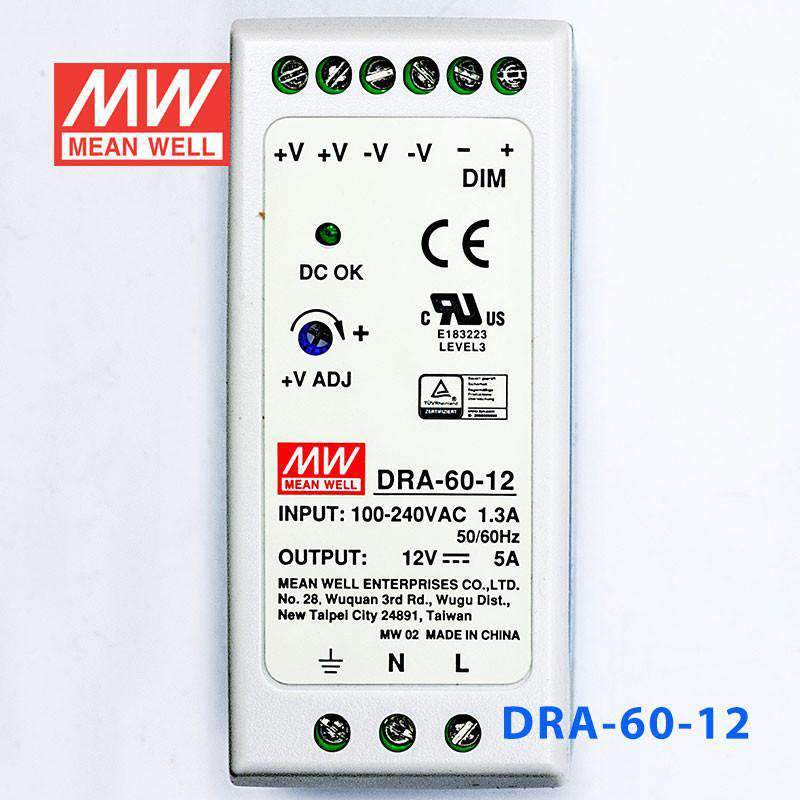

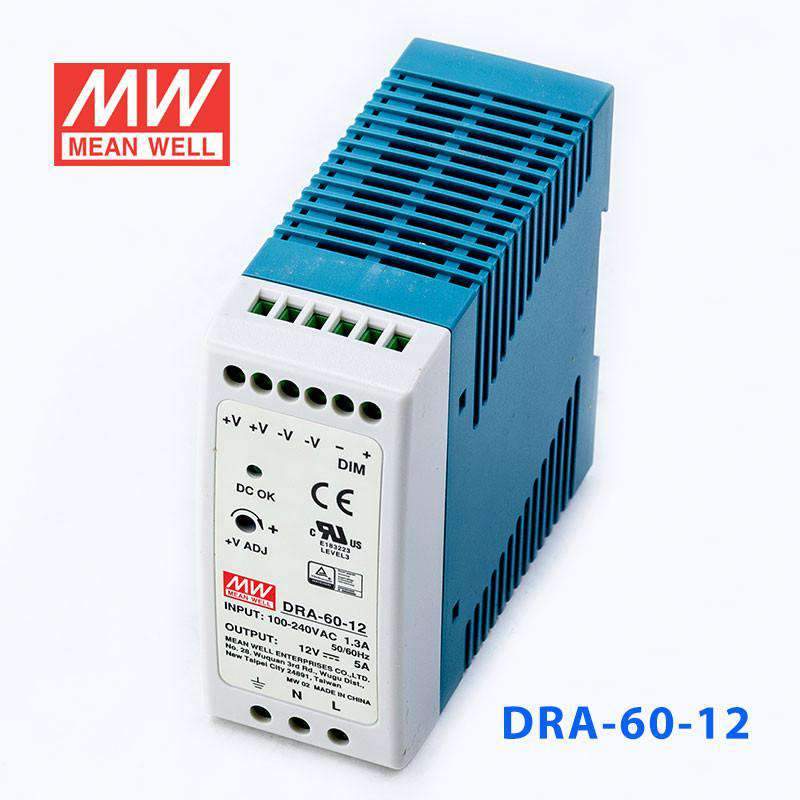

Mean Well DRA-60-12 Single Output Switching Power Supply 60W 12V 5A - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DRA-60-12 Single Output Switching Power Supply 60W 12V 5A...
Overview
DRA-60-12 is the 12V output model of this series: rated current 5A, rated power 60W, typical efficiency 85%.
DRA-60 is one 60W AC/DC DIN rail power supply, featuring the adjustable output current. Users are able to easily change the constant output current level, via 1~10Vdc, PWM signal or resistance. DRA-60 can be mounted on DIN rail TS-35/7.5 or 15; in addition, the width of the unit is only 40mm that it is well suited for the installation in a limited spacing. DRA-60 accepts the universal AC input between 90VAC and 264VAC; the efficiency is up to 87% that the entire series can operate, under free air convection, from -30 ℃ through 70 ℃ .
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage

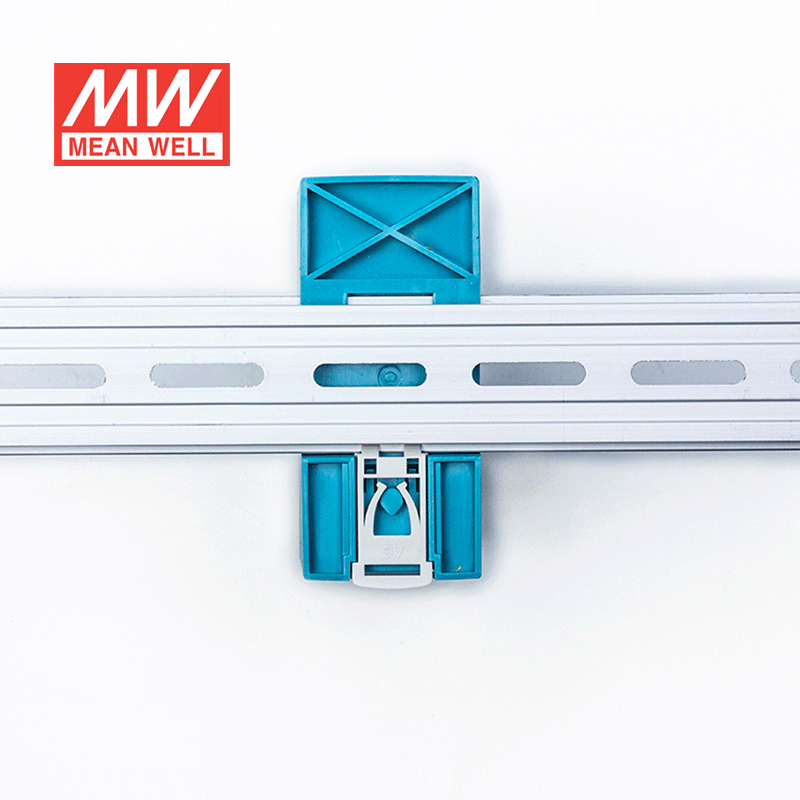

- Can be installed on DIN rail TS-35/7.5 or 15
- Output Voltage adjustable through internal potentiometer
- Output Current adjustable through external 1~10Vdc, PWM signal or resistance
- Cooling by free air convection
- Pass LPS
- LED indicator for power on
- 100% full load burn-in test
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V

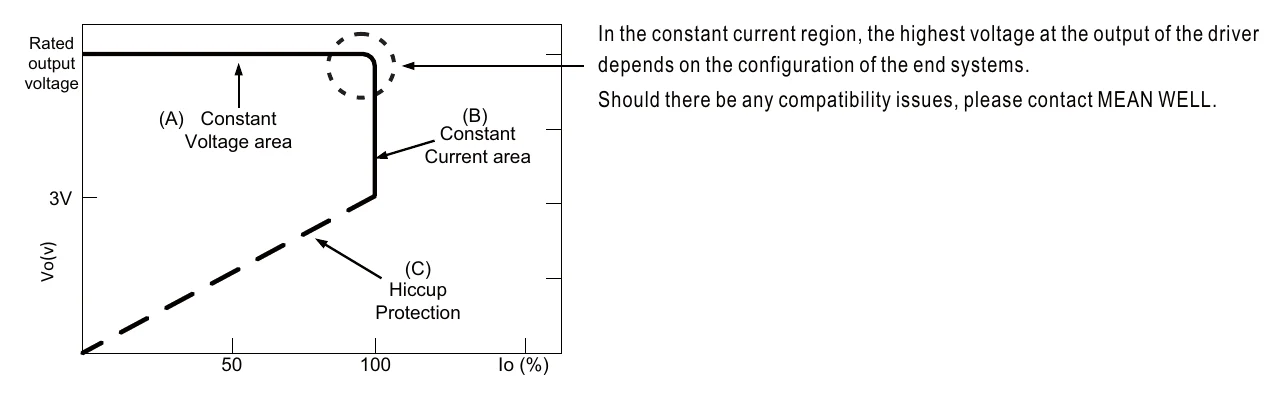

- CONSTANT CURRENT REGION
- 3 ~ 12V
- RATED CURRENT
- 5A
- CURRENT RANGE
- 0 ~ 5A
- RATED POWER
- 60W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p
- VOLTAGE ADJ. RANGE
- 12 ~ 15V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIMENote.4
- 400ms, 90ms/230VAC 800ms, 90ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 50ms/230VAC 10ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 85%
- AC CURRENT (Typ.)
- 1.3A/115VAC 0.8A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 30A/115VAC 60A/230VAC
PROTECTION
- OVERLOAD
- 95 ~ 108% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 14.49 ~ 18.63V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.

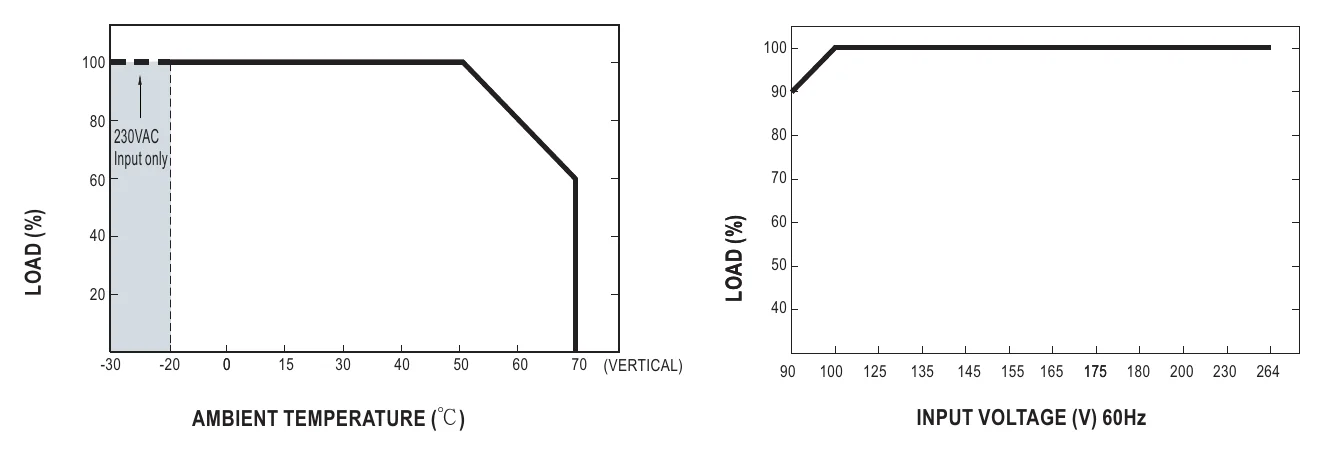

- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃) on output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- UL60950-1, TUV EN60950-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61204-3, light industry level, criteria A
OTHERS
- MTBF
- 436.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 40*90*100mm (W*H*D)
- PACKING
- 0.3Kg; 42pcs/13.6Kg/0.82CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
- 6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.

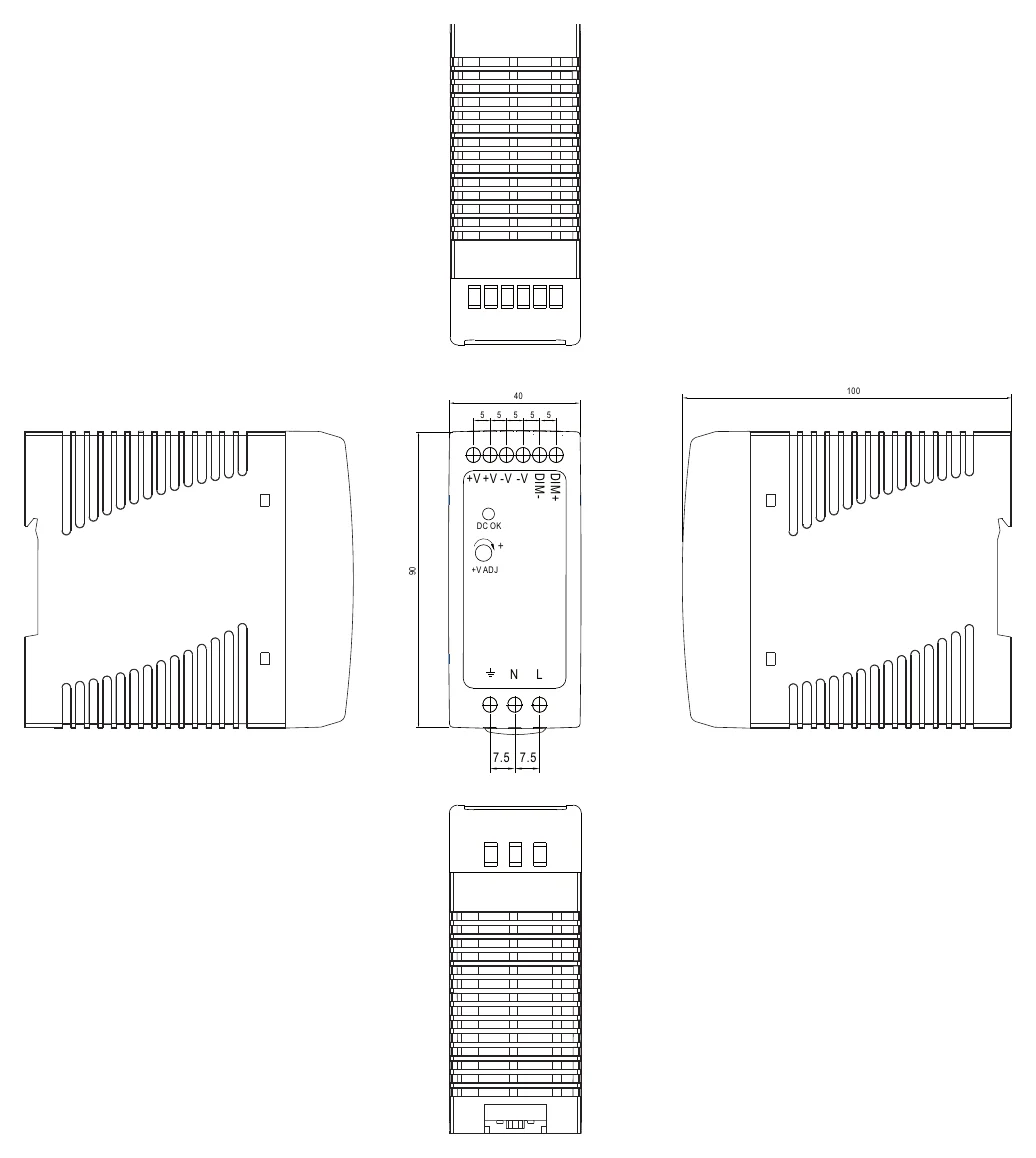

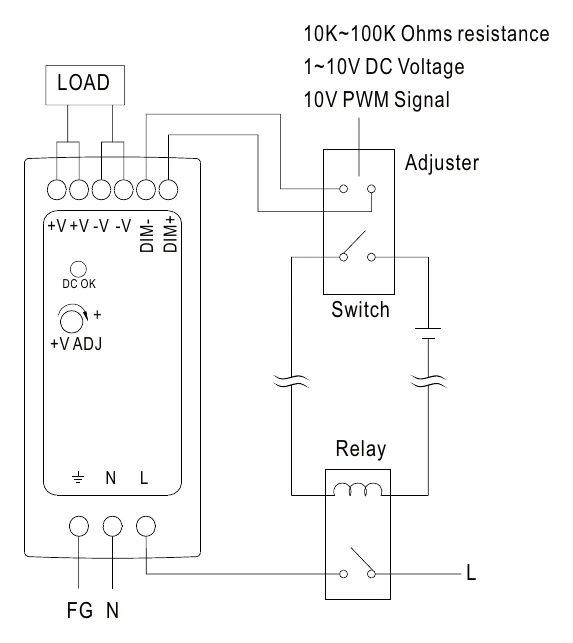

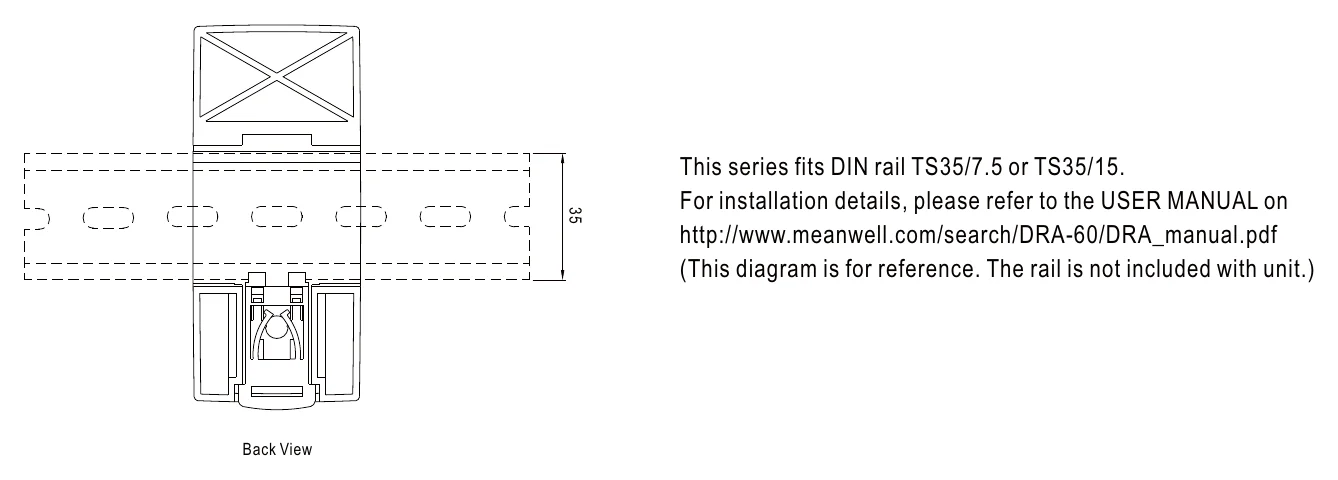

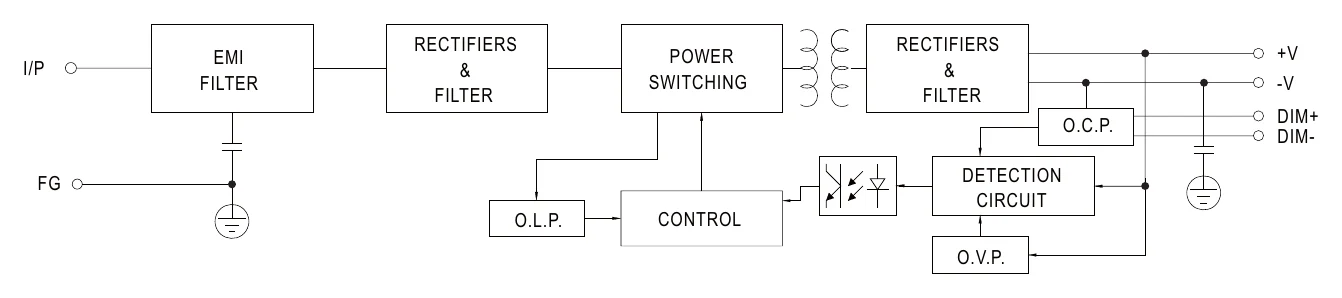

Technical drawings
Typical applications
- Machine vision inspection system
- Plant cultivation system
Downloads
Datasheet1
Certificates4
Test reports1
FAQ
Can the DRA-60-12 be used for a 12V PLC or industrial control panel with higher load than a 40W unit?
Yes. The DRA-60-12 delivers 12V DC at up to 5A with 60W output, so it supports more 12V load than the 40.08W DRA-40-12. That makes it a practical fit for 12V industrial control panels that need more current on the DIN rail.
Is the DRA-60-12 suitable for building management enclosures using 12V DC controls?
It can be used in building management or automation enclosures that require 12V DC and up to 5A. The 60W rating gives more headroom than smaller 12V DIN rail models for cabinet-based control electronics. Buyers should verify the total 12V load remains within 5A and 60W.
Can this model be used where adjustable output behavior is needed in a control cabinet?
Yes. The DRA-60-12 supports output current adjustment from 10% to 100% by 1-10VDC, PWM, or resistance, and it lists an adjustable output voltage. That makes it suitable for 12V control cabinet applications where adjustable output is part of the design requirement.
Is the DRA-60-12 appropriate for enclosed industrial cabinets with wide ambient temperature variation?
Yes. Its operating temperature range is -30°C to +70°C, which supports use in industrial control cabinets with broad indoor temperature exposure. The DIN rail form and 100.0 × 90.0 × 40.0 mm dimensions also align with enclosure-based mounting.
How does the DRA-60-12 compare with the other DRA DIN rail power supplies?
The DRA-60-12 is 60W at 12V and 5A. In the same family, DRA-40-12 is 40.08W at 12V and 3.34A, DRA-40-24 is 40.8W at 24V and 1.7A, and DRA-60-24 is 60W at 24V and 2.5A. The differences are the DC output voltage, available output current, and total wattage.
