Mean Well DRA-60-24 Single Output Switching Power Supply 60W 24V 2.5A - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DRA-60-24 Single Output Switching Power Supply 60W 24V 2....

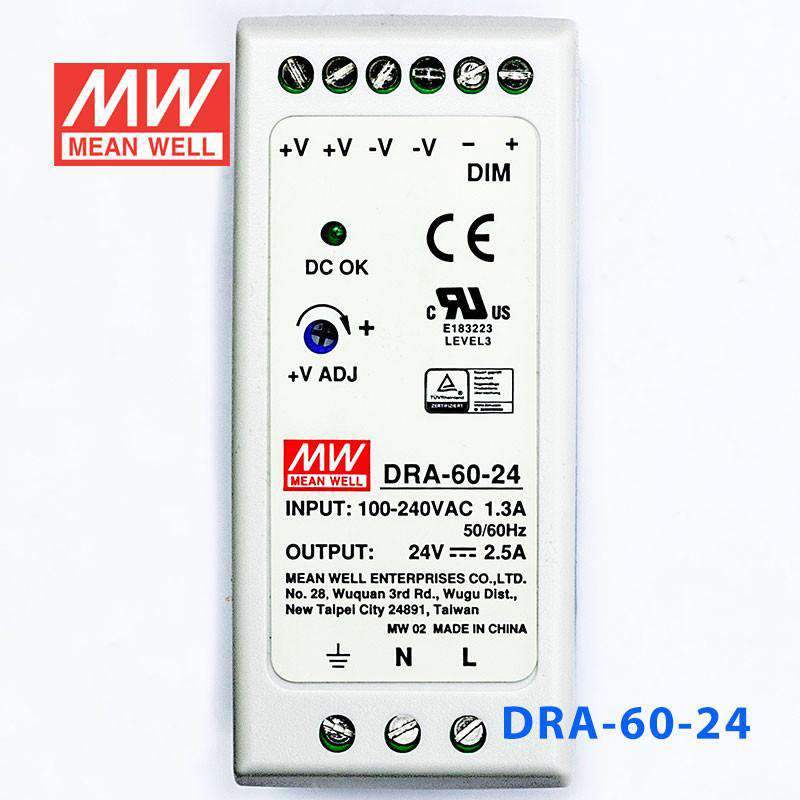

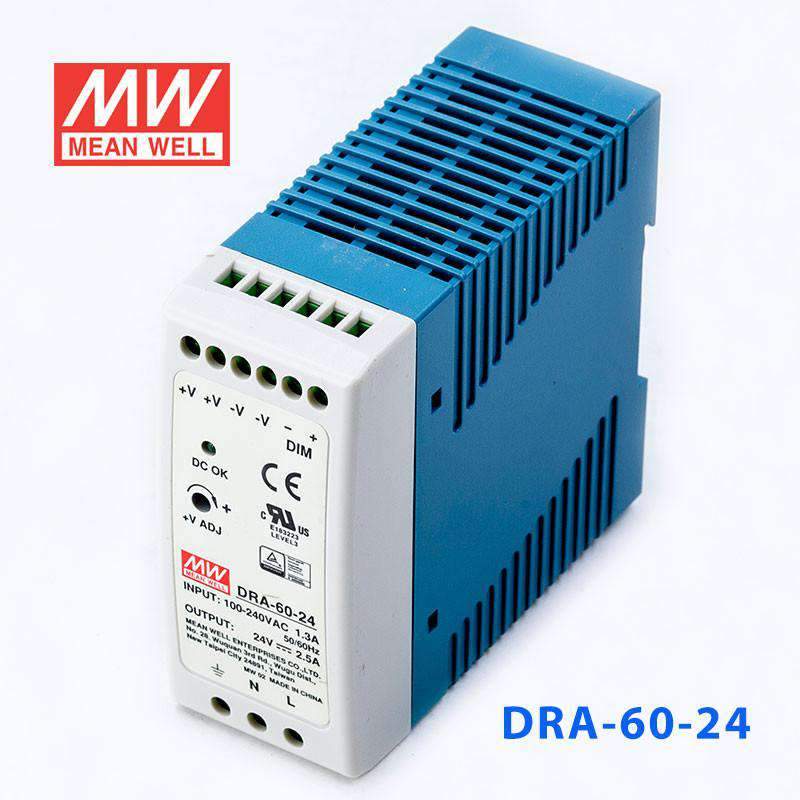

Overview
DRA-60-24 is the 24V output model of this series: rated current 2.5A, rated power 60W, typical efficiency 87%.
DRA-60 is one 60W AC/DC DIN rail power supply, featuring the adjustable output current. Users are able to easily change the constant output current level, via 1~10Vdc, PWM signal or resistance. DRA-60 can be mounted on DIN rail TS-35/7.5 or 15; in addition, the width of the unit is only 40mm that it is well suited for the installation in a limited spacing. DRA-60 accepts the universal AC input between 90VAC and 264VAC; the efficiency is up to 87% that the entire series can operate, under free air convection, from -30 ℃ through 70 ℃ .
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage

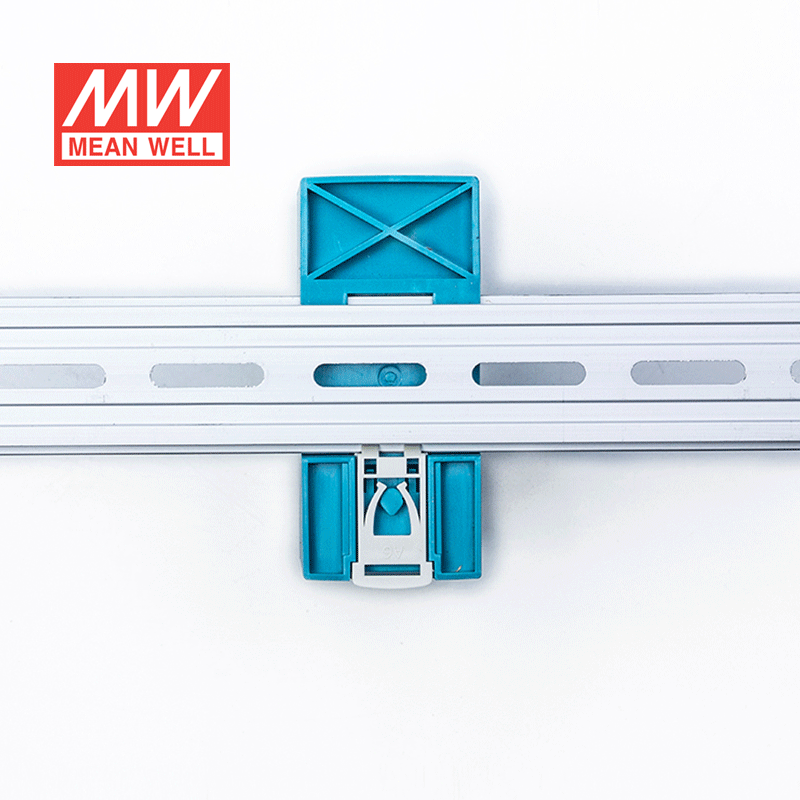

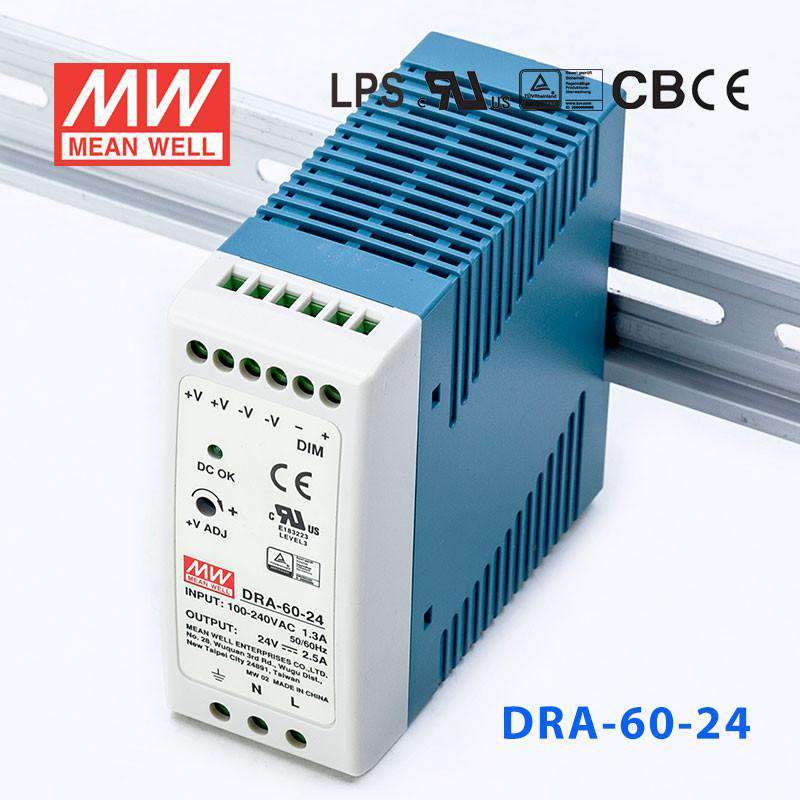

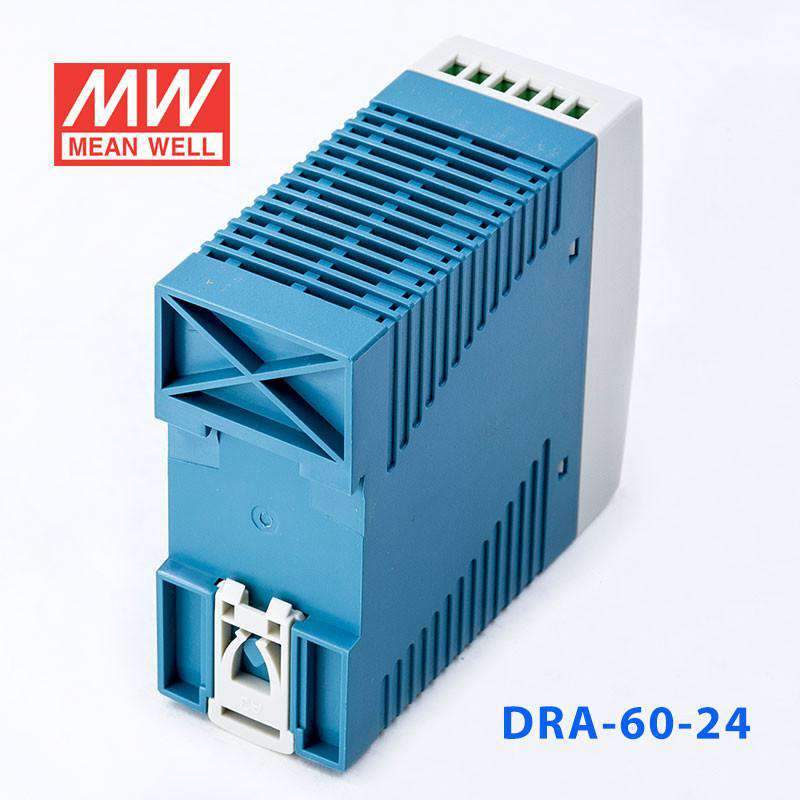

- Can be installed on DIN rail TS-35/7.5 or 15
- Output Voltage adjustable through internal potentiometer
- Output Current adjustable through external 1~10Vdc, PWM signal or resistance
- Cooling by free air convection
- Pass LPS
- LED indicator for power on
- 100% full load burn-in test
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- CONSTANT CURRENT REGION
- 3 ~ 24V
- RATED CURRENT
- 2.5A
- CURRENT RANGE
- 0 ~ 2.5A
- RATED POWER
- 60W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 24 ~ 30V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIMENote.4
- 400ms, 90ms/230VAC 800ms, 90ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 50ms/230VAC 10ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 87%
- AC CURRENT (Typ.)
- 1.3A/115VAC 0.8A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 30A/115VAC 60A/230VAC
PROTECTION
- OVERLOAD
- 95 ~ 108% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 28.98 ~ 37.26V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃) on output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 5)
- SAFETY STANDARDS
- UL60950-1, TUV EN60950-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61204-3, light industry level, criteria A
OTHERS
- MTBF
- 436.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 40*90*100mm (W*H*D)
- PACKING
- 0.3Kg; 42pcs/13.6Kg/0.82CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
- 6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
Technical drawings
Typical applications
- Machine vision inspection system
- Plant cultivation system
Downloads
Datasheet1
Certificates4
Test reports1
FAQ
Can I use the Mean Well DRA-60-24 for a 24V PLC or control panel?
Yes. This DIN rail power supply provides a 24V DC output at 2.5A with 60W total power, which fits many 24V PLC and control panel applications. Its DIN rail form factor and 100.0 × 90.0 × 40.0 mm size also suit space-conscious panel layouts.
Is the DRA-60-24 suitable for industrial automation cabinets?
Yes. The DRA-60-24 is a DIN rail power supply with a 90-264VAC input and a 24V, 2.5A output, which matches common industrial automation cabinet power requirements. Its operating temperature range of -30°C to +70°C supports use in control cabinet environments.
Can this 24V DIN rail power supply be used in building management or control systems?
Yes. The unit supplies 24V DC at 60W and mounts on DIN rail, which is a common format for building management and control system panels. Its slim 40.0 mm depth can also help in tighter enclosure spaces.
Is the DRA-60-24 intended for use inside an enclosure or control cabinet?
Yes. This model is designed as a DIN rail power supply, which is commonly used inside control cabinets and enclosures rather than as a standalone open-area power source. Its 100.0 × 90.0 × 40.0 mm dimensions and -30°C to +70°C operating range make it appropriate for enclosed panel environments.
What is the difference between the DRA-60-24 and other DRA series models?
The DRA-60-24 is rated for 60W with a 24V output at 2.5A. In the same series, the DRA-40-12 is 40.08W at 12V and 3.34A, the DRA-40-24 is 40.8W at 24V and 1.7A, and the DRA-60-12 is 60W at 12V and 5A.
