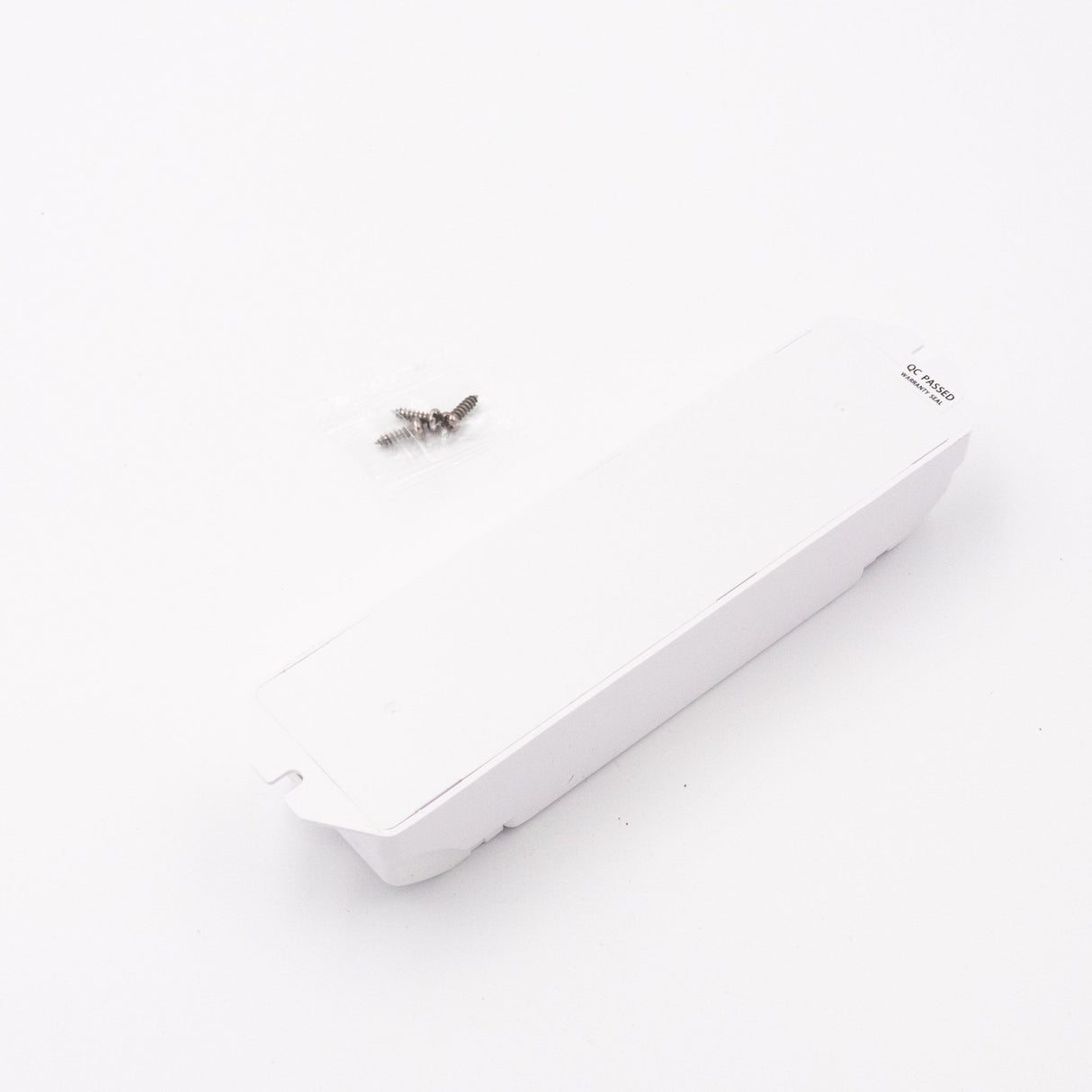

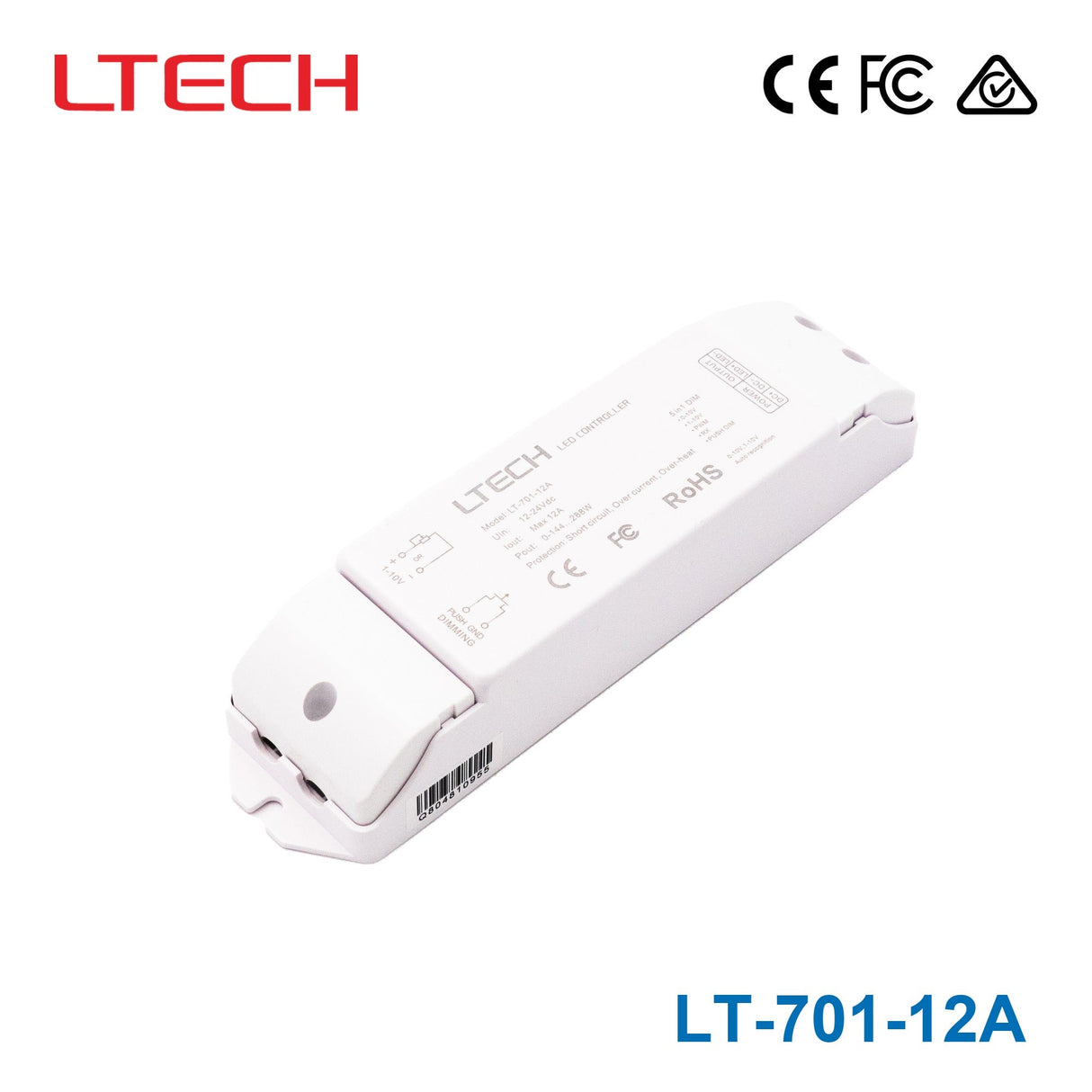

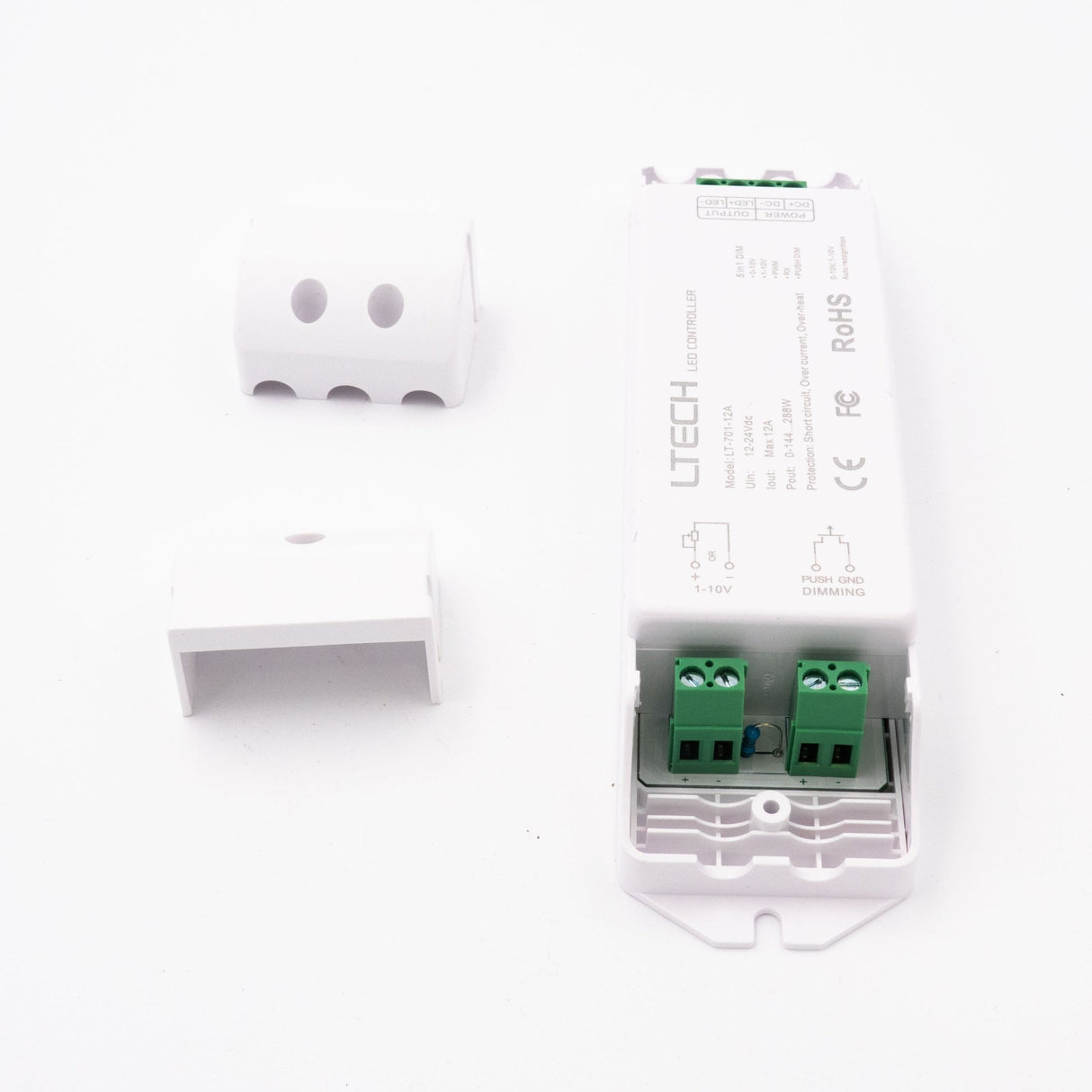

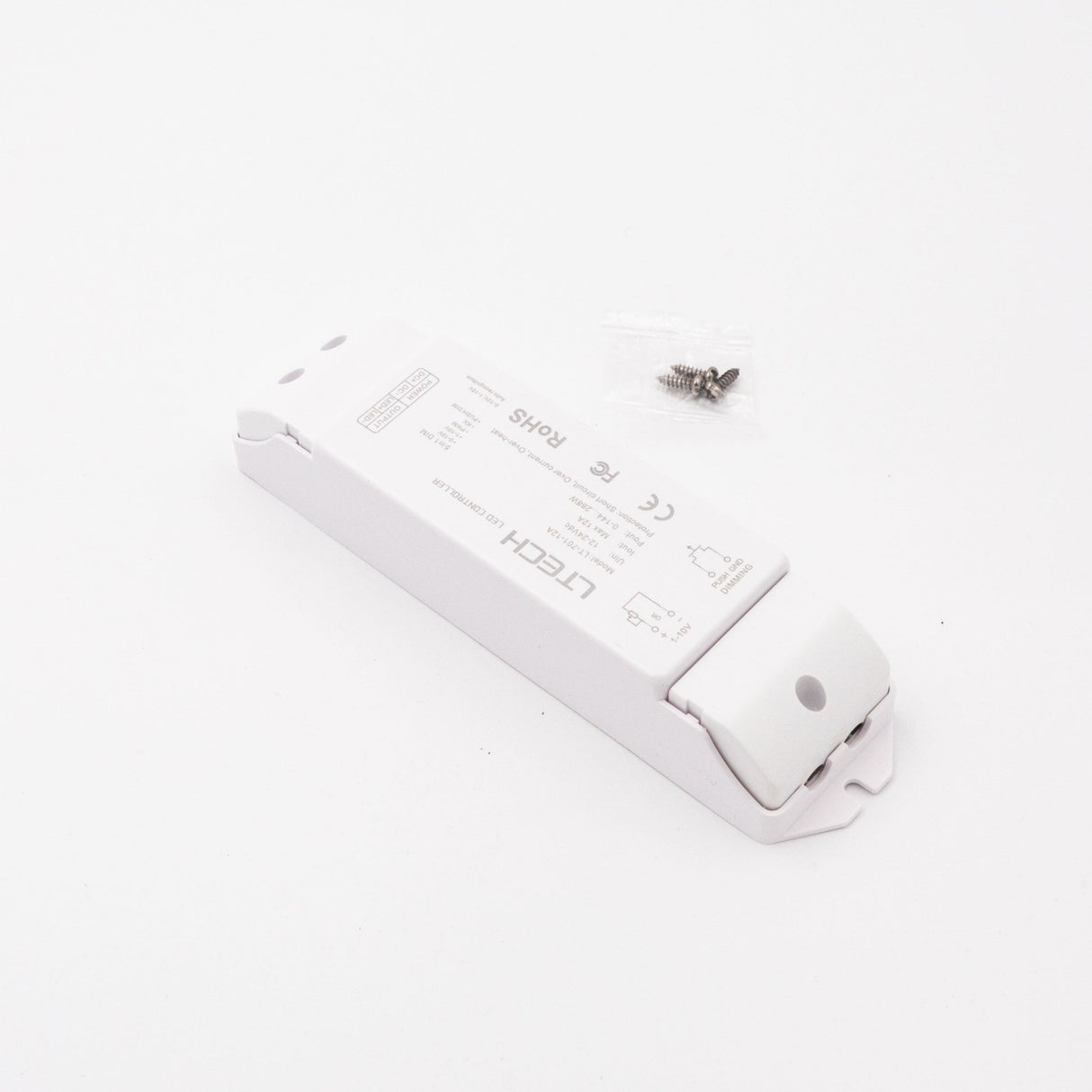

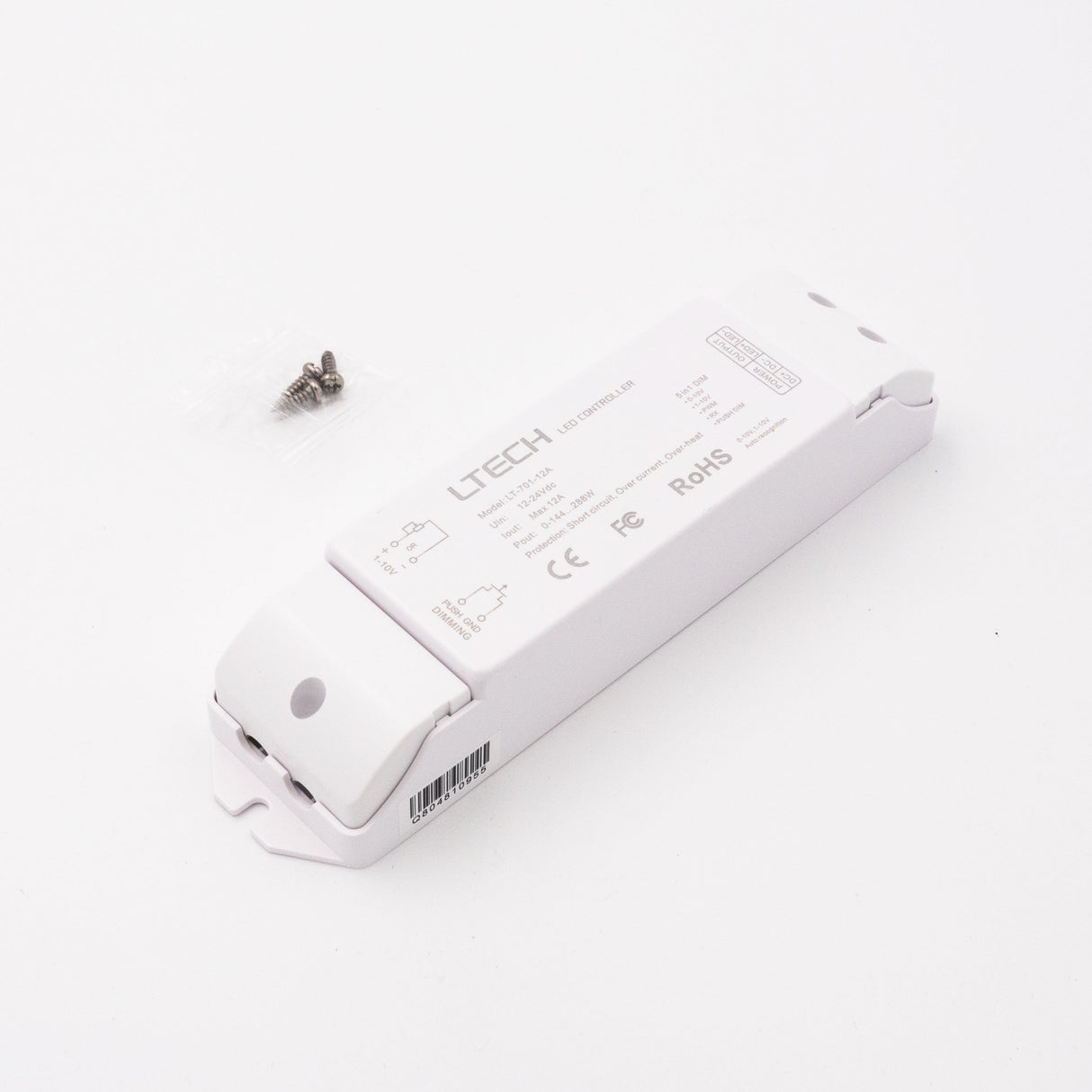

Ltech LT-701-12A Constant Voltage Controller - 0-10V/Push Dimmable
- Dimming interface:0-10V
- 1-10V
- 10V PWM or push button.
- Automatic identification of 0-10V
- 1-10V input signal.
- PWM digital dimming
- no alter LED color rendering index.
- Dimming range: 0~100%
- LED start at 0.1% possible.
- Max. current output: 12A.
- Short circuit / Over load / Over-heat protection
- recover automatically.
- Full protective plastic housing.
- Suitable for indoor environments.
-
BrandLtech
-
SeriesLtech 0/1-10V Series
-
Power Rating288 Watt
-
Output Voltage12 Volt
-
Rated Current12 Ampere
-
Input Voltage12V~24V
-
No of Output1
-
Dimming Control0-10V,10V PWM,1-10V,Push Dimming
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What type of dimming control does the Ltech LT-701-12A support?
The LT-701-12A supports 0-10V, 1-10V, 10V PWM, and push dimming control. It also automatically identifies 0-10V and 1-10V input signals, which makes it suitable for systems that use either standard.
What are the main electrical ratings for the LT-701-12A?
This model is a 12V constant voltage controller rated for up to 12A output current. Its maximum power rating is 288W, matching applications that need constant-voltage dimming at 12V.
What kinds of LED lighting applications is the LT-701-12A best suited for?
The LT-701-12A is designed for constant-voltage LED dimming applications where 0-10V, 1-10V, 10V PWM, or push dimming is required. It is a practical fit for commercial and professional indoor LED control systems using 12V loads.
How smooth is the dimming range on this controller?
The LT-701-12A provides a dimming range from 0 to 100 percent, with LED startup possible at 0.1 percent. It uses PWM digital dimming and is specified to avoid altering the LED color rendering index during dimming.
Can the LT-701-12A be used in indoor or outdoor environments?
This controller is intended for indoor environments. Its operating temperature range is -30°C to 55°C, which supports use in a wide range of interior commercial and industrial settings.
What protection features are built into the LT-701-12A?
The LT-701-12A includes short circuit, overload, and over-heat protection. These protections are designed to recover automatically, helping support safer operation in demanding LED control applications.
How does the LT-701-12A compare to controllers with only one dimming method?
A key advantage of the LT-701-12A is that it supports multiple dimming control types in one model: 0-10V, 1-10V, 10V PWM, and push dimming. That flexibility can make it a better choice for projects where control standards vary across equipment or specifications.
