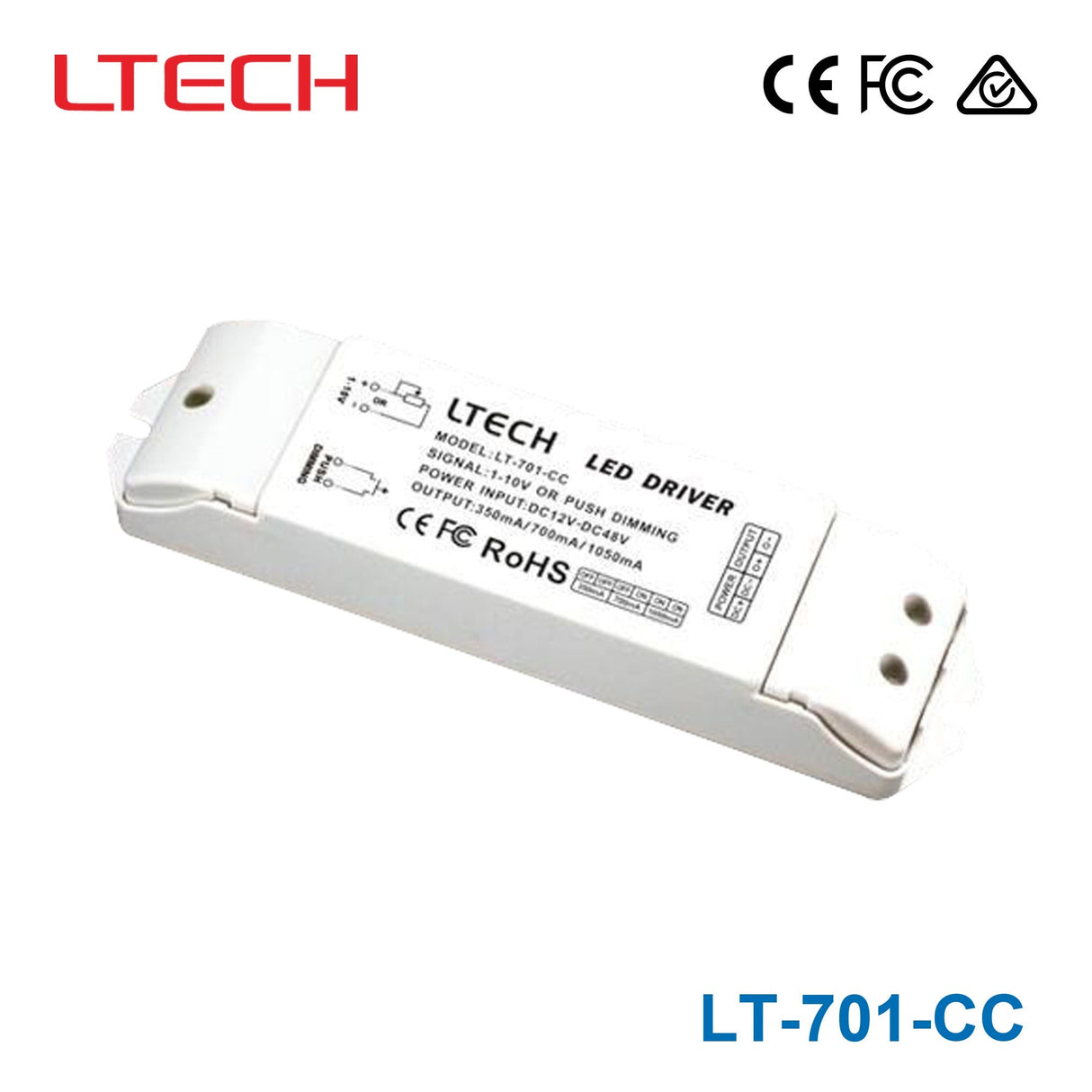

Ltech LT-701-CC 0/1-10V LED Dimming Driver
-
BrandLtech
-
Power Rating65 Watt
-
Output Voltage46 Volt
-
Rated Current1.05 Ampere
-
Input Voltage12V~48V
-
No of Output1
-
Dimming Control1-10V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What does the Ltech LT-701-CC do?
The LT-701-CC is a 0/1-10V to PWM LED dimming driver for constant-current LED lighting. It is designed to bridge traditional 0-10V or 1-10V dimming systems with high-power LED loads while providing smooth 0-100% dimming performance.
What output options does the LT-701-CC support?
This model supports selectable constant-current output levels of 350mA, 700mA, and 1050mA. Its rated current is listed at 1050mA, with a maximum output voltage of 46V and a 65W power rating.
Is the LT-701-CC compatible with standard 0-10V and 1-10V dimming systems?
Yes. The product description states that the LT-701-CC is compatible with active and passive 0-10V and 1-10V dimming control, and it also supports push-button dimming. It is intended for use with many traditional intelligent dimming systems.
Which dimming system brands is the LT-701-CC intended to work with?
According to the product description, this model is designed for compatibility with systems such as Lutron, Dynalite, Schneider, Clipsal, Osram, Philips, and ABB. That makes it a practical option for retrofit or integration projects using established control platforms.
What makes the LT-701-CC different from a basic LED dimming driver?
The LT-701-CC is positioned as a flexible replacement for multiple driver models because it combines 0/1-10V compatibility, push-button dimming support, and multiple current options in one unit. It is also described as delivering a dimming curve that is more comfortable to human vision for a more natural lighting effect.
Is the LT-701-CC suitable for demanding commercial environments?
It is rated for operation from -30°C to 55°C, which supports use in a wide range of indoor commercial and industrial conditions. The unit also includes a 5-year warranty, which is relevant for buyers evaluating long-term deployment and maintenance expectations.
