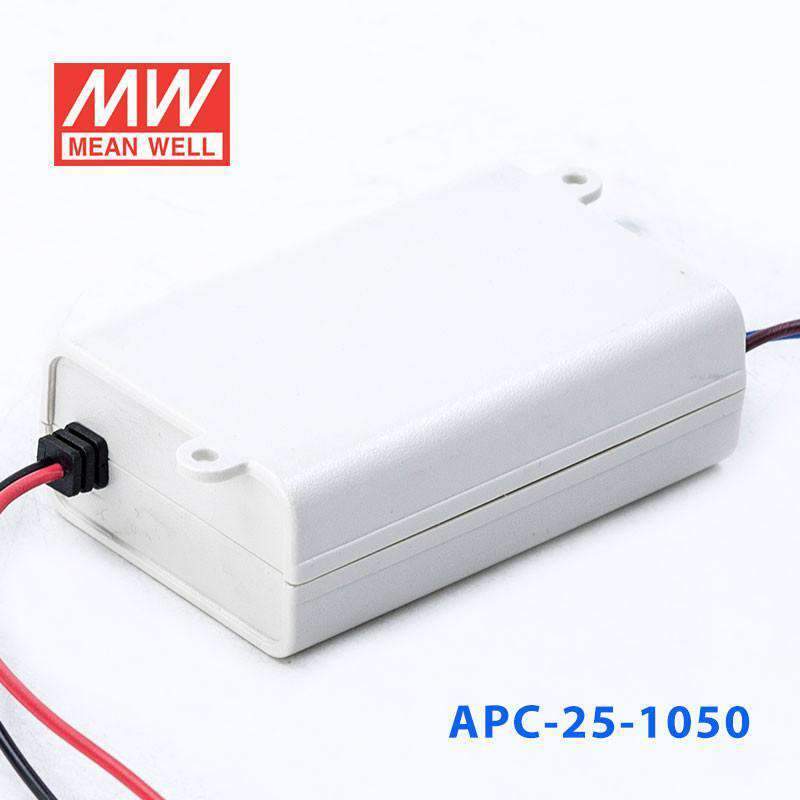

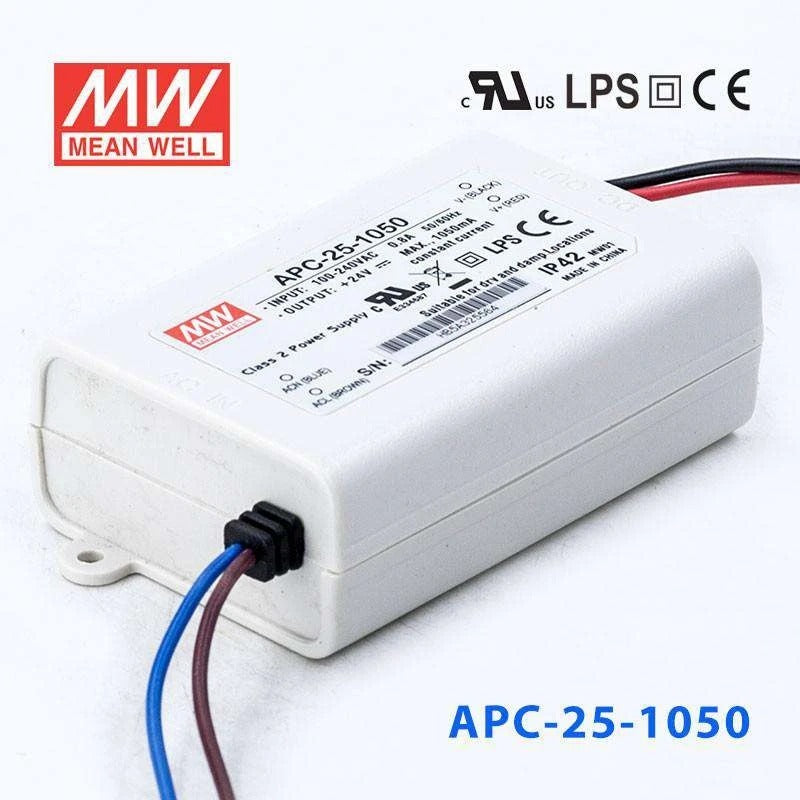

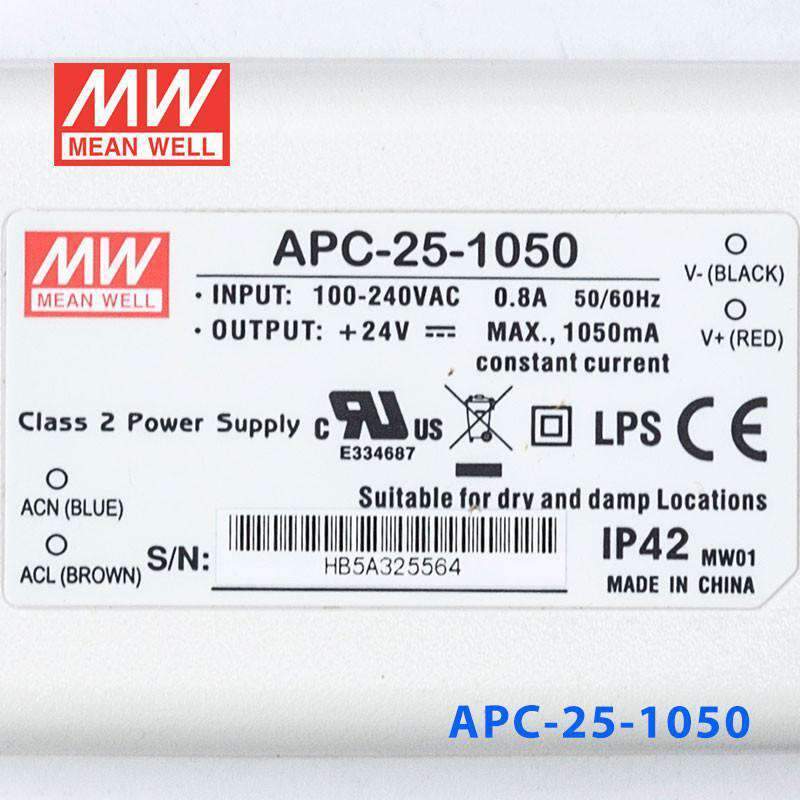

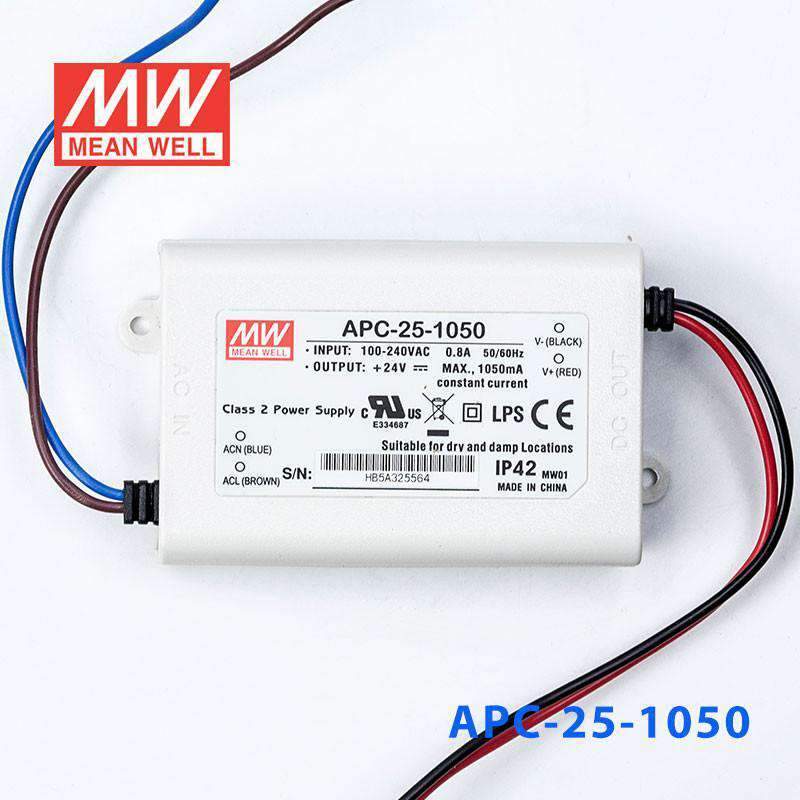

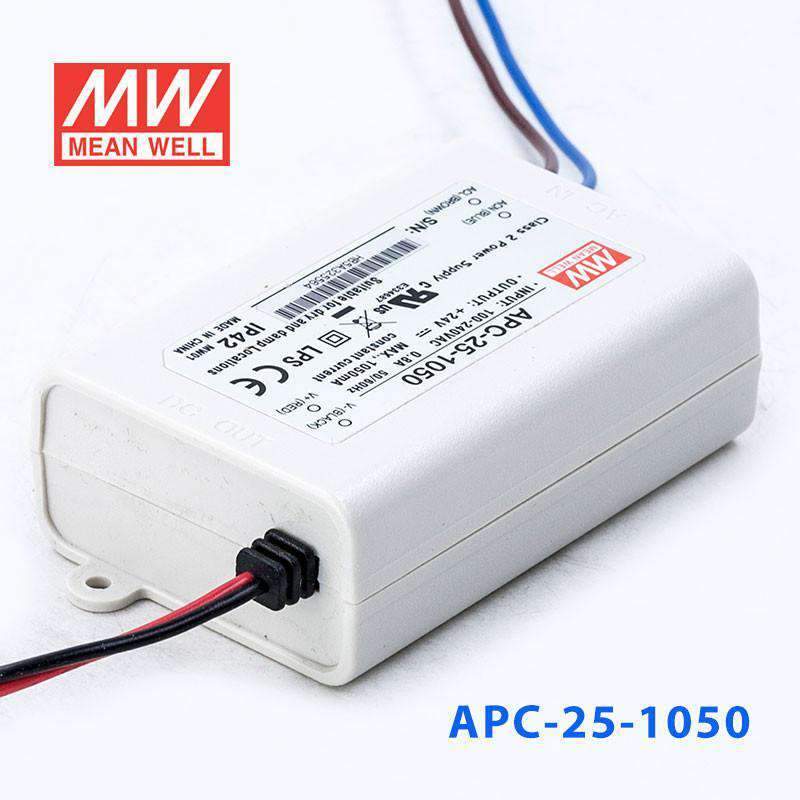

Mean Well APC-25-1050 Power Supply 25W 1050mA
The APC-25 is a 25.2W Mean Well AC-DC constant current LED driver (input: 90~264VAC, output: 24V, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 24V
- ✓ Rated output current: 1050mA
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP42
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: BSMI, CE, cUL, EAC
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating25.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What kinds of LED applications is the APC-25-1050 designed for?
The Mean Well APC-25-1050 is designed for constant-current LED lighting and moving sign applications that need a 1050mA drive current. With 25.2W rated power, it is a fit for higher-current LED loads that need more output than the smaller APC drivers.
Is the APC-25-1050 a good fit for 1050mA LED loads?
Yes. The APC-25-1050 is built as a 1050mA constant-current driver, so it should be paired with LED loads designed for that current level. The connected LED load also needs to stay within the driver's output capability and rated power.
Can the APC-25-1050 be used for indoor LED sign and lighting assemblies?
Yes. The product features specifically call out LED lighting and moving sign applications, so indoor sign lighting, linear LED assemblies, and other constant-current LED loads can be suitable when their electrical requirements match the driver's 1050mA design.
Will the APC-25-1050 operate from standard AC mains?
Yes. The listed AC input range is 90-264VAC, so the APC-25-1050 can run from common 120V and 240V AC mains systems within that range. That helps simplify deployment across different sites.
Is the APC-25-1050 intended for direct outdoor use?
No. The APC-25-1050 uses an IP30 design, so it is intended for indoor use or protected enclosures rather than direct exposure to weather. Its working temperature range is listed as -30°C to +70°C, but ingress protection still needs to be addressed separately.
How does the APC-25-1050 compare with other APC series drivers?
The APC-25-1050 provides 25.2W at 1050mA, while the APC-25-700 and APC-25-500 provide the same wattage class at lower current levels, and the APC-16-700 provides lower wattage at 700mA. The main choice is matching the driver current to the LED load and selecting enough power margin.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other APC-25 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well APC-25-700 Power Supply 25W 700mA | 25.2W | 36V | 0.7A | IP42 | $11.74 | View |
| Mean Well APC-25-500 Power Supply 25W 500mA | 25.2W | 50V | 0.5A | IP42 | $11.74 | View |
| Mean Well APC-25-350 Power Supply 25W 350mA | 24.5W | 70V | 0.35A | IP42 | $10.51 | View |
