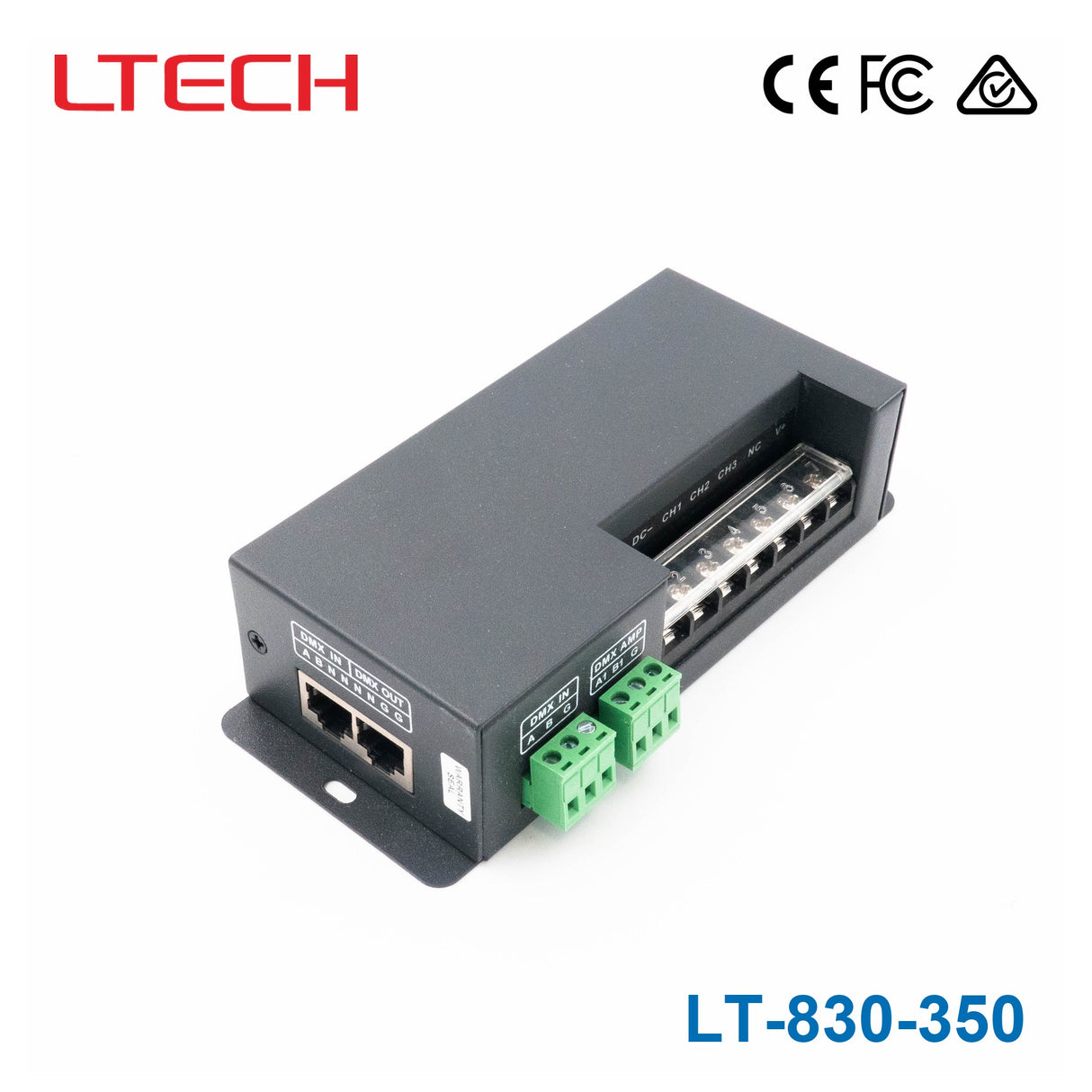

Ltech LT-830-350 DMX/RDM 3CH CC DECODER
The LT-830-350 is a 3-channel constant-current DMX/RDM decoder for LED lighting control. It is intended for single-color, dual-color, or RGB LED lamp applications where DMX-based dimming or lighting effects are required.
Input 3~46VDC. 350mA/700mA/1050mA, 3 Channel. Operating temperature -30~+65°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 3~46VDC
- ✓Output signal: Normal
- ✓Output channels: 350mA/700mA/1050mA - 3 Channel
- ✓Maximum total load: 48W
- ✓Ingress protection: IP20
- ✓Operating temperature: -30~+65°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 156 x 78 x 40mm
- ✓5 year warranty
-
BrandLtech
-
Power Rating48 Watt
-
Output Voltage46 Volt
-
Rated Current0.35 Ampere
-
Input Voltage3V~46V
-
No of Output3
-
Dimming ControlNon Dimmable
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length6.14 in
-
Width3.07 in
-
Height1.57 in
-
Weight0.97 lb
::specification::
Frequently Asked Questions
What is the Ltech LT-830-350 used for?
The LT-830-350 is a 3-channel constant-current DMX/RDM decoder for LED lighting control. It is intended for single-color, dual-color, or RGB LED lamp applications where DMX-based dimming or lighting effects are required.
What output rating does the LT-830-350 provide?
This model is rated for 350 mA constant current output and up to 46 V output voltage. Its listed power rating is 48 W, which makes it suitable for low-power constant-current LED control applications within those published limits.
Does the LT-830-350 support RDM as well as DMX512?
Yes. The product description states that it supports the standard RDM remote device management protocol along with DMX512 bi-directional communication. That allows remote reading and writing of the DMX address when the master controller recognizes RDM.
Can the LT-830-350 be used for dimming and lighting effects?
Yes. The LT-830-350 is described as supporting 0-100% dimming as well as different lighting effects. That makes it relevant for projects that need more than basic on/off LED control.
What types of LED fixtures is the LT-830-350 compatible with?
According to the product description, it is workable with single-color, dual-color, and RGB LED lamps. That gives it broader application flexibility than a decoder limited to only one fixture color format.
Is the LT-830-350 suitable for demanding temperature conditions?
This model has a stated operating temperature range of -30 C to 65 C. Buyers needing a decoder for cold or warm commercial environments should compare those limits against the actual ambient conditions of the project site.
What warranty comes with the Ltech LT-830-350?
The listed warranty period for the LT-830-350 is 5 years. That is a useful differentiator for buyers comparing commercial LED control components for longer-term projects.
