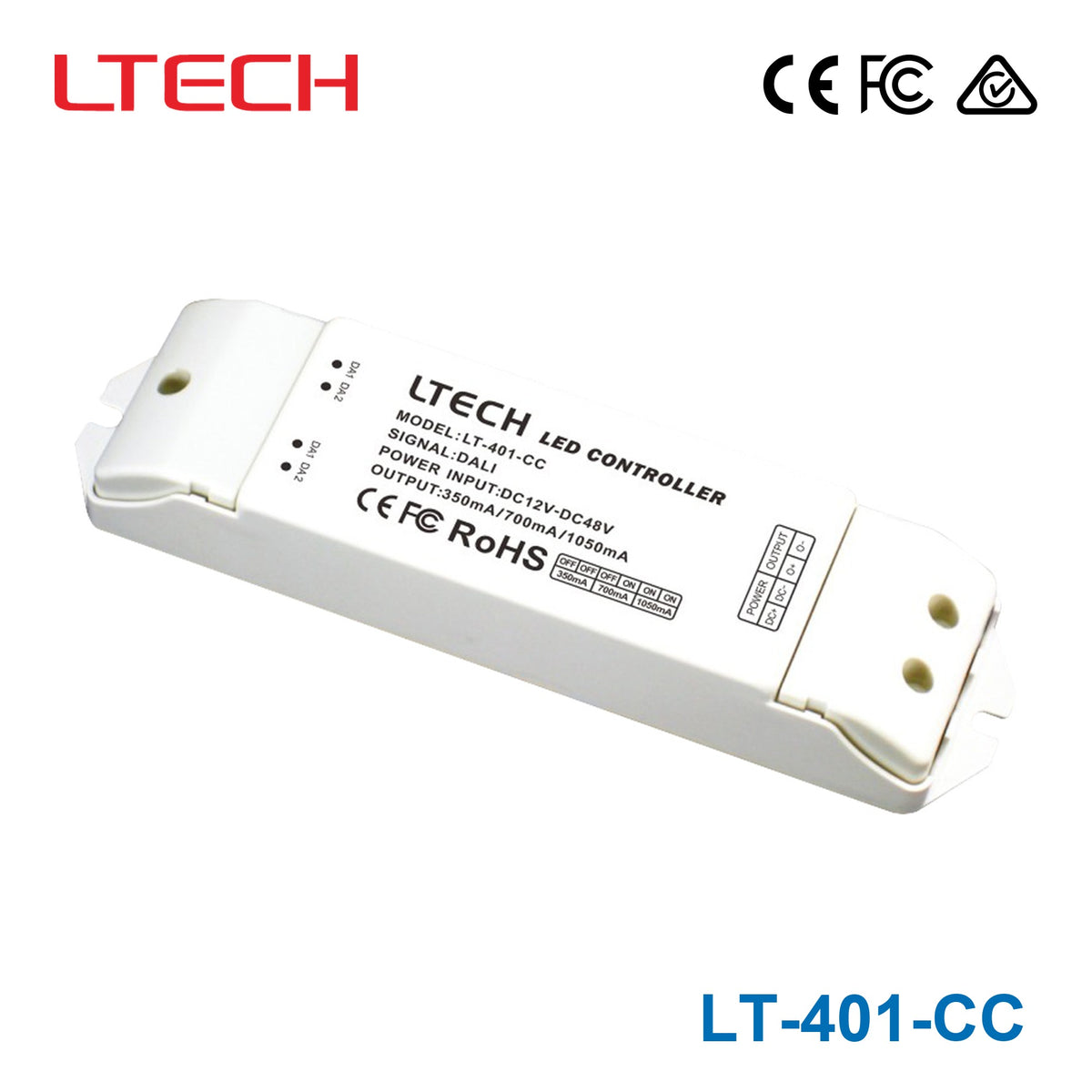

Ltech LT-401-CC Dali LED Dimming driver
The LT-401-CC is a constant-current DALI LED dimming driver for high-power LEDs. It is described as supporting a wide connection range of 1 to 13 pieces, covering 1W to 50W LED loads within its operating capability.
Input 12~48VDC. 350ma/700ma/1050ma - 1 channel. Operating temperature -30~+55°C. Backed by a 5 year warranty.
Key Features
- ✓Input voltage: 12~48VDC
- ✓Dimming: DALI
- ✓Output channels: 350mA/700mA/1050mA - 1 Channel
- ✓Output voltage: 46V
- ✓Rated output current: 700mA
- ✓Rated power: 50W
- ✓Ingress protection: IP20
- ✓Operating temperature: -30~+55°C
- ✓Certifications: CE, FCC, RCM
- ✓Dimensions: 175 x 44 x 30mm
- ✓5 year warranty
-
BrandLtech
-
Power Rating50 Watt
-
Output Voltage46 Volt
-
Rated Current0.7 Ampere
-
Input Voltage48V~12V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.29 lb
::specification::
Frequently Asked Questions
What type of LED load is the Ltech LT-401-CC designed for?
The LT-401-CC is a constant-current DALI LED dimming driver for high-power LEDs. It is described as supporting a wide connection range of 1 to 13 pieces, covering 1W to 50W LED loads within its operating capability.
What output current options are available on the LT-401-CC?
This model supports 3-in-1 current selection: 350mA, 700mA, and 1050mA. That gives the LT-401-CC more flexibility than a single-current driver when matching compatible constant-current LED loads.
Does the LT-401-CC support DALI dimming?
Yes. The LT-401-CC is specified with DALI dimming control, making it suitable for projects that use DALI-based lighting control systems. For buyers standardizing on DALI, this is the key control protocol supported by this model.
What are the main electrical ratings of the LT-401-CC?
The listed power rating is 50W, the maximum output voltage is 46V, and the rated current is 700mA. In addition, the driver offers selectable current settings of 350mA, 700mA, or 1050mA depending on the application.
Can the LT-401-CC replace multiple constant-current driver models?
Yes. The product description states that one LT-401-CC can substitute for more than 10 similar models because of its selectable 350mA, 700mA, and 1050mA current options. That can simplify purchasing and stocking for businesses handling varied LED load requirements.
Is the LT-401-CC suitable for demanding temperature conditions?
It is rated for ambient temperatures from -30°C to 55°C. That gives it a relatively broad operating range for commercial and professional lighting environments where temperature tolerance matters.
What warranty is provided for the Ltech LT-401-CC?
The listed warranty period for this model is 5 years. For B2B buyers, that longer warranty can be relevant when evaluating lifecycle cost and maintenance expectations.
