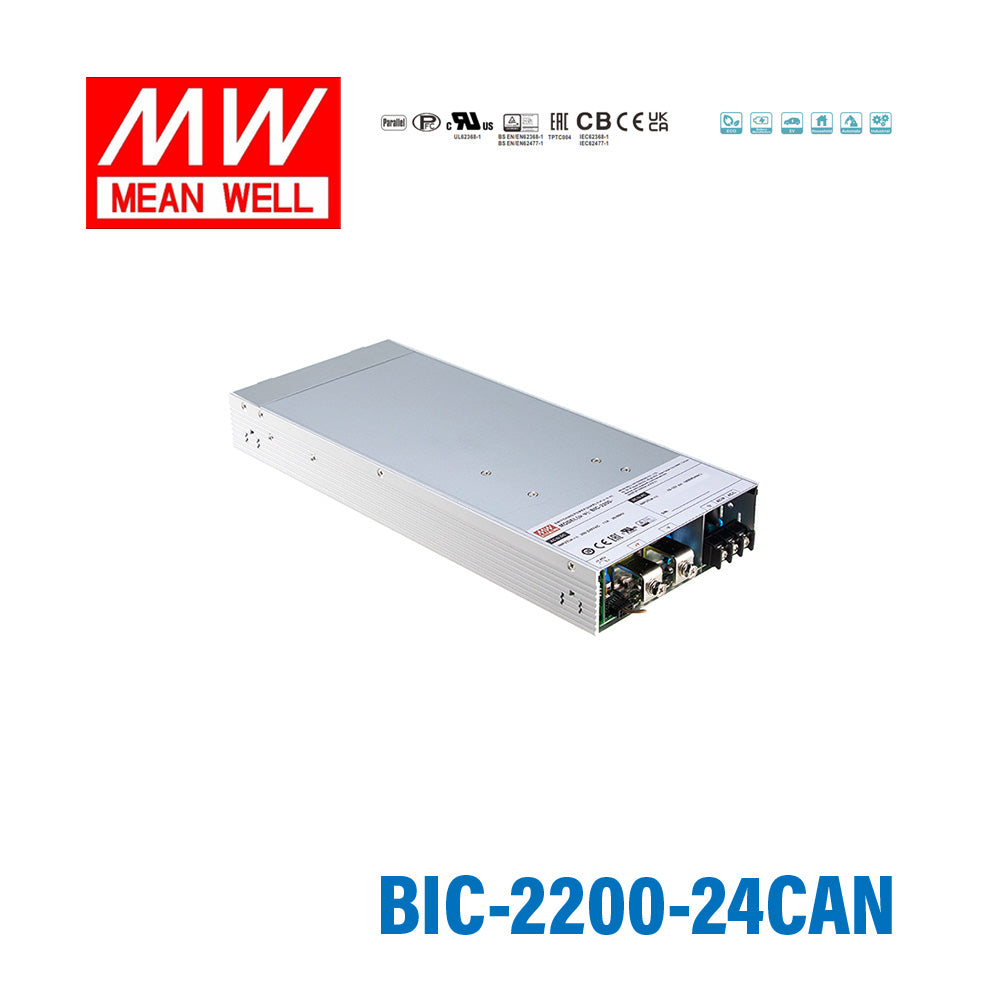

Mean Well BIC-2200-24CAN Power Supply 2200W 24V 90A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well BIC-2200-24CAN Power Supply 2200W 24V 90A
The BIC-2200-24CAN is a 2200W Mean Well power supply (input: 180~264VAC, operating temperature: -40~+70°C).
Key Features
- ✓ Input voltage: 180~264VAC
- ✓ Output voltage (max): 24V
- ✓ Rated output current: 90A
- ✓ Operating temperature: -40~+70°C
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesBIC Series
-
Power Rating2200 Watt
-
Output Voltage24 Volt
-
Rated Current90 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length12.99 in
-
Width5.51 in
-
Height1.61 in
-
Weight6.39 lb
::specification::
Frequently Asked Questions
What is the BIC-2200-24CAN typically used for?
The Mean Well BIC-2200-24CAN is typically used in high-power 24V DC systems that need a 2200W bidirectional power supply together with CANBus-capable integration. With 24V output at 90A, it is a fit for large managed 24V battery-backed or DC bus systems.
Is the BIC-2200-24CAN a good fit for communication-oriented 24V power systems?
Yes. The CANBus version is more relevant when the system architecture needs communication-capable integration while keeping the same 24V, 90A, and 2200W output class as the standard BIC-2200-24.
Can the BIC-2200-24CAN support large 24V battery or DC bus applications?
Yes. With 2200W at 24V and 90A, the BIC-2200-24CAN is built for large 24V applications that need much more capacity than ordinary enclosed supplies. It is intended for high-demand systems rather than light-duty 24V loads.
Does the BIC-2200-24CAN support system scaling above a single 2200W unit?
Yes. The product features list active current sharing up to 11000W, which makes it relevant for larger architectures where multiple units are combined to expand total system capacity.
What input range does the BIC-2200-24CAN require?
The specified AC input range is 180-264VAC, which aligns with 230V-class mains systems and other inputs within that range. It should not be treated as a universal 90-264VAC supply.
Is the BIC-2200-24CAN intended for direct outdoor use?
The current product data does not list a waterproof IP rating, so the BIC-2200-24CAN should be installed indoors or in a suitable protective enclosure rather than directly exposed to outdoor conditions. Its working temperature range is -30°C to +70°C, but ingress protection is not specified for exposed use.
How does the BIC-2200-24CAN compare with the standard BIC-2200-24?
Both models provide 2200W at 24V and 90A, but the BIC-2200-24CAN is the CANBus-oriented version. The key difference is system integration capability rather than output power class.
What published feature set makes the BIC-2200-24CAN a high-end power platform?
Published features include full digital design, up to 93% conversion efficiency, 1ms switching between AC/DC and DC/AC, active current sharing, and a 5-year warranty. The listed protection set includes anti-islanding, AC fail, DC OVP, OLP, OCP, and OTP.
