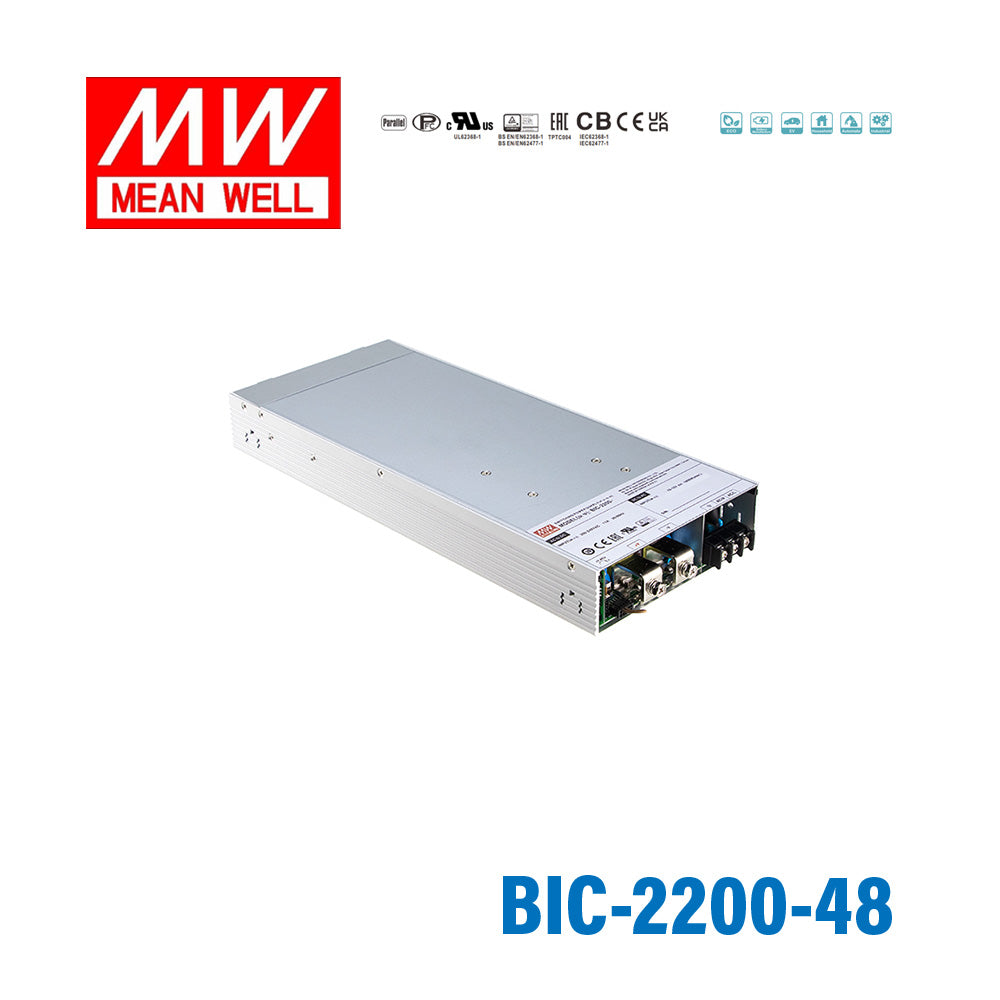

Mean Well BIC-2200-48 Power Supply 2200W 48V 45A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well BIC-2200-48 Power Supply 2200W 48V 45A
The BIC-2200 is a 2200W Mean Well power supply (input: 180~264VAC, operating temperature: -40~+70°C).
Key Features
- ✓ Input voltage: 180~264VAC
- ✓ Output voltage (max): 48V
- ✓ Rated output current: 45A
- ✓ Operating temperature: -40~+70°C
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesBIC Series
-
Power Rating2200 Watt
-
Output Voltage48 Volt
-
Rated Current45 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length12.99 in
-
Width5.51 in
-
Height1.61 in
-
Weight6.39 lb
::specification::
Frequently Asked Questions
What is the BIC-2200-48 typically used for?
The Mean Well BIC-2200-48 is typically used in high-power 48V DC systems that need a bidirectional 2200W power platform with energy recycle function. With 48V output at 45A, it is suited to large 48V battery, telecom-style DC bus, and industrial high-power applications built around a 48V rail.
Is the BIC-2200-48 a good fit for high-capacity 48V DC systems?
Yes. The BIC-2200-48 provides 2200W at 48V and 45A, which makes it a strong fit for large 48V systems that need significantly more power than smaller enclosed supplies can provide.
Can the BIC-2200-48 be used where fast transfer behavior is important?
Yes. The published features include ultrafast switching of 1ms between AC/DC and DC/AC, making it relevant for systems where rapid power transition behavior is a requirement.
Does the BIC-2200-48 support power scaling above a single unit?
Yes. The product features list active current sharing up to 11000W, so the BIC-2200-48 is designed for architectures where multiple units can be combined for larger-capacity installations.
What AC input range does the BIC-2200-48 support?
The specified AC input range is 180-264VAC, which suits 230V-class mains environments and other installations within that range. It should be selected accordingly rather than assumed to support the wider 90-264VAC range used by many smaller supplies.
Is the BIC-2200-48 suitable for direct outdoor exposure?
The current product data does not list a waterproof IP rating, so the BIC-2200-48 should be installed in a protected indoor or enclosure-based environment instead of direct outdoor exposure. Its working temperature is listed as -30°C to +70°C, but that does not replace enclosure protection.
How does the BIC-2200-48 compare with the other BIC-2200 voltage options?
The BIC-2200-48 provides 2200W at 48V and 45A. Other BIC-2200 versions shift the same 2200W class to 12V at 180A, 24V at 90A, and 96V at 22.5A. The main distinction is the DC bus voltage and resulting current available for the target application.
What are the main published durability and protection features of the BIC-2200-48?
The published feature set includes full digital design, up to 93% conversion efficiency, active current sharing, and a 5-year warranty. Listed protections include anti-islanding, AC fail, DC over-voltage, overload, over-current, and over-temperature protection.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other BIC-2200 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well BIC-2200-96 Bidirectional Power Supply with Energy Recycle Function 2.2KW 22.5A | 2200W | 96V | 22.5A | Indoor | $671.55 | View |
| Mean Well BIC-2200-48CAN Power Supply 2200W 48V 45A | 2200W | 48V | 45A | Indoor | $723.61 | View |
| Mean Well BIC-2200-96CAN Power Supply 2200W 96V 22.5A | 2200W | 96V | 22.5A | Indoor | $723.61 | View |
| Mean Well BIC-2200-24CAN Power Supply 2200W 24V 90A | 2200W | 24V | 90A | Indoor | $723.61 | View |
| Mean Well BIC-2200-24 Power Supply 2200W 24V 90A | 2200W | 24V | 90A | Indoor | $671.55 | View |
| Mean Well BIC-2200-12CAN Power Supply 2200W 12V 180A | 2200W | 12V | 180A | Indoor | $723.61 | View |
| Mean Well BIC-2200-12 Power Supply 2200W 12V 180A | 2200W | 12V | 180A | Indoor | $671.55 | View |
