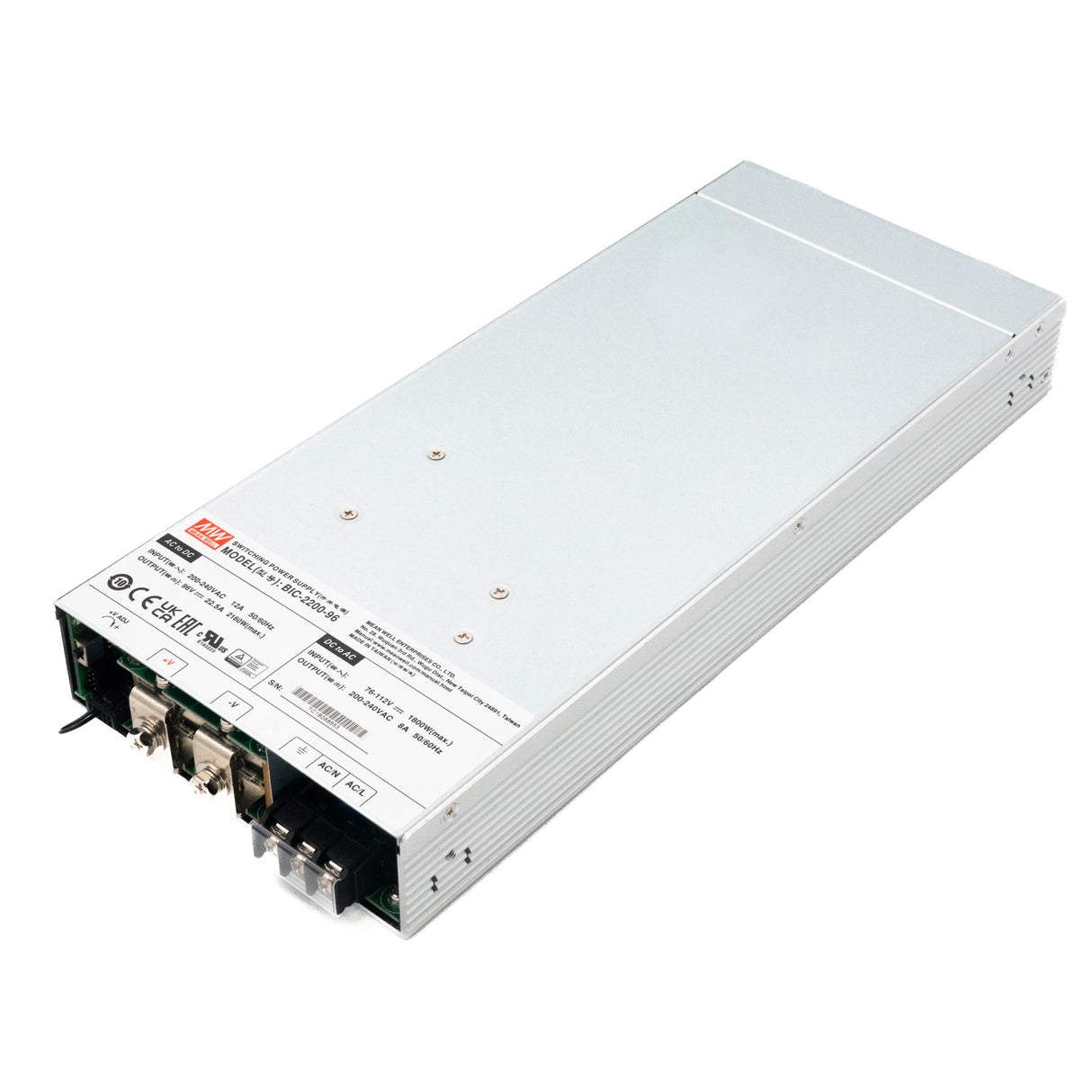

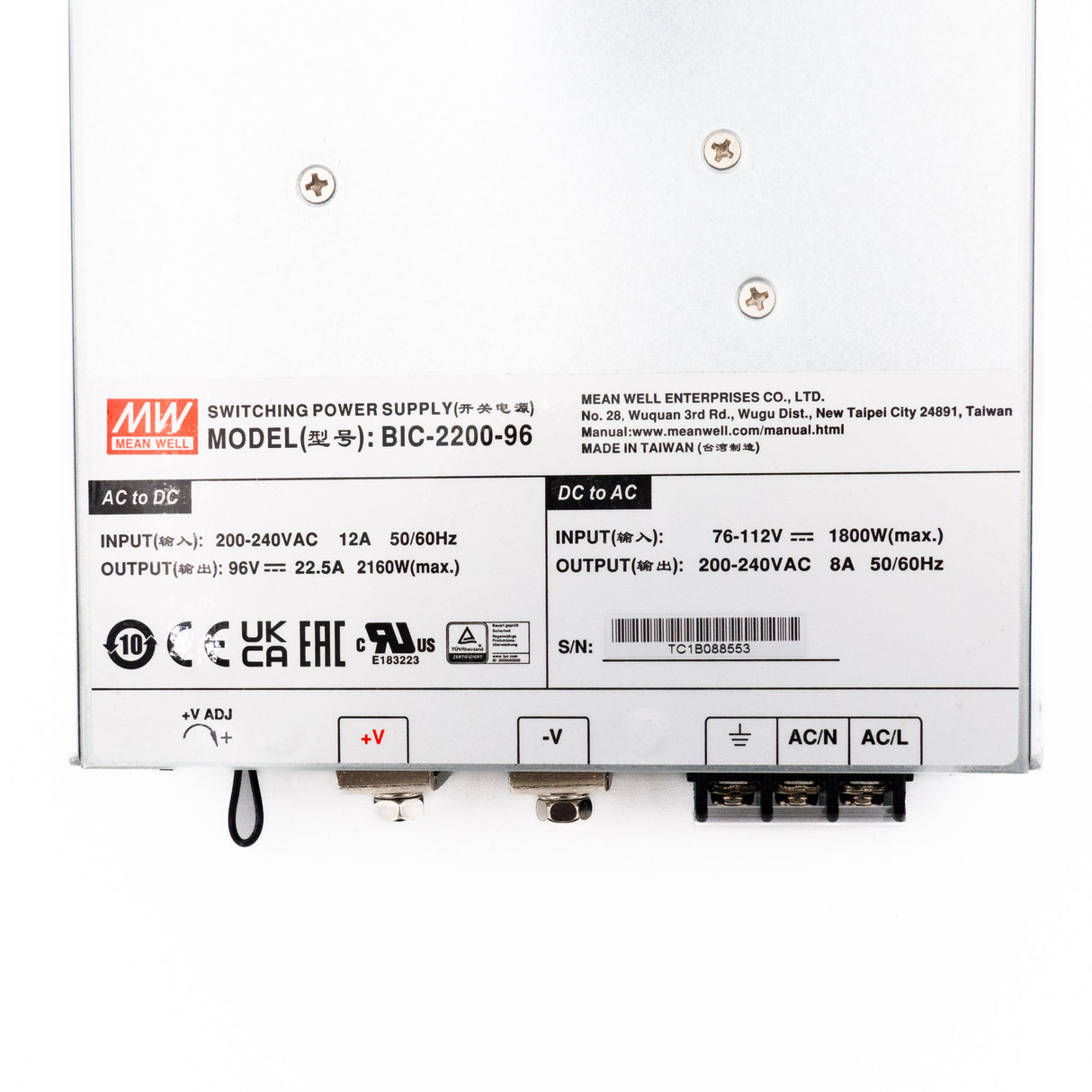

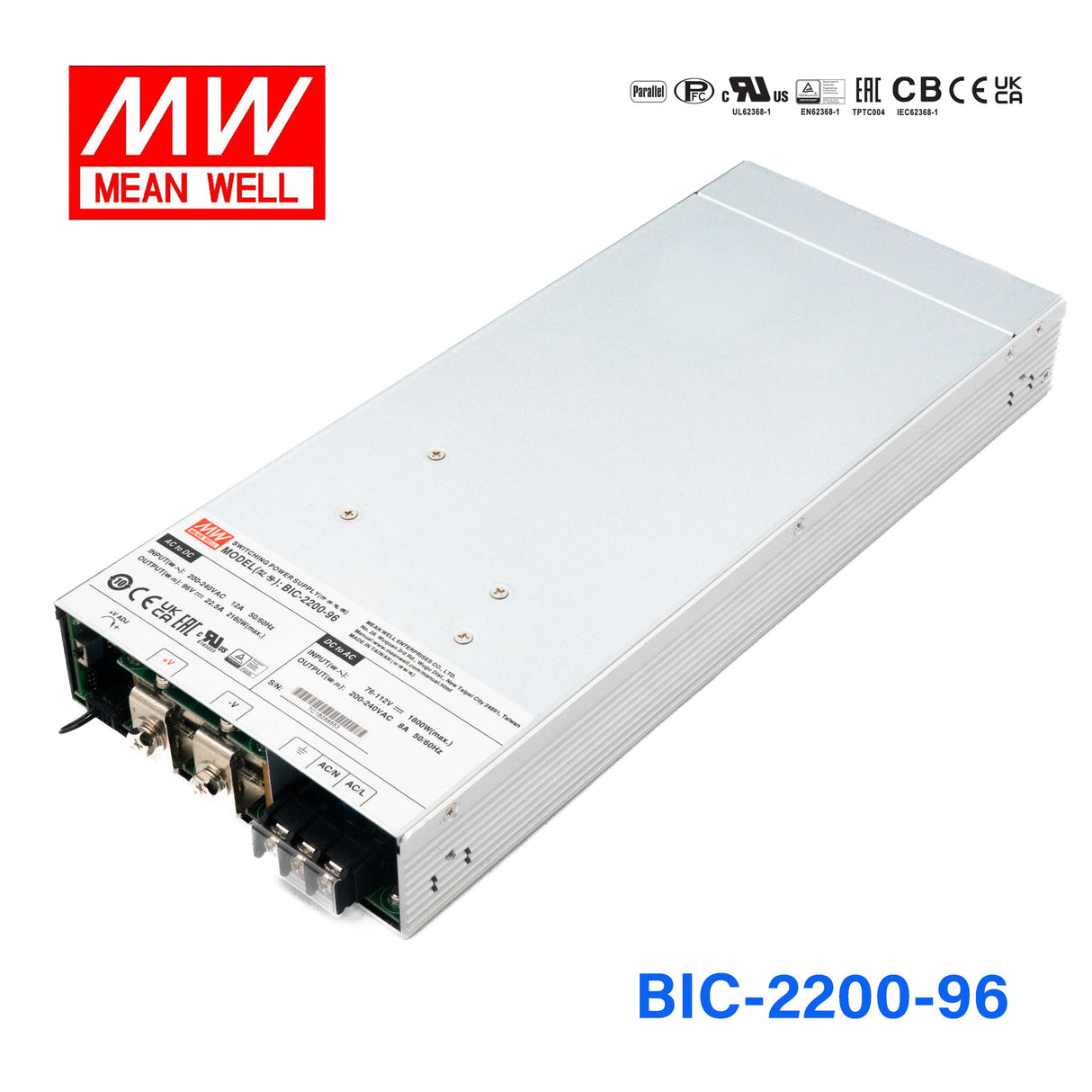

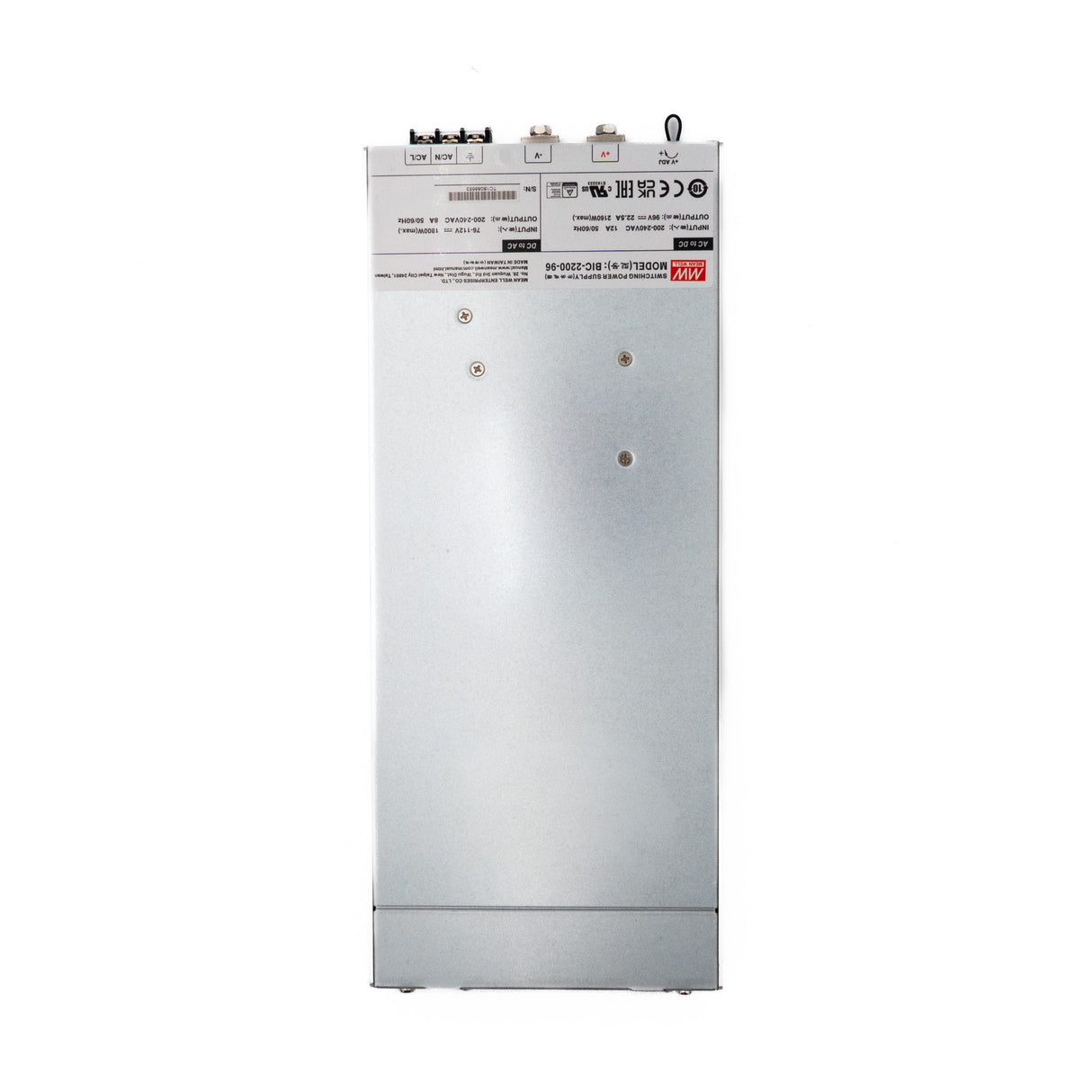

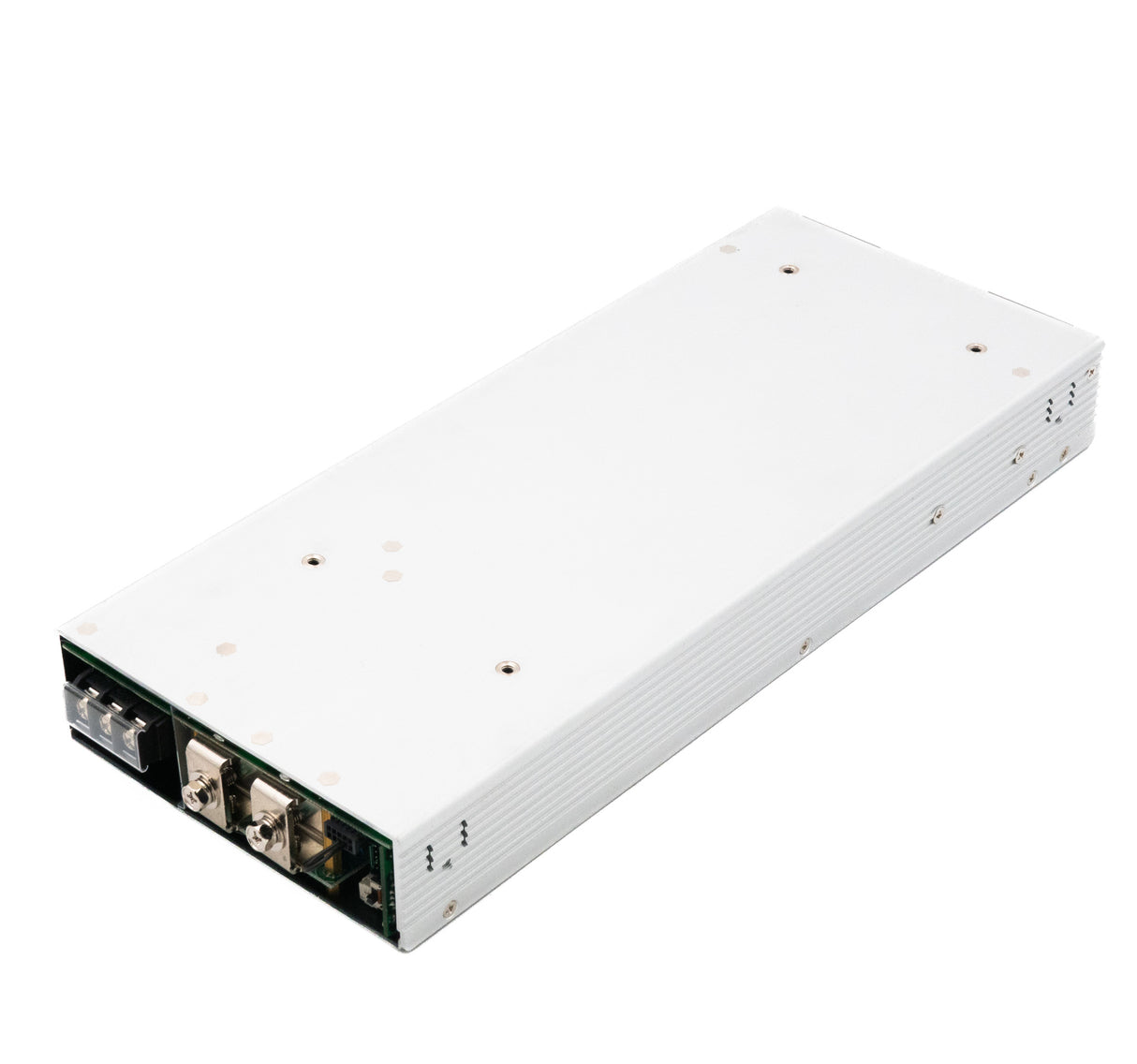

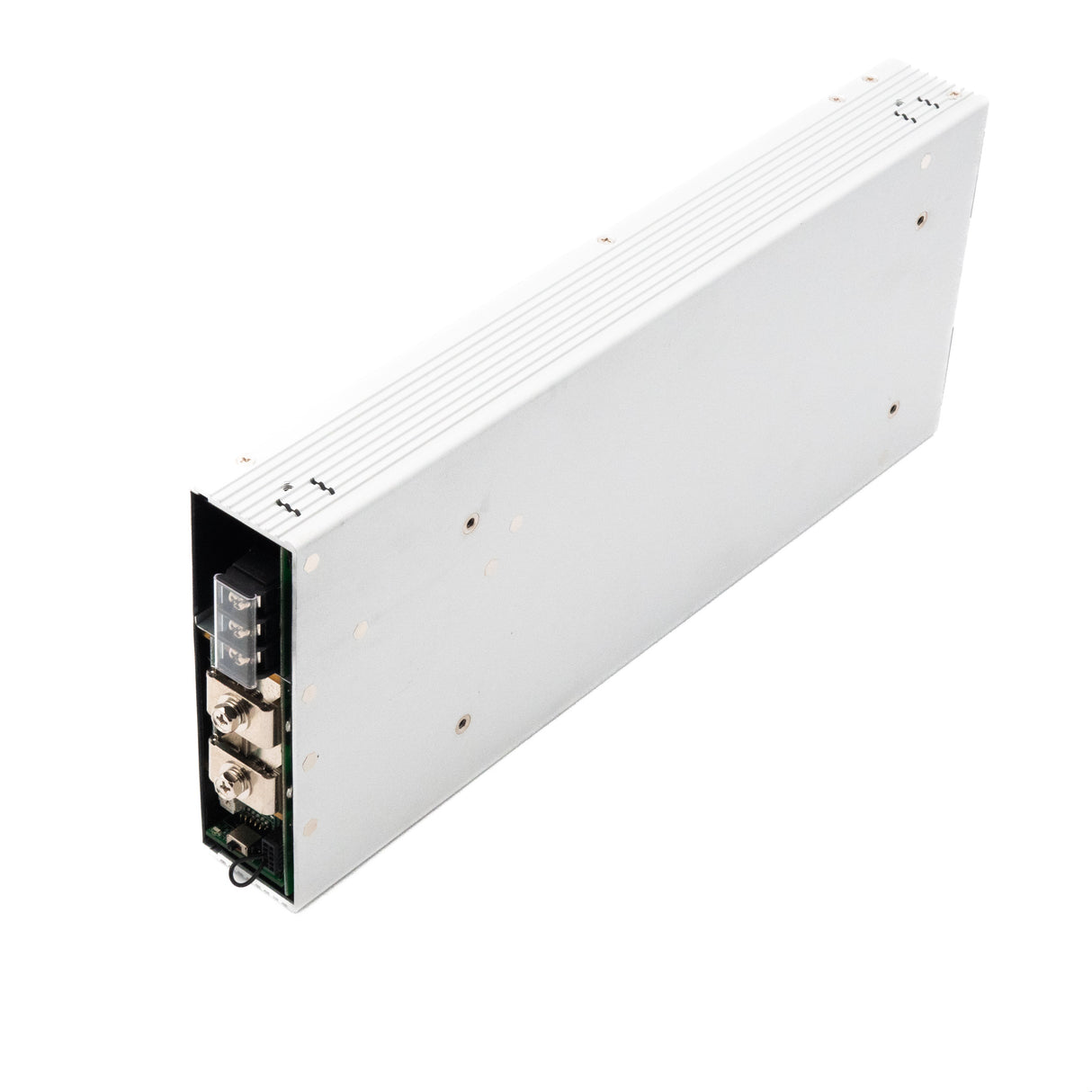

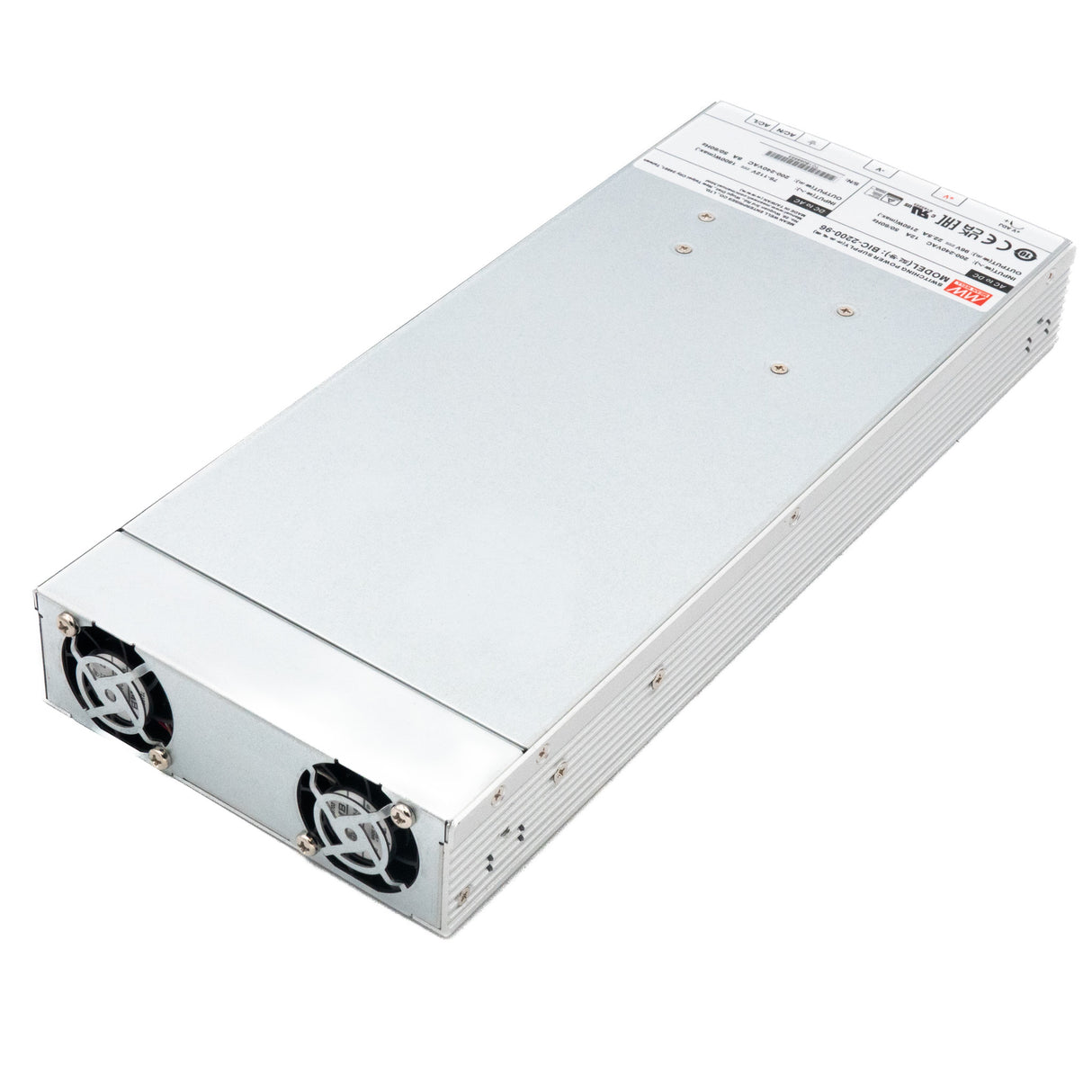

Mean Well BIC-2200-96 Bidirectional Power Supply with Energy Recycle Function 2.2KW 22.5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well BIC-2200-96 Bidirectional Power Supply with Energy Recycl...
The BIC-2200 is a 2200W Mean Well power supply (input: 180~264VAC, operating temperature: -40~+70°C).
Key Features
- ✓ Input voltage: 180~264VAC
- ✓ Output voltage (max): 96V
- ✓ Rated output current: 22.5A
- ✓ Operating temperature: -40~+70°C
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesBIC Series
-
Power Rating2200 Watt
-
Output Voltage96 Volt
-
Rated Current22.5 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length12.99 in
-
Width5.51 in
-
Height1.61 in
-
Weight6.39 lb
::specification::
Frequently Asked Questions
What is the BIC-2200-96 typically used for?
The Mean Well BIC-2200-96 is typically used in high-voltage 96V DC systems that need a 2200W bidirectional power supply with energy recycle function. With 96V output at 22.5A, it is suited to large high-voltage DC bus or battery systems where a 96V rail is required.
Is the BIC-2200-96 a good fit for large 96V DC systems?
Yes. The BIC-2200-96 provides 2200W at 96V and 22.5A, making it a strong fit for high-capacity 96V applications that need far more power than common lower-voltage enclosed supplies can deliver.
Can the BIC-2200-96 be used where fast AC/DC to DC/AC transfer is important?
Yes. The published features list an ultrafast 1ms switching time between AC/DC and DC/AC, which makes the BIC-2200-96 relevant for systems where rapid transition behavior is part of the design requirement.
Does the BIC-2200-96 support higher-capacity multi-unit systems?
Yes. Active current sharing up to 11000W is listed in the product features, so the BIC-2200-96 is designed for larger-scale systems where multiple units may be combined to expand total capacity.
What AC input range does the BIC-2200-96 require?
The specified AC input range is 180-264VAC, which matches 230V-class mains environments and other installations within that range. It should be selected with that published input window in mind.
Is the BIC-2200-96 suitable for exposed outdoor installation?
The current product data does not show a waterproof IP rating, so the BIC-2200-96 should be installed in a protected indoor or enclosure-based environment rather than directly exposed outdoor conditions. Its working temperature is listed as -30°C to +70°C, but enclosure protection is still necessary.
How does the BIC-2200-96 compare with other BIC-2200 voltage options?
The BIC-2200-96 provides 2200W at 96V and 22.5A. Other BIC-2200 models keep the same 2200W class while changing the output to 12V at 180A, 24V at 90A, or 48V at 45A. The main selection factor is the DC bus voltage your system requires.
What published reliability and protection features does the BIC-2200-96 include?
The product features include full digital design, up to 93% conversion efficiency, active current sharing, and a 5-year warranty. Listed protections include anti-islanding, AC fail, DC over-voltage, overload, over-current, and over-temperature protection.
