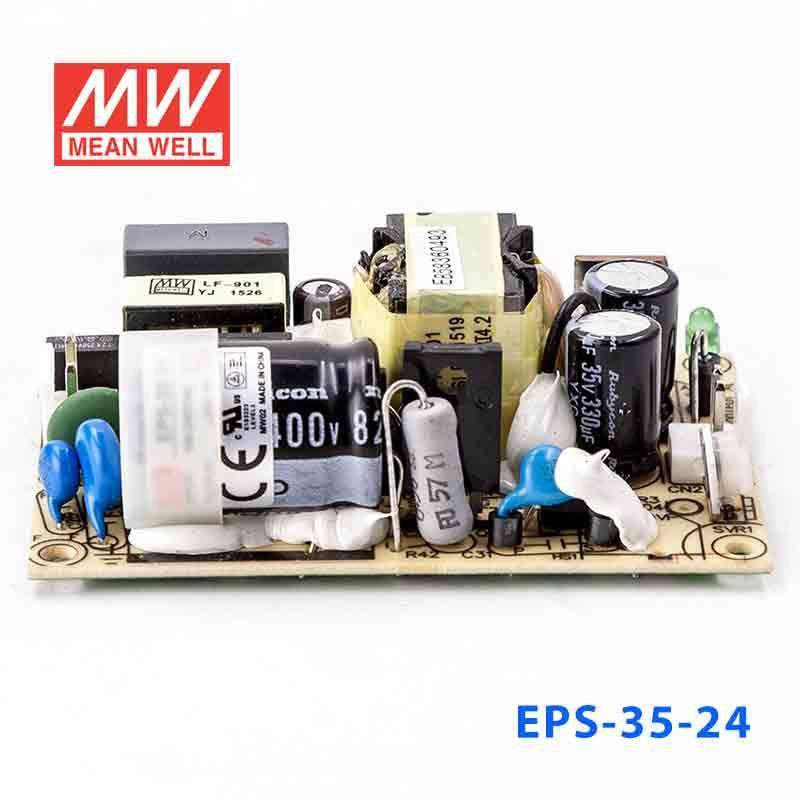

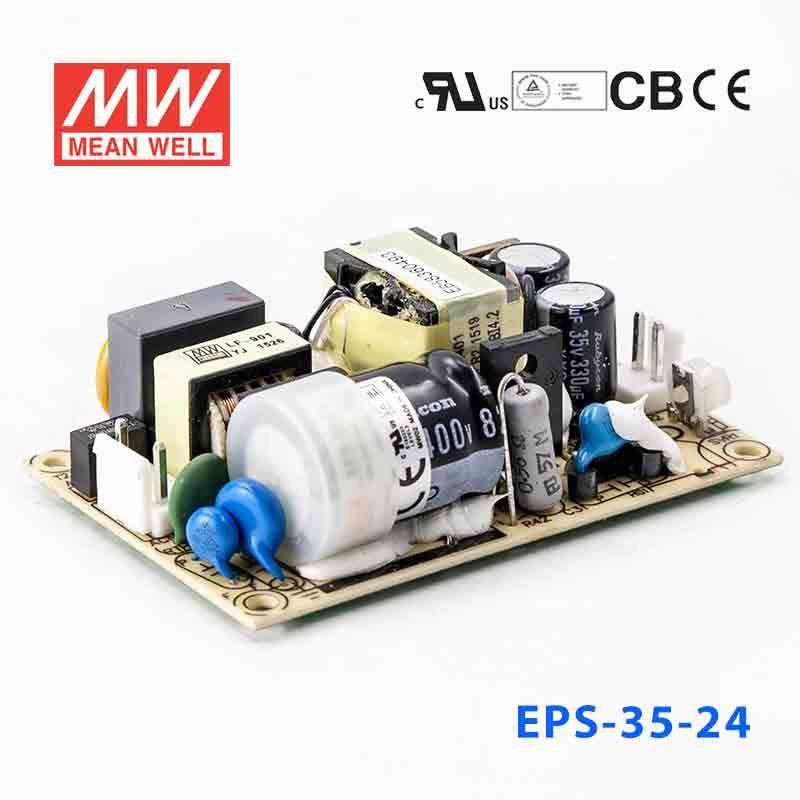

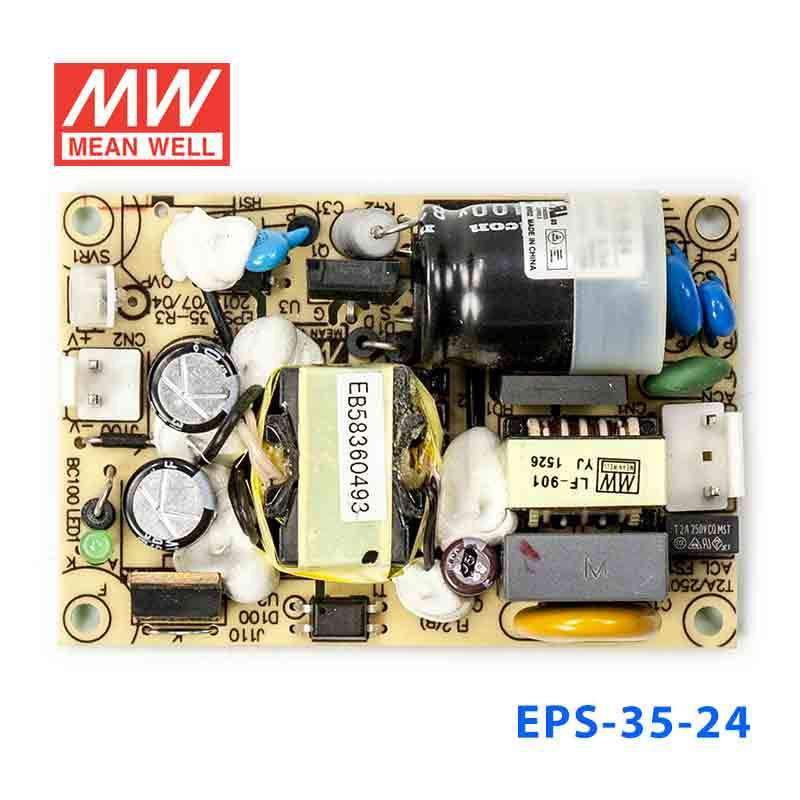

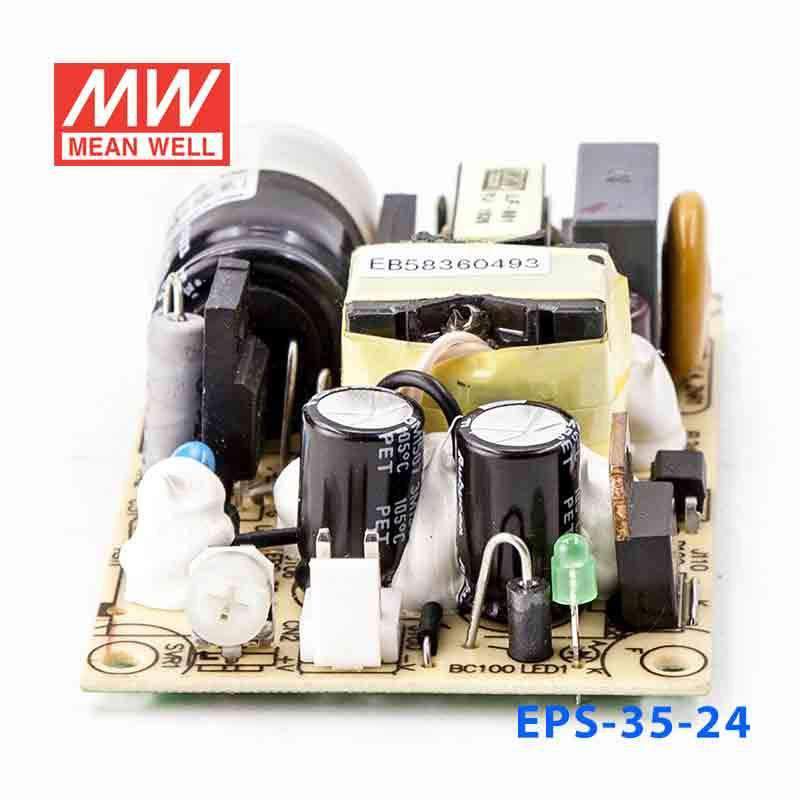

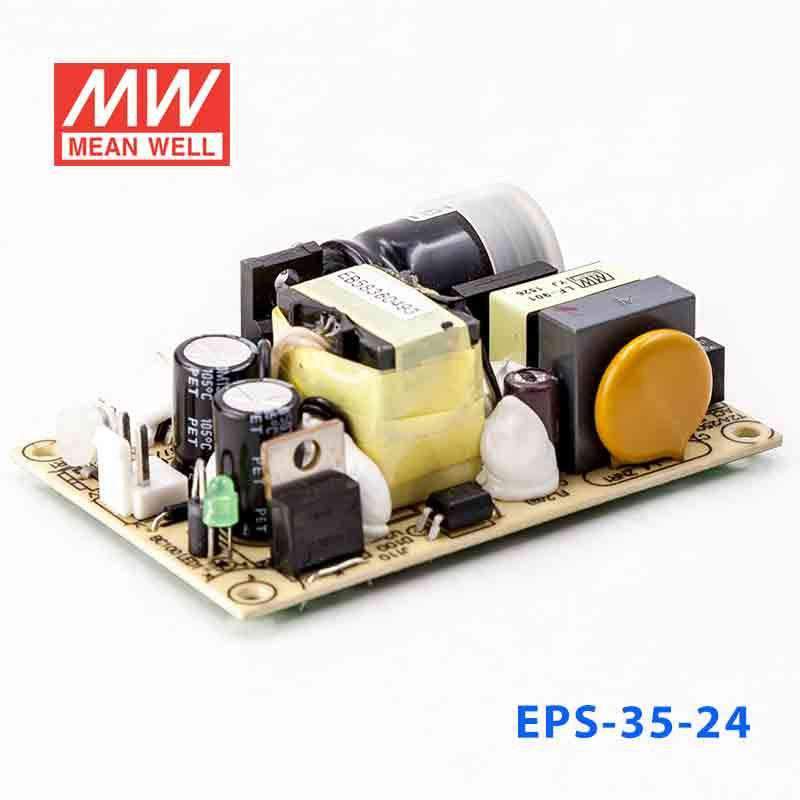

Mean Well EPS-35-24 Power Supply 36W 24V 1.5A
5.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EPS-35-24 Power Supply 36W 24V 1.5A
The EPS-35 is a 35W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating36 Watt
-
Output Voltage24 Volt
-
Rated Current1.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.19 lb
::specification::
Frequently Asked Questions
What output does the Mean Well EPS-35-24 provide?
The Mean Well EPS-35-24 is a 36W open frame AC-DC power supply with a 24V DC output. Its rated output current is 1.5A, and the output voltage can be adjusted within ±10% of the rated value.
What input voltage range does the EPS-35-24 support?
This model accepts a universal input range of 85 to 264VAC, and it can also operate from 120 to 370VDC. That wide range makes it suitable for equipment intended for use across different mains power regions.
What types of applications is the EPS-35-24 typically used for?
The EPS-35-24 is generally suited to OEM and industrial equipment that needs a compact 24V DC power source in an open frame format. Its 36W power rating and small size make it a practical option where space is limited and moderate 24V loads are required.
What protection features are included in the EPS-35-24?
This power supply includes protection against short circuit, overload, and over voltage. The overload protection operates in hiccup mode with auto recovery, and the overload range is specified at 115% to 170% of rated output power.
Can the EPS-35-24 be used in demanding temperature environments?
The EPS-35-24 is rated for operation from -30°C to +70°C, with reference to the output derating curve. That gives it a broad working temperature range for many commercial and industrial environments.
How efficient is the Mean Well EPS-35-24?
Mean Well specifies efficiency of up to 90% for the EPS-35-24. It also has no load power consumption below 0.3W, which can help reduce standby energy use in suitable systems.
What approvals and standards does the EPS-35-24 meet?
This model is approved to UL60950-1 and TUV EN60950-1 safety standards. It also meets listed EMC standards including EN55022 Class B and multiple EN61000 series requirements.
