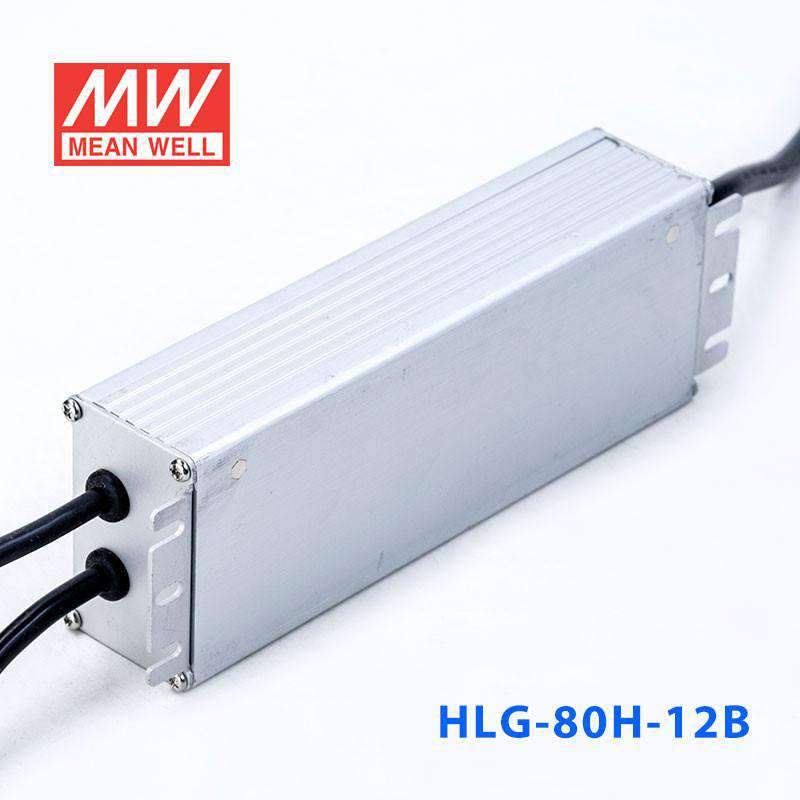

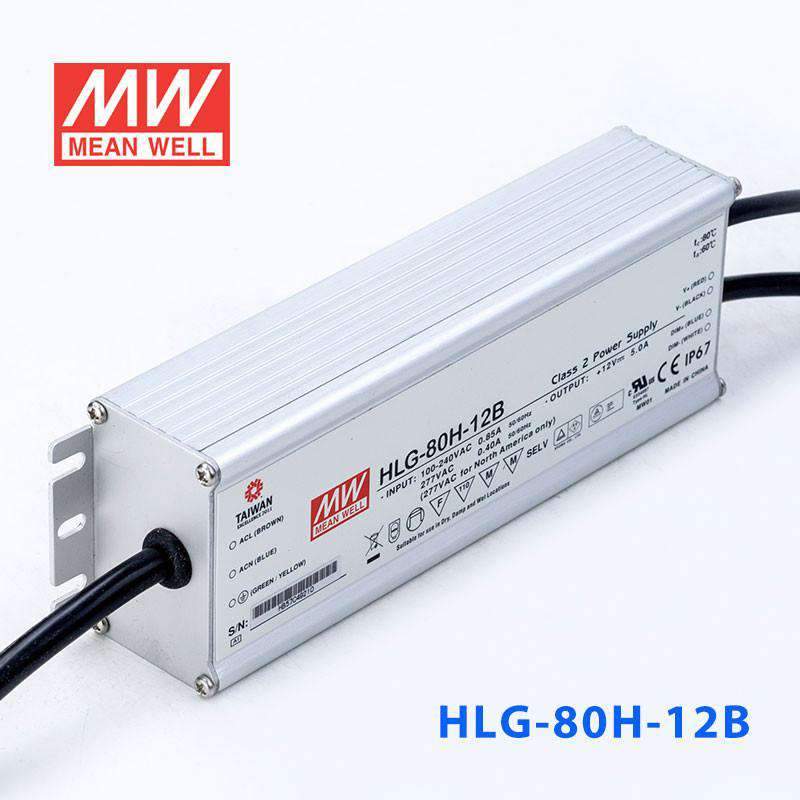

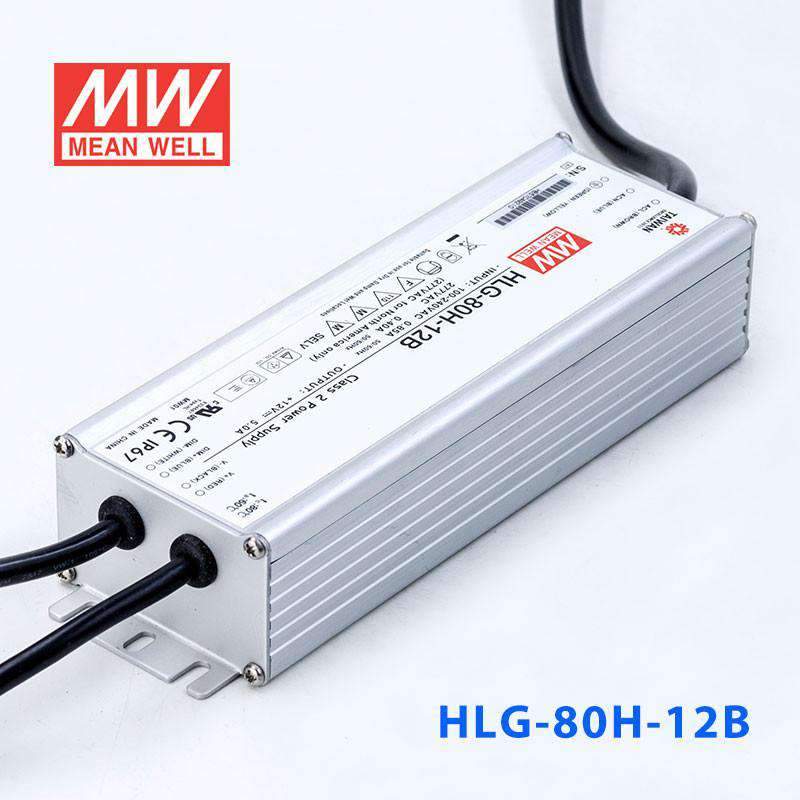

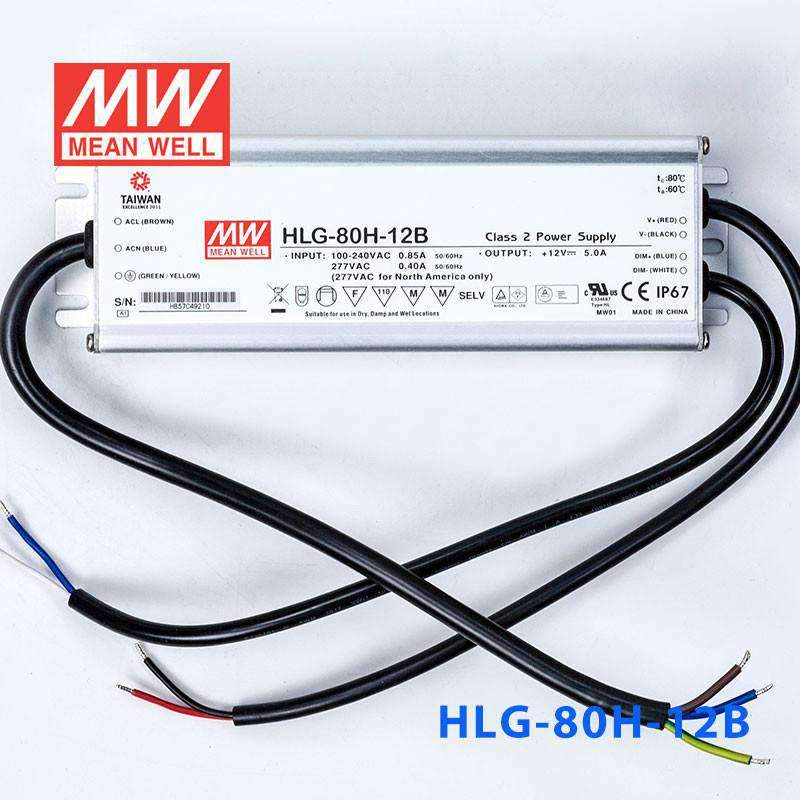

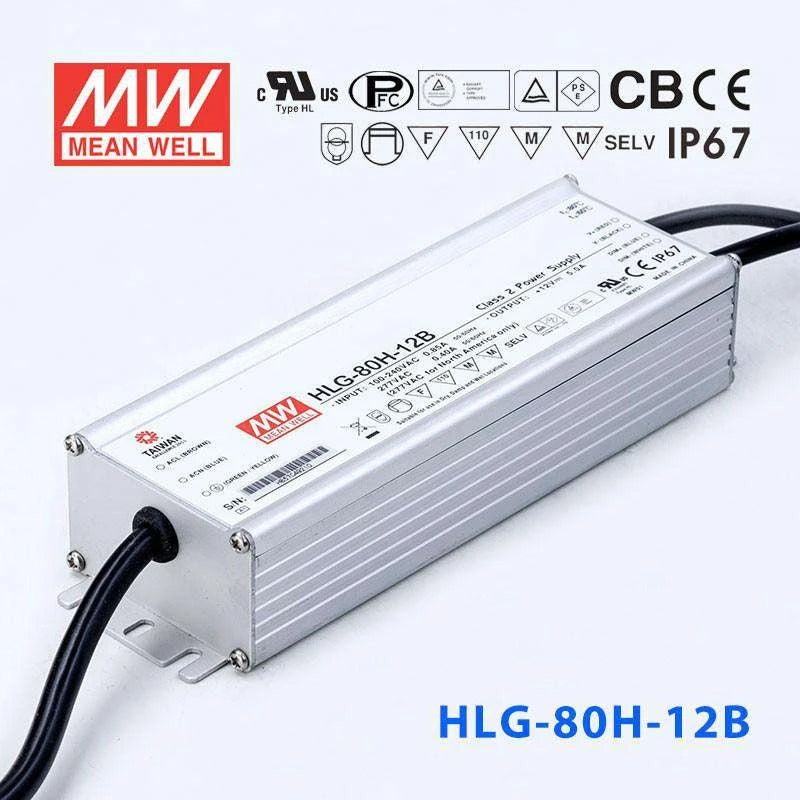

Mean Well HLG-80H-12B Power Supply 60W 12V - Dimmable 5A
5.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-80H-12B Power Supply 60W 12V - Dimmable 5A
The HLG-80H is a 60W Mean Well AC-DC LED driver (input: 90~305VAC, output: 12V, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 12V
- ✓ Rated output current: 5A
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+80°C
- ✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
- ✓ 7 year warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
::specification::
Frequently Asked Questions
Can I use the HLG-80H-12B for outdoor dimmable 12V LED landscape path lighting?
Yes. The HLG-80H-12B outputs 60W at 12V with a dimming input for 1-10V or PWM signals, and its IP67 waterproof rating allows installation in direct rain, garden beds, or near sprinkler zones. You can dim the path lights during late-night hours to save energy.
Is the HLG-80H-12B suitable for powering 12V LED strip in a dimmable outdoor signage application?
Yes. At 60W and 12V, it can drive 12V LED modules in small outdoor signs. The IP67 rating handles rain and moisture exposure, while the dimming input lets you lower sign brightness at night to reduce light pollution or comply with local dimming ordinances.
Can I run dimmable 12V LED tape under a dock or boat canopy with the HLG-80H-12B?
Yes. The IP67 waterproof enclosure can withstand splashing, temporary submersion, and marine-adjacent humidity. With 60W at 12V and a dimming input, you can set accent or task lighting levels as needed. Ensure total LED load stays within 60W.
How many meters of 12V LED strip can the HLG-80H-12B power?
Divide the 60W maximum by your strip's power draw per meter. A strip rated at 9.6W/m allows about 6.2 meters (60W / 9.6W per meter). A 14.4W/m strip allows about 4.1 meters. Always check your strip's rated power per meter and keep total load at or below 60W.
Can the HLG-80H-12B withstand installation in a frequently flooded outdoor electrical box?
Its IP67 rating protects against temporary submersion up to 1 meter for 30 minutes, so brief flooding events are within specification. For locations that experience prolonged or repeated submersion, consider elevating the mounting point or using an IP68-rated enclosure for additional protection.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-80H Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-80H-48 Power Supply 80W 48V 1.7A | 80W | 48V | 1.7A | IP67 | $41.54 | View |
| Mean Well HLG-80H-42B Power Supply 80W 42V - Dimmable 1.95A | 80W | 42V | 1.95A | IP67 | $44.11 | View |
