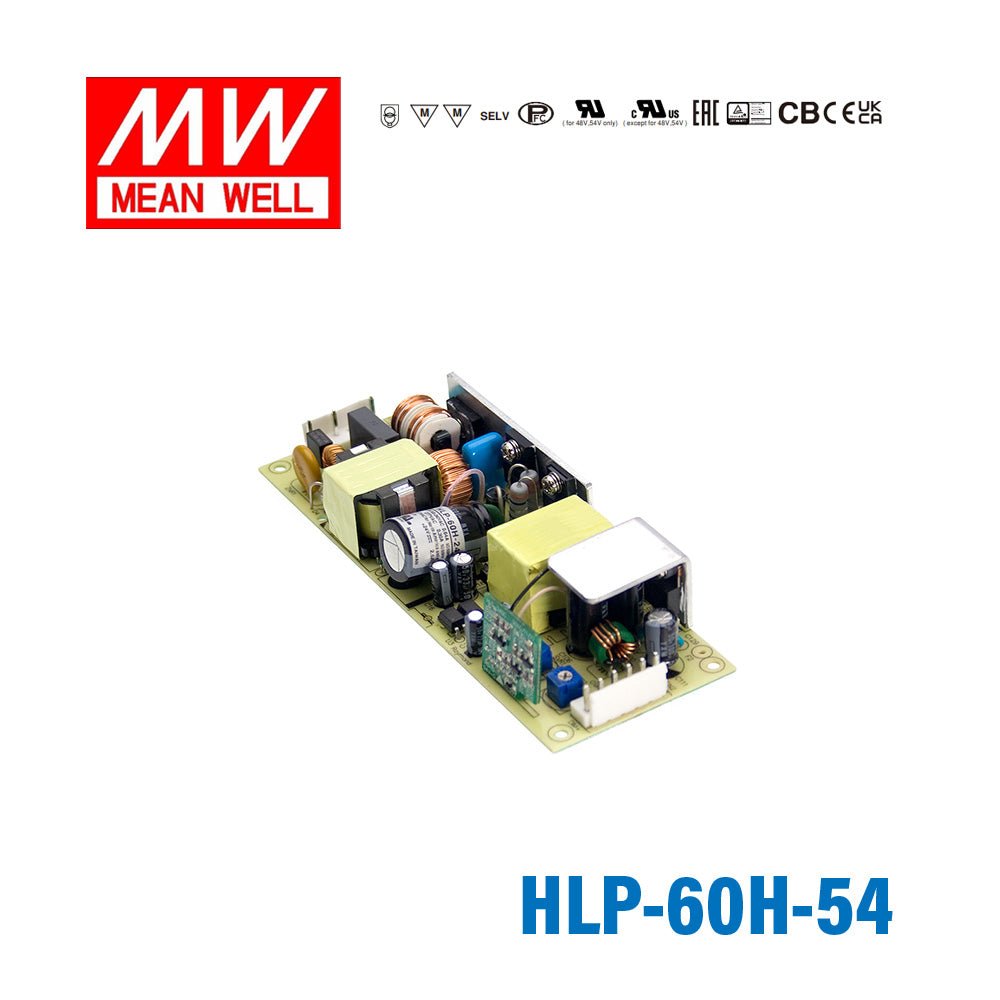

Mean Well HLP-60H-54 PCB Power Supply 60W 54V 1.15A

The Mean Well HLP-60H-54 is a 62.1W PCB-type LED power supply delivering 54V DC at up to 1.15A. The open PCB format is designed to be built into a luminaire or enclosure, with built-in active PFC and free-air convection cooling.

It accepts 90~305VAC universal input and operates from -40°C to 70°C and carries CB, CE, EAC and SELV approvals. It supports 1-10V, 10V PWM and resistance dimming. Short circuit, over-voltage and over-temperature protection are included, and it is backed by a 3-year warranty.

Key Features

• ✓Universal AC input / Full range (up to 305VAC)
• ✓Built-in active PFC function
• ✓Protections: Short circuit / Over current / Over voltage / Over temperature
• ✓Cooling by free air convection
• ✓Output constant current level adjustable
• ✓Class 2 power unit
• ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
• ✓Suitable for built in LED lighting system
• ✓Suitable for dry / damp locations
• ✓100% full load burn-in test
• ✓3 years warrantyGeneral Specification

• Brand
  Mean Well
• Series
  HLP Series
• Power Rating
  62.1 Watt
• Output Voltage
  54 Volt
• Rated Current
  1.15 Ampere
• Input Voltage
  90V~305V
• No of Output
  1
• Dimming Control
  10V PWM,1-10V,Resistance
• Standards Met
  CB,CE,EAC,SELV
• Operation Mode
  Constant Current,Constant Voltage
• Operating Temperature
  -40°C~70°C
• Warranty
  3 Year
• Length
  5.79 in
• Width
  2.09 in
• Height
  1.06 in
• Weight
  0.6 lb
