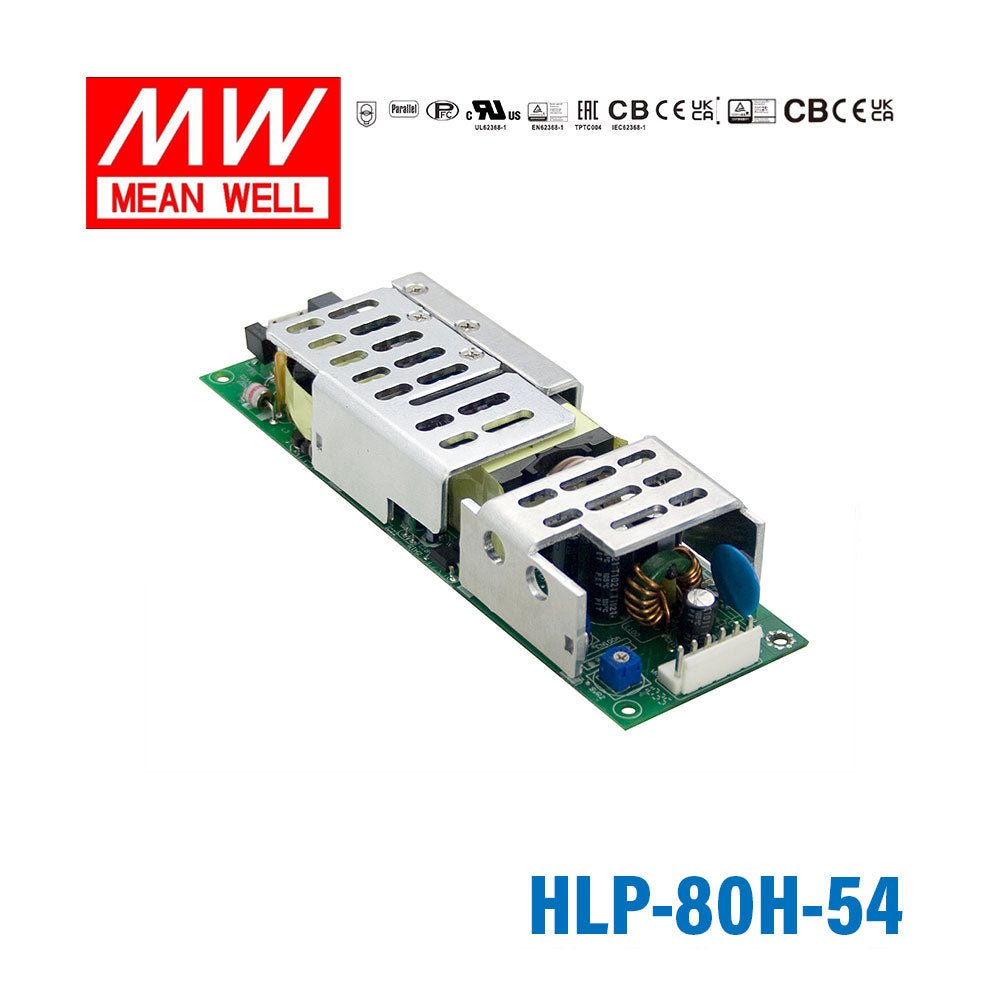

Mean Well HLP-80H-54 PCB Power Supply 80W 54V 1.5A
Key Features
- ✓Universal AC input / Full range (up to 305VAC)
- ✓Built-in active PFC function
- ✓Protections: Short circuit / Over current / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output constant current level adjustable
- ✓Class 2 power unit
- ✓Three in one dimming function (1~10Vdc or PWM signal or resistance)
- ✓Suitable for built in LED lighting system
- ✓Suitable for dry / damp locations
- ✓100% full load burn-in test
- ✓3 years warrantyGeneral Specification
-
BrandMean Well
-
SeriesHLP Series
-
Power Rating81 Watt
-
Output Voltage54 Volt
-
Rated Current1.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,SELV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.09 in
-
Height1.16 in
-
Weight0.6 lb
::specification::
Frequently Asked Questions
What is the Mean Well HLP-80H-54 designed for?
The HLP-80H-54 is an 80W open-frame AC/DC power supply intended for built-in LED lighting systems. It provides a 54V DC output and is suited to OEM and industrial applications where a compact PCB-style power solution is needed.
What are the key output ratings of the HLP-80H-54?
This model is rated for 54V DC output at 1.5A, with a power rating of about 80W. That makes it appropriate for applications that need a regulated 54V constant-voltage power source within that output range.
What input range does the HLP-80H-54 support?
The HLP-80H-54 accepts a universal AC input range of 90-305VAC, and it also supports 127-431VDC input. This wide range helps it fit equipment intended for varied regional power conditions.
Can the HLP-80H-54 be used in demanding temperature conditions?
Yes. The specified operating temperature range is -40°C to +70°C, with derating referenced by the manufacturer at higher temperatures. It is also listed as suitable for dry and damp locations.
What protection features are built into the HLP-80H-54?
This model includes short circuit, over current, over voltage, and over temperature protection. The over-current function uses constant current limiting with automatic recovery after the fault is removed, while some other protection events require re-powering to recover.
How does the HLP-80H-54 differ from a sealed power supply?
The HLP-80H-54 is an open-frame PCB power supply rather than an enclosed unit. That format is often chosen for integration inside finished equipment where space, weight, and built-in system design are key considerations.
What compliance and quality details are specified for the HLP-80H-54?
The manufacturer lists approvals including UL8750, CSA C22.2 No. 250.0-08 with noted exceptions, and EN61347-related standards. The unit also features active PFC, Class 2 designation, 100% full-load burn-in testing, and a 3-year warranty.
