Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

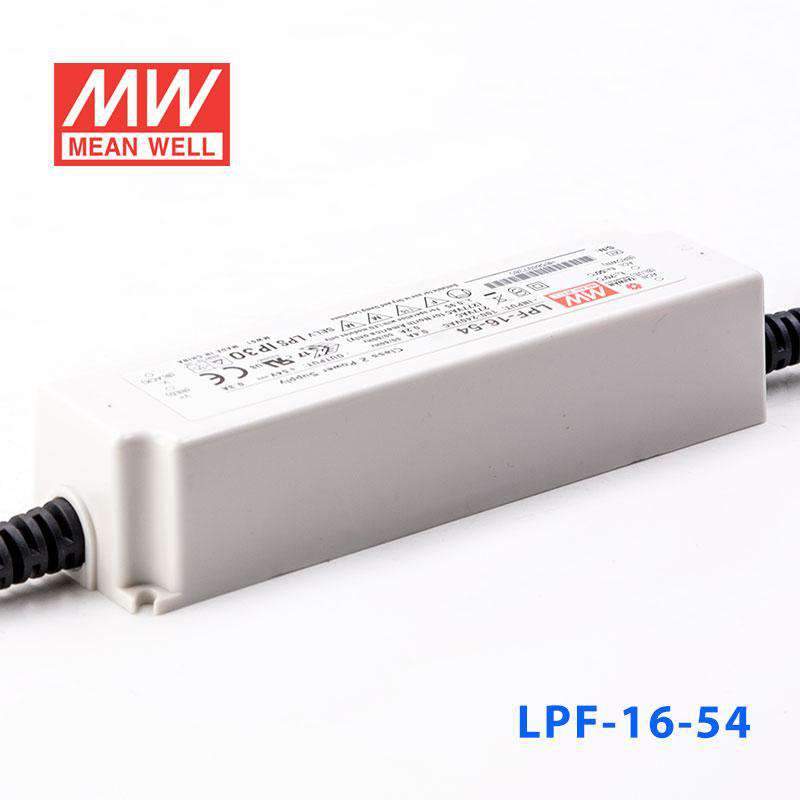

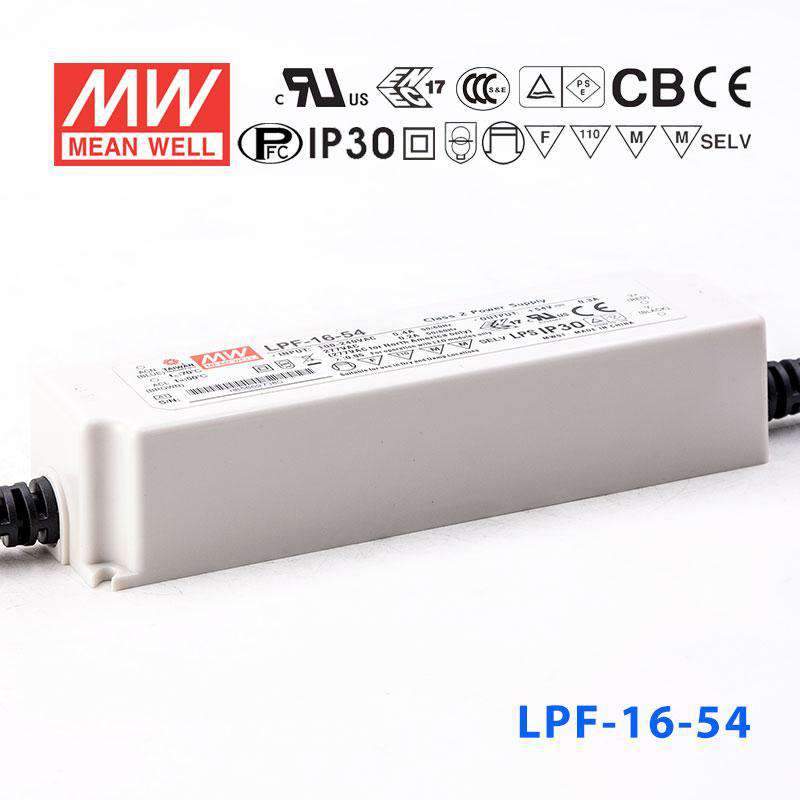

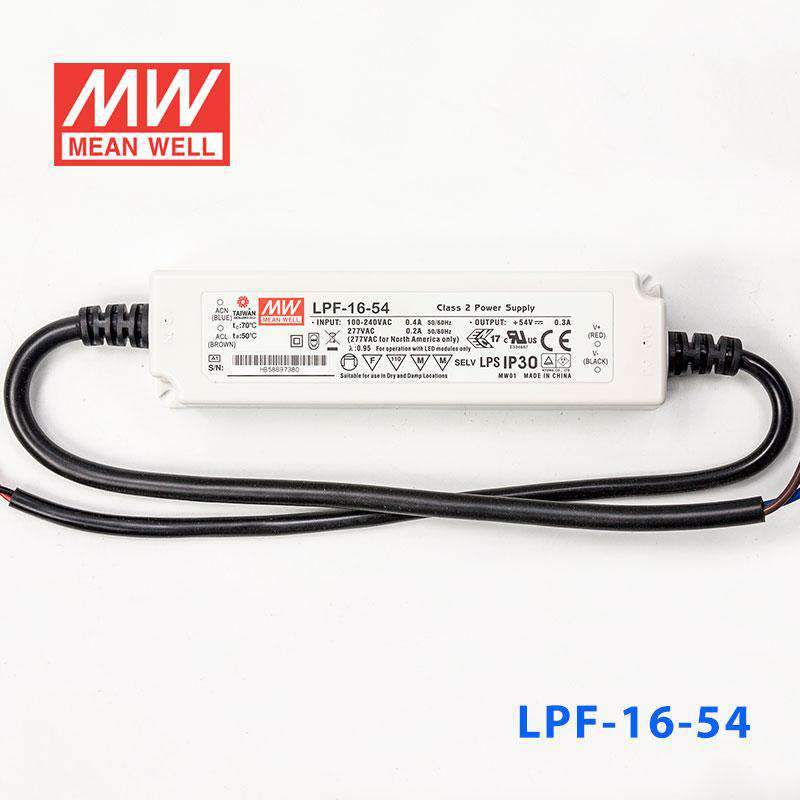

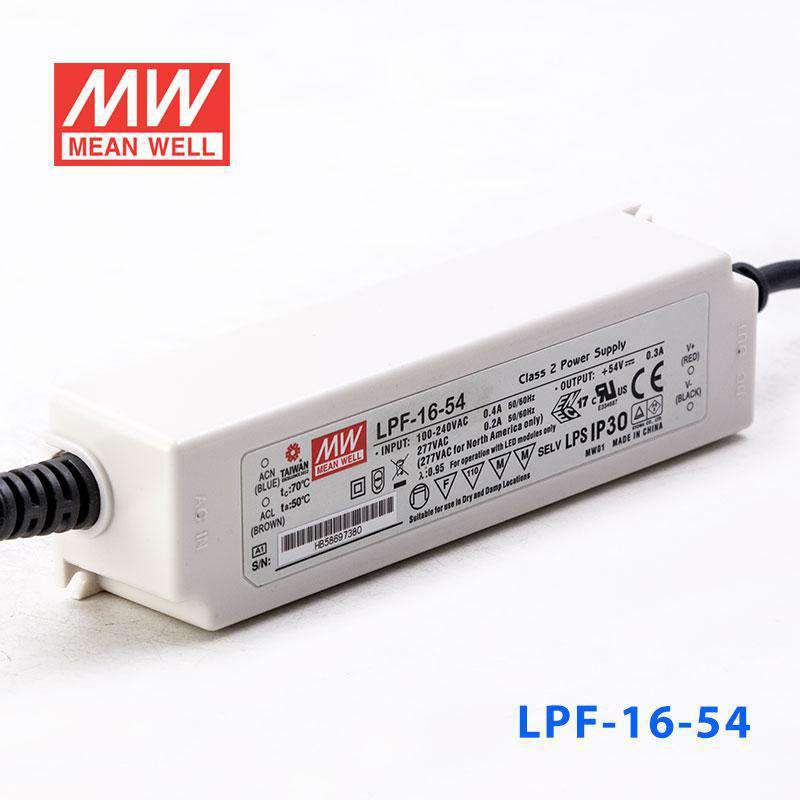

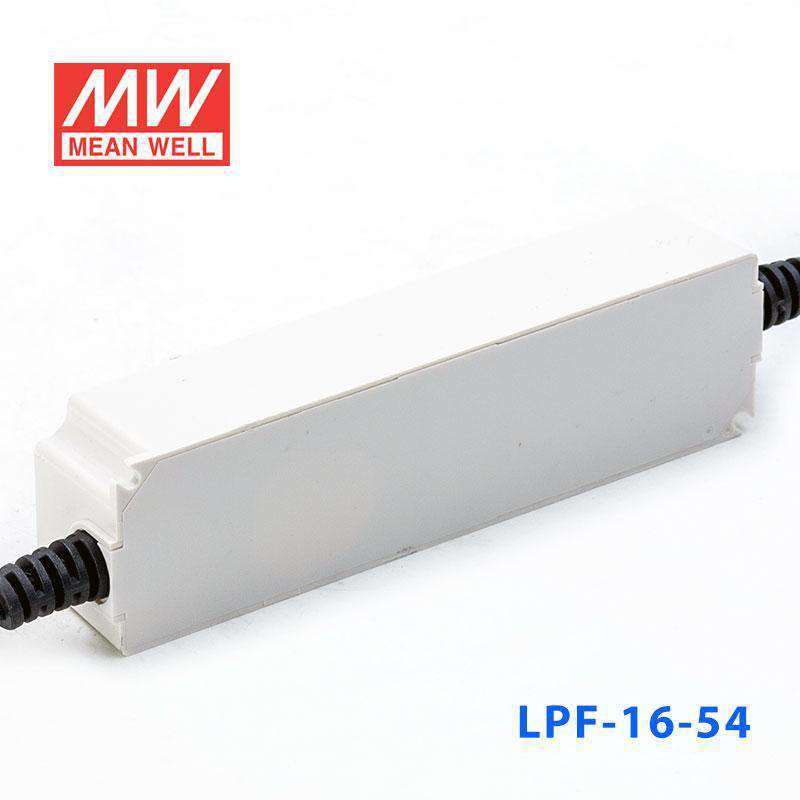

Mean Well LPF-16-54 Power Supply 16W 54V 300mA
The LPF-16 is a 16W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC EAC TP TC 004,GB19510.1,GB19510.14
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating16.2 Watt
-
Output Voltage54 Volt
-
Rated Current0.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I use the LPF-16-54 for a 54V constant-current LED module?
Yes, if the module is rated for 0.3A constant current and its forward voltage is within the 29-54V constant-current range. The driver delivers up to 16.2W, which suits smaller 54V LED module loads.
Is the LPF-16-54 suitable for compact signage lighting?
It can be used for compact signage lighting when the LED assembly is a constant-current load at 0.3A within 29V to 54V. With 16.2W available, it is better for smaller sign sections than higher-power signage.
Can this driver power outdoor 54V LED accent lighting?
Yes, the IP67 waterproof construction supports outdoor and wet-location use, and the rated operating temperature is -35°C to +70°C. The connected LED load must still match the 0.3A constant-current output and 29-54V range.
Would the LPF-16-54 work for a small linear lighting fixture using 54V LED boards?
Yes, for small linear fixtures that use 54V constant-current LED boards rated at 0.3A. Its 16.2W output is intended for lower-power fixture sections rather than long or high-output assemblies.
How much 54V LED strip can the LPF-16-54 run?
Use the rated power to estimate length: maximum strip length = 16.2W divided by your strip's watts per meter. Because the driver is constant current at 0.3A with a 29-54V range, check your strip rated power per meter and confirm it is designed for this constant-current output.
Is the LPF-16-54 appropriate for wet or cold environments?
The driver housing is IP67 waterproof, so it is intended for wet and outdoor conditions. It is also rated for operation from -35°C to +70°C.
