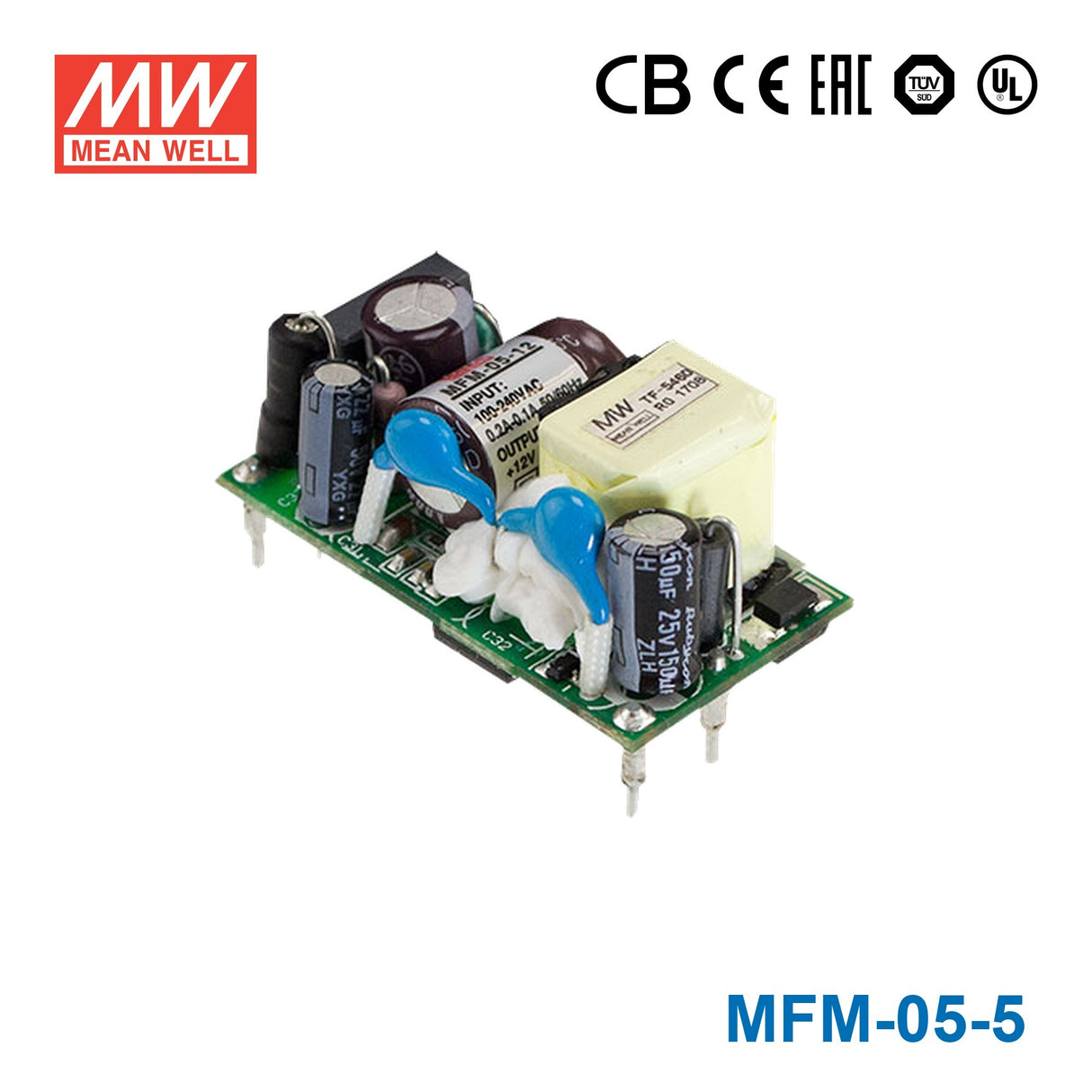

Mean Well MFM-05-5 Power Supply 5W 5V 1A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MFM-05-5 Power Supply 5W 5V 1A
No minimum load required
Typical lifetime > 52K hours
Touch current<80 μA/264VAC
Key Features
- ✓1.65"x0.88" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.075W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -40~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load requiredTypical lifetime > 52K hours
- ✓3 years warranty
-
BrandMean Well
-
SeriesMFM Series
-
Power Rating5 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.65 in
-
Width0.88 in
-
Height0.81 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the MFM-05-5 for a 5V embedded system or microcontroller board?
Yes, this model provides constant voltage 5V output rated at 5W and 1A. It is suited to low-power embedded boards and control electronics that need a regulated 5V supply within that output limit.
Is the MFM-05-5 suitable for small industrial HMI, interface, or sensor electronics?
It can be used for compact 5V interface, sensor, or logic circuits where 1A is enough. The PCB-type construction and 42.0 × 22.3 × 20.5 mm size also make it practical in space-constrained electronic assemblies.
Can this 5V supply work for low-power IT or communications hardware?
It can fit low-power 5V electronics used in IT or communications equipment if the load stays within 5W and 1A. The wide 80-264VAC input also supports use across common AC input ranges.
How does the MFM-05-5 compare to the other MFM models?
Across the series, outputs range from 3.3V to 48V and from 4.1W to 31.2W. Related models include MFM-05-3.3 at 4.1W 3.3V 1.25A, MFM-05-12 at 5W 12V 0.42A, MFM-05-15 at 5W 15V 0.33A, MFM-05-24 at 5.5W 24V 0.23A, MFM-10-3.3 at 8.3W 3.3V 2.5A, MFM-10-5 at 10W 5V 2A, MFM-10-12 at 10.2W 12V 0.85A, MFM-10-15 at 10W 15V 0.67A, MFM-10-24 at 10W 24V 0.42A, MFM-15-3.3 at 11.6W 3.3V 3.5A, MFM-15-5 at 15W 5V 3A, MFM-15-12 at 15W 12V 1.25A, MFM-15-15 at 15W 15V 1A, MFM-15-24 at 15.1W 24V 0.63A, MFM-20-3.3 at 14.9W 3.3V 4.5A, MFM-20-5 at 20W 5V 4A, MFM-20-12 at 21.6W 12V 1.8A, MFM-20-15 at 21W 15V 1.4A, MFM-20-24 at 21.6W 24V 0.9A, MFM-30-3.3 at 19.8W 3.3V 6A, MFM-30-5 at 30W 5V 6A, MFM-30-12 at 30W 12V 2.5A, MFM-30-15 at 30W 15V 2A, MFM-30-24 at 31.2W 24V 1.3A, and MFM-30-48 at 30.2W 48V 0.63A. The MFM-05-5 is the 5V, 5W, 1A version near the lower end of that range.
Can the MFM-05-5 be used in outdoor or washdown environments?
The specs show an operating temperature range of -40°C to +85°C, but no IP rating is provided. That means thermal capability is specified, while outdoor water or dust protection is not stated in the product data.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MFM-05 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MFM-05-3.3 Power Supply 5W 3.3V 1.25A | 4.1W | 3.3V | 1.25A | Indoor | $8.68 | View |
| Mean Well MFM-05-24 Power Supply 5W 24V 230mA | 5.5W | 24V | 0.23A | Indoor | $8.68 | View |
| Mean Well MFM-05-15 Power Supply 5W 15V 330mA | 5W | 15V | 0.33A | Indoor | $8.68 | View |
| Mean Well MFM-05-12 Power Supply 5W 12V 420mA | 5W | 12V | 0.42A | Indoor | $8.68 | View |
