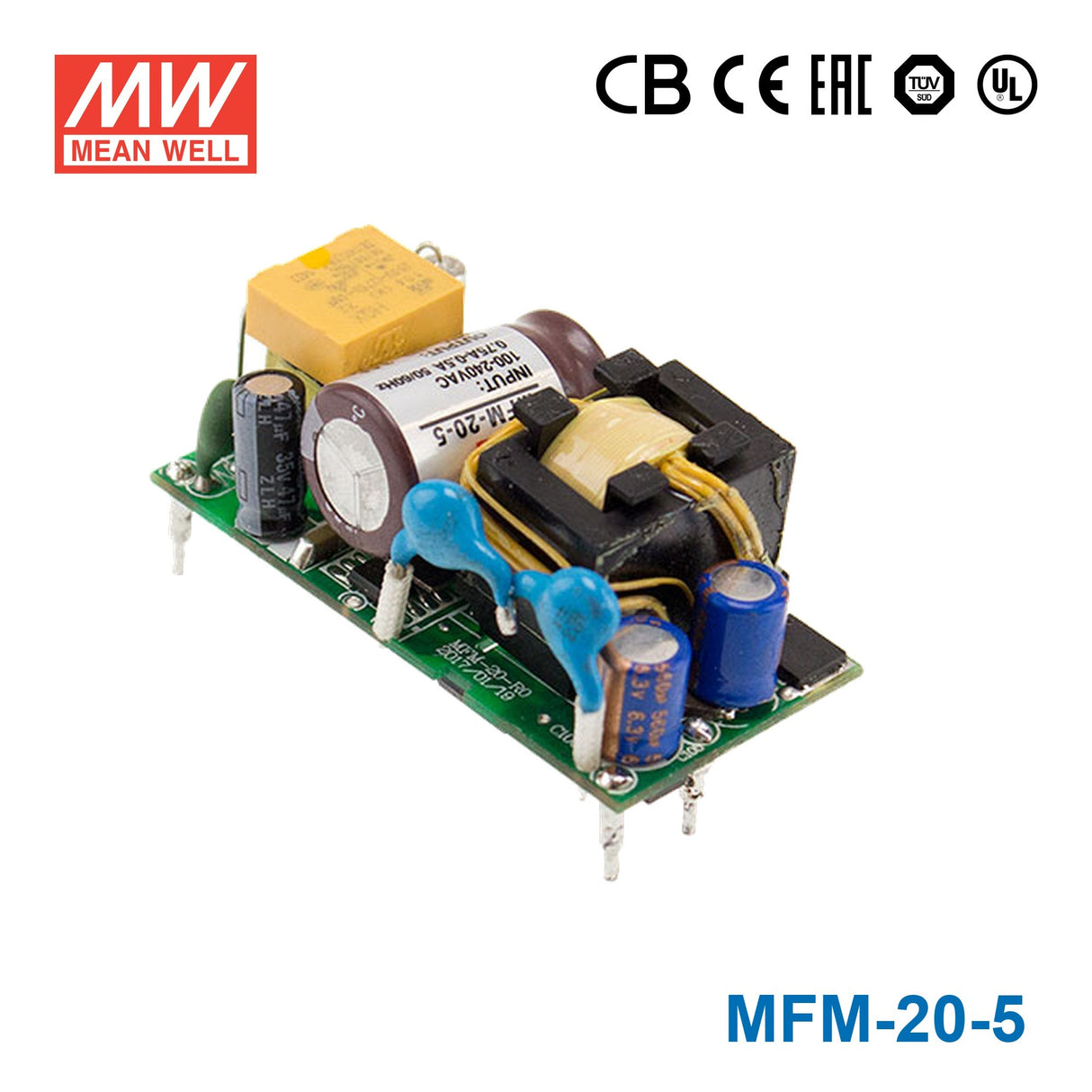

Mean Well MFM-20-5 Power Supply 20W 5V 4A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MFM-20-5 Power Supply 20W 5V 4A
Touch current <80 μA/264VAC
Key Features
- ✓1.93"x0.94" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.1W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -35~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMFM Series
-
Power Rating20 Watt
-
Output Voltage5 Volt
-
Rated Current4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-35°C~85°C
-
Warranty3 Year
-
Length1.93 in
-
Width0.94 in
-
Height0.91 in
-
Weight0.06 lb
::specification::
Frequently Asked Questions
Can I use the MFM-20-5 for 5V single-board computers or embedded controllers?
Yes, it provides a constant voltage 5V output with up to 4A available, which fits many single-board computers, embedded controllers, and digital processing boards that need a stronger 5V rail. Its 20W power rating gives more headroom than the 5W, 10W, and 15W 5V versions in the same series.
Is the MFM-20-5 suitable for 5V industrial USB or logic-powered devices inside equipment?
It can be used for 5V logic-powered industrial electronics as long as the total load stays within 4A and 20W. Because it is a constant voltage model, it is intended for equipment that expects a regulated 5V supply rather than a higher-voltage rail.
Can this model power a compact HMI, gateway, or communications board that runs on 5V?
That is a typical fit if the device needs a stable 5V rail and draws no more than 4A. The PCB type format and 49.0 x 23.8 x 23.0 mm dimensions also make it easier to place inside compact control and communications hardware.
Is the MFM-20-5 meant for indoor or outdoor use?
This model does not list an IP rating, so it should not be treated as a sealed outdoor power supply. It supports an operating temperature range of -35C to +85C, but it is better suited to protected indoor assemblies where the PCB type supply is shielded from direct moisture and dust.
How does the MFM-20-5 compare with the other 5V models in the MFM family?
Within the 5V range, the available models are MFM-05-5 at 5W and 1A, MFM-10-5 at 10W and 2A, MFM-15-5 at 15W and 3A, MFM-20-5 at 20W and 4A, and MFM-30-5 at 30W and 6A. The MFM-20-5 sits one step below the highest-capacity 5V option while offering more output current than the 5W, 10W, and 15W versions.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MFM-20 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MFM-20-3.3 Power Supply 20W 3.3V 4.5A | 14.9W | 3.3V | 4.5A | Indoor | $14.02 | View |
| Mean Well MFM-20-24 Power Supply 20W 24V 900mA | 21.6W | 24V | 0.9A | Indoor | $14.02 | View |
| Mean Well MFM-20-15 Power Supply 20W 15V 1.4A | 21W | 15V | 1.4A | Indoor | $14.02 | View |
| Mean Well MFM-20-12 Power Supply 20W 12V 1.8A | 21.6W | 12V | 1.8A | Indoor | $13.96 | View |
