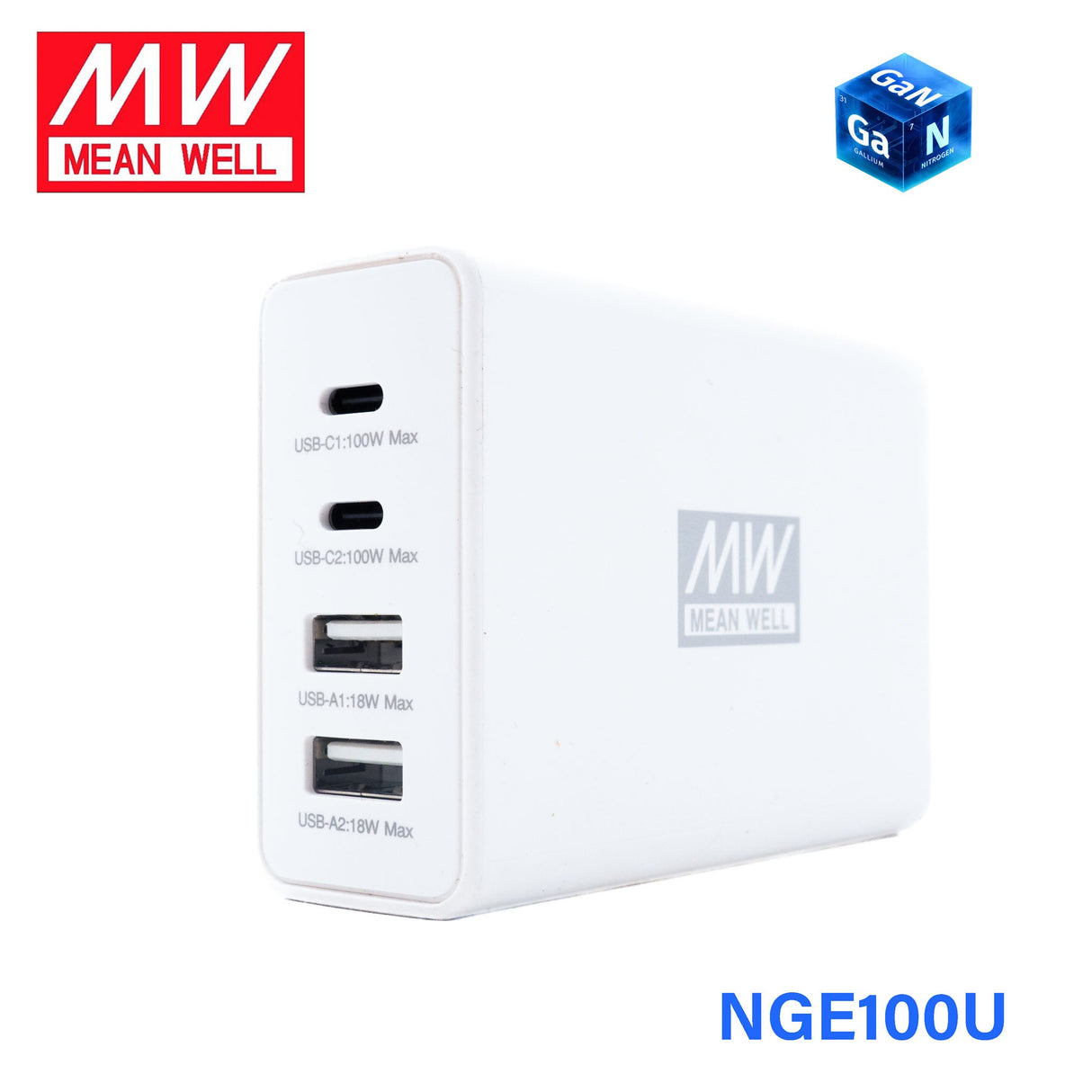

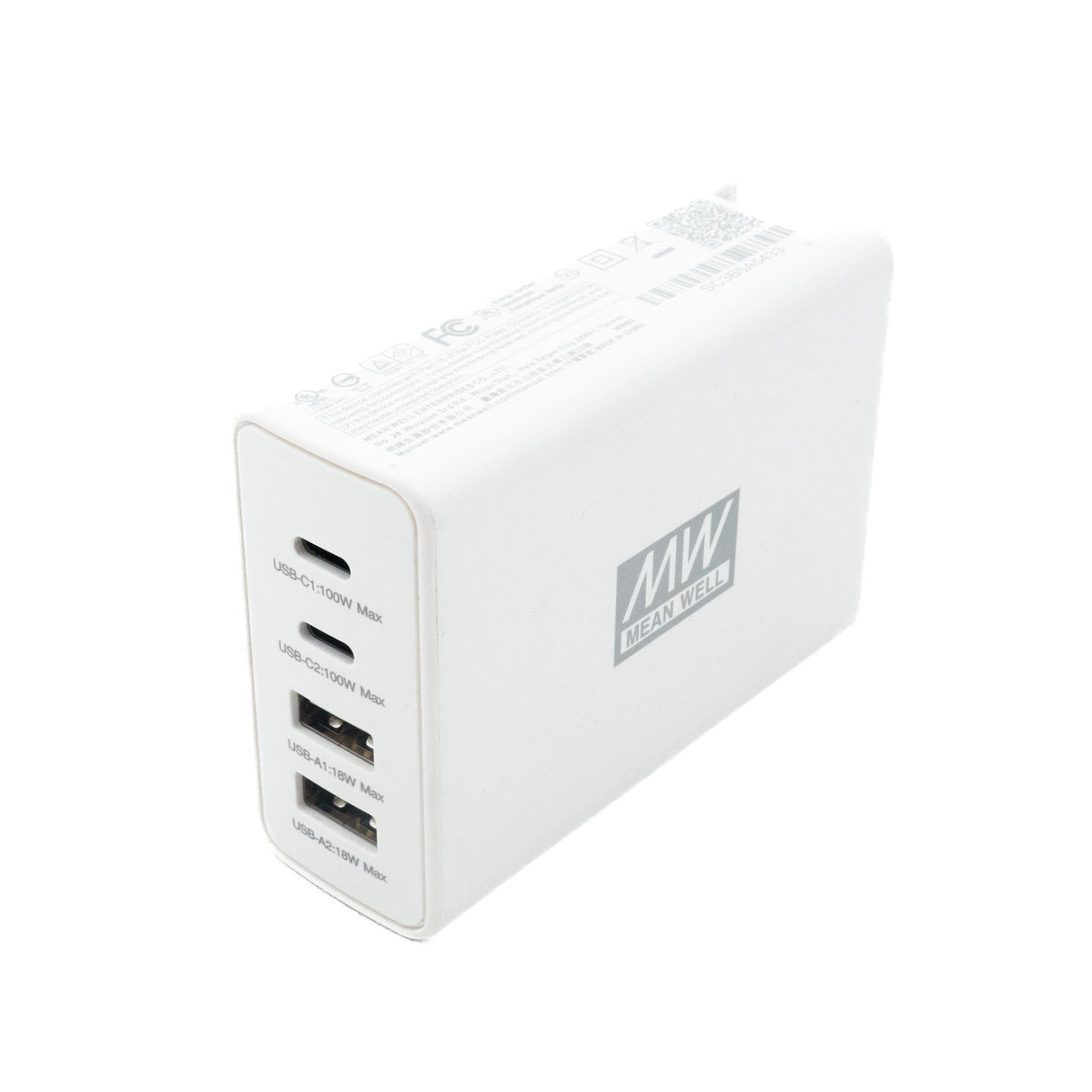

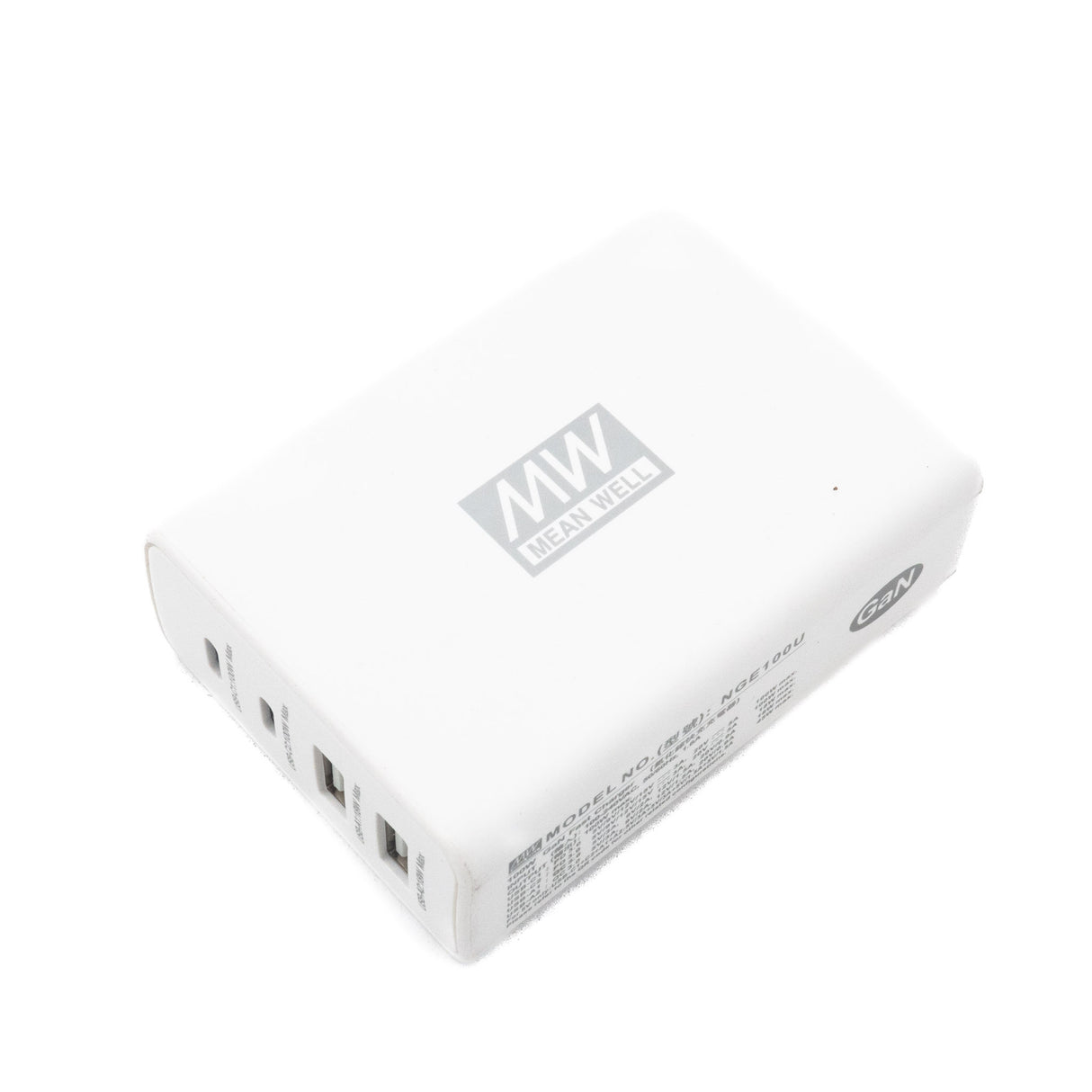

Mean Well NGE100U 100W 4-Port USB GaN Fast Charger
Key Features
- ✓One model for multi-devices
- ✓MEAN WELL Patent Application Number:202330347779.4
- ✓Universal version: Interchangeable AC plug(NGE100);
- ✓Global Certified
- ✓90~264 Vac Universal AC input
- ✓USB-2C2A, independent 4-port fast charging
- ✓Each USB-C port offers max 100W
- ✓Support QC2.0, QC3.0, PD3.0
- ✓Auto-detection 5V/9V/12V/15V/20V
- ✓Protections: Short circuit / Overload / Over temperature
- ✓No load power consumption <0.3W
- ✓Energy efficiency Level VI
- ✓Compact size (62*30*85.5mm)
- ✓Type-C cable with charging and data transmission included (100cm)
- ✓3 years warranty
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating100 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage90V~264V
-
No of Output4
-
Standards MetCB,CE,EAC
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.44 in
-
Width1.18 in
-
Height3.37 in
-
Weight0.55 lb
::specification::
Frequently Asked Questions
What is the Mean Well NGE100U designed for?
The Mean Well NGE100U is a 100W 4-port USB GaN fast charger built for charging multiple USB-powered devices from one compact unit. It is suited to business, office, travel, and bench-top use where a single charger needs to support several devices at once.
How many charging ports does the NGE100U have?

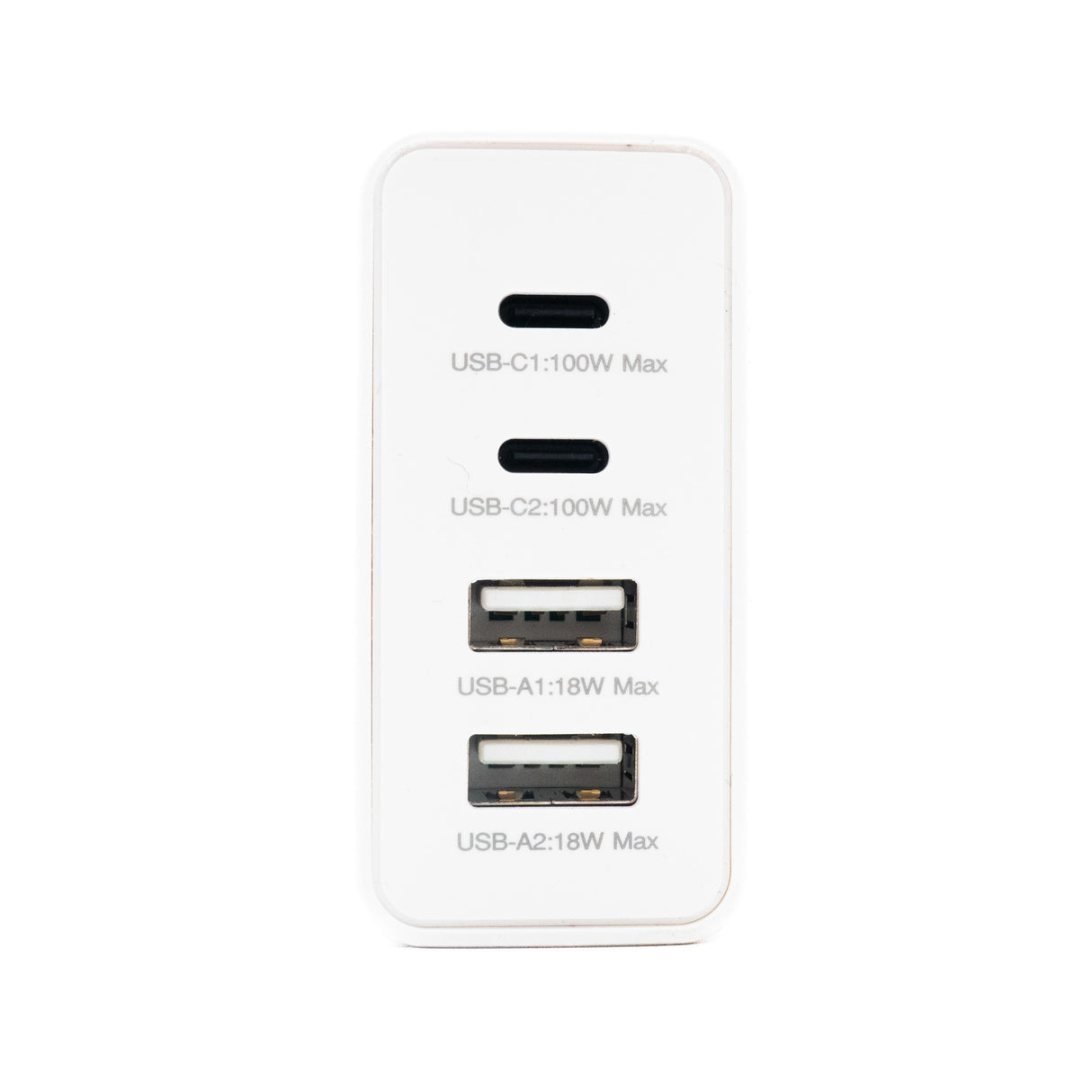

This model provides four independent charging ports in a USB-2C2A configuration. That means it includes two USB-C ports and two USB-A ports for charging multiple devices from the same charger.
What fast-charging standards does the NGE100U support?

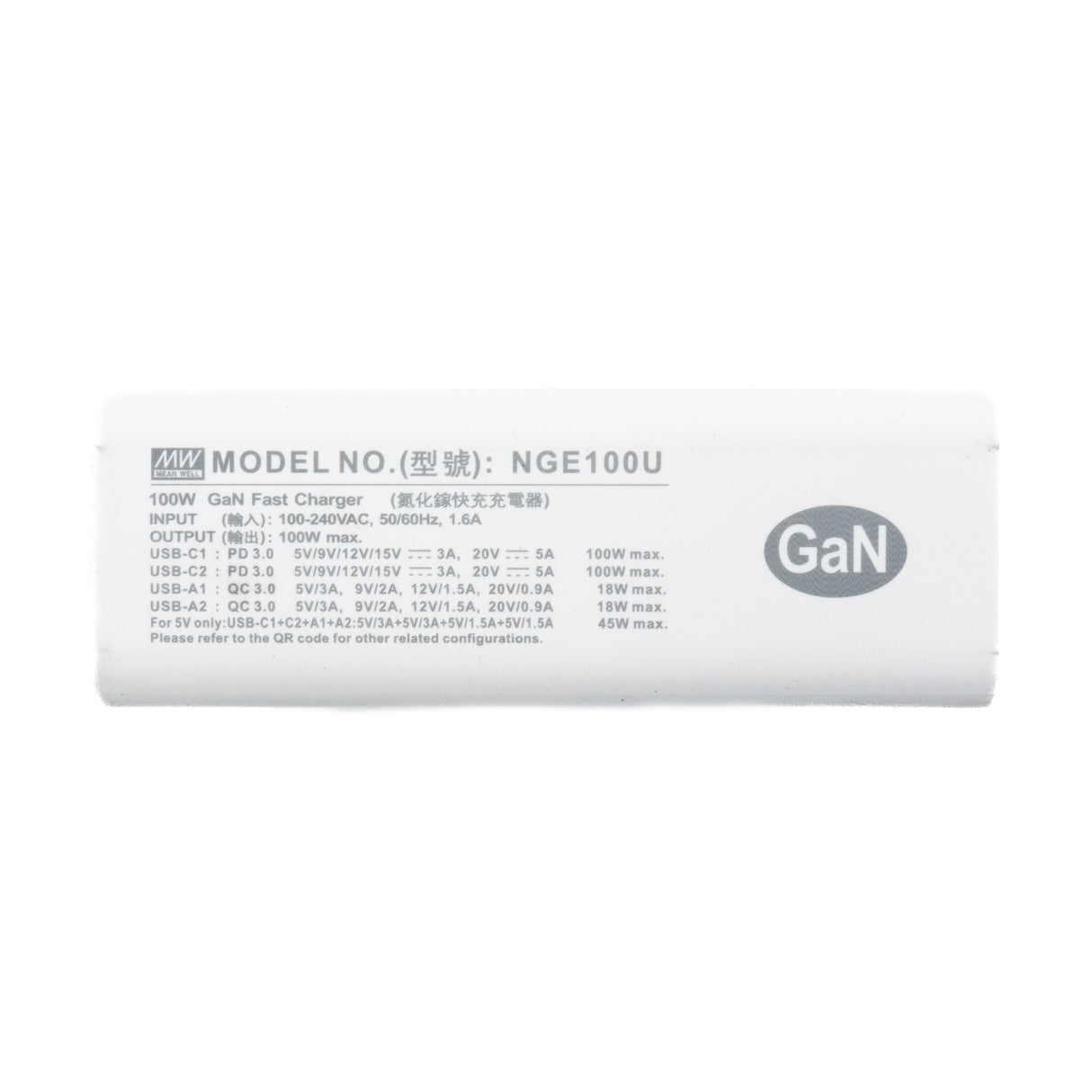

The NGE100U supports QC2.0, QC3.0, and PD3.0 fast-charging protocols. It also supports automatic detection of 5V, 9V, 12V, 15V, and 20V output levels depending on the connected device and charging negotiation.
What makes the NGE100U different from a basic USB charger?
Compared with a basic single-port charger, the NGE100U offers four independent ports, up to 100W output, and GaN-based compact design. It is also built with global safety approvals, Level VI energy efficiency, and protection against short circuit, overload, and over temperature.
Can the NGE100U be used internationally?

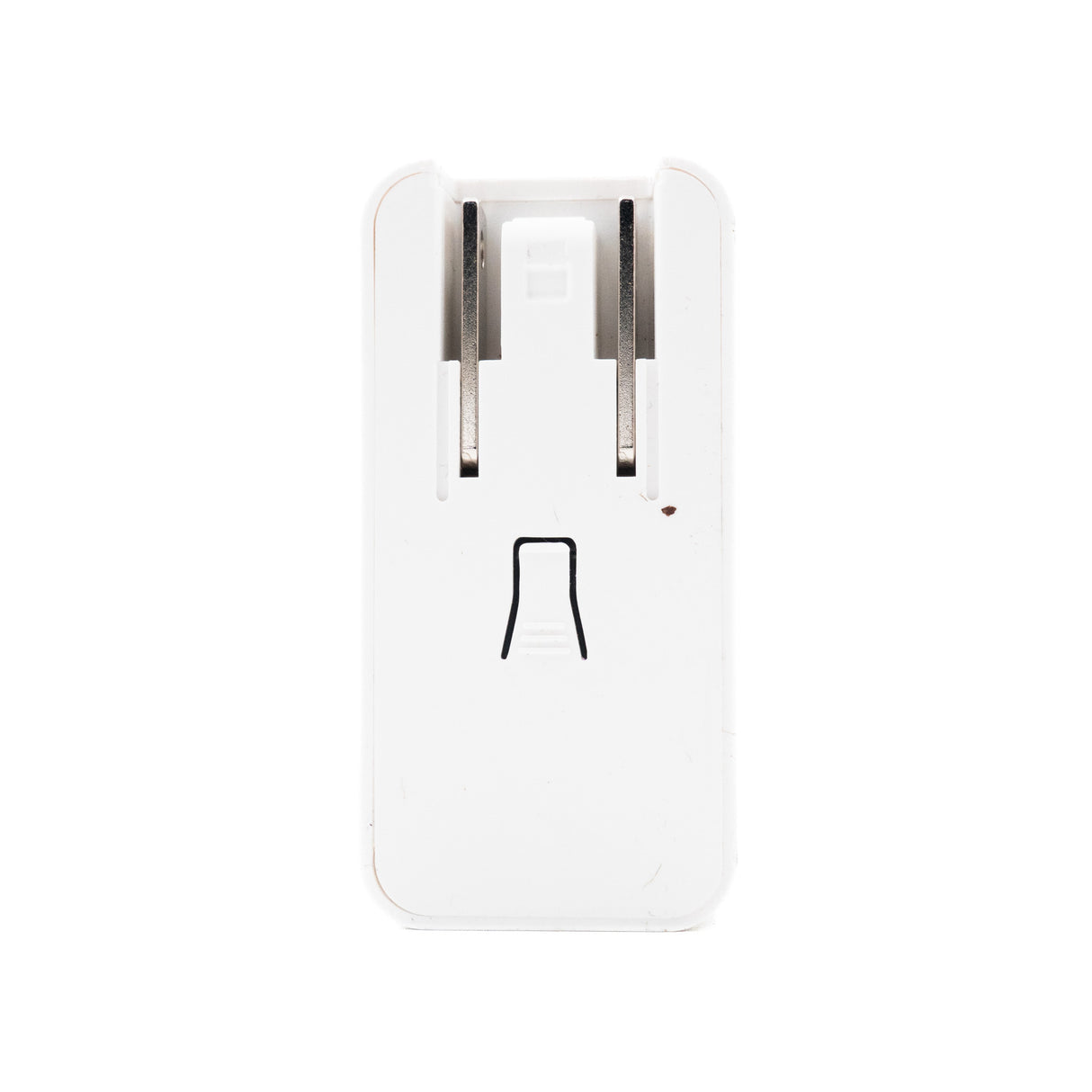

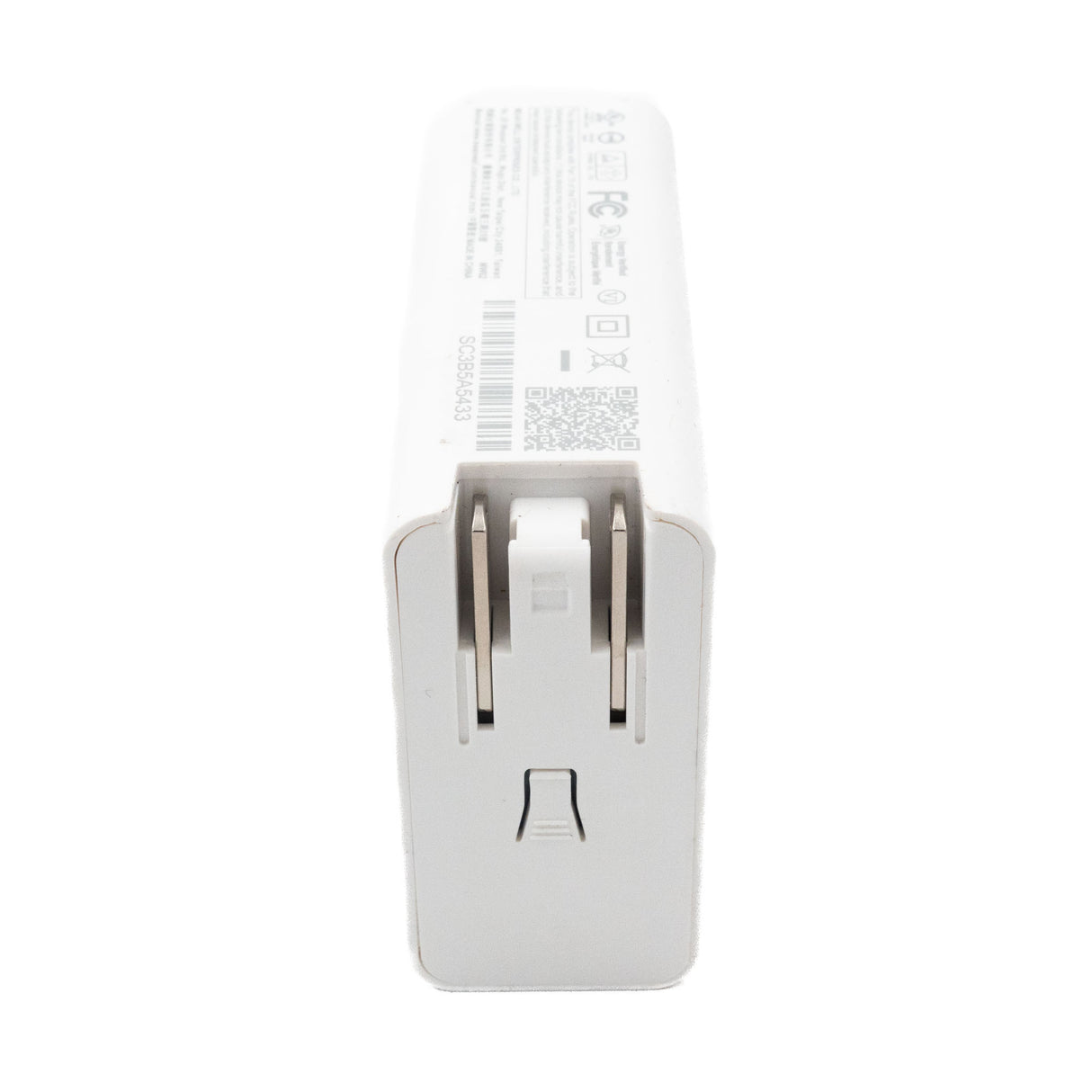

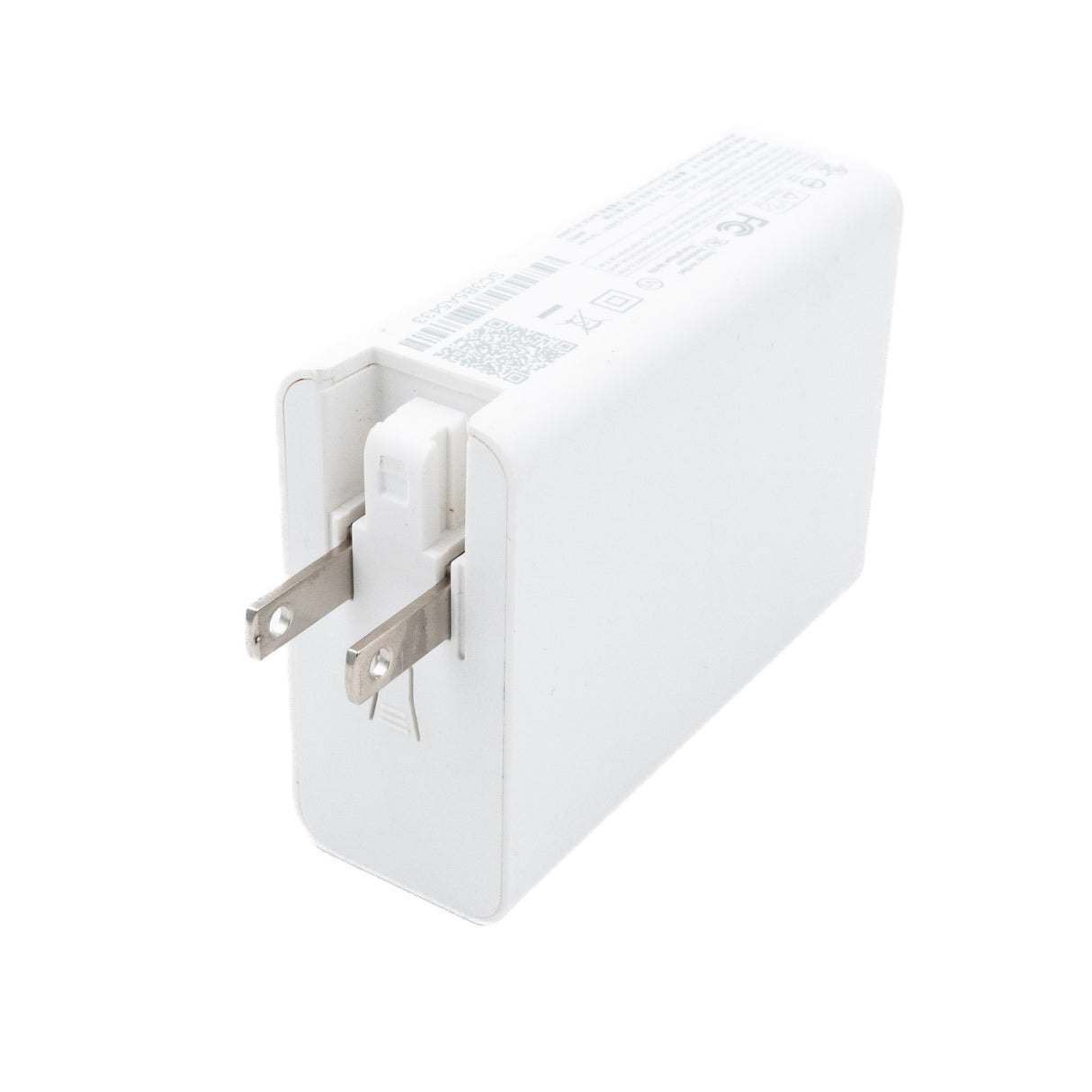

Yes. The charger accepts a universal AC input range of 90 to 264VAC, which makes it suitable for use across many regional power systems. This NGE100U version uses a non-interchangeable folding US plug format.
Is the NGE100U suitable for demanding environments?
The NGE100U is rated for operation from -30°C to +70°C, which supports use across a wide temperature range. Buyers should still consider the published derating guidance when evaluating performance at higher temperatures.
What protection and efficiency features does the NGE100U include?
This model includes protection for short circuit, overload, and over temperature conditions. It also offers no-load power consumption below 0.3W and meets Energy Efficiency Level VI requirements.
What is included with the Mean Well NGE100U?

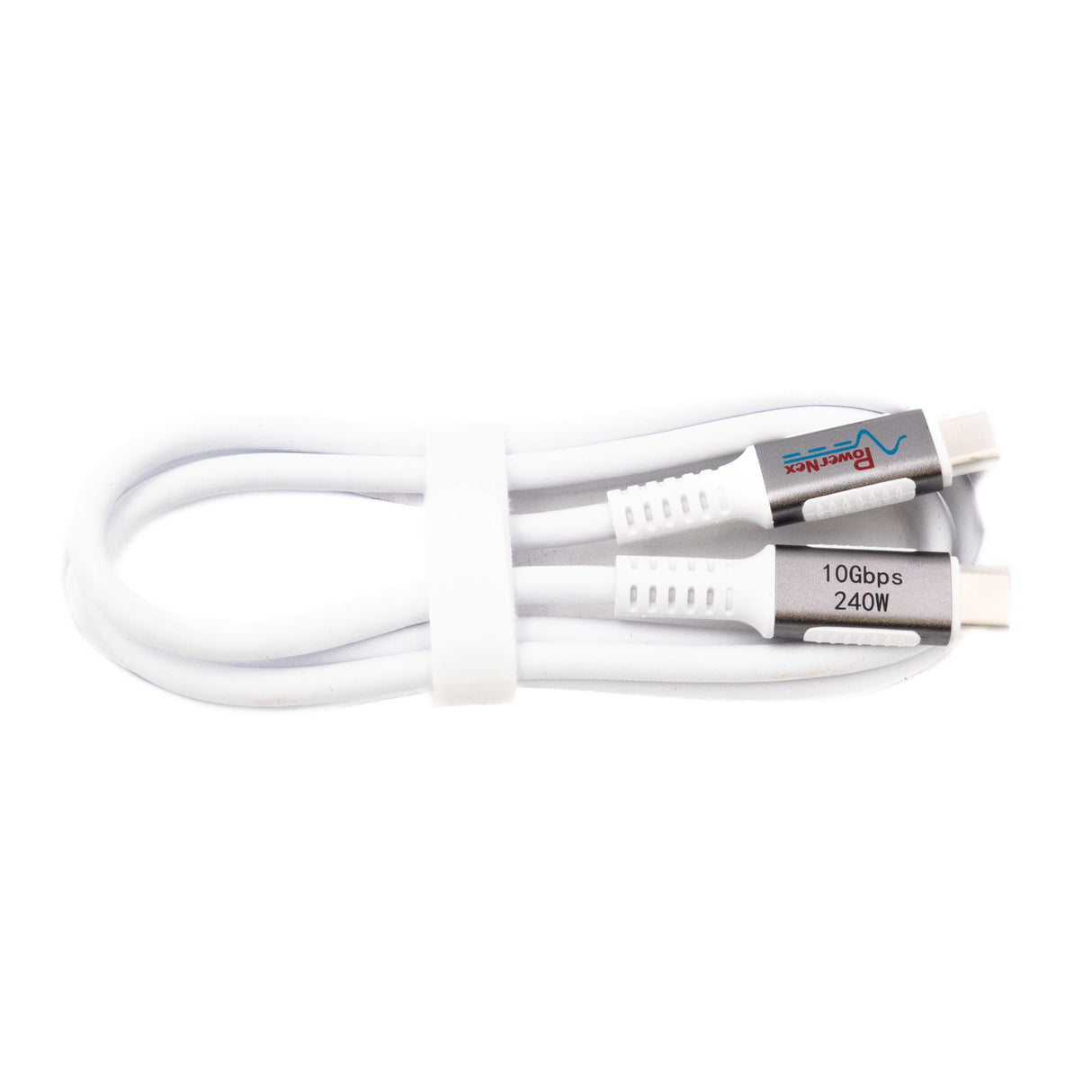

The NGE100U includes a 100cm USB Type-C cable that supports both charging and data transmission. Mean Well also rates this model with a 3-year warranty.
