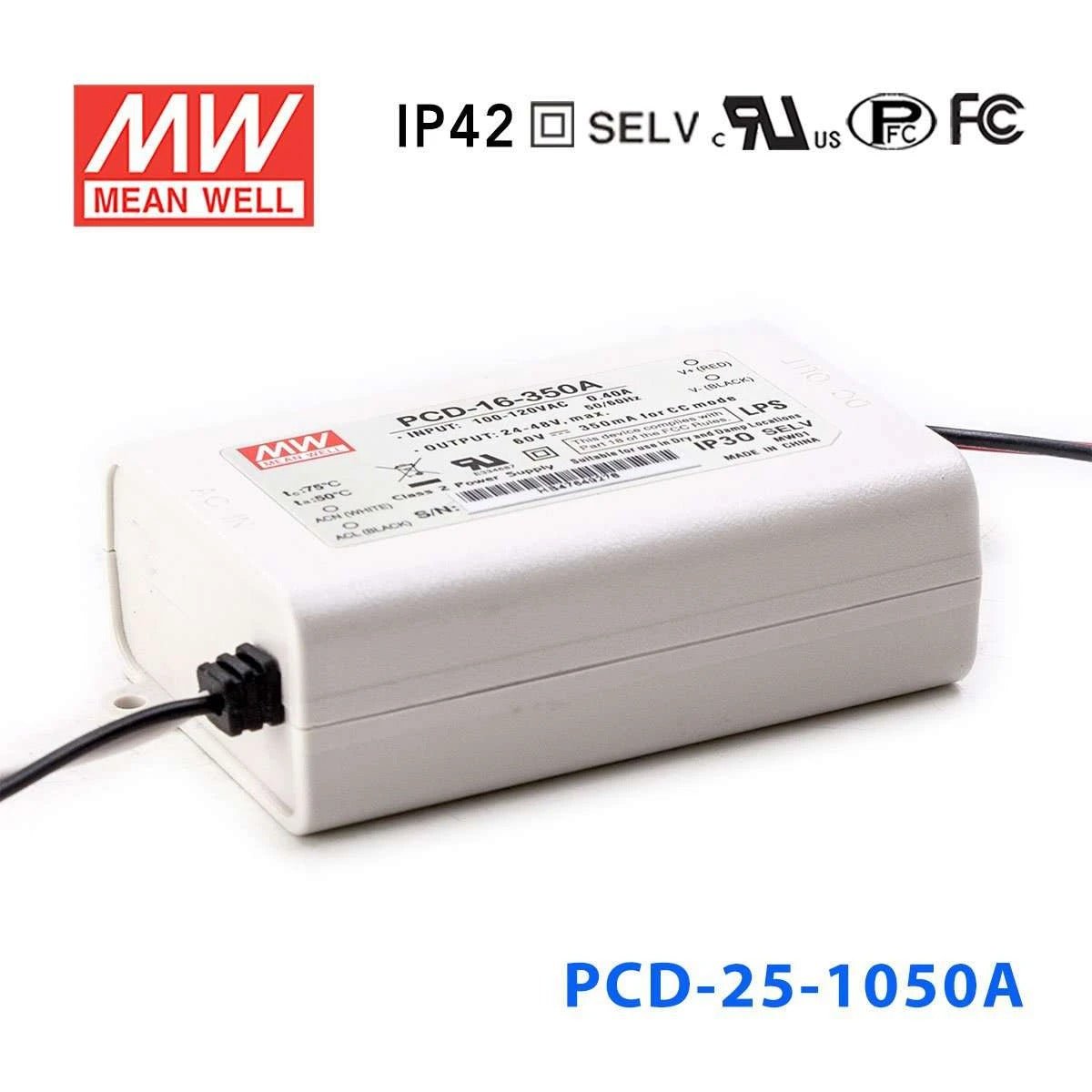

Mean Well PCD-25-1050A Power Supply 25W 1050mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PCD-25-1050A Power Supply 25W 1050mA
The PCD-25 is a 25W Mean Well power converter (input range: 40~58V).
Key Features
- ✓ Input voltage range: 40~58V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08(except for PCD-25-350, PCD-25-700), ENEC EN613471, EN61347-2-13, EN62384(for B type only), IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPCD Series
-
Power Rating25.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~135V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetBSI,CB,CE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the PCD-25-1050A for higher-output LED downlights?
Yes, if the downlight is designed for 1050mA constant current and the total LED forward-voltage requirement stays within 16-24V. This driver provides up to 25.2W, so it supports more load than the 16.8W versions.
Is the PCD-25-1050A suitable for constant-current signage modules?
It can be used for signage modules when the module assembly requires 1050mA constant current and operates within the 16-24V constant-current range. It is not a constant-voltage supply, so it should not be selected for constant-voltage LED signage products.
Can this model run a small LED array at 1050mA?
Yes, if the small LED array is specified for 1050mA constant current and its total forward voltage falls between 16V and 24V. The exact number of LEDs depends on each LED forward voltage, and the overall load must stay within 25.2W.
How do I verify LED compatibility with the PCD-25-1050A?
Match the load to 1050mA constant current and keep the combined LED forward voltage inside the 16-24V constant-current range. Because this is a constant-current driver, it is used differently from a constant-voltage power supply.
What operating conditions is the PCD-25-1050A rated for?
This driver has an IP42 plastic casing and an operating temperature range of -30C to +60C. Those specs make it appropriate for protected conditions rather than open wet-location exposure.
How does the PCD-25-1050A compare with nearby PCD models?
At 25.2W, the PCD-25-1050A/B cover 16-24V, the PCD-25-1400A/B cover 12-18V, and the PCD-25-700A/B cover 24-36V, while the PCD-25-350A/B are 20.3W with a 40-58V range. The 16.8W family steps down to 12-16V, 16-24V, and 24-48V options, and the 40W and 60W families extend to higher wattage and wider constant-current ranges.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PCD-25 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PCD-25-700B Power Supply 25W 700mA | 25.2W | 36V | 0.7A | Indoor | $18.80 | View |
| Mean Well PCD-25-700A Power Supply 25W 700mA | 25.2W | 36V | 0.7A | Indoor | $18.13 | View |
| Mean Well PCD-25-350B Power Supply 25W 350mA | 20.3W | 58V | 0.35A | Indoor | $18.80 | View |
| Mean Well PCD-25-350A Power Supply 16W 350mA | 20.3W | 58V | 0.35A | Indoor | $18.80 | View |
| Mean Well PCD-25-1400B Power Supply 25W 1400mA | 25.2W | 18V | 1.4A | Indoor | $18.13 | View |
| Mean Well PCD-25-1400A Power Supply 25W 1400mA | 25.2W | 18V | 1.4A | Indoor | $18.80 | View |
| Mean Well PCD-25-1050B Power Supply 25W 1050mA | 25.2W | 24V | 1.05A | Indoor | $18.80 | View |
