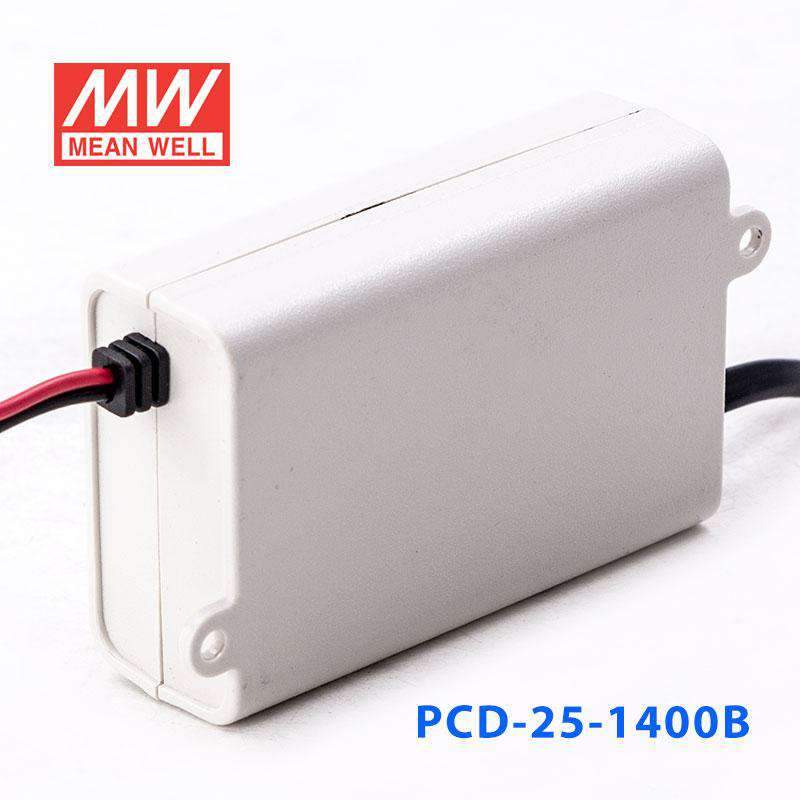

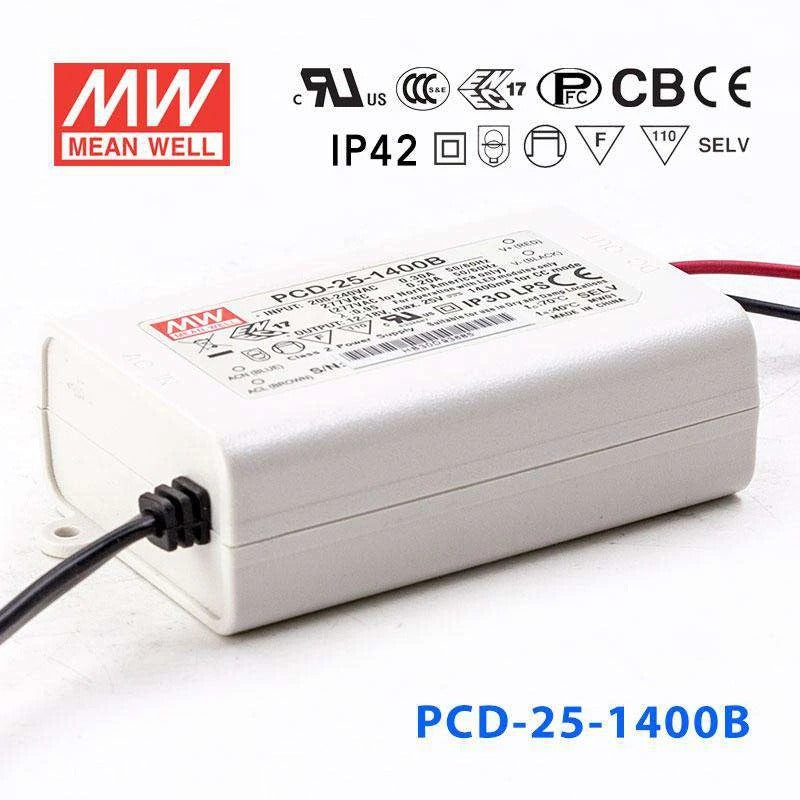

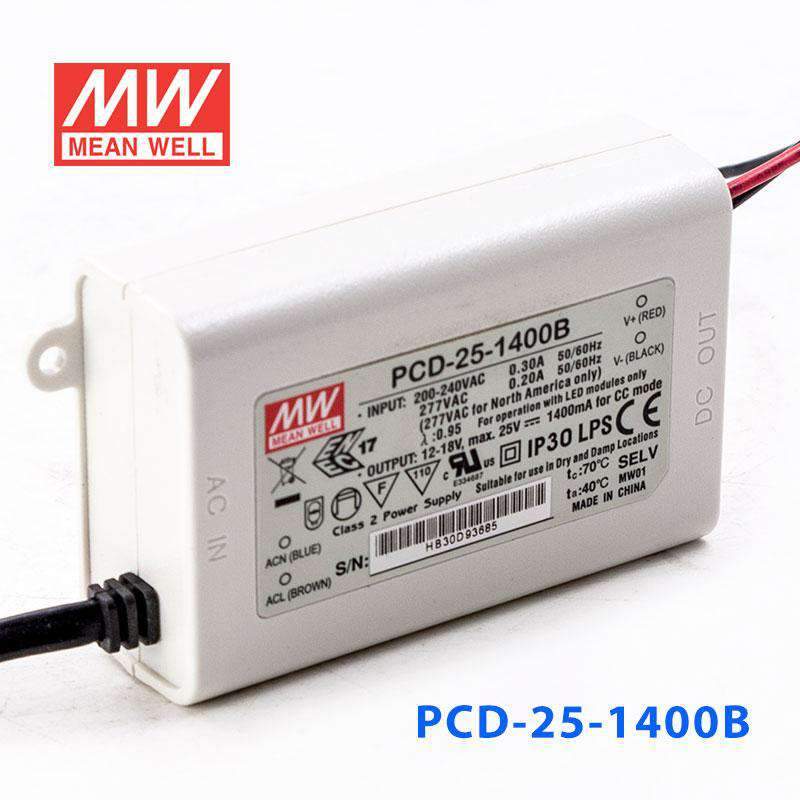

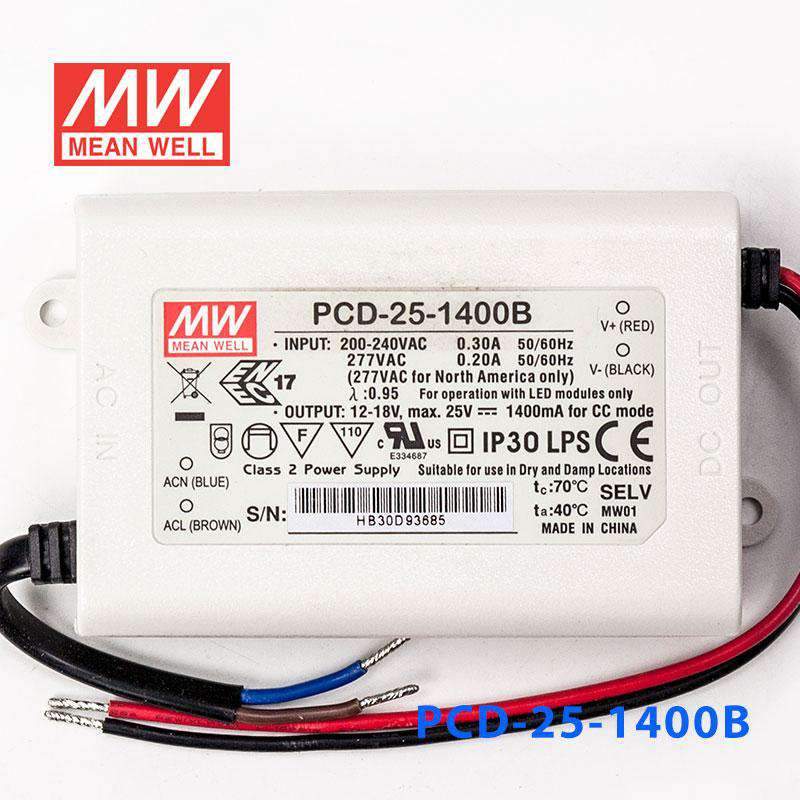

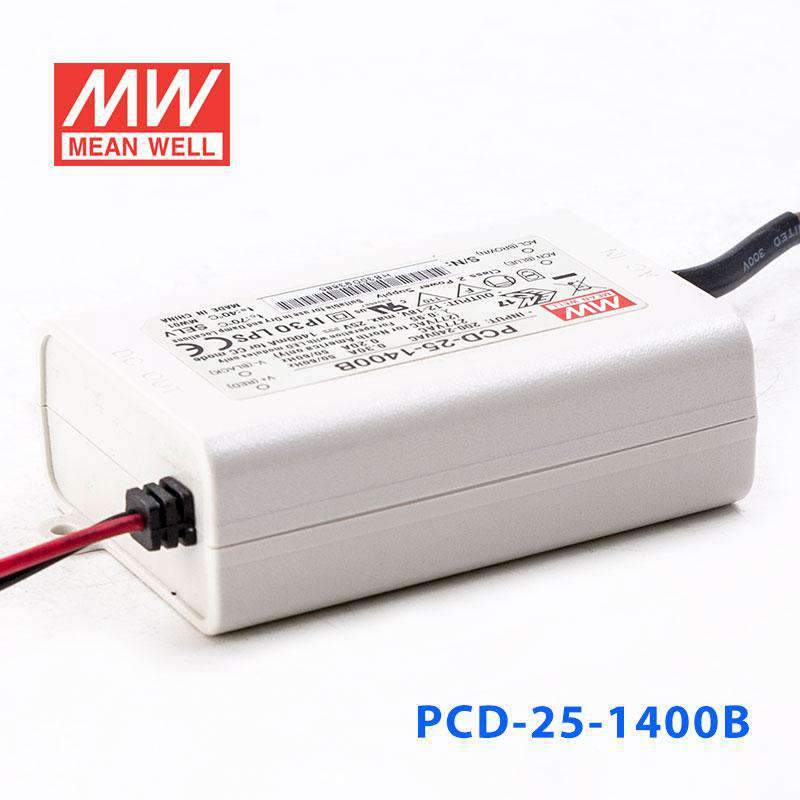

Mean Well PCD-25-1400B Power Supply 25W 1400mA
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well PCD-25-1400B Power Supply 25W 1400mA
The PCD-25 is a 25W Mean Well power converter (input range: 40~58V).
Key Features
- ✓ Input voltage range: 40~58V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08(except for PCD-25-350, PCD-25-700), ENEC EN613471, EN61347-2-13, EN62384(for B type only), IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPCD Series
-
Power Rating25.2 Watt
-
Output Voltage18 Volt
-
Rated Current1.4 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetBSI,CB,CE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can I use the PCD-25-1400B for an LED downlight?
Yes, if the downlight is designed for a constant current driver at 1400mA and the LED load stays within the 12-18V constant current range. This model provides up to 25.2W, so it fits compact downlights that match those electrical limits.
Is the PCD-25-1400B suitable for signage LED modules?
It can be used for signage modules when the module string requires constant current operation at 1400mA and runs within 12-18V. Because this is a constant current driver, it is not a substitute for constant voltage signage power supplies.
Can this driver run a small high-current LED array?
Yes, this model is intended for constant current LED loads at 1400mA with a 12-18V working range. A small LED array can be a fit if its total forward voltage lands inside that range and the load stays within 25.2W.
How do I know if my LEDs are electrically compatible with the PCD-25-1400B?
Check that your LEDs need a constant current source at 1400mA and that the combined forward voltage falls within 12-18V. The number of LEDs depends on each LED's forward voltage, so this driver should be matched by current and total voltage rather than by a fixed LED count.
Where does the PCD-25-1400B fit within the PCD constant current series?
In the 25W group, the series includes 350mA models at 40-58V and 20.3W, 700mA models at 24-36V and 25.2W, 1050mA models at 16-24V and 25.2W, and 1400mA models at 12-18V and 25.2W. This PCD-25-1400B is the 1400mA, 12-18V, 25.2W option with 180-295VAC input.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PCD-25 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PCD-25-700B Power Supply 25W 700mA | 25.2W | 36V | 0.7A | Indoor | $18.80 | View |
| Mean Well PCD-25-700A Power Supply 25W 700mA | 25.2W | 36V | 0.7A | Indoor | $18.13 | View |
| Mean Well PCD-25-350B Power Supply 25W 350mA | 20.3W | 58V | 0.35A | Indoor | $18.80 | View |
| Mean Well PCD-25-350A Power Supply 16W 350mA | 20.3W | 58V | 0.35A | Indoor | $18.80 | View |
| Mean Well PCD-25-1400A Power Supply 25W 1400mA | 25.2W | 18V | 1.4A | Indoor | $18.80 | View |
| Mean Well PCD-25-1050B Power Supply 25W 1050mA | 25.2W | 24V | 1.05A | Indoor | $18.80 | View |
| Mean Well PCD-25-1050A Power Supply 25W 1050mA | 25.2W | 24V | 1.05A | Indoor | $18.80 | View |
