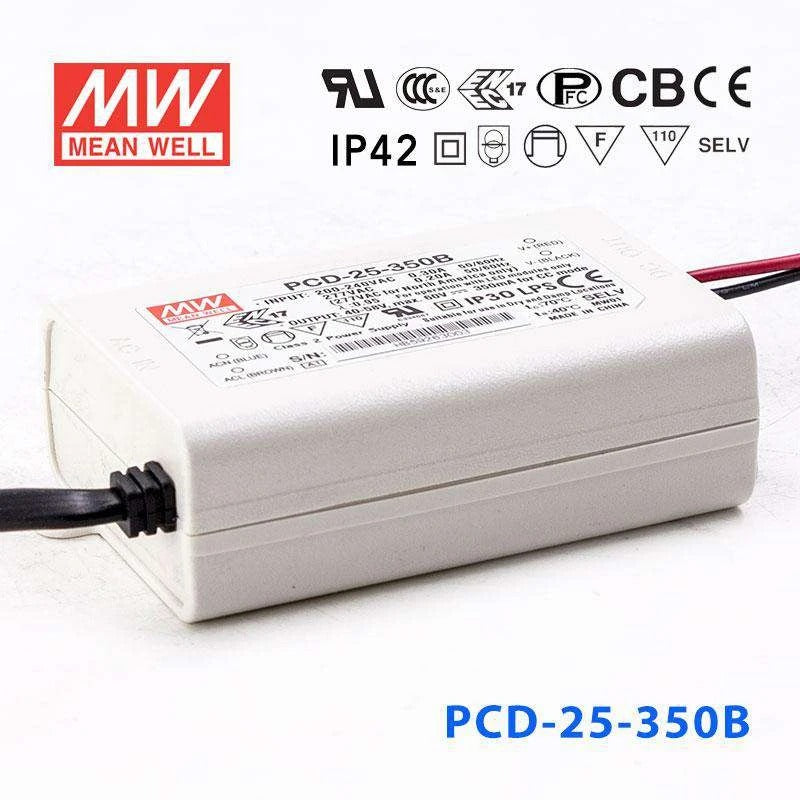

Mean Well PCD-25-350B Power Supply 25W 350mA
Notify me when it's back in stock
Your order will be processed within 24 hours

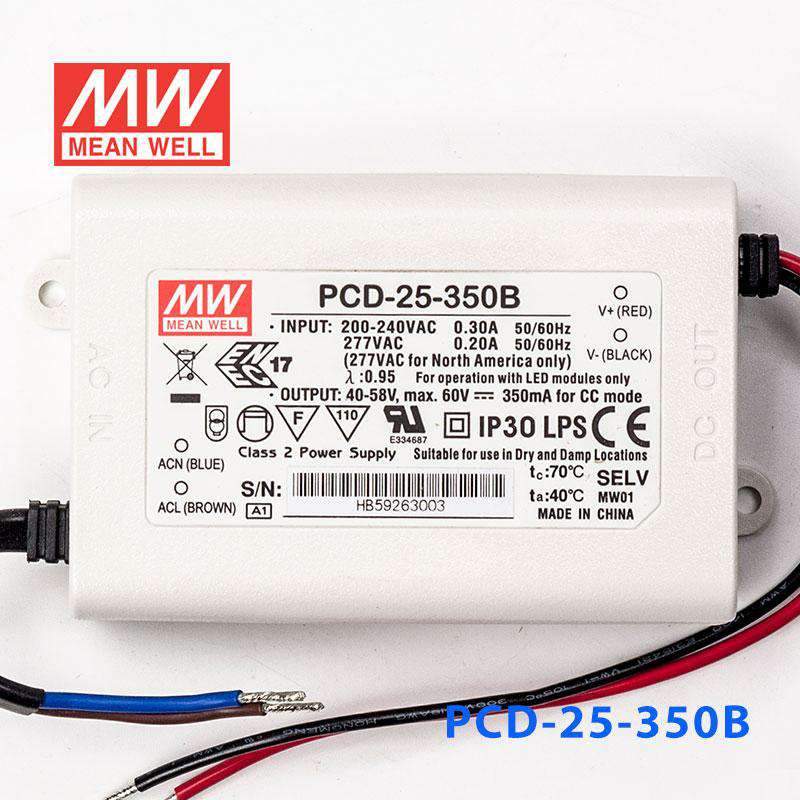

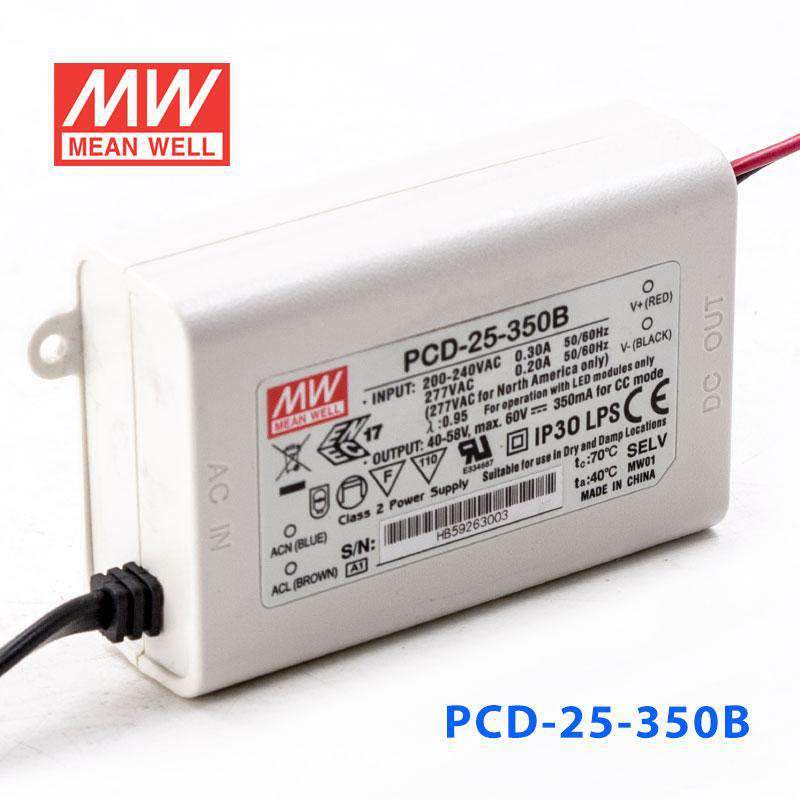

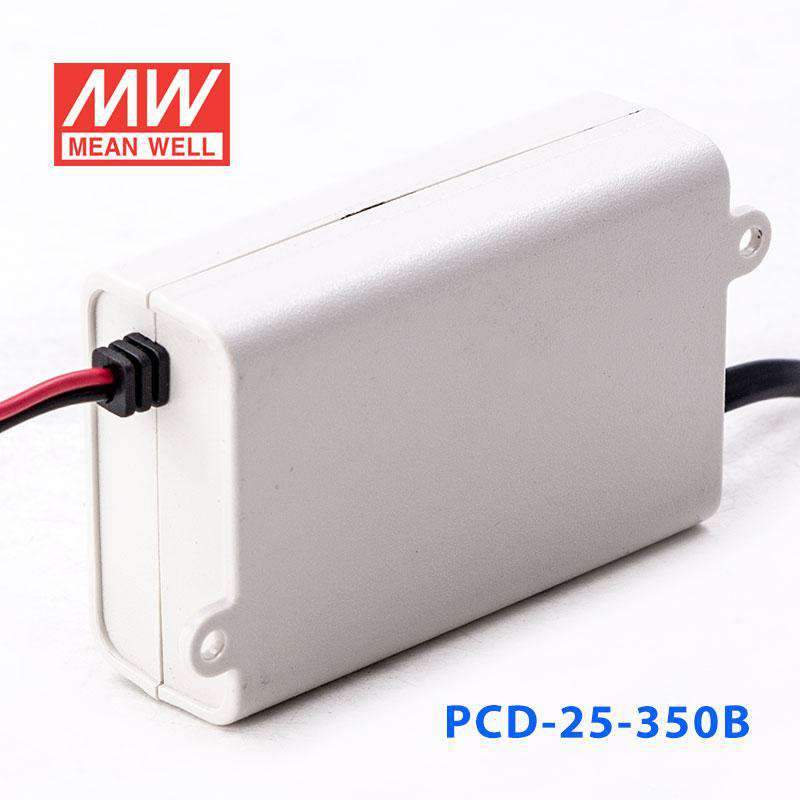

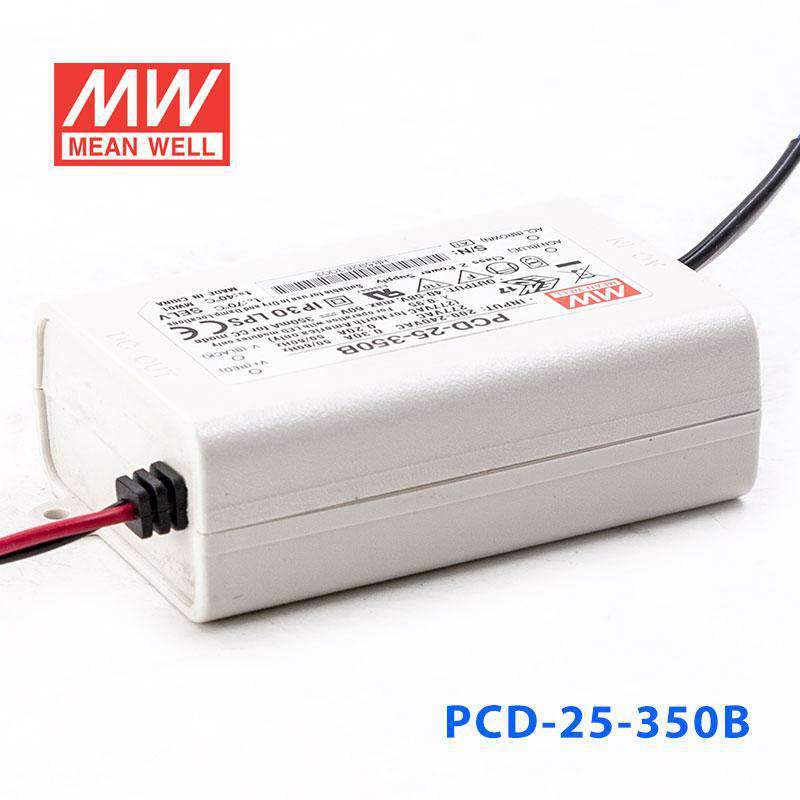

Mean Well PCD-25-350B Power Supply 25W 350mA
The PCD-25 is a 25W Mean Well power converter (input range: 40~58V).
Key Features
- ✓ Input voltage range: 40~58V
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750, CSA C22.2 No. 250.0-08(except for PCD-25-350, PCD-25-700), ENEC EN613471, EN61347-2-13, EN62384(for B type only), IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPCD Series
-
Power Rating20.3 Watt
-
Output Voltage58 Volt
-
Rated Current0.35 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetBSI,CB,CE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~60°C
-
Warranty3 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.42 lb
::specification::
Frequently Asked Questions
Can the PCD-25-350B power a string of signage LEDs?
Yes, when the signage load is designed for constant current at 350mA and the total forward voltage stays within 40-58V. Because the unit is constant current, it is not the right choice for constant voltage LED systems.
Is this driver suitable for a narrow LED downlight array?
It can be, provided the downlight uses a 350mA constant current driver and the LED load operates in the 40-58V range. The available output power is 20.3W, so the fixture also needs to remain within that limit.
Can I use the PCD-25-350B with a compact custom LED array?
Yes, if the array is built around 350mA constant current operation and its combined forward voltage is between 40V and 58V. That makes it suitable for higher-voltage, lower-current LED arrays within the 20.3W rating.
What makes an LED load compatible with the PCD-25-350B?
The load must require 350mA constant current and fall within the 40-58V constant current output range. The number of LEDs depends on each LED's forward voltage, so you should size the string by current and total forward voltage instead of by a fixed count.
How does the PCD-25-350B compare with the other PCD-25 models?
Within the PCD-25 range, the 350mA versions are 40-58V at 20.3W, the 700mA versions are 24-36V at 25.2W, the 1050mA versions are 16-24V at 25.2W, and the 1400mA versions are 12-18V at 25.2W. The PCD-25-350B is the 350mA, 40-58V model with 180-295VAC input.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PCD-25 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PCD-25-700B Power Supply 25W 700mA | 25.2W | 36V | 0.7A | Indoor | $18.80 | View |
| Mean Well PCD-25-700A Power Supply 25W 700mA | 25.2W | 36V | 0.7A | Indoor | $18.13 | View |
| Mean Well PCD-25-350A Power Supply 16W 350mA | 20.3W | 58V | 0.35A | Indoor | $18.80 | View |
| Mean Well PCD-25-1400B Power Supply 25W 1400mA | 25.2W | 18V | 1.4A | Indoor | $18.13 | View |
| Mean Well PCD-25-1400A Power Supply 25W 1400mA | 25.2W | 18V | 1.4A | Indoor | $18.80 | View |
| Mean Well PCD-25-1050B Power Supply 25W 1050mA | 25.2W | 24V | 1.05A | Indoor | $18.80 | View |
| Mean Well PCD-25-1050A Power Supply 25W 1050mA | 25.2W | 24V | 1.05A | Indoor | $18.80 | View |
