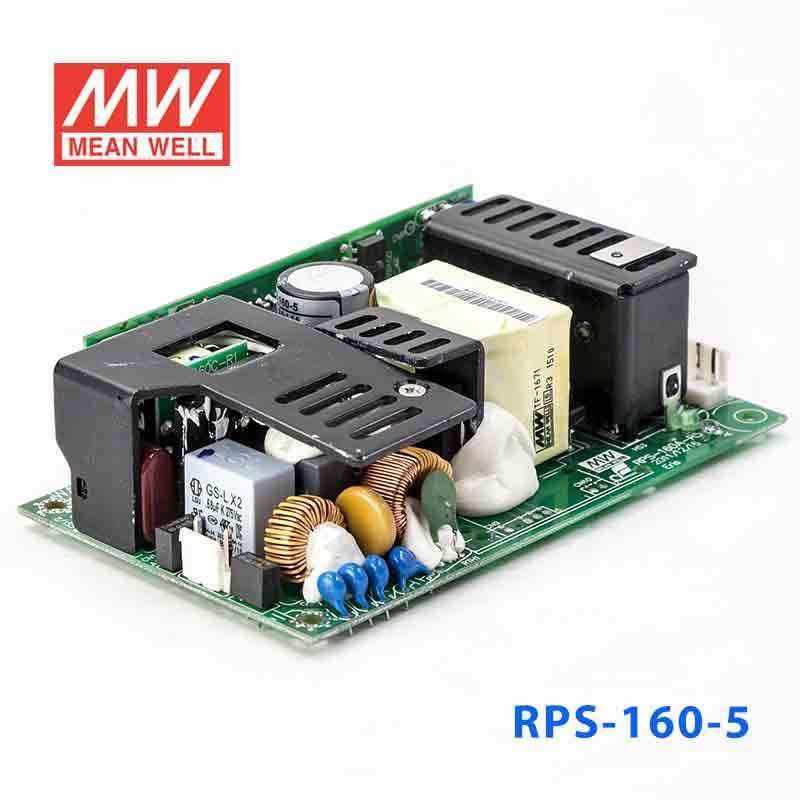

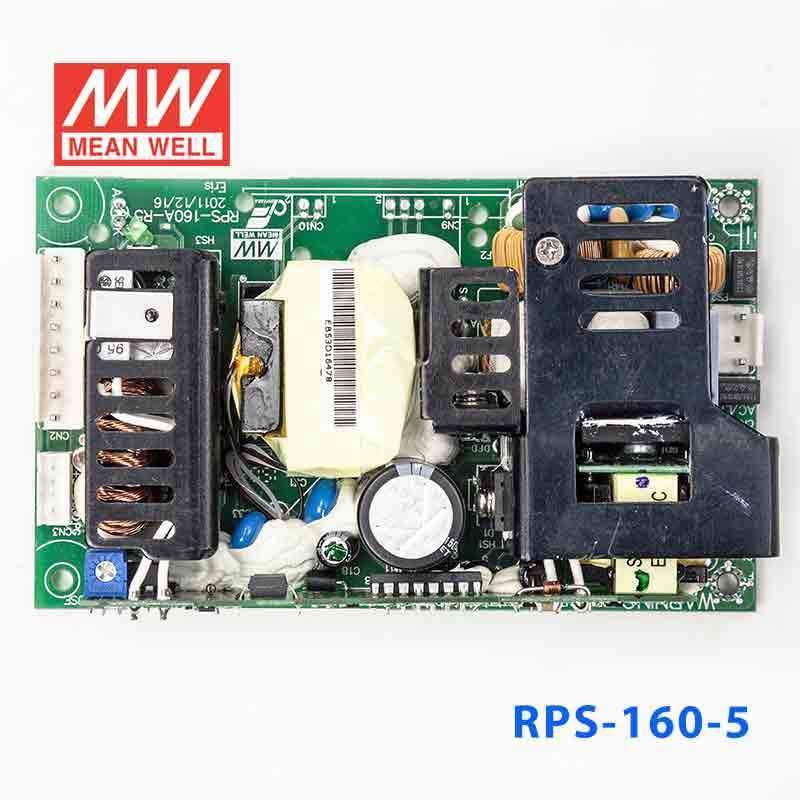

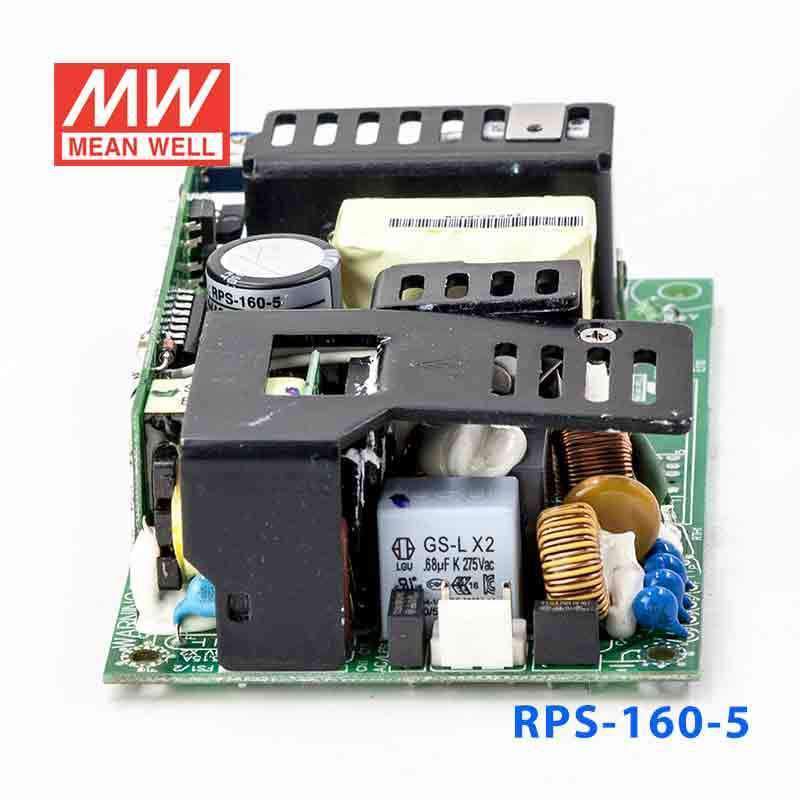

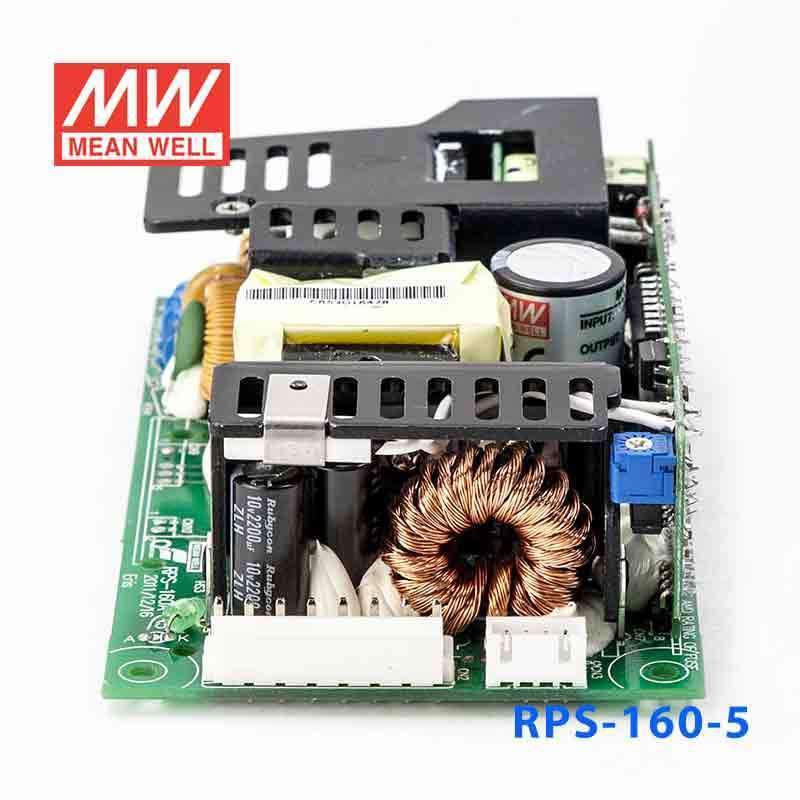

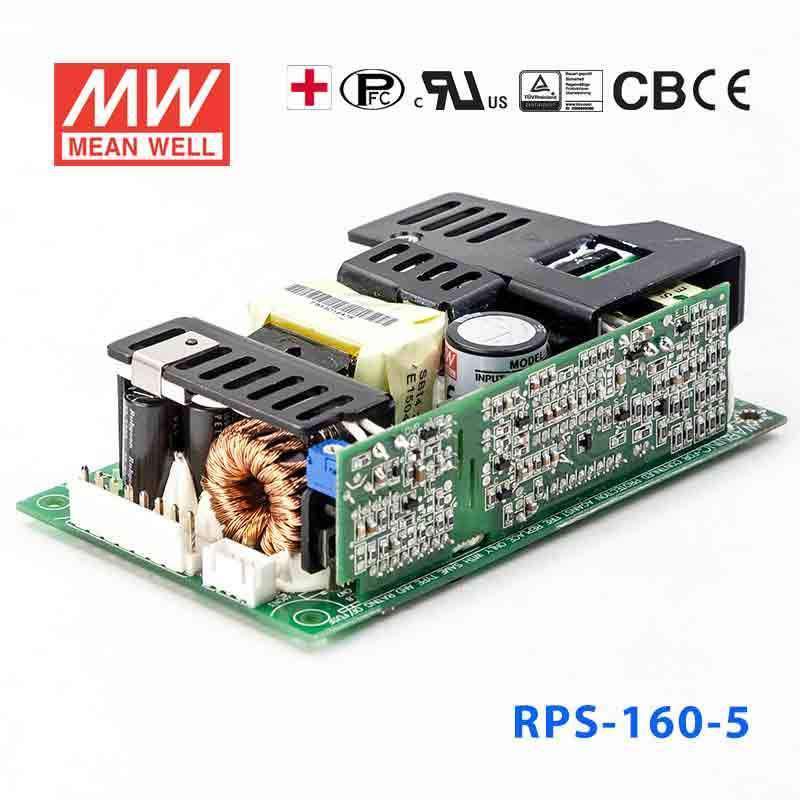

Mean Well RPS-160-5 Green Power Supply W 5V 20A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-160-5 Green Power Supply W 5V 20A - Medical Power Supply
The RPS-160 is a 160W Mean Well power converter (input range: 90~264VAC, operating temperature: -20~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -20~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating103 Watt
-
Output Voltage5 Volt
-
Rated Current20 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.36 in
-
Weight0.71 lb
::specification::
Frequently Asked Questions
Can I use the RPS-160-5 for a 5V embedded computing or controller system?
Yes, this model provides constant-voltage 5V output up to 20A, with 103W total power available for high-current 5V electronics. That makes it relevant for dense embedded control, processor, or logic-heavy systems that run from a 5V rail.
Is the RPS-160-5 suitable for industrial 5V logic and I/O hardware?
It can fit industrial or automation hardware that requires a regulated 5V supply and draws up to 20A. Because no IP rating is specified, it is best used inside protected cabinets or enclosed equipment.
Can this model power a 5V test fixture or bench electronics load?
Yes, the 5V constant-voltage output and 20A current rating make it a practical option for 5V test fixtures, inspection systems, or lab electronics with heavier current demand. Its compact 127.0 x 76.2 x 34.6 mm size also supports space-constrained builds.
Is the RPS-160-5 appropriate for medical electronic equipment with a 5V rail?
Yes, it is identified as a medical power supply and listed as medical safety approved. The unit also carries CB, CE, cUL, EAC, and c_shide certifications, which can be relevant when integrating 5V medical electronics.
Can the RPS-160-5 be used in outdoor or washdown environments?
The operating temperature range is -20°C to +70°C, which supports a wide indoor temperature range. No IP rating is listed, so it should not be treated as an exposed outdoor or washdown power supply.
How does the RPS-160-5 compare with other 5V RPS models?
For 5V outputs in this series, the RPS-30-5 is 30W at 5V 6A, the RPS-45-5 is 40W at 5V 8A, the RPS-60-5 and RPS-65-5 are 50W at 5V 10A, the RPS-75-5 is 70W at 5V 14A, and this RPS-160-5 is 103W at 5V 20A. The higher-current 12V, 24V, and 48V siblings are different output-voltage products rather than direct 5V equivalents.
