Mean Well SP-240-15 Power Supply 240W 15V 16A
Notify me when it's back in stock
Your order will be processed within 24 hours

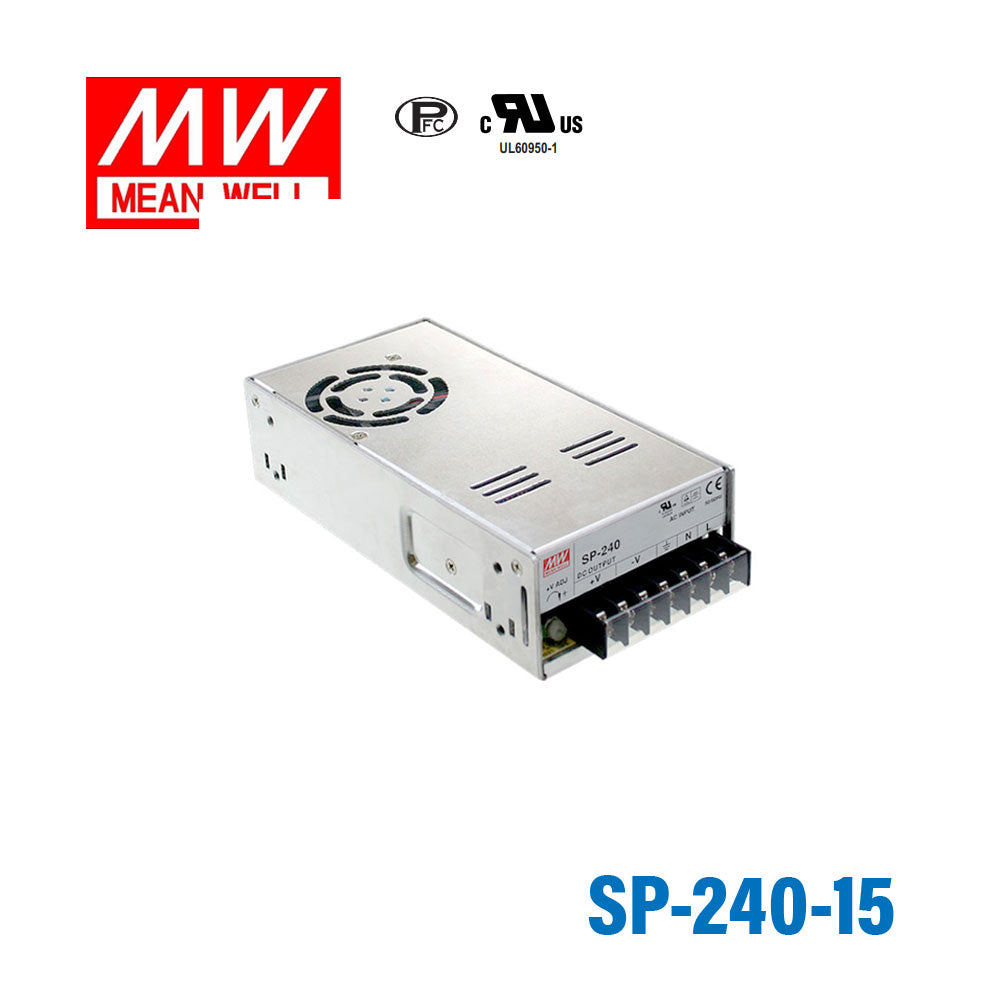

Mean Well SP-240-15 Power Supply 240W 15V 16A
The SP-240 is a 240W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMI CONDUCTION & RADIATION HARMONIC CURRENT EMS IMMUNITY MTBF OTHERS DIMENSION UL60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating240 Watt
-
Output Voltage15 Volt
-
Rated Current16 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7.48 in
-
Width3.66 in
-
Height1.97 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can I use the SP-240-15 for 15V industrial or automation equipment?
Yes, this model provides a constant 15V output rated for 240W and 16A. It fits 15V industrial, embedded, and automation loads that need a fixed 15V source within those electrical limits.
Is the SP-240-15 suitable for a 15V electronics rack or OEM machine subsystem?
It can be used in OEM or rack-mounted equipment when the connected 15V load does not exceed 16A. The compact dimensions of 190.0 × 93.0 × 50.0 mm can also matter where enclosure space is limited.
Would the SP-240-15 work for a 15V test fixture or burn-in station?
Yes, provided the fixture or station requires regulated 15V DC and remains within the 240W maximum output. The unit is designed as a single-output supply rather than a multi-output bench supply.
Can this model handle higher-demand 15V loads than smaller 15V units in the same series?
Yes, it delivers 240W at 15V and 16A, which is higher than the SP-100-15 at 100.5W and 6.7A. That makes it more appropriate when a 15V application needs substantially more current capacity.
Is the SP-240-15 suitable for cold or hot operating environments?
Its specified operating temperature range is -20°C to +70°C, which is broader than the SP-200 units listed at -10°C to +60°C. No IP rating is provided here, so the specs do not define outdoor or water-exposed use.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SP-240 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SP-240-5 Power Supply 240W 5V 45A | 240W | 5V | 45A | Indoor | $42.98 | View |
