Mean Well SP-480-48 Power Supply 480W 48V 10A
Notify me when it's back in stock
Your order will be processed within 24 hours

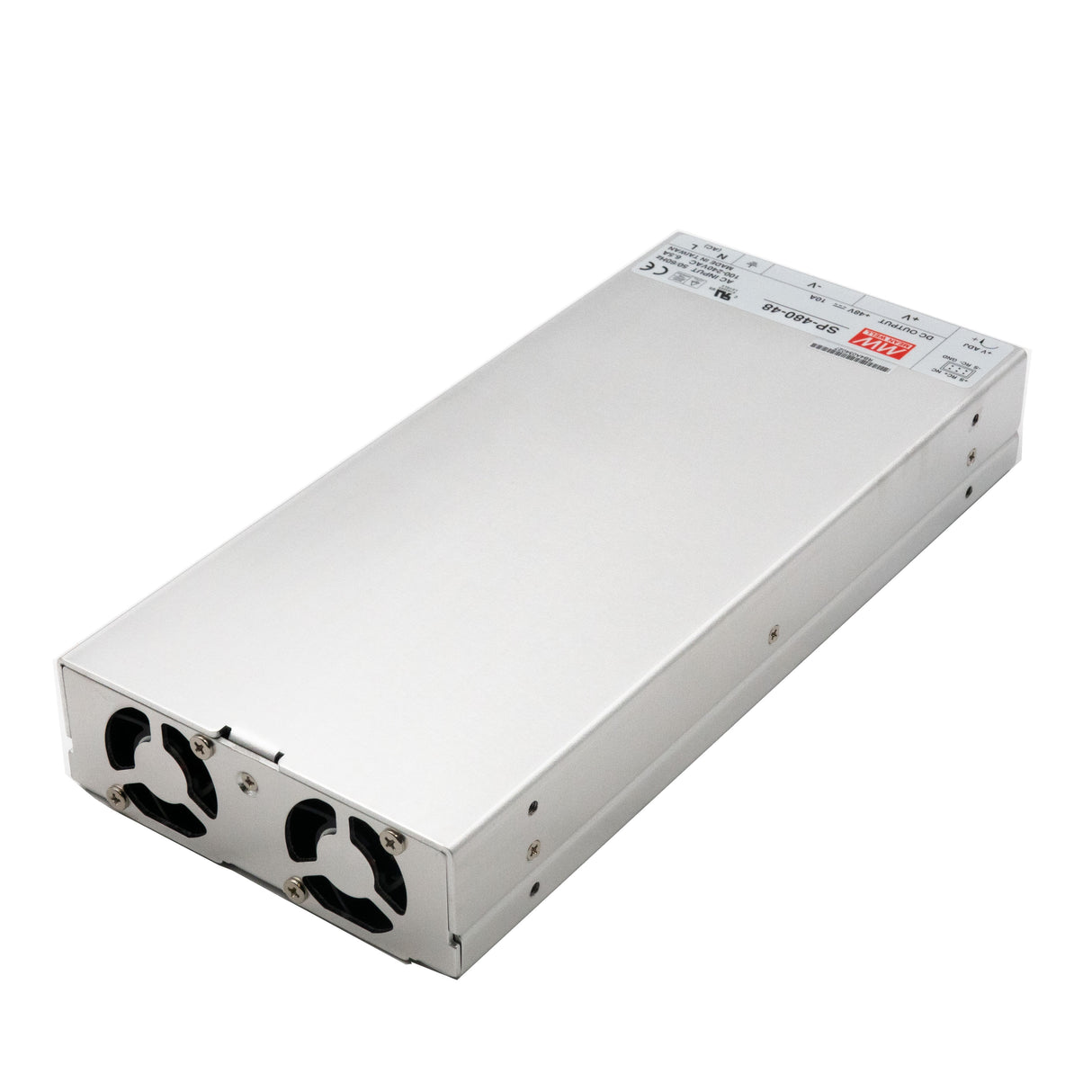

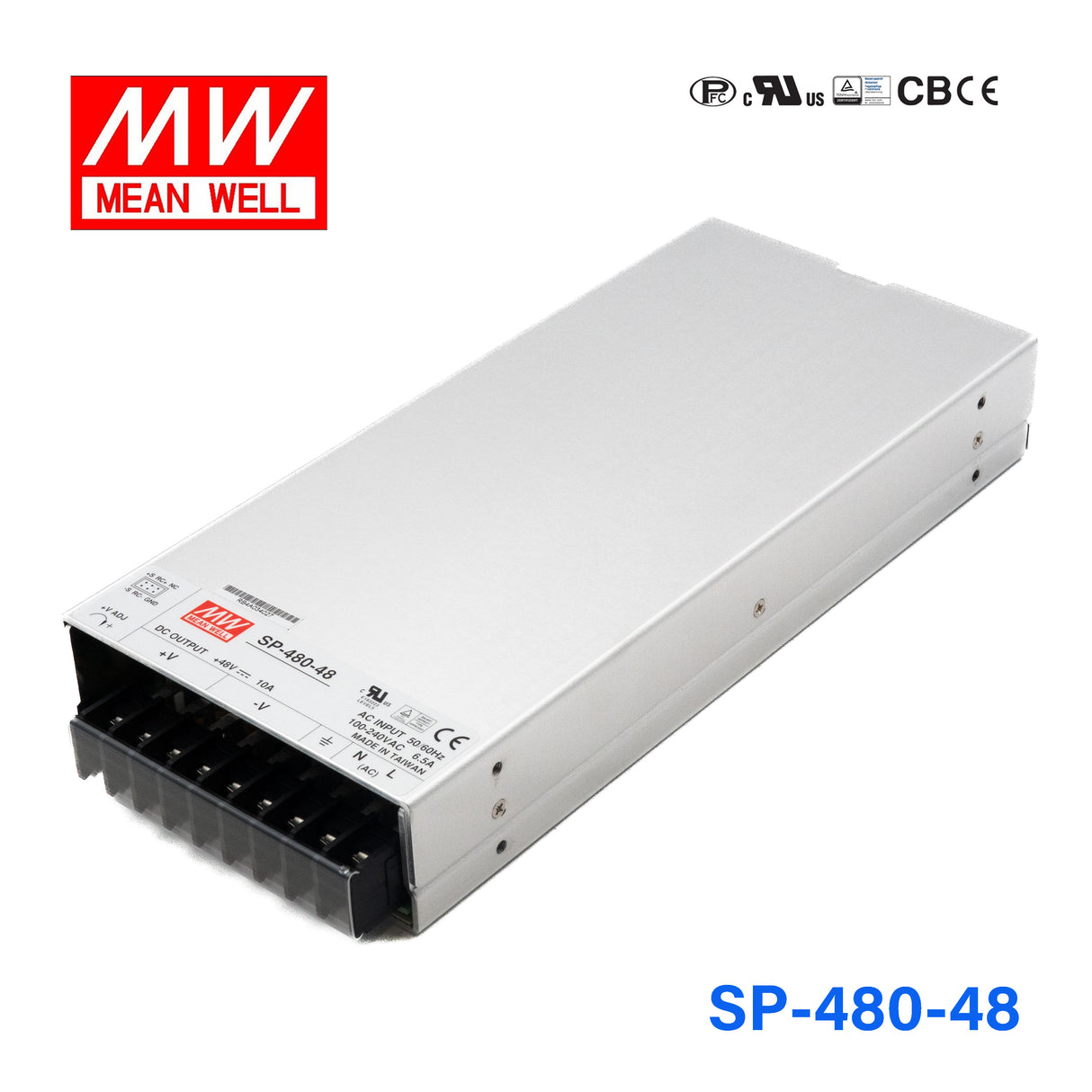

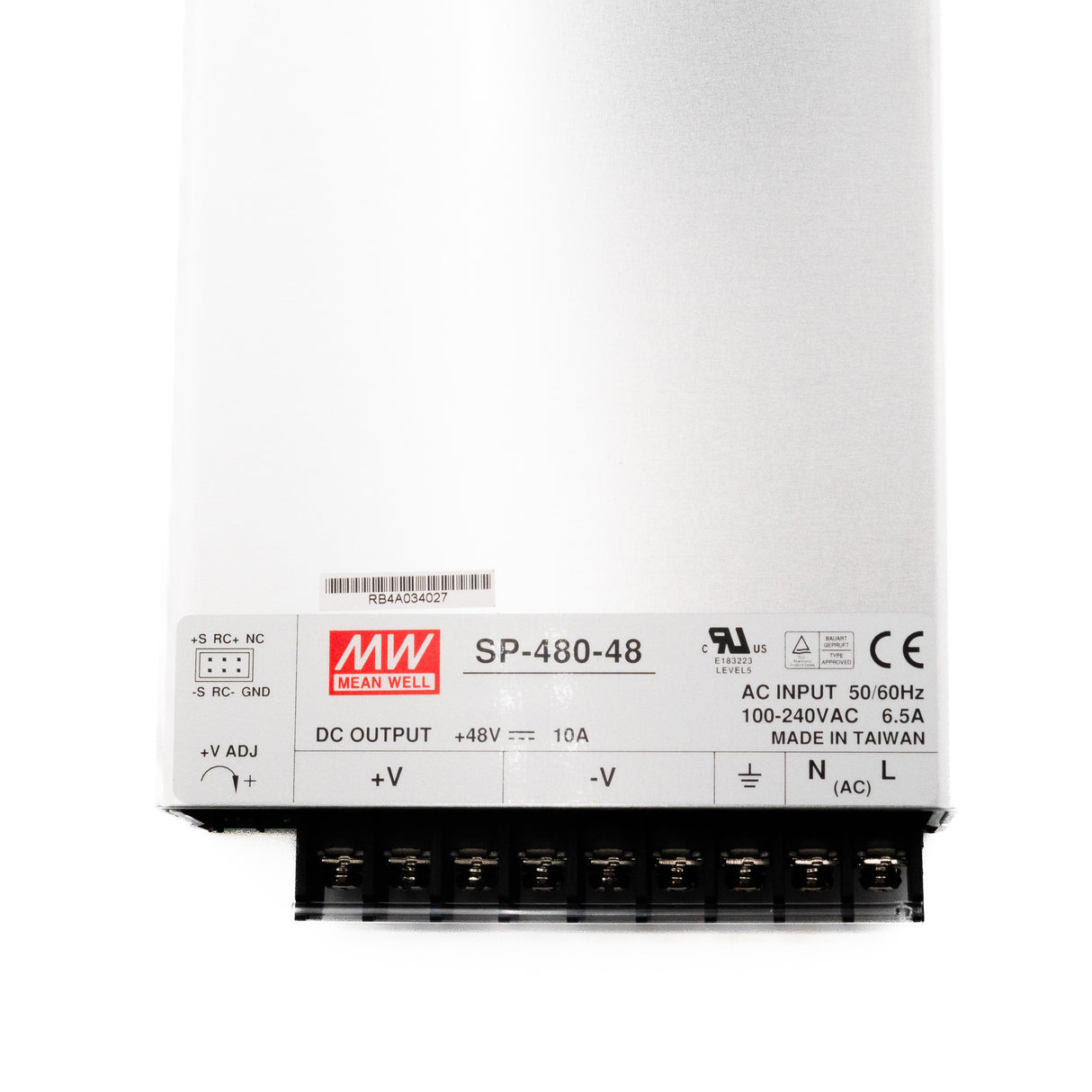

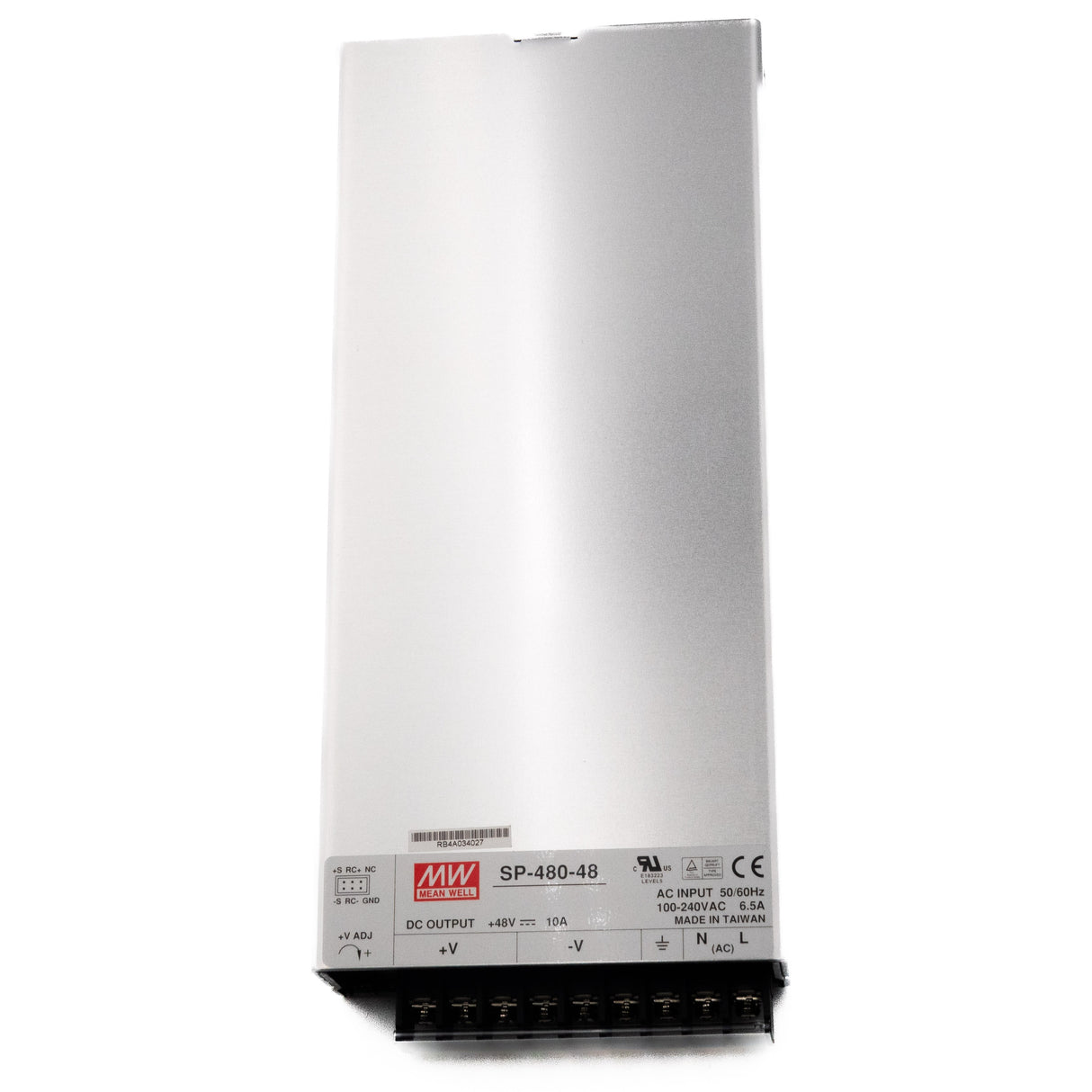

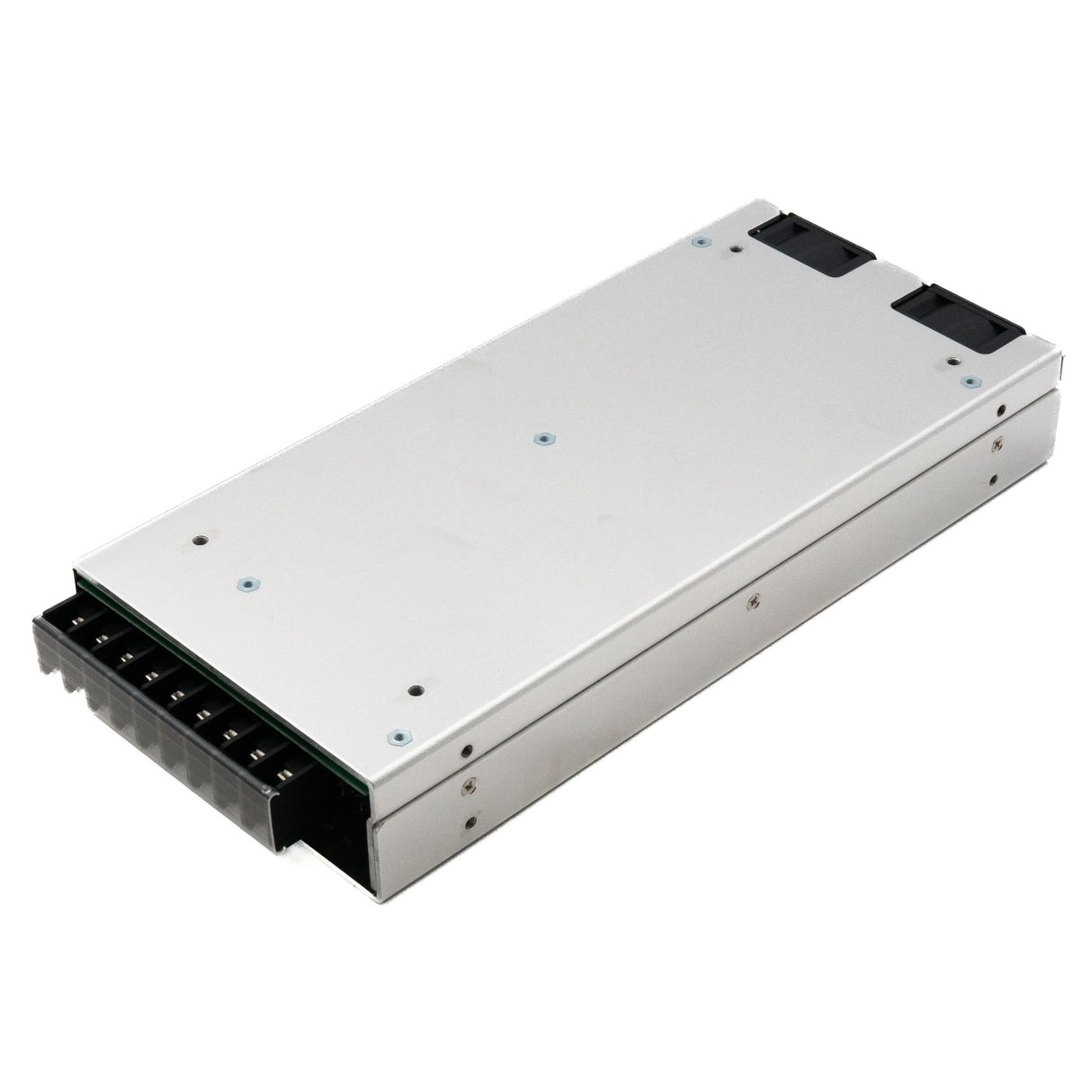

Mean Well SP-480-48 Power Supply 480W 48V 10A
The SP-480 is a 480W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMean Well SHP Series
-
Power Rating480 Watt
-
Output Voltage48 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length10.94 in
-
Width5 in
-
Height1.69 in
-
Weight3.75 lb
::specification::
Frequently Asked Questions
Can I use the SP-480-48 for 48V industrial or telecom-style DC equipment?
Yes, this model provides a single 48V output rated for 480W and 10A. It fits systems that are specifically designed around a 48V DC power bus.
Is the SP-480-48 suitable for 48V automation, networking, or control hardware?
It can support 48V DC loads up to 480W total with up to 10A output current. That makes it appropriate for higher-power 48V industrial and electronic equipment.
Can this power supply be used for 48V devices in embedded or machine-control applications?
Yes, if the load requires 48V DC, the SP-480-48 offers up to 10A from a single output. Its 85-264VAC input range also supports operation across a wide AC input range.
Does the SP-480-48 have specs that support outdoor use?
The listed operating temperature range is -20°C to +60°C. No IP rating is included in the provided specs, so the available product data does not confirm outdoor or wet-location suitability.
What are the main differences between the SP-480-48 and the other SP-480 models?
The SP-480-48 is rated for 480W at 48V and 10A. Other listed SP-480 versions are SP-480-12 at 480W, 12V, 40A; SP-480-15 at 480W, 15V, 32A; SP-480-24 at 480W, 24V, 20A; SP-480-3.3 at 480W, 3.3V, 85A; and SP-480-5 at 280.5W.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SP-480 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SP-480-3.3 Power Supply 480W 3.3V 85A | 480W | 3.3V | 85A | Indoor | $159.64 | View |
| Mean Well SP-480-24 Power Supply 480W 24V 20A | 480W | 24V | 20A | Indoor | $118.60 | View |
| Mean Well SP-480-15 Power Supply 480W 15V 32A | 480W | 15V | 32A | Indoor | $118.60 | View |
| Mean Well SP-480-12 Power Supply 480W 12V 40A | 480W | 12V | 40A | Indoor | $118.60 | View |
