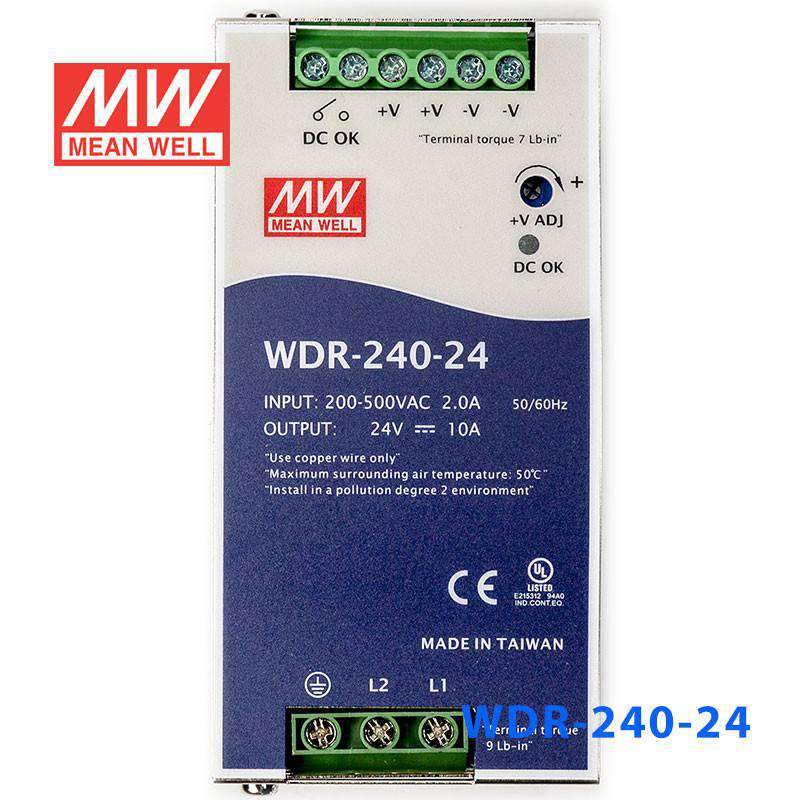

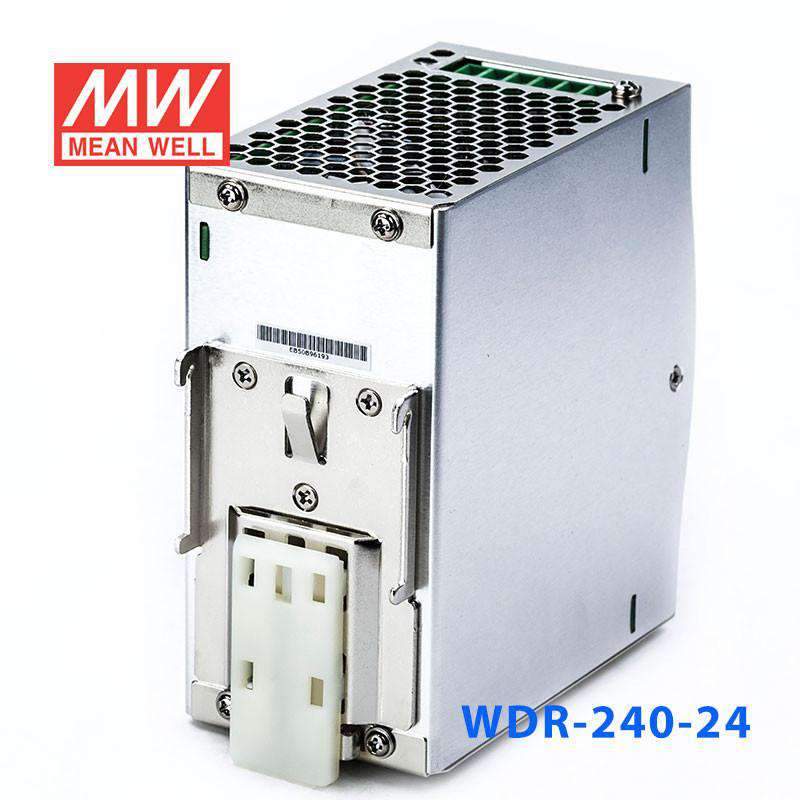

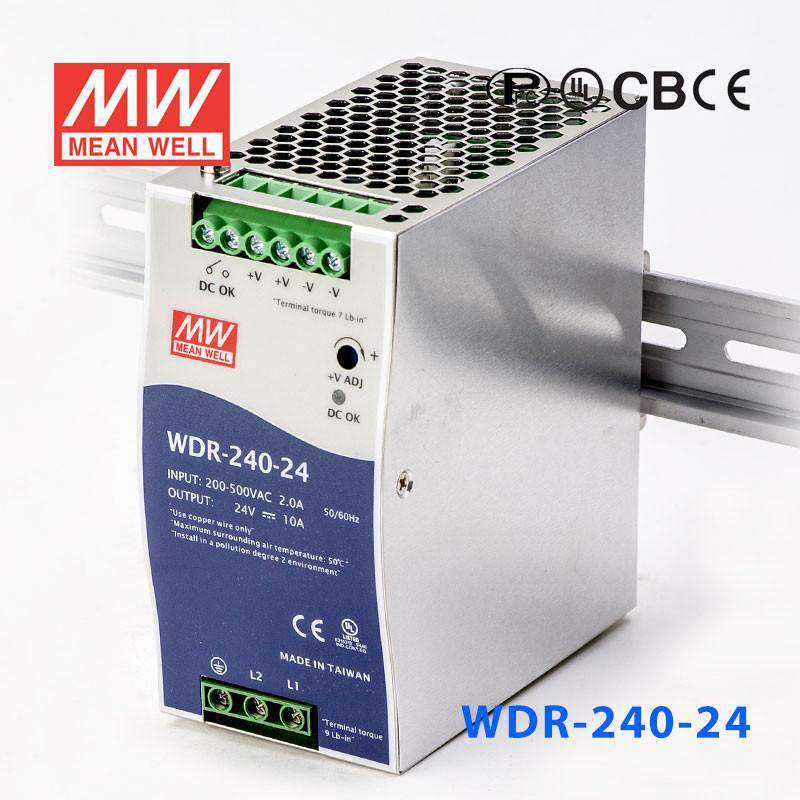

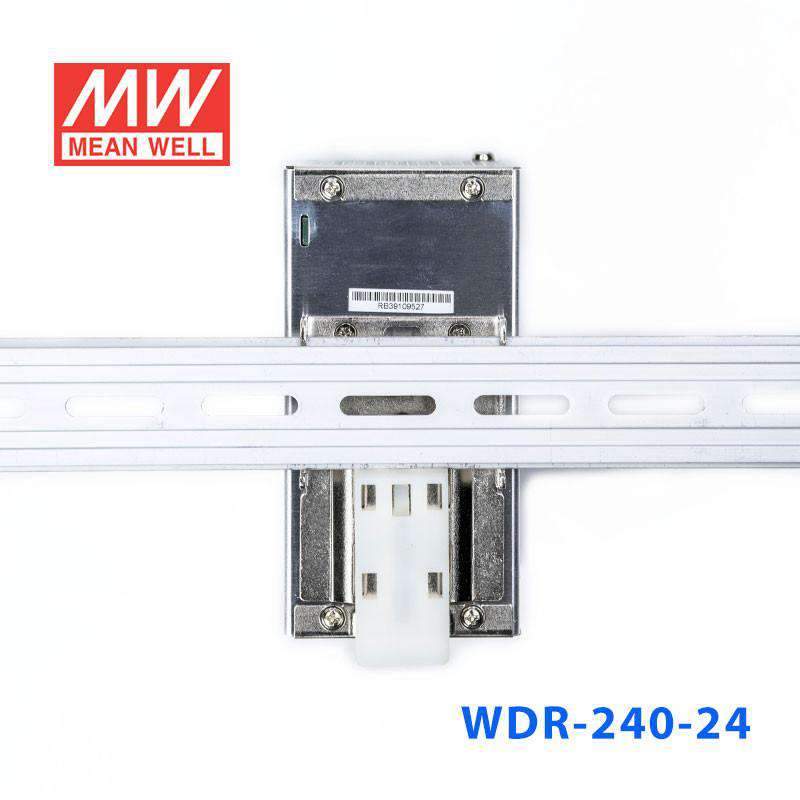

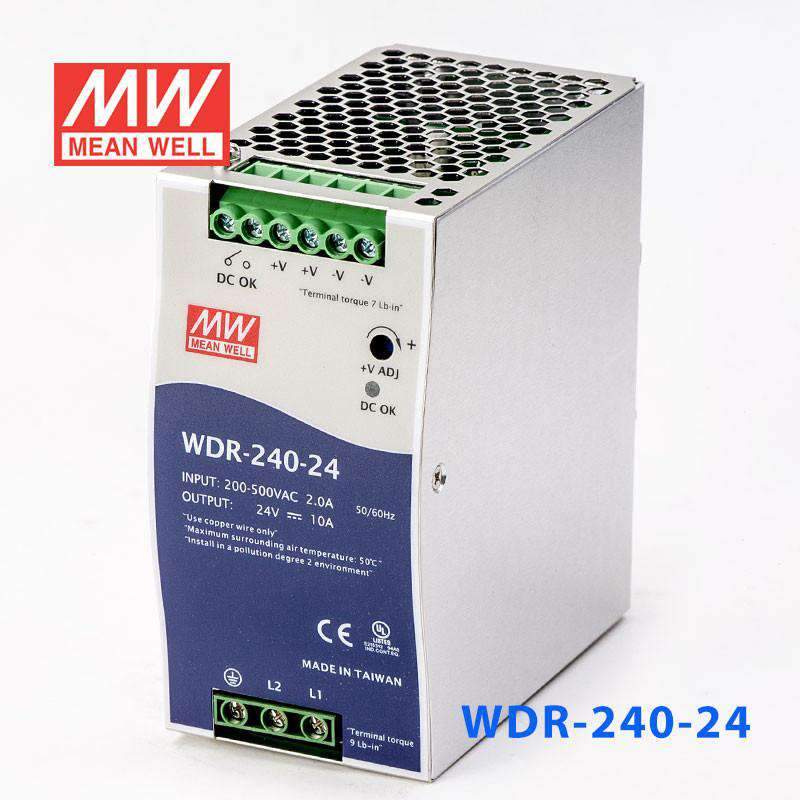

Mean Well WDR-240-24 Single Output Industrial Power Supply 240W 24V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well WDR-240-24 Single Output Industrial Power Supply 240W 24V...
The WDR-240 is a 240W Mean Well power converter (input range: 180~550VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 180~550VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: SAFETY & WITHSTAND VOLTAGE EMC (Note 4) ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE ±0.03%/℃ (0 ~ 50℃) Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 Ul508
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesWDR Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage180V~550V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.47 in
-
Height2.48 in
-
Weight2.34 lb
::specification::
Frequently Asked Questions
Can I use the WDR-240-24 for a larger 24V PLC control cabinet?
Yes, this model is designed for 24V control panels that need more capacity, with a 240W output rating and 10A output current. It mounts on DIN rail and uses a 63.0 mm slim body relative to higher-capacity cabinet power supplies.
Is the WDR-240-24 suitable for 24V industrial automation loads in one enclosure?
It is a good fit for 24V industrial automation cabinets where multiple 24V loads are grouped and the total demand stays within 240W. The 180-550VAC wide input supports use with 1 phase and 2 phase input systems.
Can this be used in a 24V building management panel with several control devices?
Yes, this power supply can serve 24V building management and control enclosures that require up to 10A at 24V DC. Compared with the 120W version, it provides more output current while keeping the same 125.2 × 113.5 mm footprint.
Is the WDR-240-24 appropriate when cabinet temperatures drop below -25°C?
Yes, this model is rated for -30°C to +70°C operation, which extends lower than the 120W versions. That makes it suitable for protected control enclosures that may experience colder ambient conditions while still staying within the specified range.
What is the difference between the WDR-240-24 and other WDR DIN rail models?
The WDR family includes WDR-120-12 at 120W, 12V, 10A, WDR-120-24 at 120W, 24V, 5A, WDR-120-48 at 120W, 48V, 2.5A, WDR-240-24 at 240W, 24V, 10A, and WDR-240-48 at 240W, 48V, 5A. Larger models are WDR-480-24 at 480W, 24V, 20A and WDR-480-48 at 480W, 48V, 10A. Smaller models are WDR-60-12 at 60W, 12V, 5A, WDR-60-24 at 60W, 24V, 2.5A, WDR-60-48 at 60W, 48V, 1.25A, and WDR-60-5 at 50W, 5V, 10A.
