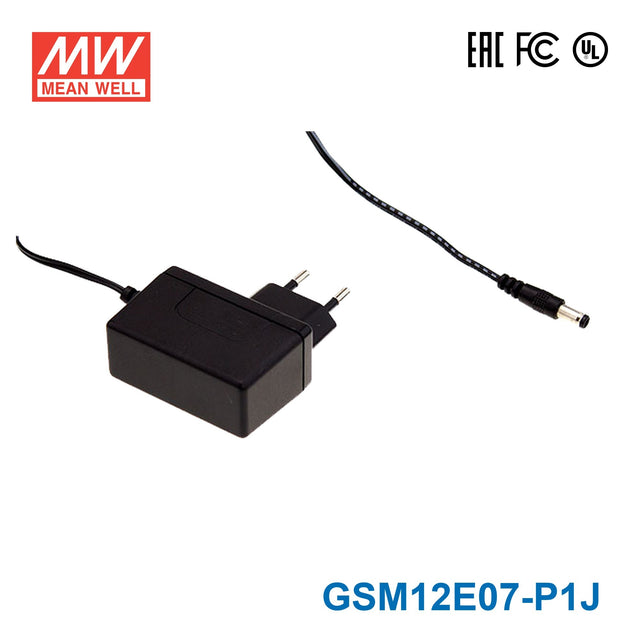

Mean Well GSM12E07-P1J Power Supply 12W 7.5V
The GSM12E07 is a 12W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating12 Watt
-
Output Voltage7.5 Volt
-
Rated Current1.6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.45 in
-
Width1.56 in
-
Height1.08 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
Can I use the GSM12E07-P1J for a 7.5V embedded device or control module?
Yes, if the equipment is designed for constant-voltage 7.5V DC input. This model provides up to 1.6A with a total output rating of 12W.
Is this power supply suitable for small 7.5V industrial instruments?
It can be used with compact instruments that require a fixed 7.5V DC supply. The connected load must remain within 1.6A and 12W.
Would the GSM12E07-P1J work for a low-power 7.5V automation accessory?
It is appropriate for low-power automation accessories that specifically call for 7.5V DC constant-voltage input. The supply is limited to 1.6A maximum output current and 12W maximum power.
Can this model power a small 7.5V monitoring or interface device?
Yes, provided the device requires 7.5V DC and does not exceed 1.6A. The supply's constant-voltage output and 12W rating make it suitable for smaller electronics in that range.
Can this power supply be used in unheated or warm indoor spaces?
The published operating temperature range is -20°C to +70°C, which covers both cold and warm indoor conditions. The specs do not list an IP rating, so the product page does not define protection for exposed outdoor environments.
