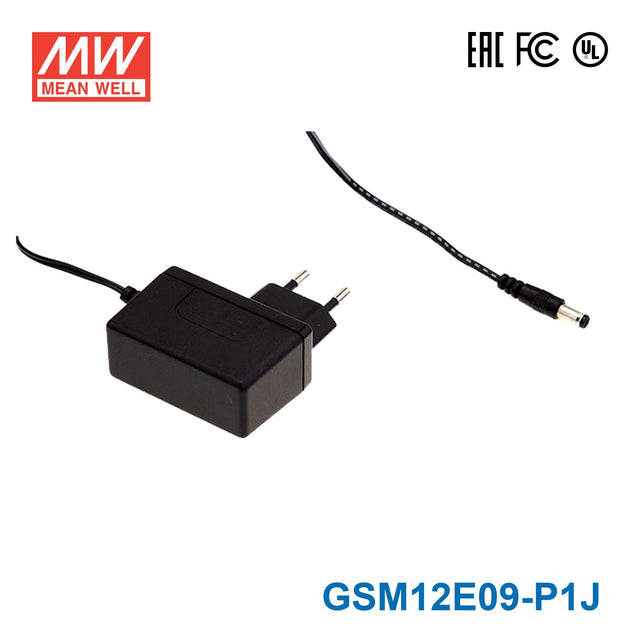

Mean Well GSM12E09-P1J Power Supply 12W 9V
The GSM12E09 is a 12W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating12 Watt
-
Output Voltage9 Volt
-
Rated Current1.33 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.45 in
-
Width1.56 in
-
Height1.08 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
Can I use the GSM12E09-P1J for a small 9V embedded controller or sensor hub?
Yes, if the equipment requires constant-voltage 9V DC and stays within 1.33A. This model provides 12W total output, so it fits low-power embedded electronics, sensor hubs, and similar compact control loads that match those limits.
Is this 9V power supply suitable for industrial test or monitoring electronics?
It can be a fit for small industrial monitoring or test devices that need a regulated 9V DC supply. The constant-voltage output is 9V, the maximum current is 1.33A, and the available power is 12W.
Can the GSM12E09-P1J power a low-power automation accessory that runs on 9V DC?
It is appropriate for compact automation accessories designed for 9V constant-voltage input, provided the load does not exceed 1.33A or 12W. That makes it better suited to smaller control electronics than to higher-draw automation hardware.
Will this power supply work in different AC regions for OEM equipment?
Yes. Its input range is 80-264VAC, so it can support equipment intended for a wide range of AC mains conditions without changing the DC output specification of 9V.
Is the GSM12E09-P1J suitable for outdoor or washdown environments?
The provided specs show an operating temperature range of -20°C to +70°C, but they do not list any IP rating. That means temperature capability is stated, while outdoor or water-exposed suitability is not established by the listed specs.
