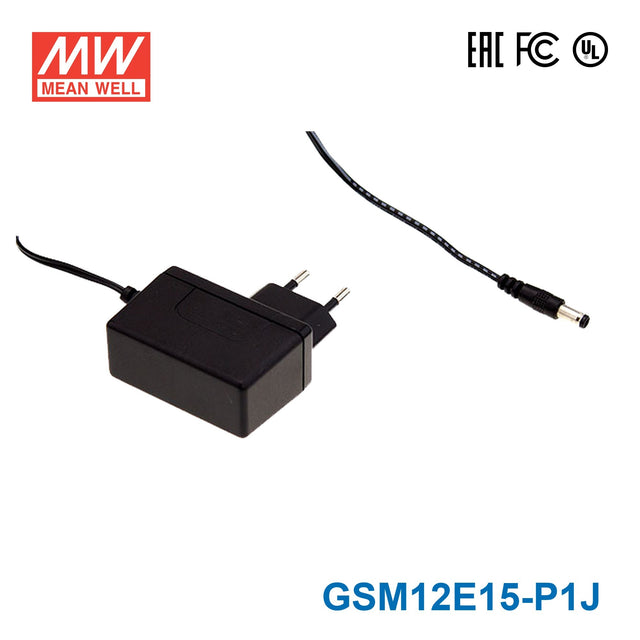

Mean Well GSM12E15-P1J Power Supply 12W 15V
The GSM12E15 is a 12W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating12 Watt
-
Output Voltage15 Volt
-
Rated Current0.8 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length2.45 in
-
Width1.56 in
-
Height1.08 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
Can I use the GSM12E15-P1J for 15V instrumentation or analog control electronics?
Yes, if the equipment is designed for constant-voltage 15V DC and does not exceed 0.8A. This model provides up to 12W, which suits smaller instrumentation and control circuits that match those requirements.
Is this 15V supply suitable for a compact industrial interface module?
It can be suitable for a compact industrial interface or signal-conditioning module that needs 15V constant-voltage input. The output is limited to 0.8A and 12W, so it is intended for lower-power electronics.
Can the GSM12E15-P1J support bench or monitoring equipment that runs on 15V DC?
It is a practical option for low-power bench, monitoring, or measurement devices that specify 15V DC. The key limits are 15V output, 0.8A maximum current, and 12W total power.
Does this model support a wide AC input range for global equipment designs?
Yes. The input range is 80-264VAC, which is useful when the same equipment design needs to operate across different AC supply regions while keeping a 15V DC output.
Is the GSM12E15-P1J meant for outdoor use?
The listed specs include an operating temperature range of -20°C to +70°C, but no IP rating is provided. Based on the published data, temperature performance is specified, while outdoor or wet-location suitability is not.
