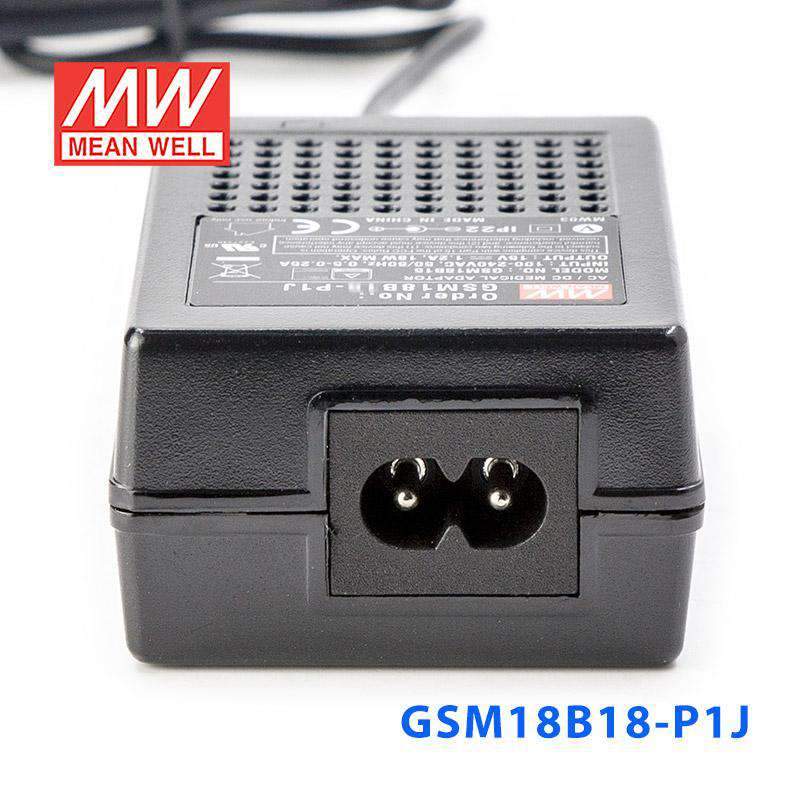

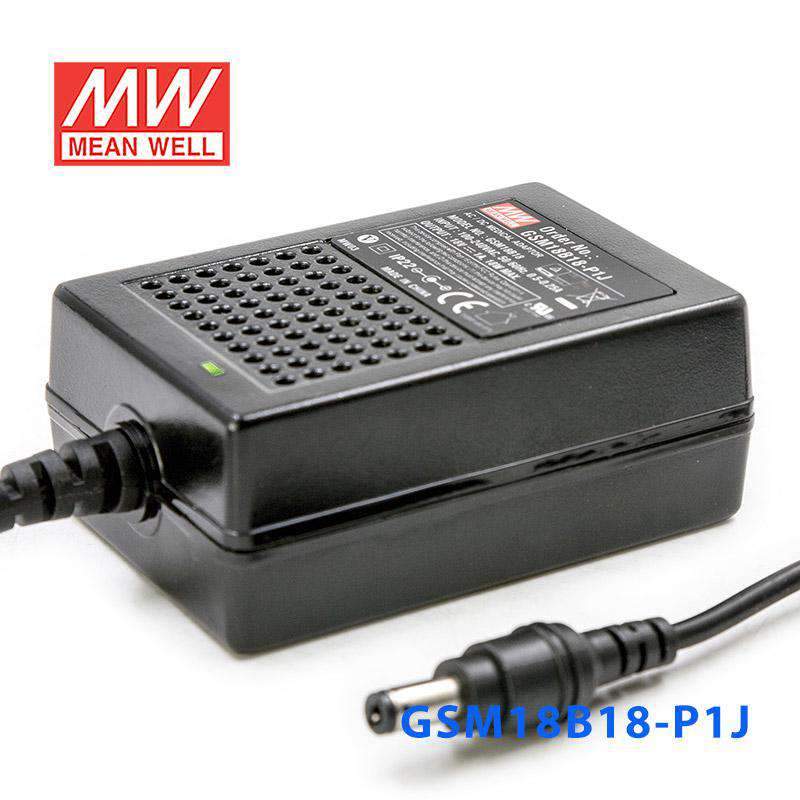

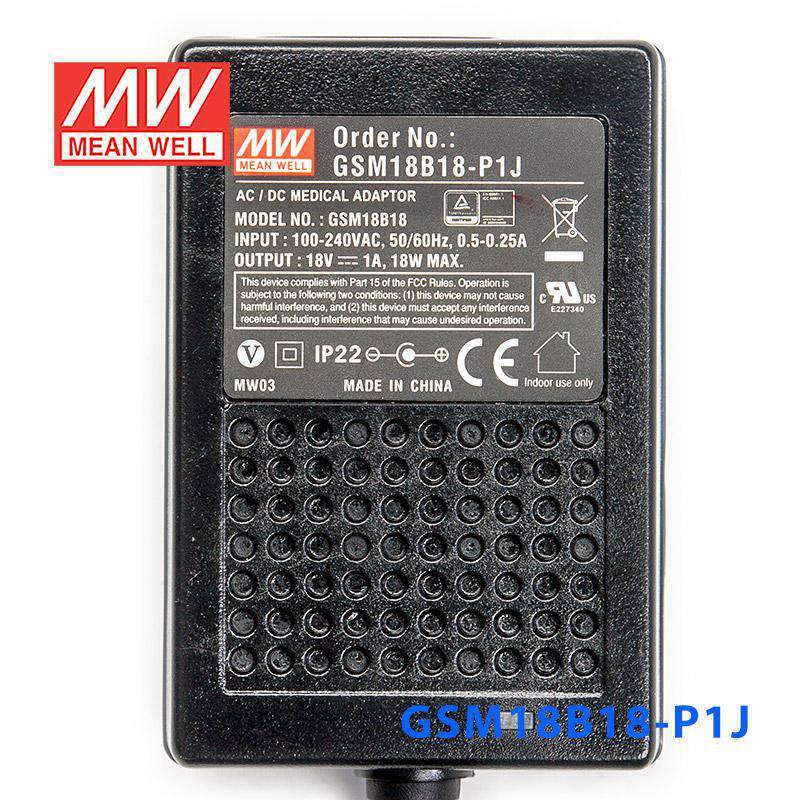

Mean Well GSM18B18-P1J Power Supply 18W 18V
The GSM18B18 is a 18W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating18 Watt
-
Output Voltage18 Volt
-
Rated Current1 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.45 lb
::specification::
Frequently Asked Questions
Can I use the GSM18B18-P1J with an 18V embedded system or control module?
Yes, this is a constant voltage 18V power supply rated for 1A and 18W. It can suit embedded systems, control modules, or industrial electronics that are designed for regulated 18V DC input within that power range.
Is this 18V adapter suitable for a small industrial actuator controller or interface unit?
It may be suitable for a small controller or interface unit if the equipment calls for 18V constant voltage and draws no more than 1A. The total output is limited to 18W, so it is intended for modest 18V loads.
Can this power an 18V test, measurement, or automation accessory?
Yes, it can be used for test, measurement, or automation accessories that require 18V DC and fall within the 1A and 18W rating. The constant voltage design is appropriate for electronics that expect a fixed 18V supply.
Is this the right choice for an 18V device with less than 1A draw?
It can be, provided the device requires 18V constant voltage and remains below 1A. Since the supply is rated at 18W, both the voltage match and the load limit need to align with the equipment requirements.
Does the GSM18B18-P1J work in outdoor enclosures or unprotected areas?
The temperature spec of -25°C to +60°C supports operation across a broad range of indoor conditions. But the provided specifications do not include an IP rating, so exposed outdoor or unprotected dusty and wet environments are not confirmed.
