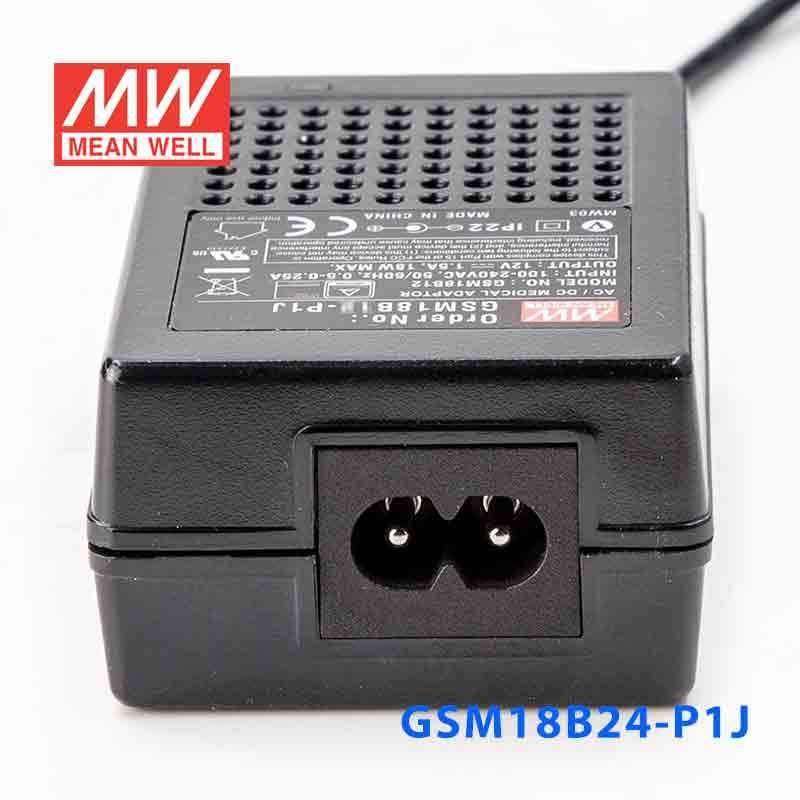

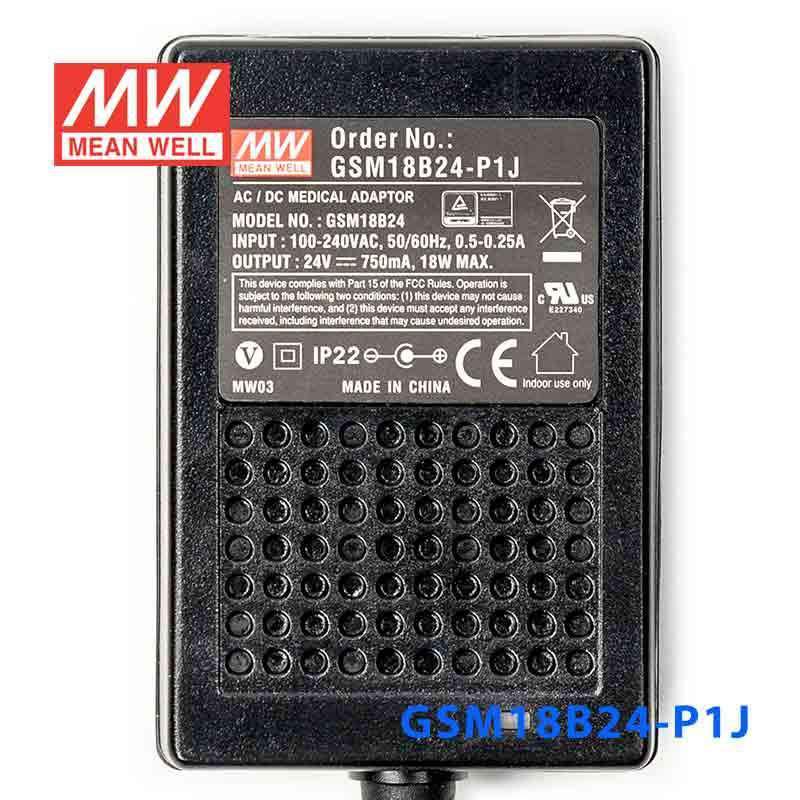

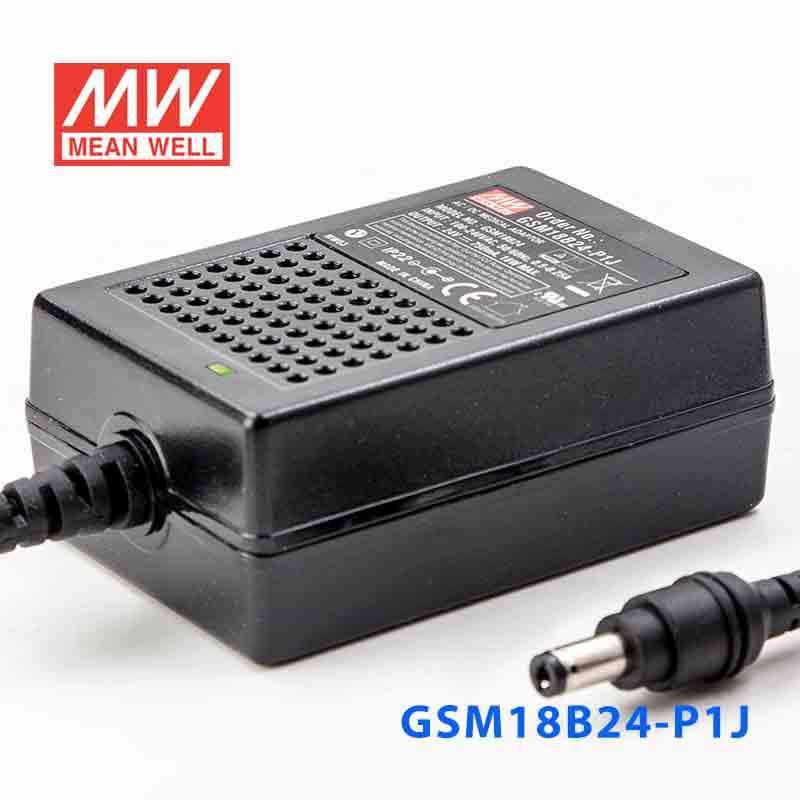

Mean Well GSM18B24-P1J Power Supply 18W 24V
The GSM18B24 is a 18W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating18 Watt
-
Output Voltage24 Volt
-
Rated Current0.75 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.45 lb
::specification::
Frequently Asked Questions
Can I use the GSM18B24-P1J for a 24V sensor hub or compact PLC accessory?
Yes, this model provides constant voltage 24V output and is rated for up to 0.75A with 18W total power. It can fit compact 24V industrial electronics such as sensor hubs or PLC accessories that stay within those limits.
Is this power supply appropriate for small 24V automation or control devices?
It is suitable for smaller 24V automation and control devices that need a fixed 24V DC source rather than a constant current driver. The available output is 24V, 0.75A, and 18W, so it is intended for lower-power 24V equipment.
Can the GSM18B24-P1J power a low-power 24V industrial communication module?
It can, as long as the module is designed for 24V constant voltage input and its demand remains within 0.75A. With 18W maximum output, this supply is better suited to low-power communication, monitoring, or interface hardware.
How can I tell if this 24V model is compatible with my equipment?
Your equipment should require 24V constant voltage input, and its load must stay at or below 0.75A and 18W. If the device needs more current than 0.75A, this model does not provide enough output capacity.
Is the GSM18B24-P1J meant for indoor or outdoor conditions?
The operating temperature range is -25°C to +60°C, which supports use in many indoor industrial and commercial environments. The provided specs do not show an IP rating, so outdoor exposure or wet-location use should not be assumed from this data.
