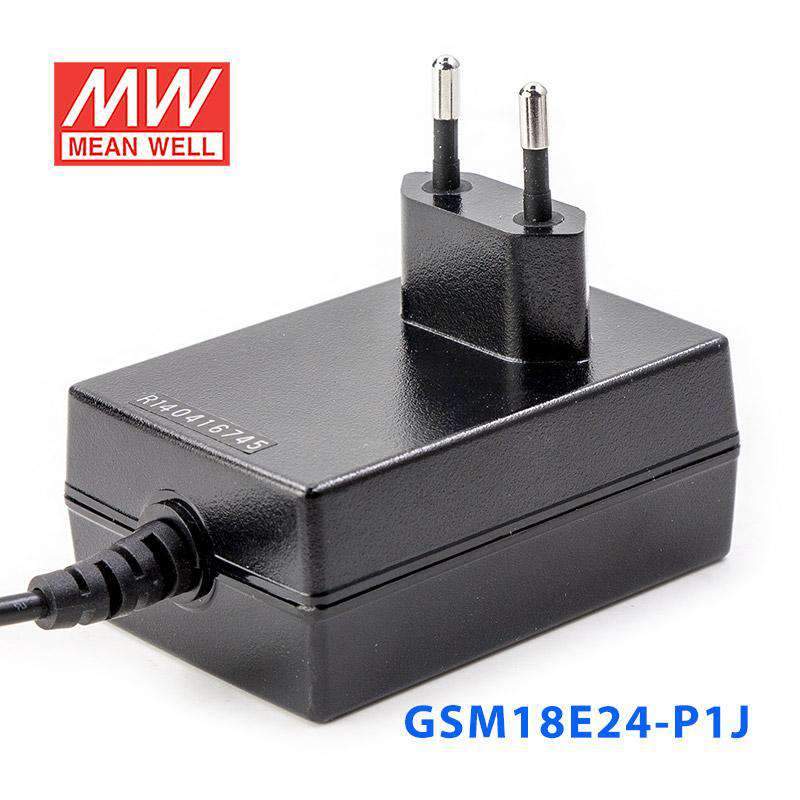

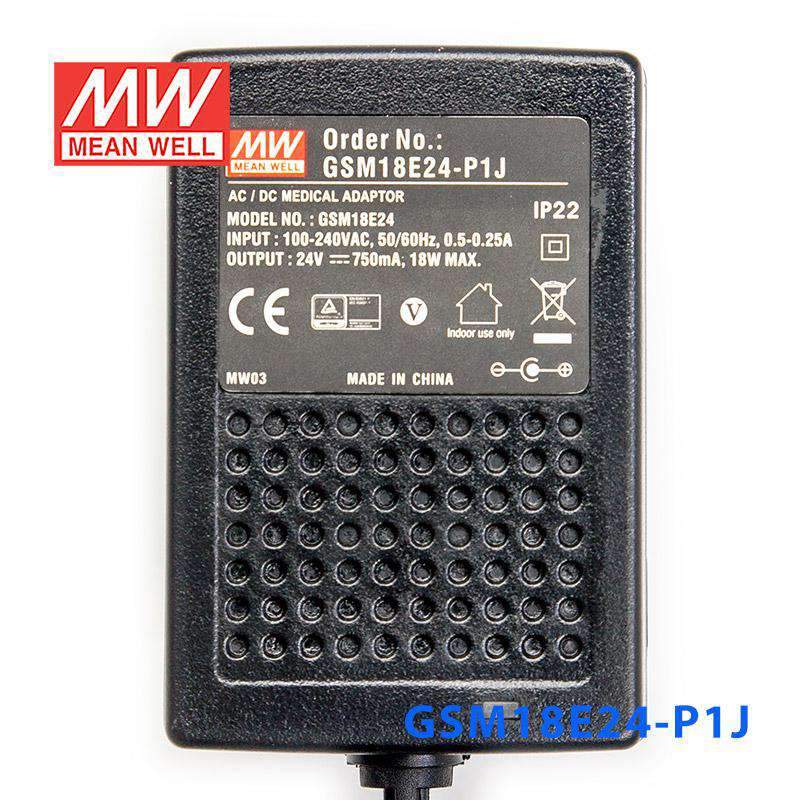

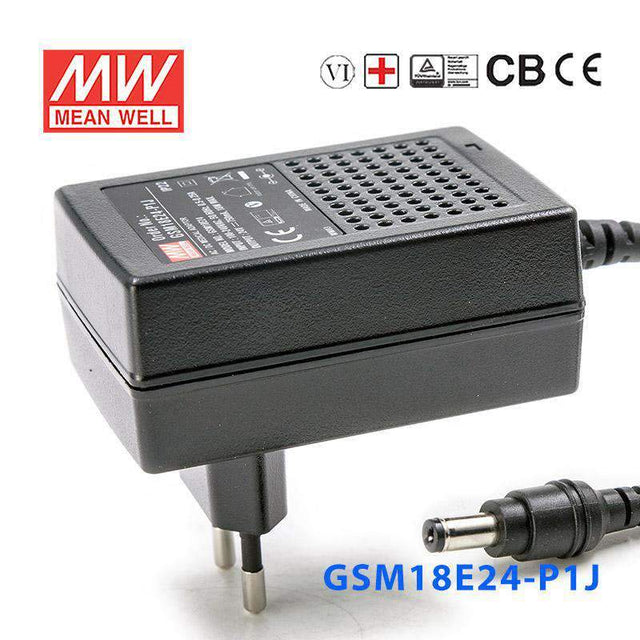

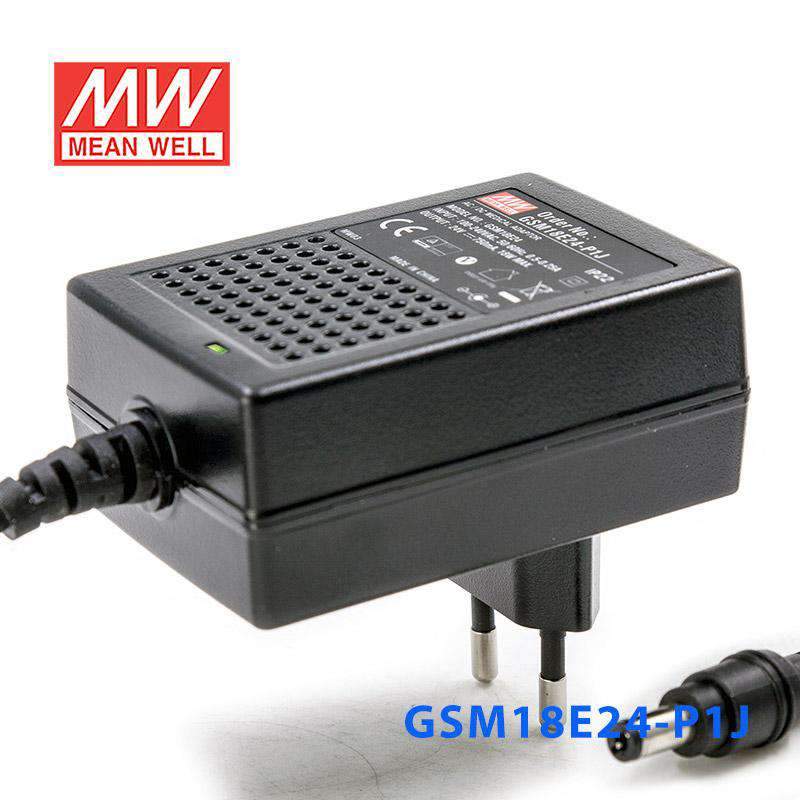

Mean Well GSM18E24-P1J Power Supply 18W 24V
The GSM18E24 is a 18W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating18 Watt
-
Output Voltage24 Volt
-
Rated Current0.75 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.44 lb
::specification::
Frequently Asked Questions
Can I use the GSM18E24-P1J for 24V PLC or HMI accessories?
This model outputs constant 24V DC at up to 0.75A, with 18W total power. That makes it a fit for low-power 24V PLC accessories, operator interface peripherals, or similar control devices that need a fixed 24V supply within that power range.
Is the GSM18E24-P1J suitable for small 24V industrial sensors or interface modules?
It can be used for 24V sensors, signal interfaces, or compact industrial modules that require constant-voltage input and draw no more than 0.75A. Loads above 18W would exceed this model's rating.
Can this power supply run a 24V embedded control device?
Yes, if the embedded control device is designed for 24V DC constant-voltage input and its current demand stays within 0.75A. The 80-264VAC input range also supports use across a broad AC input range.
Does the GSM18E24-P1J work for harsh indoor or outdoor conditions?
The specified operating temperature range is -25°C to +60°C. However, no IP rating is listed in the provided specs, so the product data does not confirm suitability for outdoor exposure, washdown, or dusty environments.
Is this a good choice when a device needs a fixed 24V source instead of a variable output?
Yes. The GSM18E24-P1J is a constant-voltage unit with a fixed 24V output, so it is intended for equipment that expects regulated 24V DC and can operate within the 18W and 0.75A limits.
