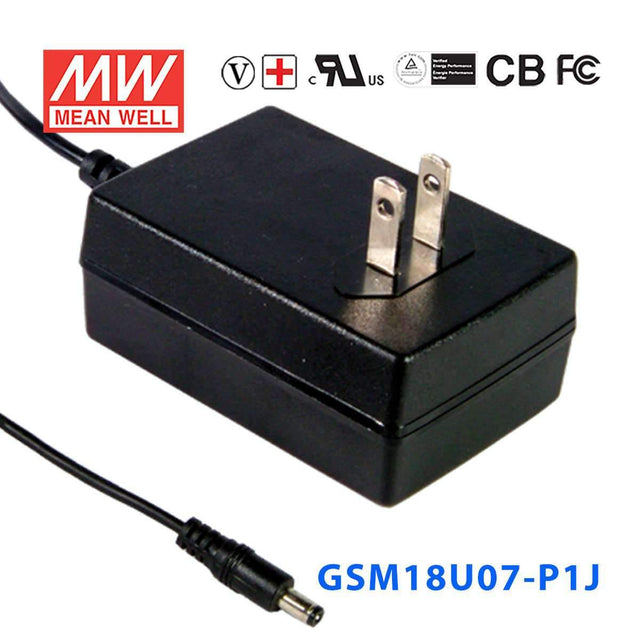

Mean Well GSM18U07-P1J Power Supply 15W 7.5V
The GSM18U07 is a 18W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating15 Watt
-
Output Voltage7.5 Volt
-
Rated Current2 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.41 lb
::specification::
Frequently Asked Questions
Can I use the GSM18U07-P1J for a 7.5V embedded device or control peripheral?
This model provides constant 7.5V DC at up to 2A, with 15W total power. It is suitable for embedded devices, control peripherals, or compact electronics designed for a fixed 7.5V input within that load range.
Is the GSM18U07-P1J suitable for low-power automation interfaces that require 7.5V DC?
Yes, if the automation interface is specified for 7.5V constant-voltage input and draws no more than 2A. The 15W rating places it in the low-power category rather than for larger automation loads.
Can this 7.5V power supply be used for bench or test electronics with a fixed DC requirement?
It can be used for test or embedded electronics that require a regulated 7.5V DC source and stay within 15W. The wide 80-264VAC input range also makes it practical where AC source conditions may vary.
Is the GSM18U07-P1J meant for outdoor or exposed environments?
The specified operating temperature range is -25°C to +60°C. The provided product data does not include an IP rating, so it does not establish suitability for outdoor, wet, or dust-exposed conditions.
Is this a constant-voltage supply for devices that need exactly 7.5V DC?
Yes. The GSM18U07-P1J is a constant-voltage model with a fixed 7.5V output and 2A maximum output current, so it is intended for equipment designed around a regulated 7.5V DC input.
