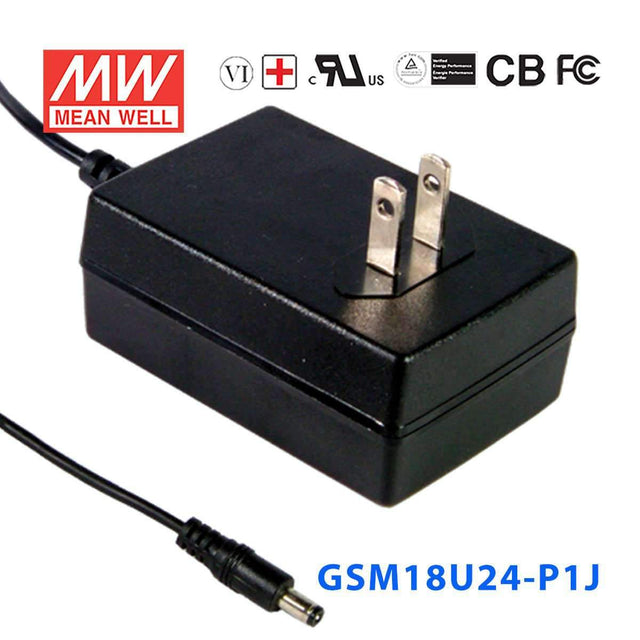

Mean Well GSM18U24-P1J Power Supply 18W 24V
The GSM18U24 is a 18W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating18 Watt
-
Output Voltage24 Volt
-
Rated Current0.75 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.41 lb
::specification::
Frequently Asked Questions
Can I use the GSM18U24-P1J for a 24V sensor hub or compact automation device?
Yes, if the equipment is designed for constant voltage 24V DC and stays within 0.75A and 18W. That makes it suitable for low-power automation, monitoring, and control devices that use a 24V input.
Is this 24V adapter suitable for small industrial communication or control electronics?
It can be a fit for compact industrial electronics that require regulated 24V constant voltage. The output capability is 24V at up to 0.75A, with 18W total power available.
Can the GSM18U24-P1J power a low-power embedded or IT device that needs 24V DC?
Yes, for embedded or IT hardware specifically rated for 24V DC constant voltage operation. The load should remain at or below 0.75A and 18W.
Is the GSM18U24-P1J suitable for outdoor installation or dusty areas?
The listed operating temperature range is -25°C to +60°C, so the temperature specification is clearly defined. No IP rating is provided in the product specs, so these details alone do not confirm outdoor or contamination-resistant use.
