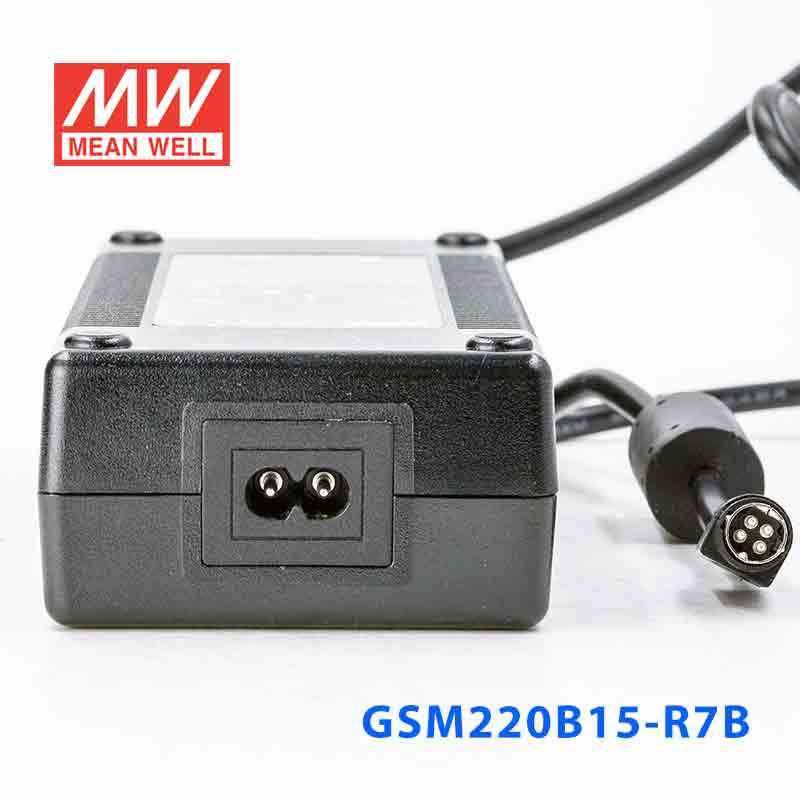

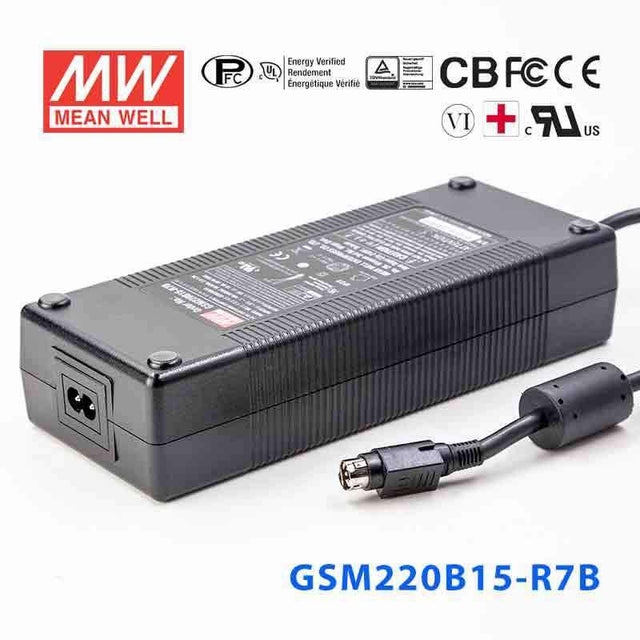

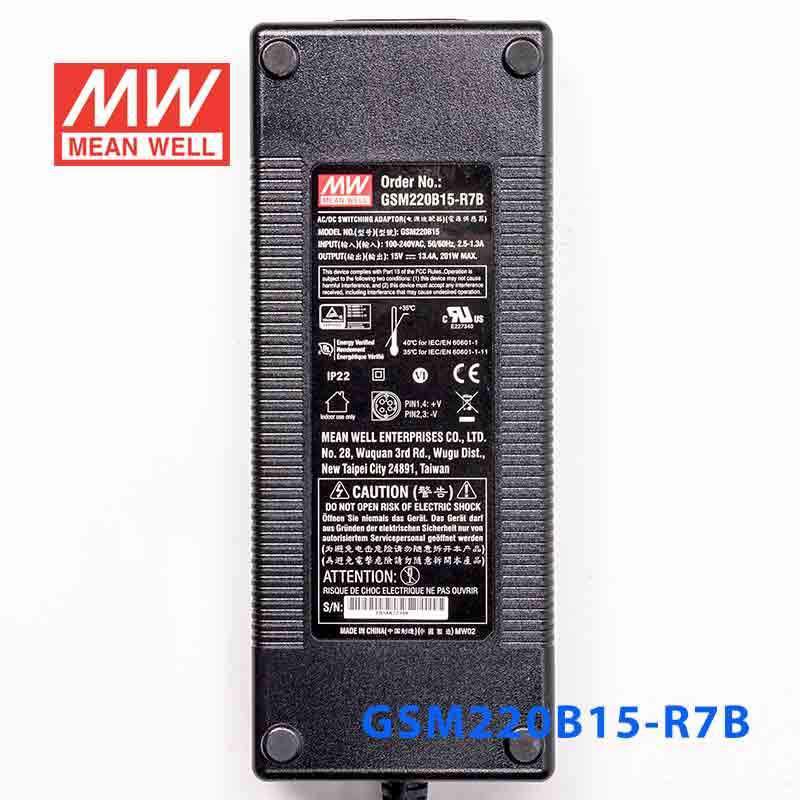

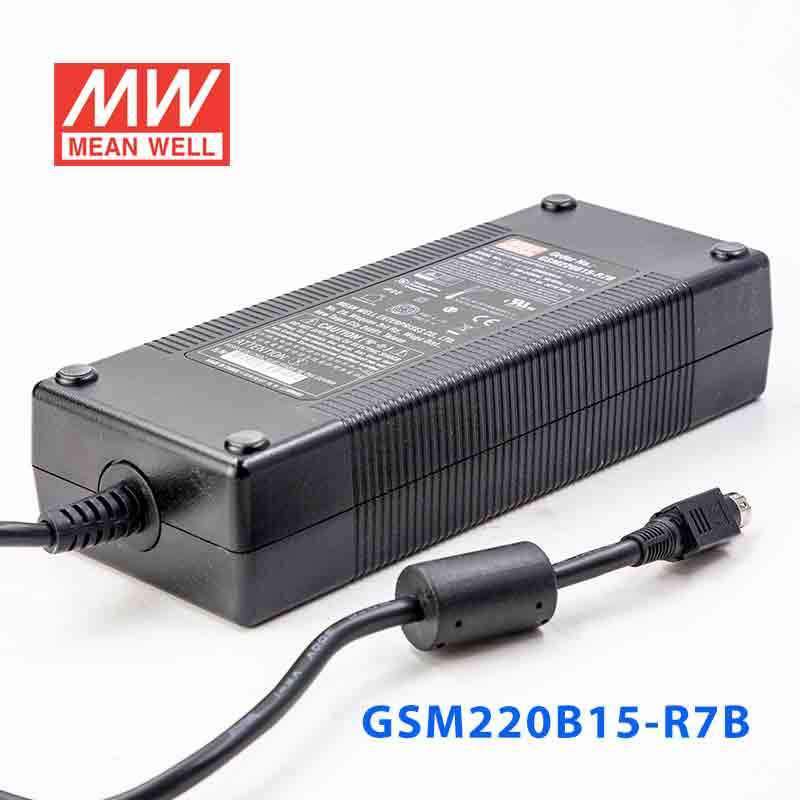

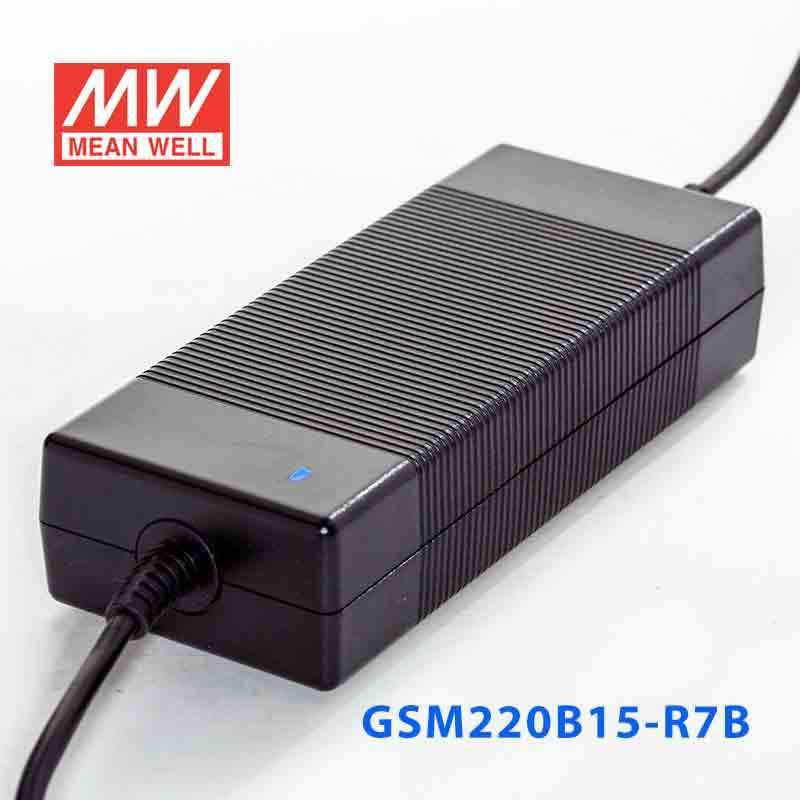

Mean Well GSM220B15-R7BPower Supply 201W 15V
The GSM220B15 is a 220W Mean Well power converter.
Key Features
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating201 Watt
-
Output Voltage15 Volt
-
Rated Current13.4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.27 in
-
Width3.35 in
-
Height1.81 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
Can I use the GSM220B15-R7B for 15V industrial electronics?
Yes, if the equipment is designed for a constant 15V DC source. This model provides up to 201W and 13.4A at 15V.
Is this power supply suitable for 15V instrumentation or measurement equipment?
It can be suitable for instruments that specify a 15V DC input and do not exceed the available output. The rated output is 15V constant voltage, up to 13.4A, with 201W total power.
Can the GSM220B15-R7B power embedded development or validation benches that run on 15V?
Yes, for benches or fixtures built around a 15V DC rail. The unit supports up to 201W, so the full test load should stay within 13.4A at 15V.
Would this fit 15V automation subsystems better than a 12V or 24V supply?
It is the right fit only when the subsystem specifically requires 15V constant voltage. This model is not a variable-output unit; its rated output is fixed at 15V with up to 201W available.
Can this model be used in cold or hot operating areas?
The specified operating range is -30°C to +70°C, which is broad for industrial environments. Since no IP rating is listed in the provided specs, the product data supports temperature tolerance but not exposed outdoor placement.
