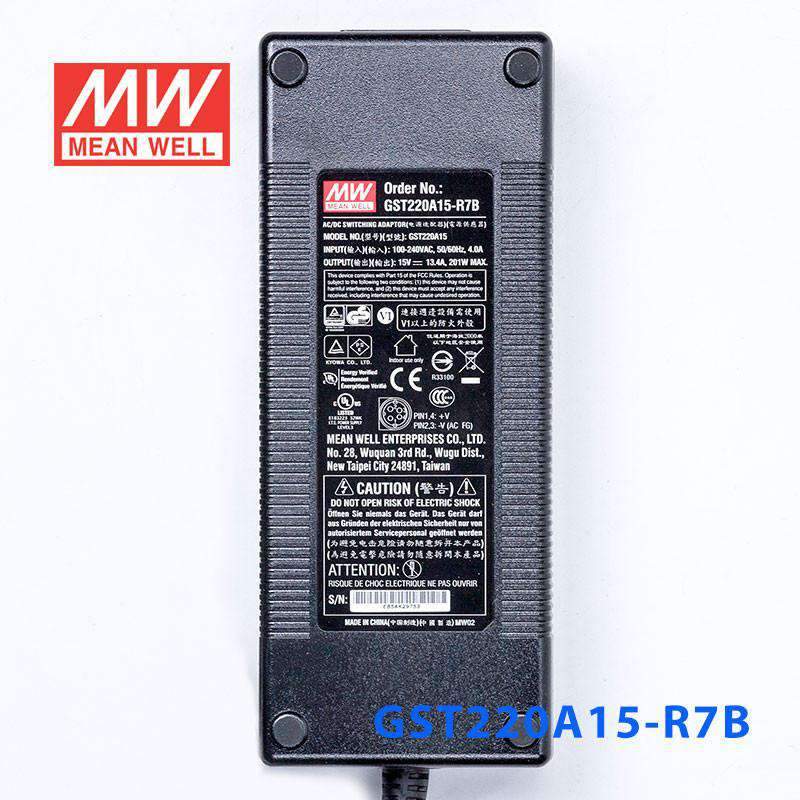

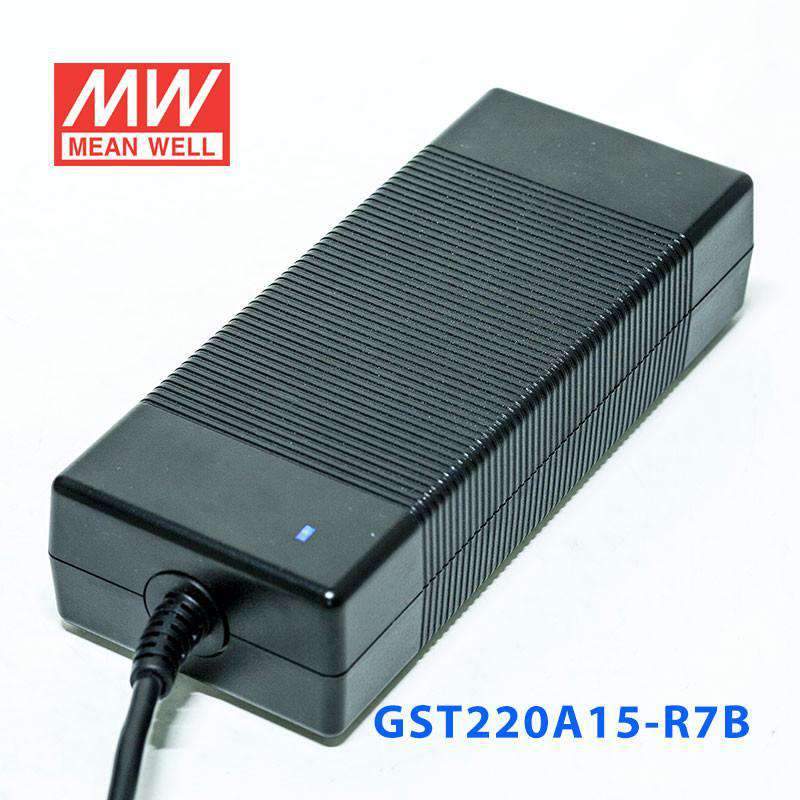

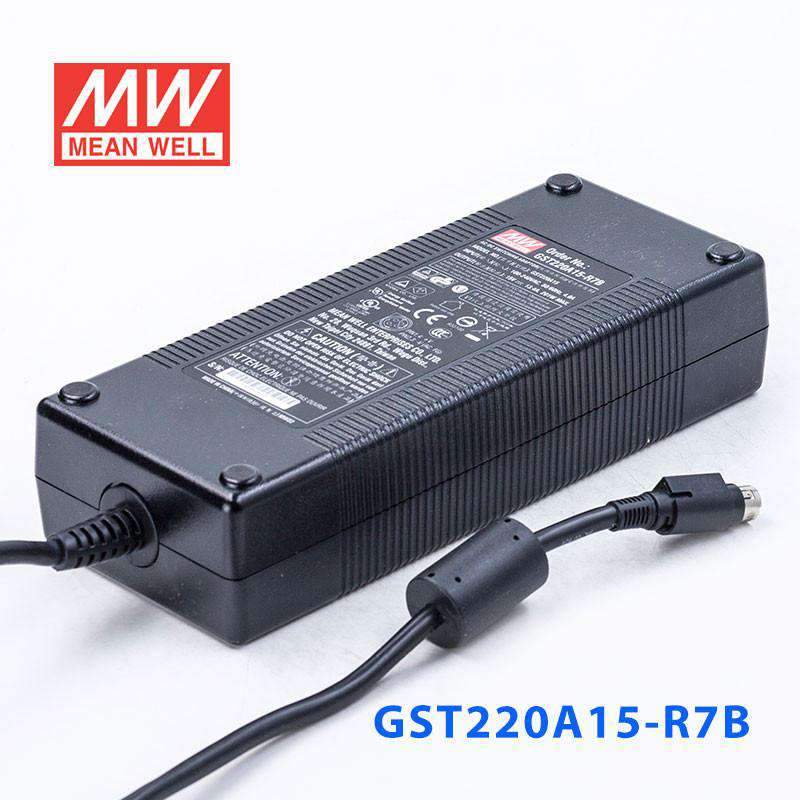

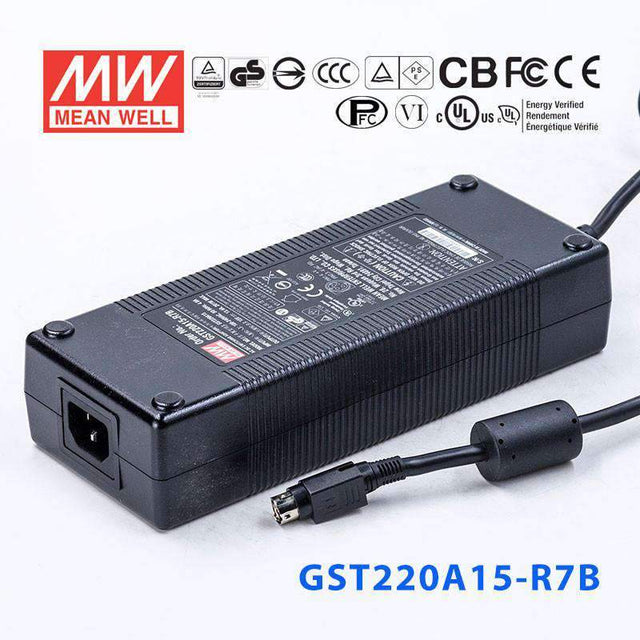

Mean Well GST220A15-R7BPower Supply 201W 15V

This desktop AC/DC power supply is rated for 201W with a 15V DC output and up to 13.4A rated current. It is intended for equipment that requires a regulated 15V supply at relatively high current. The model includes the R7B locking 4-pin Power DIN output plug.

This model is generally suited to commercial or industrial 15V devices that need a high-power external desktop adaptor rather than a built-in power supply. Its 201W capacity and locking Power DIN output make it a stronger fit for professional equipment than for light-duty consumer loads. Buyers should confirm the device requires 15V DC, up to 13.4A, and the R7B plug format.

Yes, this model is specified for operation from -30°C to +70°C. It also uses a fanless, fully enclosed plastic case, which helps in environments where low maintenance and quieter operation are preferred. Actual suitability still depends on the temperature conditions around the end equipment enclosure.

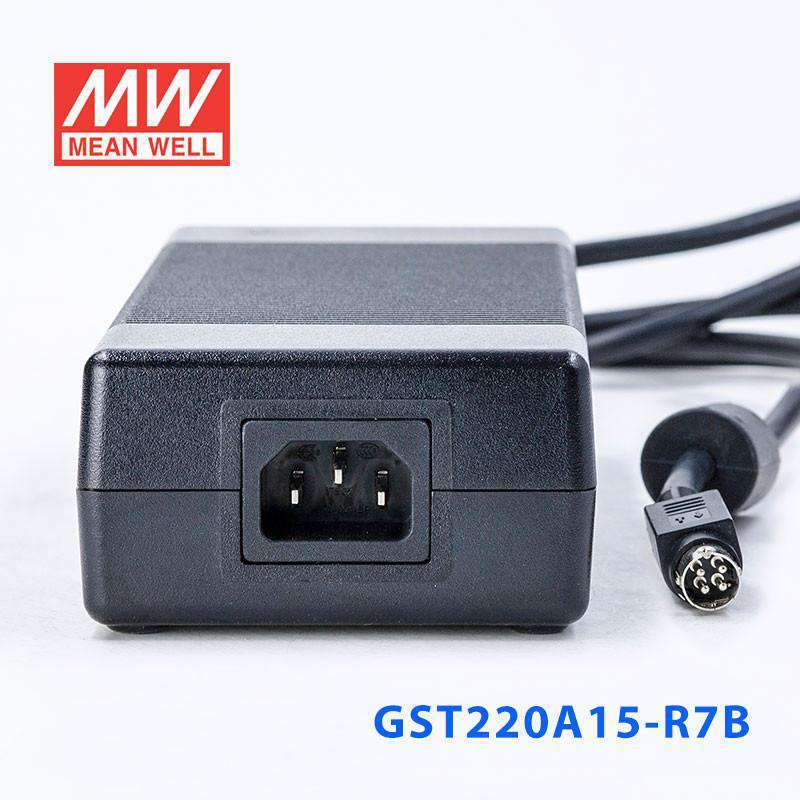

The unit supports a universal AC input range of 85 to 264VAC, and it also accepts 120 to 370VDC input. That makes it suitable for procurement across multiple regions without needing different AC input variants for standard mains ranges. It uses a 3-pole IEC320-C14 AC inlet.

The key differentiator is output capacity: this model provides up to 201W at 15V, which is significantly higher than light-duty adaptors intended for smaller loads. It is better suited when the application needs up to 13.4A and benefits from protections such as overload, over-voltage, short circuit, and over-temperature protection. For smaller loads, a lower-wattage adaptor may be more appropriate from a size and power-margin standpoint.

The GST220A15-R7B is rated to Energy Efficiency Level VI and lists no-load power consumption below 0.15W. It also includes active PFC and is approved to multiple safety and EMC standards, including UL60950-1, EN60950-1, FCC Part 15 Class B, and EN55022 Class B. These features make it suitable for buyers who need a more efficient and compliance-focused external power solution.

The main checks are output voltage, current demand, and connector format. This model provides 15V DC, up to 13.4A, with a standard R7B Power DIN 4P lock-type plug and a 120cm output cable. It is a match only when the equipment's power requirements and connector standard align with those specifications.

This model carries a 3-year warranty. That can be useful for B2B buyers evaluating long-term replacement planning and support expectations for deployed equipment. It also reflects the product's positioning as a professional-grade external power supply.
