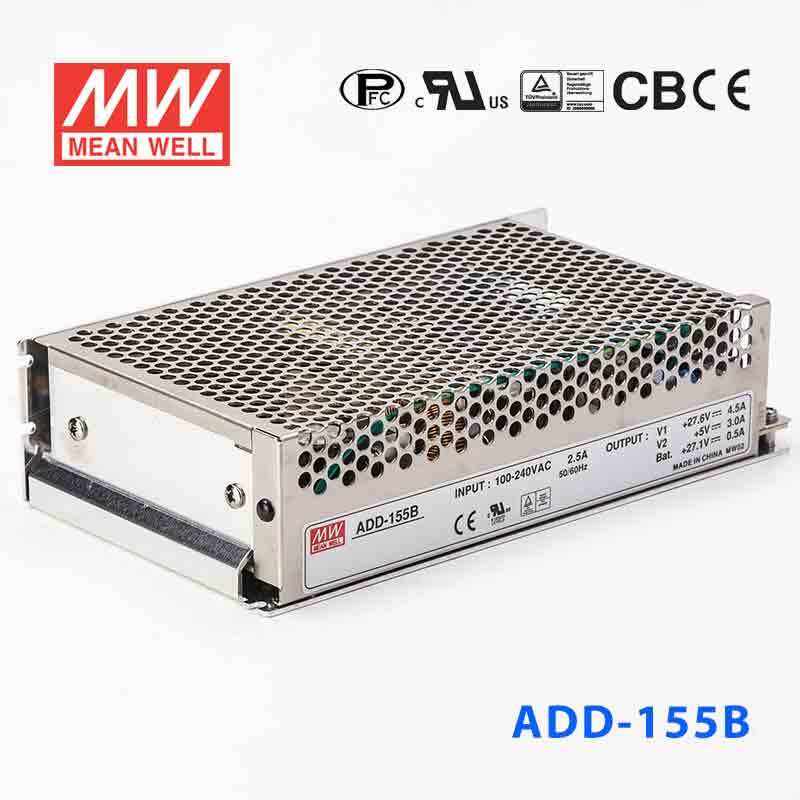

Mean Well ADD-155B Security Power Supply 152.75W 27.6V 5V 4.5A - UPS, Dual output
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ADD-155B Security Power Supply 152.75W 27.6V 5V 4.5A - UP...
The ADD is a 155W Mean Well. power converter. and an input range of 88~264VAC.
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN61000-3-2,-3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesADD Series
-
Power Rating152.75 Watt
-
Output Voltage27.6 Volt
-
Rated Current4.5 Ampere
-
Input Voltage88V~264V
-
No of Output2
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length7.83 in
-
Width4.33 in
-
Height1.97 in
-
Weight2.2 lb
::specification::
Frequently Asked Questions
What is the ADD-155B typically used for?
The Mean Well ADD-155B is typically used in security and backup-power systems that need a 27.6V main DC output and benefit from a dual-output design. With 152.75W of rated power and 4.5A on the main 27.6V output, it is a fit for higher-voltage DC loads in systems where an auxiliary low-voltage rail is also useful.
Is the ADD-155B suitable for battery-backed UPS-style DC systems?
Yes. The ADD-155B is described as a security power supply with UPS function, so it is intended for DC systems that combine normal operation with battery-backed support. The primary connected load should stay within the unit's 27.6V, 4.5A, and 152.75W output capability.
Does the ADD-155B support common 120V and 240V AC input ranges?
Yes. The specified AC input range is 88-264VAC, which allows the ADD-155B to operate from common 120V and 240V mains supplies within that range. That flexibility is useful when standardizing installations across different sites.
Can the ADD-155B be mounted in exposed outdoor conditions?
The current product data does not show a waterproof IP rating, so the ADD-155B should be treated as an indoor or protected-enclosure power supply rather than a unit for direct outdoor exposure. Its listed working temperature is -10°C to +60°C, but enclosure protection should still match the environment.
How does the ADD-155B compare with other ADD series models?
The ADD-155B provides 152.75W with a 27.6V main output at 4.5A in a dual-output design. In the same family, the ADD-155C provides 149.9W with a 54V main output at 2.3A, while the smaller ADD-55B provides 55.12W with a 27.6V main output at 1.3A. Selection depends on whether you need the 27.6V or 54V output class and how much current headroom your application needs.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other ADD Series Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ADD-55B Security Power Supply 55.12W 27.6V 5V 1.3A - UPS, Dual output | 55.12W | 27.6V | 1.3A | Indoor | $40.19 | View |
| Mean Well ADD-55A Security Power Supply 52.58W 13.8V 5V 2.5A - UPS, Dual output | 52.58W | 13.8V | 2.5A | Indoor | $39.02 | View |
| Mean Well ADD-155C Security Power Supply 149.9W 54V 5V 2.3A - UPS, Dual output | 149.9W | 54V | 2.3A | Indoor | $72.53 | View |
| Mean Well ADD-155A Security Power Supply 152.75W 13.8V 5V 9.5A - UPS, Dual output | 152.75W | 13.8V | 9.5A | Indoor | $72.53 | View |
