Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

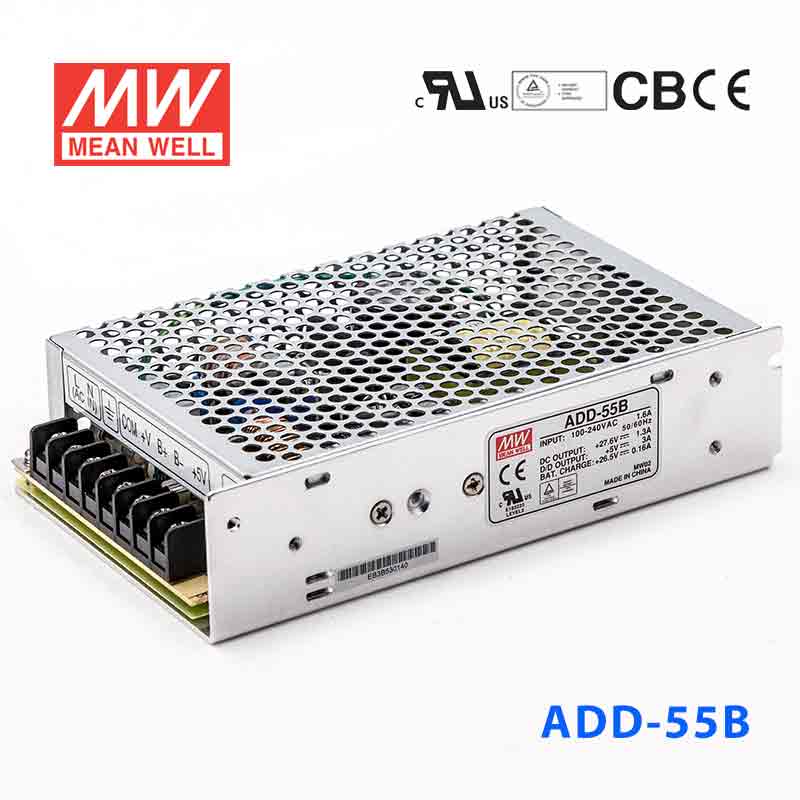

Mean Well ADD-55B Security Power Supply 55.12W 27.6V 5V 1.3A - UPS, Dual output
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ADD-55B Security Power Supply 55.12W 27.6V 5V 1.3A - UPS,...
The ADD is a 155W Mean Well. power converter. and an input range of 88~264VAC.
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN61000-3-2,-3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesADD Series
-
Power Rating55.12 Watt
-
Output Voltage27.6 Volt
-
Rated Current1.3 Ampere
-
Input Voltage88V~264V
-
No of Output2
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.26 lb
::specification::
Frequently Asked Questions
What is the ADD-55B typically used for?
The Mean Well ADD-55B is typically used in smaller security and backup-power systems that need a 27.6V main DC output in a dual-output power supply. With 55.12W of rated power and 1.3A on the main 27.6V output, it fits lighter-duty applications where a compact UPS-style supply is sufficient.
Can the ADD-55B support battery-backed security power designs?
Yes. The ADD-55B is positioned as a security power supply with UPS function, so it is suitable for battery-backed DC system designs when the connected load stays within the product's 27.6V, 1.3A, and 55.12W output rating.
Is the ADD-55B a better fit for lower-power 27.6V loads than the ADD-155B?
Yes, when the load is relatively small. The ADD-55B provides a 27.6V main output like the ADD-155B, but at 55.12W and 1.3A rather than 152.75W and 4.5A. That makes the ADD-55B a better fit when you need the same output class without the larger power capacity.
Will the ADD-55B run from common 120V and 240V AC mains?
Yes. The listed AC input range is 88-264VAC, so the ADD-55B can operate from common AC mains systems within that range, including typical 120V and 240V supplies. That helps keep deployments flexible across sites.
How does the ADD-55B compare with other ADD series models?
The ADD-55B is the smaller option in this group, delivering 55.12W with a 27.6V main output at 1.3A in a dual-output design. The ADD-155B provides 152.75W at 27.6V and 4.5A, while the ADD-155C provides 149.9W at 54V and 2.3A. The choice depends on the main output voltage you need and how much power margin your system requires.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other ADD Series Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ADD-55A Security Power Supply 52.58W 13.8V 5V 2.5A - UPS, Dual output | 52.58W | 13.8V | 2.5A | Indoor | $39.02 | View |
| Mean Well ADD-155C Security Power Supply 149.9W 54V 5V 2.3A - UPS, Dual output | 149.9W | 54V | 2.3A | Indoor | $72.53 | View |
| Mean Well ADD-155B Security Power Supply 152.75W 27.6V 5V 4.5A - UPS, Dual output | 152.75W | 27.6V | 4.5A | Indoor | $72.53 | View |
| Mean Well ADD-155A Security Power Supply 152.75W 13.8V 5V 9.5A - UPS, Dual output | 152.75W | 13.8V | 9.5A | Indoor | $72.53 | View |
