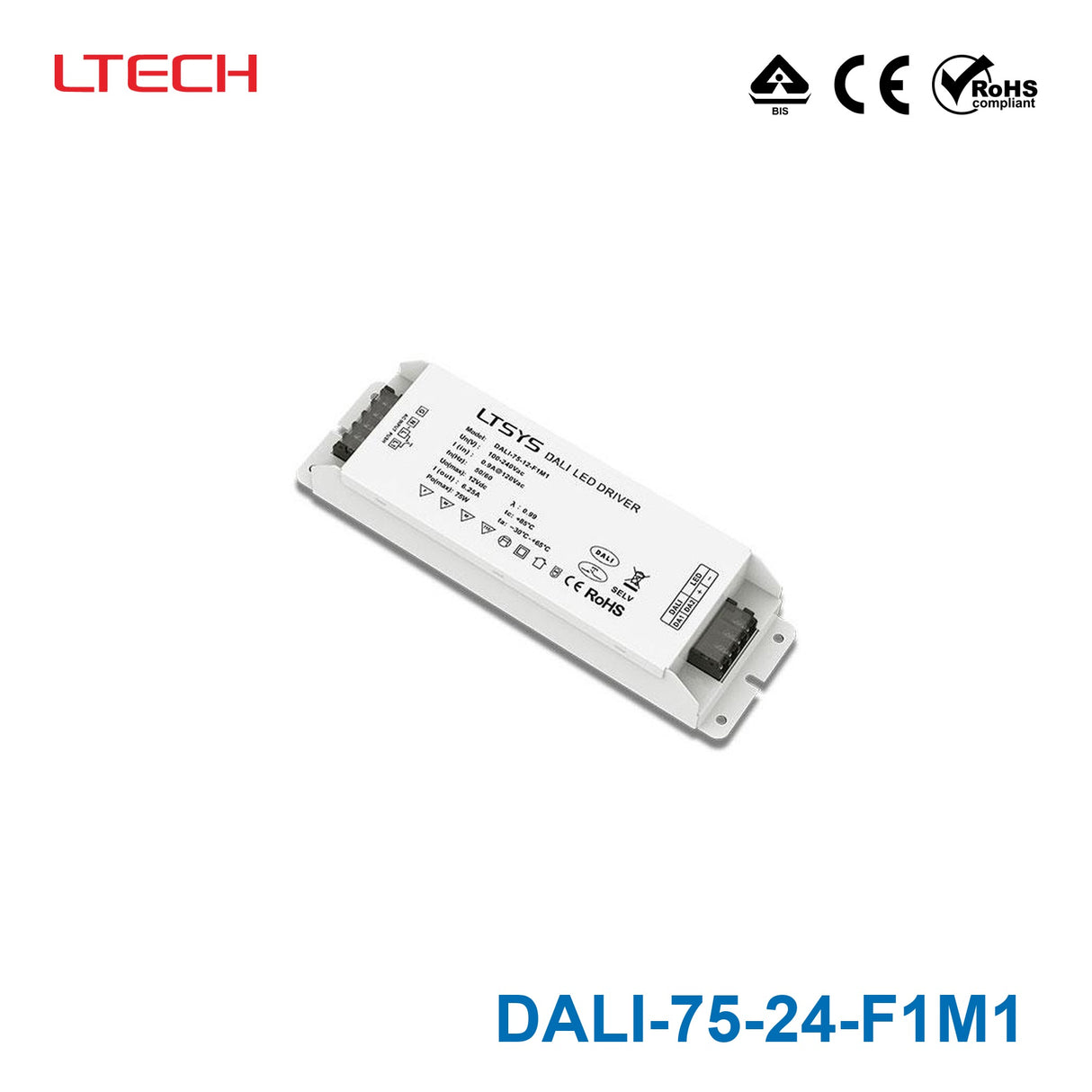

Ltech DALI-75-24-F1M1 75W 24VDC CV DALI LED Driver 3.12A
| Dimming interface | DALI/PUSH DIM |
| Dimming range | 0-100% |
| Input voltage | 100-240VAC |
| Power factor | >0.99 |
| Efficiency | >86% |
| Output voltage | 24VDC |
| Output power | 75W |
| Output current | 3.1A |
| Working temperature | -30℃～65℃ |
| Dimension | 204x62x34mm(LxWxH) |
| Package Size | 206x64x36mm(LxWxH) |
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating75 Watt
-
Output Voltage24 Volt
-
Rated Current3.12 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty5 Year
-
Length8.03 in
-
Width2.44 in
-
Height1.34 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
What type of LED load is the Ltech DALI-75-24-F1M1 designed for?
The Ltech DALI-75-24-F1M1 is a constant voltage LED driver with a 24VDC output. It is intended for 24V LED lighting products that require a constant voltage power supply rather than a constant current driver.
What are the main electrical specifications of this LED driver?
This model provides 24VDC output at 75W with a rated output current of about 3.1A. It accepts a 100-240VAC input, has a power factor greater than 0.99, and efficiency above 86%.
Does this model support DALI dimming?
Yes, the DALI-75-24-F1M1 supports DALI dimming and also lists PUSH DIM as a dimming interface. Its stated dimming range is 0-100%, making it suitable for applications that need full-range dimming control.
What environments is this LED driver suitable for?
This driver is rated for operation in demanding temperature conditions, with listed working temperatures from -30C to 65C in the description. The structured product data lists a maximum operating temperature of 60C, so buyers should confirm the required margin for hotter environments.
How large is the Ltech DALI-75-24-F1M1?
The product dimensions are 204 x 62 x 34 mm (L x W x H). The listed package size is 206 x 64 x 36 mm, and the product weight is 0.49 kg.
What makes this model different from a non-dimming 24V power supply?
This model combines 24V constant voltage output with built-in DALI and PUSH DIM control support. That makes it a better fit for lighting projects that need dimming functionality, rather than a basic fixed-output 24V supply.
What warranty is provided for this LED driver?
The listed warranty period for the Ltech DALI-75-24-F1M1 is 5 years. That can be useful for commercial and professional projects where long-term product support matters.
