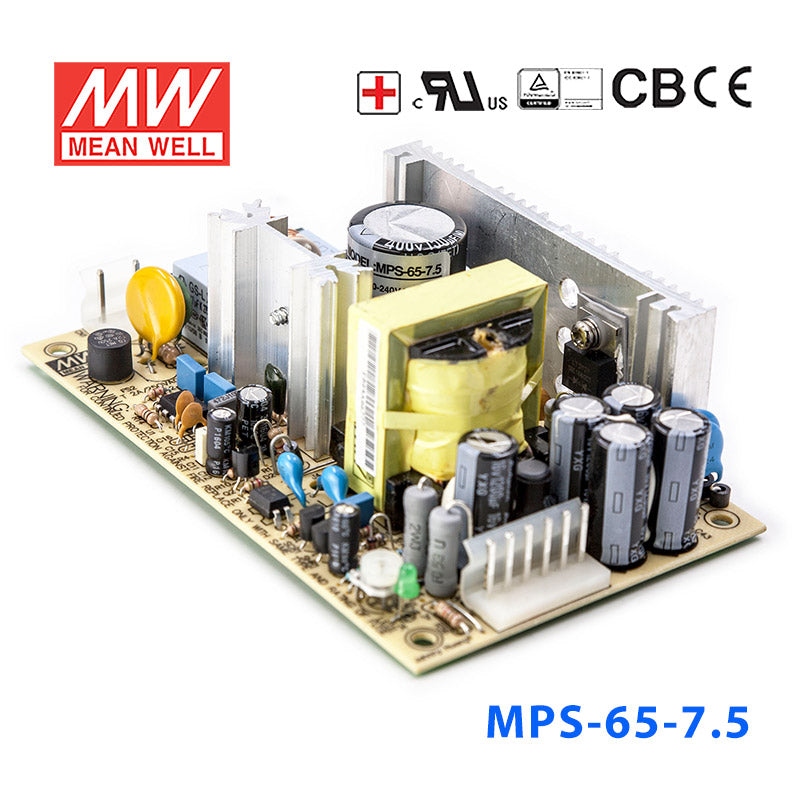

Mean Well MPS-65-7.5Power Supply 65W 7.5V 8A
MEAN WELL MPS-65 Series Power Supplies are 65W singlel output medical type power supplies with 3 years warranty.
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current <250pA
- ✓Protections: Short circuit / Overload / Over voltage
- ✓Cooling by free air convection
- ✓Medical safety approved (2 x MOPP between primary to secondary)
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 45KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPS Series
-
Power Rating60 Watt
-
Output Voltage7.5 Volt
-
Rated Current8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length5 in
-
Width2.99 in
-
Height1.65 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the MPS-65-7.5 for equipment that specifically requires 7.5V DC?
Yes, this model provides constant-voltage 7.5V output rated for 8A and 60W. It is appropriate for industrial or embedded devices designed for a regulated 7.5V input within that output limit.
Is the MPS-65-7.5 suitable for 7.5V instrumentation or control electronics?
It can be used for 7.5V instrumentation or control loads that stay within 8A and 60W. The constant-voltage design is intended for equipment that expects a fixed 7.5V supply rather than current-regulated output.
Can this power supply support a centralized 7.5V embedded system load?
Yes, if the total demand on the 7.5V rail does not exceed 8A or 60W. The 90-264VAC input range also supports deployment where the available AC mains may vary.
Is the MPS-65-7.5 suitable for indoor panels or harsher environments?
The published operating temperature is -10°C to +60°C, so that is the defined temperature window. No IP rating is shown in the provided specs, so outdoor or water-exposed use is not specified here.
What is the difference between the MPS-45-7.5 and MPS-65-7.5?
Both are 7.5V models, but MPS-45-7.5 is rated at 40.5W and 5.4A, while MPS-65-7.5 is rated at 60W and 8A. The 65 series version provides more output current and total power at the same 7.5V output.
