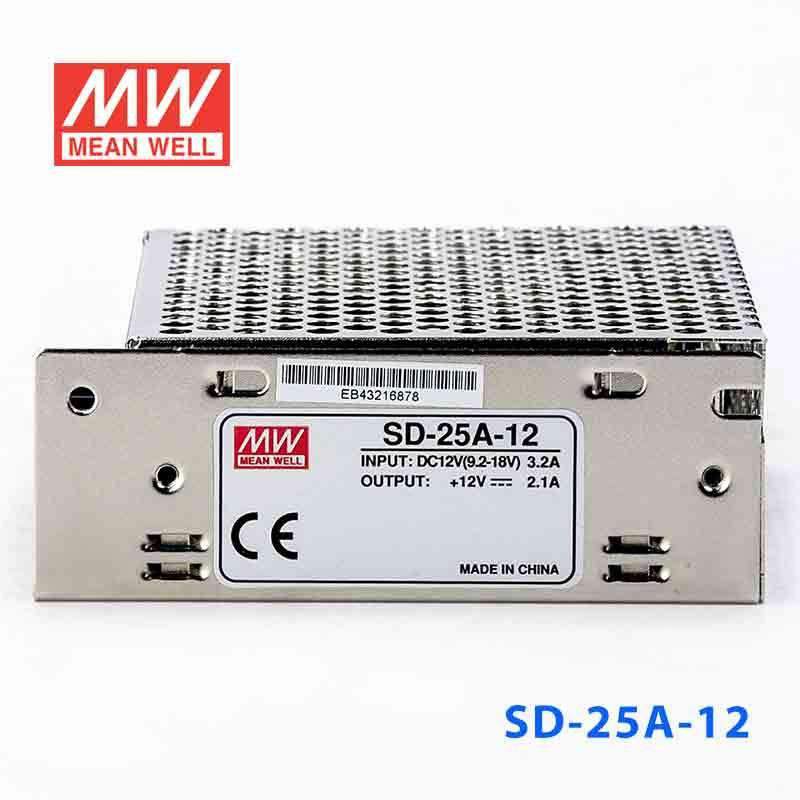

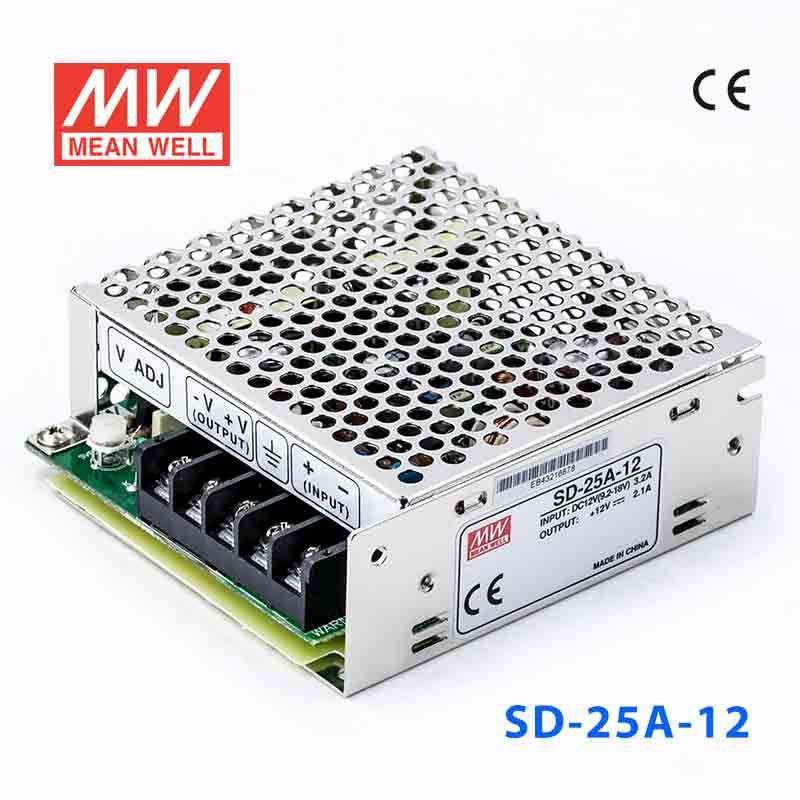

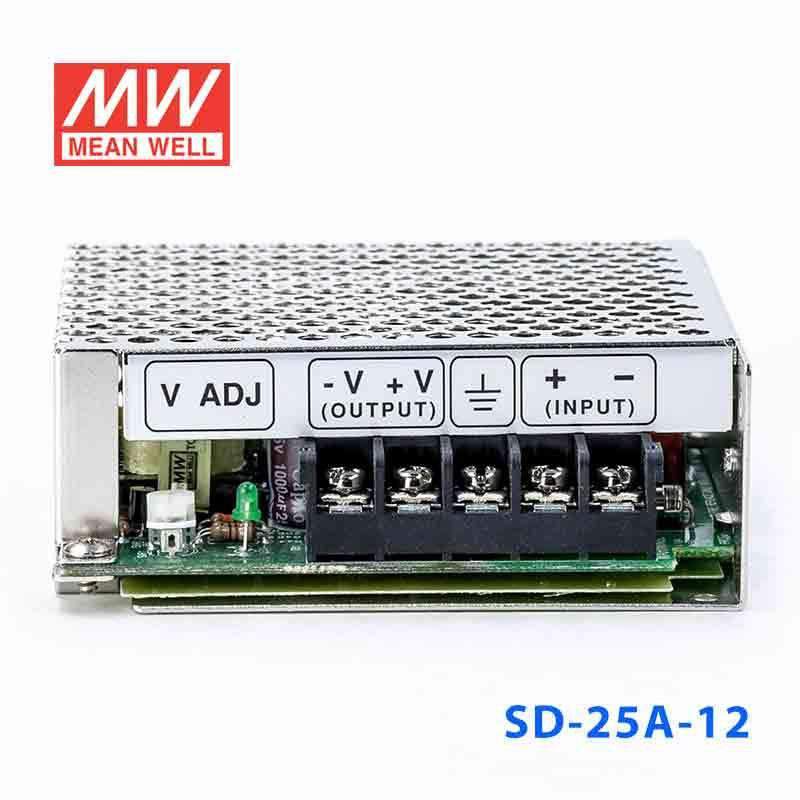

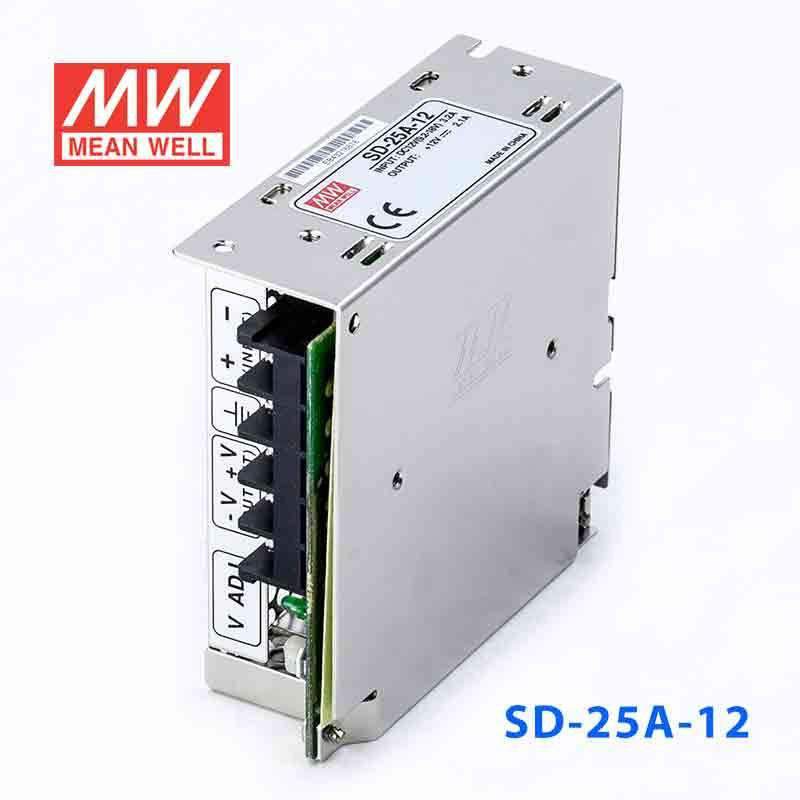

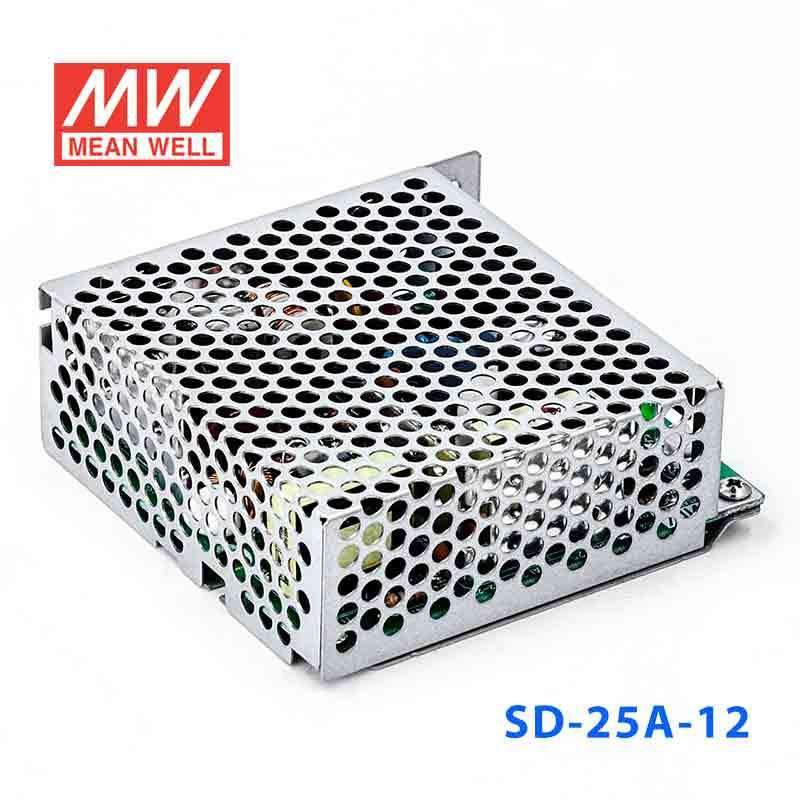

Mean Well SD-25A-12 DC-DC Converter - 25W - 9.2~18V in 12V out 2.1A
·2:1wide inputrange
·Protections: Short circuit/Overload/Overvoltage
·1500VACI/Oisolation
·Built-inEMIfilter,lowripplenoise
·100% full load burn-intest
·Fixed switching frequencyat83KHz
·Lowcost
·Highreliability
2yearswarranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating25.2 Watt
-
Output Voltage12 Volt
-
Rated Current2.1 Ampere
-
Input Voltage9.2V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.42 in
-
Weight0.84 lb
::specification::
Frequently Asked Questions
Can I use the SD-25A-12 for a small 12V industrial control circuit?
It is suited to small 12V constant-voltage control loads that stay within 2.1A and 25.2W. The listed input range is 9-18VAC.
Is the SD-25A-12 a fit for compact embedded electronics that need 12V power?
Yes, for embedded electronics that require a regulated 12V output and draw no more than 2.1A. Its rated output power is 25.2W.
Can this model power a 12V sensor or monitoring device in an automation system?
It can fit a 12V sensor, monitoring, or low-power automation device if the load remains within 2.1A and 25.2W. This model is a constant-voltage converter with a 9-18VAC input range.
What is the difference between SD-25A-12, SD-25A-24, and SD-25A-5?
Within the SD-25A group, SD-25A-12 is 25.2W at 12V and 2.1A, SD-25A-24 is 26.4W at 24V and 1.1A, and SD-25A-5 is 25W at 5V and 5A. All three list the same 9-18VAC input range.
Can the SD-25A-12 be used outdoors or in unprotected enclosures?
The published specs give an operating temperature range of -10°C to +60°C, but no IP rating is listed. Based on that data, temperature suitability is defined, while outdoor or washdown protection is not specified.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SD-25A Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SD-25A-24 DC-DC Converter - 25W - 9.2~18V in 24V out 1.1A | 26.4W | 24V | 1.1A | Indoor | $24.92 | View |
| Mean Well SD-25A-5 DC-DC Converter - 25W - 9.2~18V in 5V out 5A | 25W | 5V | 5A | Indoor | $24.92 | View |
