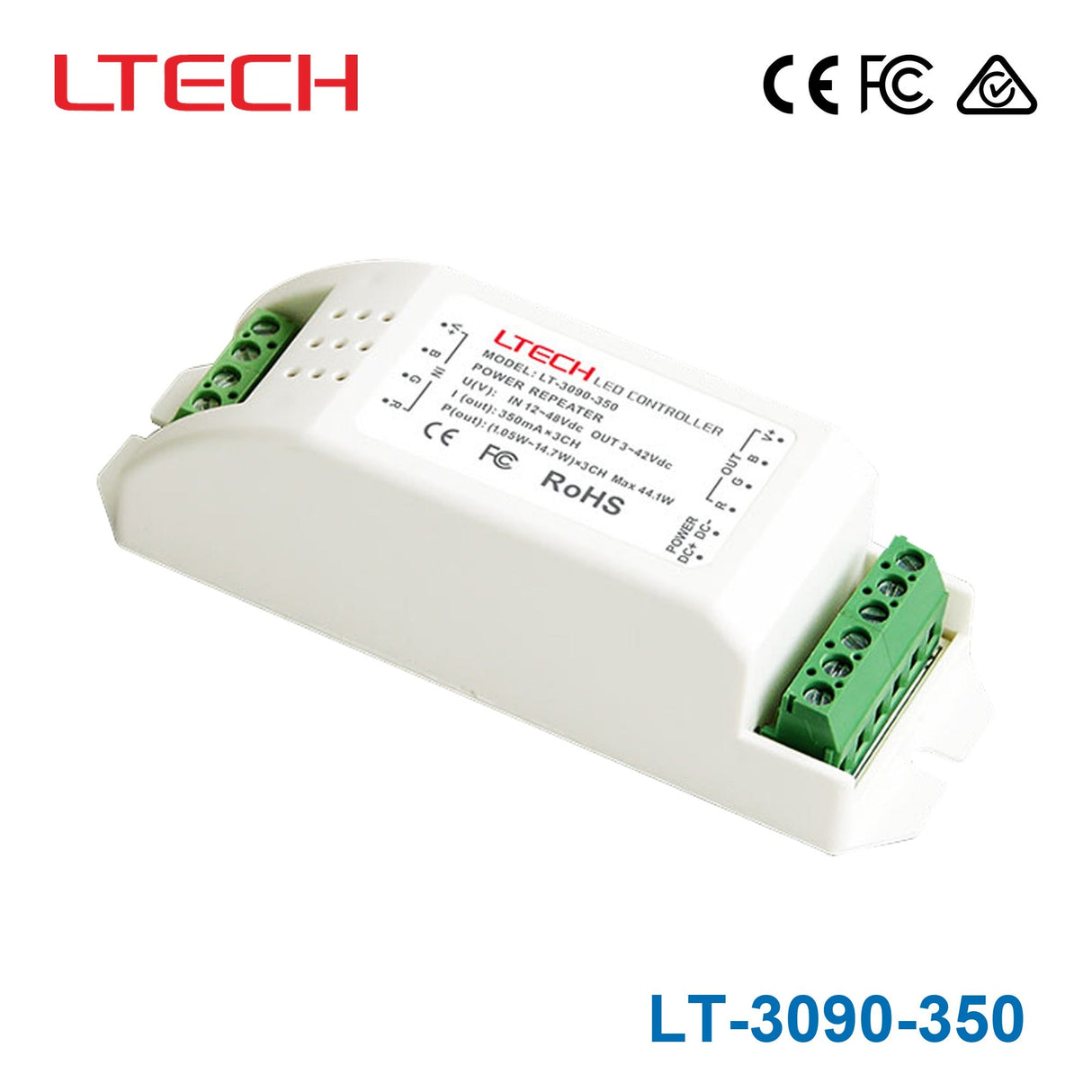

Ltech LT-3090-350 LED Constant Current Power Repeater
-
BrandLtech
-
Power Rating50 Watt
-
Output Voltage48 Volt
-
Rated Current0.35 Ampere
-
Input Voltage12V~48V
-
No of Output3
-
Dimming ControlNone
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length4.76 in
-
Width1.54 in
-
Height1.54 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
What does the Ltech LT-3090-350 do?
The LT-3090-350 is a constant current LED power repeater used to expand power output in compatible control systems. It accepts a PWM signal and is intended for use with single color and RGB controllers when additional output capacity is needed.
What are the key electrical ratings of the LT-3090-350?
This model is rated for 50 W output power at 48 V with a rated current of 350 mA. Those specifications make it a constant current repeater for systems that need that exact output class.
Is the LT-3090-350 compatible with single color and RGB controllers?
Yes. The product description states that it is specially designed for Ltech single color and RGB controllers and that it accepts a PWM signal. Buyers should match it to a compatible PWM-based controller environment.
Can this repeater be used to expand system power capacity?
Yes. The LT-3090-350 is specifically intended to expand power output, and the product description says additional repeaters can increase available power further. It is positioned for applications where a controller alone does not provide enough output capacity.
What operating temperatures can the LT-3090-350 handle?
The specified operating temperature range is -30 C to 55 C. That gives it a relatively wide environmental range for commercial and industrial LED control applications.
Does the LT-3090-350 include dimming control by itself?
No. The listed dimming control for this model is "none," so it is not described as a standalone dimming device. Its role is to repeat and expand output in a compatible PWM control setup.
What warranty and physical weight are listed for this model?
The LT-3090-350 has a listed 5-year warranty period. Its specified weight is 0.1100 kg, which is about 110 grams.
