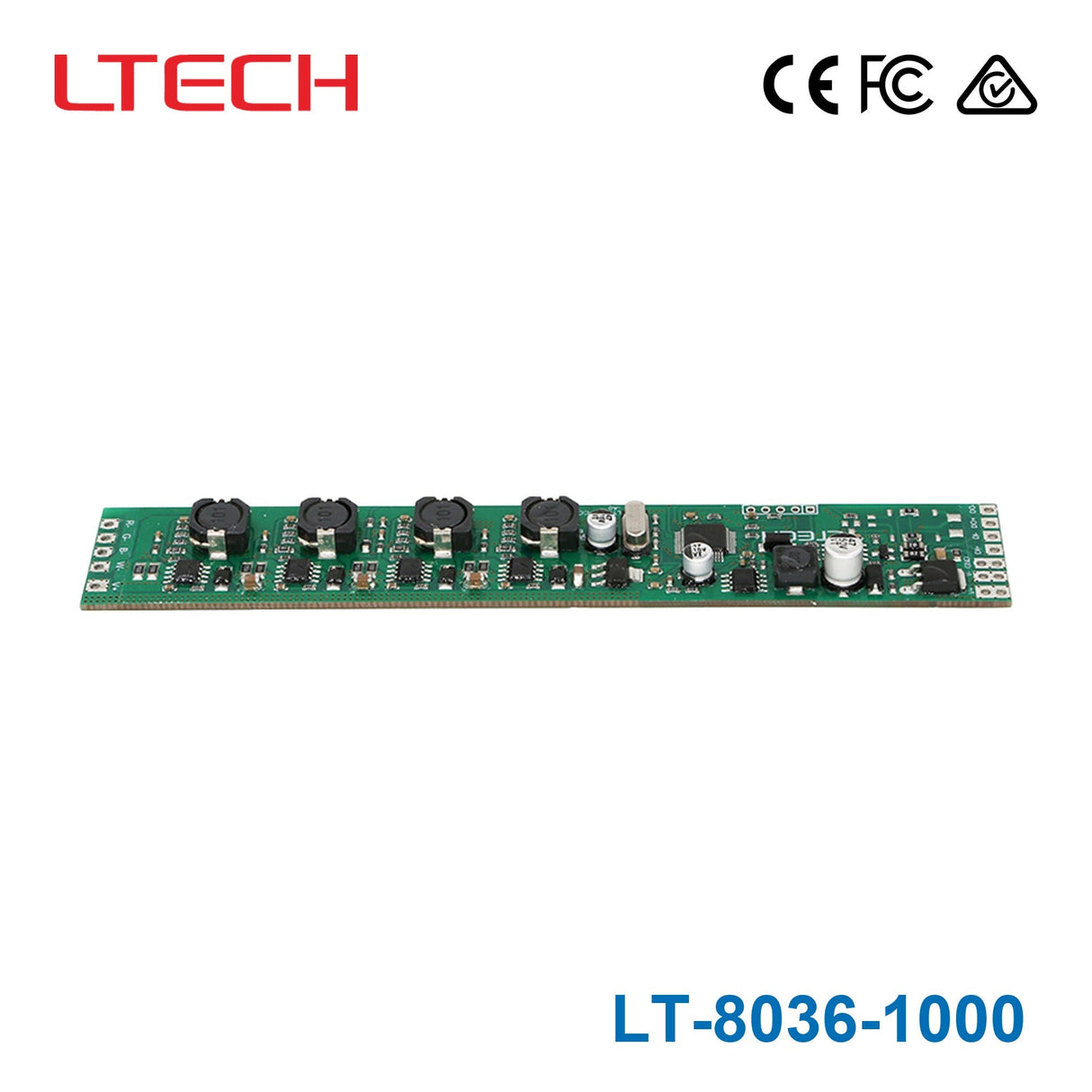

Ltech LT- 8036-1000 DMX/RDM CC Decode Circuit Board
-
BrandLtech
-
Power Rating132 Watt
-
Output Voltage33 Volt
-
Rated Current1 Ampere
-
Input Voltage12V~36V
-
No of Output4
-
Dimming ControlNone
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length6.1 in
-
Width1.02 in
-
Height0.39 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
What kind of LED lighting is the Ltech LT-8036-1000 designed for?
The LT-8036-1000 is designed for DMX512 high-power lighting such as wall washers and project lights. It is suitable for single color, tunable white, RGB, and RGBW LED fixtures that use a constant current control approach.
What are the main output specifications of the LT-8036-1000?
This model is rated for 132 W output power, 33 V output voltage, and 1000 mA rated current. Those specs make it a constant current decode board intended for compatible high-power LED lighting applications.
Does the LT-8036-1000 support RDM management?
Yes. The LT-8036-1000 includes standard RDM long-range device management, which allows settings such as DMX address, dimming range, dimming mode, and firmware updates to be managed when used with compatible RDM control tools.
Can the LT-8036-1000 work with the WiFi-RDM01 accessory?
Yes, the product description specifically states that it works with WiFi-RDM01. That combination allows connected LT-8036-1000 settings to be adjusted through the app, including address and operating parameters supported by the device.
What happens if DMX signal is lost?
The LT-8036-1000 includes an offline sync mode with 3 preset modes. If DMX signal is absent for a period of time, connected DMX devices can continue playing the preset modes, which makes it practical for smaller control systems.
Is the LT-8036-1000 suitable for demanding temperature conditions?
This model is rated for operation from -30 C to 65 C. That wide temperature range supports use in installations where lighting control hardware may be exposed to colder or warmer operating environments.
How does the LT-8036-1000 compare with a basic non-RDM LED control board?
The LT-8036-1000 stands out by combining DMX512 decoding with standard RDM long-range management and offline synchronized preset playback. That makes it a better fit for projects that need device management features and fallback behavior beyond basic signal decoding alone.
What warranty is provided for the LT-8036-1000?
The LT-8036-1000 carries a 5-year warranty. For commercial buyers, that longer warranty period can be relevant when evaluating lifecycle cost and long-term fixture support.
