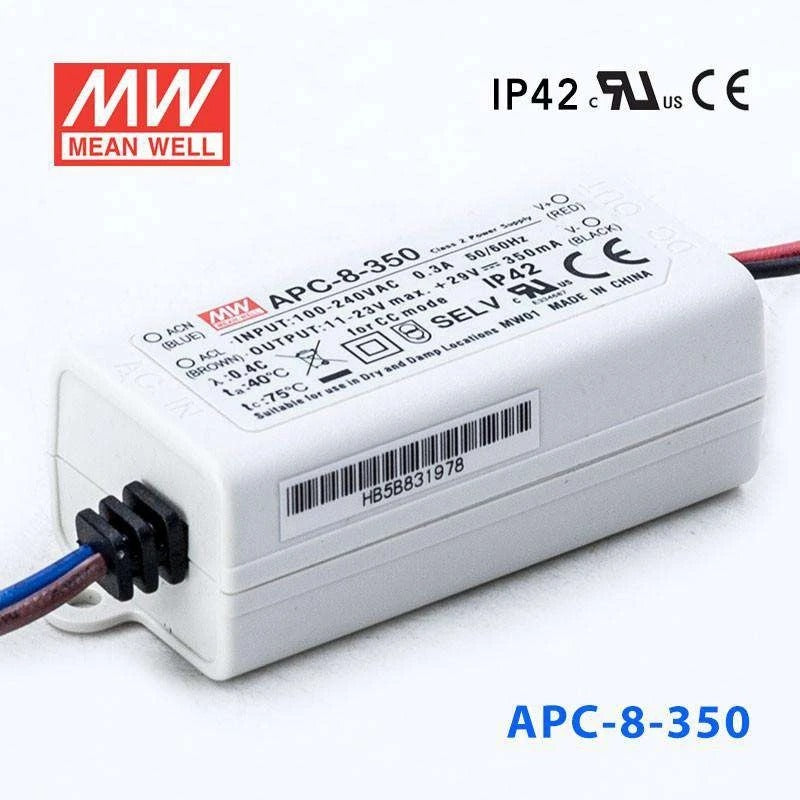

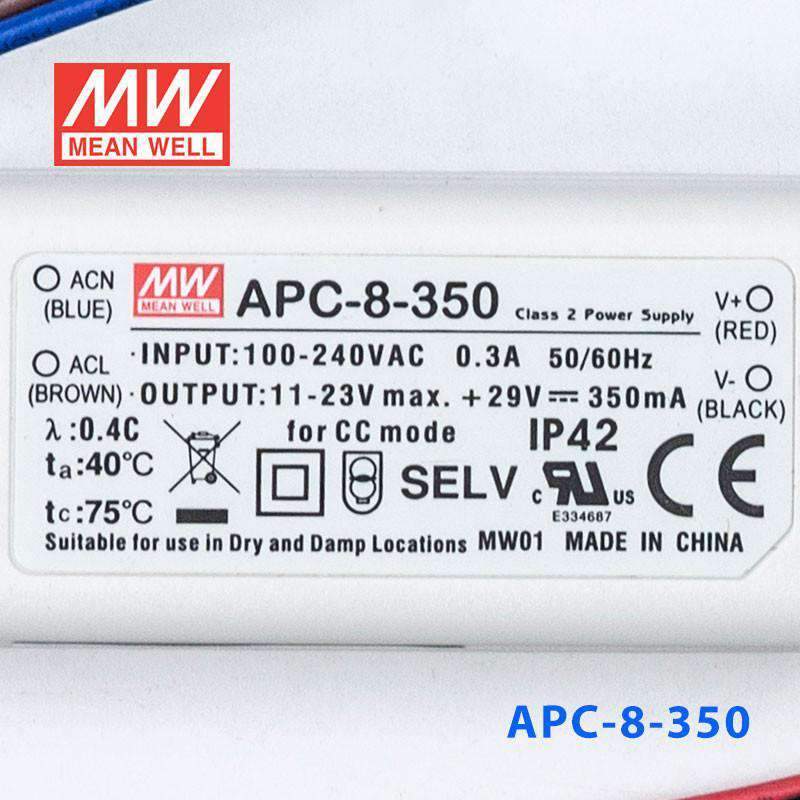

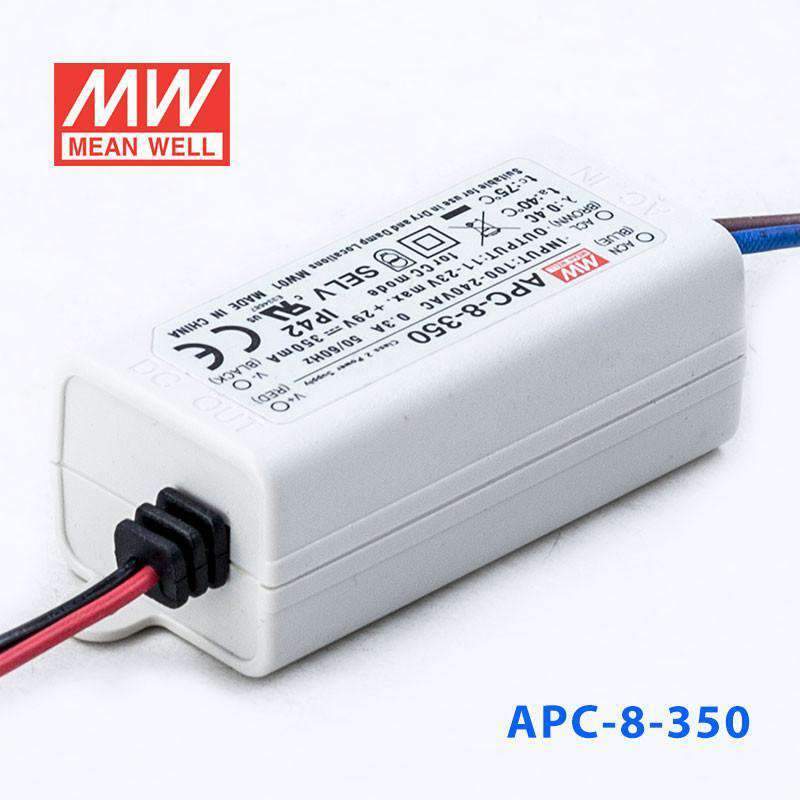

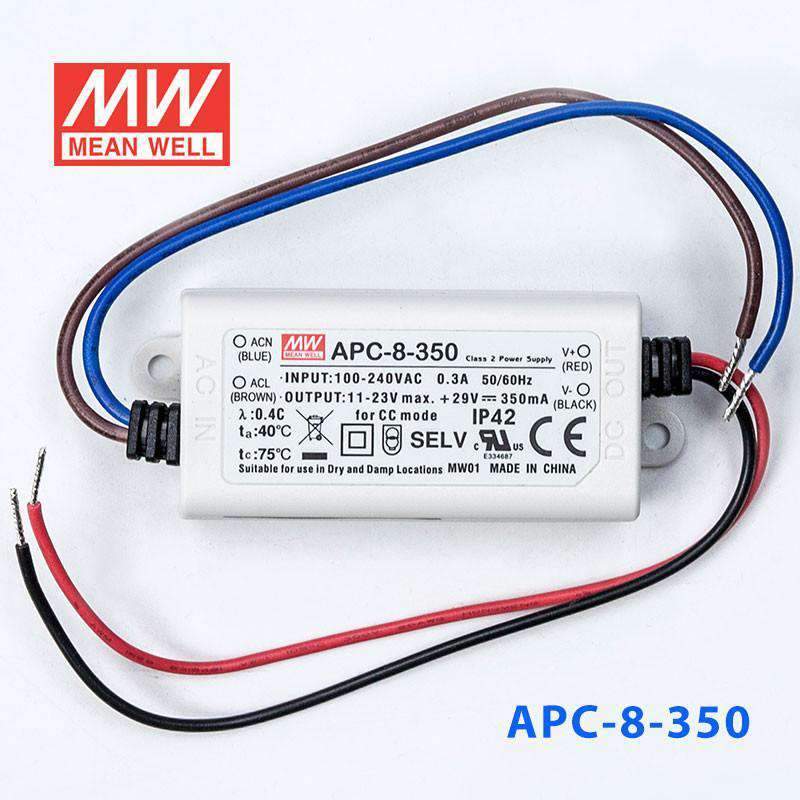

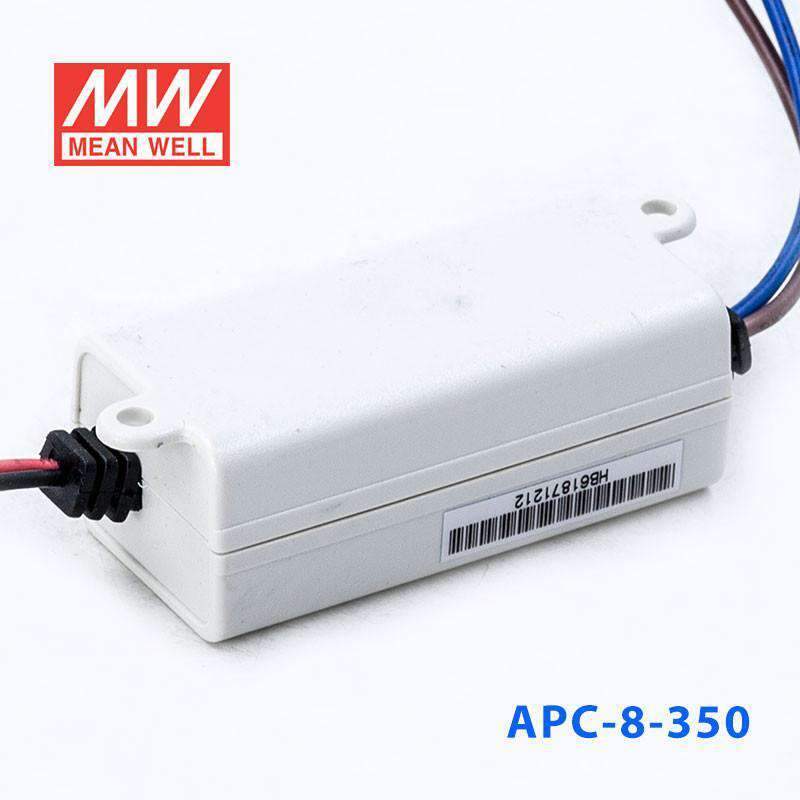

Mean Well APC-8-350 Power Supply 8W 350mA
The APC-8 is a 8.05W Mean Well AC-DC constant current LED driver (input: 90~264VAC, output: 23V, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 23V
- ✓ Rated output current: 350mA
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP42
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: BSMI, CE, cUL, EAC
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesAPC Series
-
Power Rating8.05 Watt
-
Output Voltage23 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSMI,CE,cUL,EAC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length2.36 in
-
Width1.18 in
-
Height0.93 in
-
Weight0.11 lb
::specification::
Frequently Asked Questions
What LED loads is the APC-8-350 best suited for?
The APC-8-350 outputs a constant 350mA, which is the standard drive current for many commodity LED modules used in downlights and small area-lighting arrays. It operates over a CC voltage range of 11–23V, accommodating series LED strings whose total forward voltage falls within that window. Rated output power is 8.05W.
How many LEDs can the APC-8-350 drive in series?
The number of LEDs the APC-8-350 can drive depends entirely on each LED's forward voltage at 350mA. The driver's constant current voltage range is 11–23V, so it will regulate 350mA through any series string with a combined forward voltage between 11V and 23V.
Why would I choose 350mA over 250mA or 500mA in the APC-8 series?
The output current must match the LED string's rated forward current — selecting the wrong current will either under-drive or overdrive the LEDs. The APC-8-350's 350mA output suits LED modules explicitly rated for 350mA operation. If your LEDs are rated for 250mA or 500mA, the APC-8-250 or APC-8-500 would be the correct choice respectively, as both share the same compact form factor and universal input.
What is the operating temperature range of the APC-8-350?
The APC-8-350 is rated to operate from -30°C to +70°C, providing reliable performance in cold storage or unheated enclosures at the low end and moderately warm ambient environments at the high end.
How does the APC-8-350 compare to the rest of the APC-8 family?
All APC-8 models share identical physical dimensions (60.0 × 30.0 × 23.5mm), weight (0.05kg), universal 90–264VAC input, IP42 rating, Class II design, and 2-year warranty. The APC-8-350 delivers 350mA over 11–23V (8.05W), while the APC-8-250 delivers 250mA over 16–32V (8W), the APC-8-500 delivers 500mA over 8–16V (8W), and the APC-8-700 delivers 700mA over 6–11V (7.7W). Model selection is driven by the LED string's required forward current.
Does the APC-8-350 require a ground connection?
No. The APC-8-350 uses a Class II double-insulated design, so it does not require a protective earth (ground) connection. This can simplify enclosure design in applications where grounding is impractical.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other APC-8 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well APC-8-250 Power Supply 8W 250mA | 8W | 32V | 0.25A | IP42 | $8.28 | View |
| Mean Well APC-8-700 Power Supply 8W 700mA | 7.7W | 11V | 0.7A | IP42 | $6.18 | View |
| Mean Well APC-8-500 Power Supply 8W 500mA | 8W | 16V | 0.5A | IP42 | $6.18 | View |
