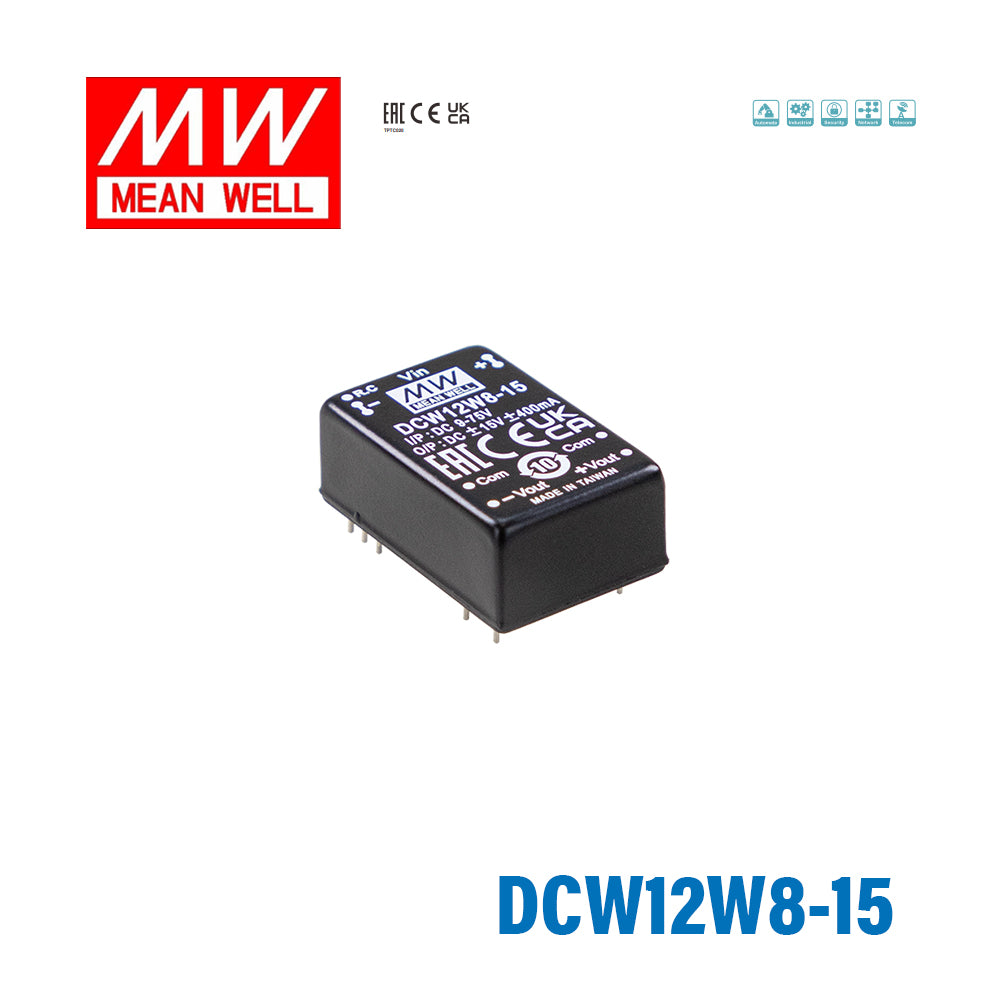

Mean Well DCW12W8-15 DC-DC Converter - 12W 9~75V DC in ±15V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DCW12W8-15 DC-DC Converter - 12W 9~75V DC in ±15V out
The DCW12W8 is a 12W Mean Well. power converter. and an input range of 9~75Vdc.
Key Features
- ✓ Input voltage range: 9~75Vdc
- ✓ 3KVdc reinforced I/O isolation
- ✓ Wide operating temperature: -40~+85℃
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: WITHSTAND VOLTAGE 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes EAC TP TC 020/2011
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating12 Watt
-
Output Voltage15 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
What output does the Mean Well DCW12W8-15 provide?
The DCW12W8-15 is a 12W DC-DC converter with dual ±15V DC output. This model is designed for applications that need a regulated bipolar output from a wide DC input source.
What input voltage range does the DCW12W8-15 support?
This model accepts an ultra-wide 9 to 75V DC input range, described as an 8:1 input range. That makes it suitable for systems where the available DC input can vary across common 12V, 24V, 36V, 48V, or 72V nominal supplies.
Does the DCW12W8-15 require a minimum load to regulate properly?
No minimum load is required for this converter. That can be useful in control, instrumentation, or intermittent-load applications where the output demand is low or changes significantly during operation.
Is the DCW12W8-15 suitable for demanding temperature environments?
The specified operating temperature range is -40°C to +85°C, subject to the product's derating curve. This wide range makes it a practical choice for industrial and enclosed equipment environments where ambient temperatures can be more demanding than standard room conditions.
What protection features are included in the DCW12W8-15?
The converter includes continuous short circuit protection with automatic recovery, overload protection, over voltage protection, and under voltage lockout. Mean Well also recommends a 4A slow-blow fuse on the input side for protection.
Does the DCW12W8-15 provide input-to-output isolation?
Yes, the DCW12W8-15 provides 3KV DC input-to-output isolation. This is an important specification for designs that need stronger electrical separation between the input source and the powered circuitry.
