Can I use the HLG-40H-12A to power 12V LED strips in a retail display case?

Yes. The HLG-40H-12A outputs 12V at up to 3.33A (40W), which is well suited for small to medium 12V LED strip runs in display cases, shelving, or showcases. The built-in potentiometer lets you fine-tune brightness by adjusting output voltage and current without an external dimmer.

Is the adjustable output on the HLG-40H-12A useful for matching different 12V LED loads?

Yes. The potentiometer lets you trim the output to match your specific LED load, which is helpful when driving strips or modules that perform best at slightly below their rated voltage. The constant-current range of 7-12V gives you meaningful adjustment headroom.

Can the HLG-40H-12A drive 12V LED modules for a small indoor sign?

Yes. With 40W at 12V it can power several 12V channel-letter or lightbox modules. The adjustable output is useful for dialing in the exact voltage that matches your module string. Its wide 90-305VAC input handles standard commercial mains supplies.

How many meters of 12V LED strip can the HLG-40H-12A handle?

Divide 40W by the strip's power draw per meter. For example, a strip rated at 8W/m would allow up to 5 meters (40W / 8W per meter = 5m). Always check your strip's rated power per meter and keep total load at or below 40W.

Is the HLG-40H-12A suitable for a damp garage or basement?

Yes. Its IP65 water-resistant rating protects against dust and low-pressure water jets, which is more than sufficient for damp indoor environments such as garages, basements, or utility rooms. For installations with direct rain or standing water exposure, consider the IP67-rated HLG-40H-12 instead.

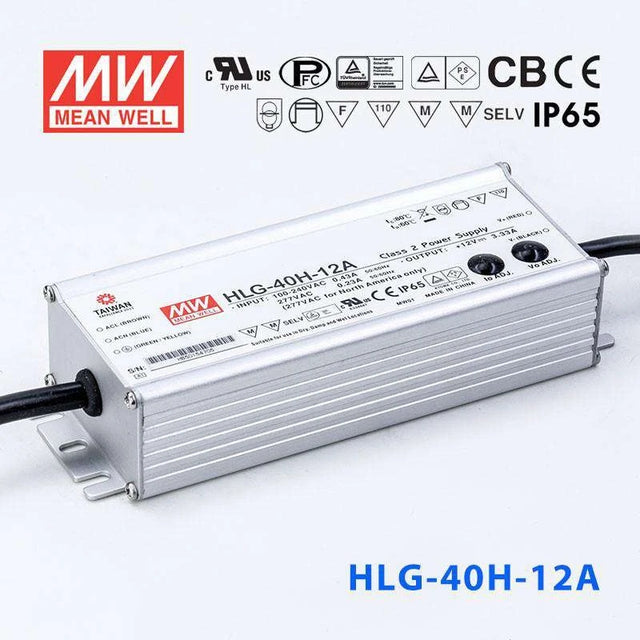

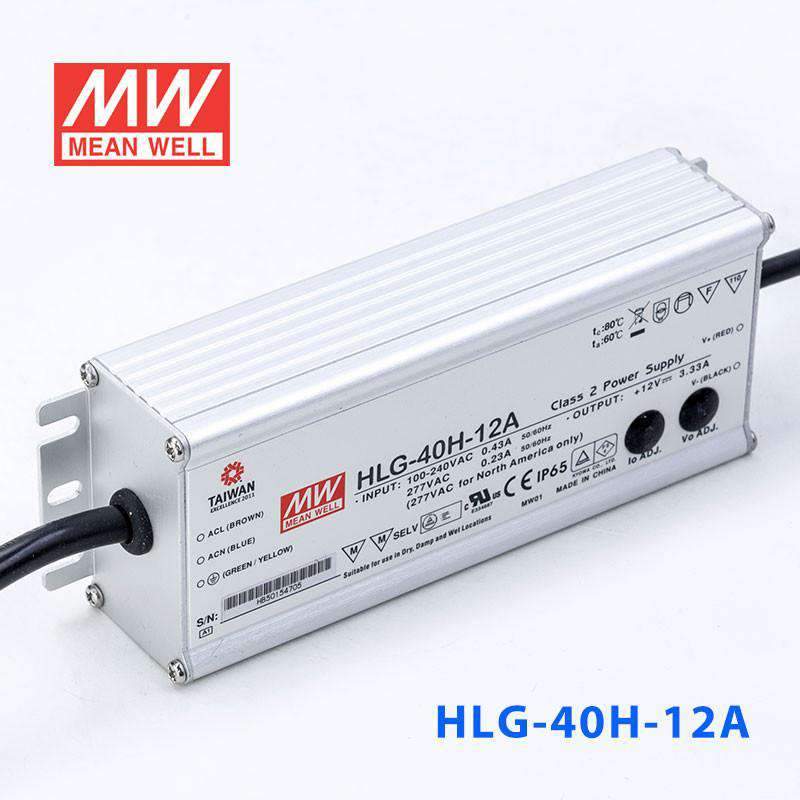

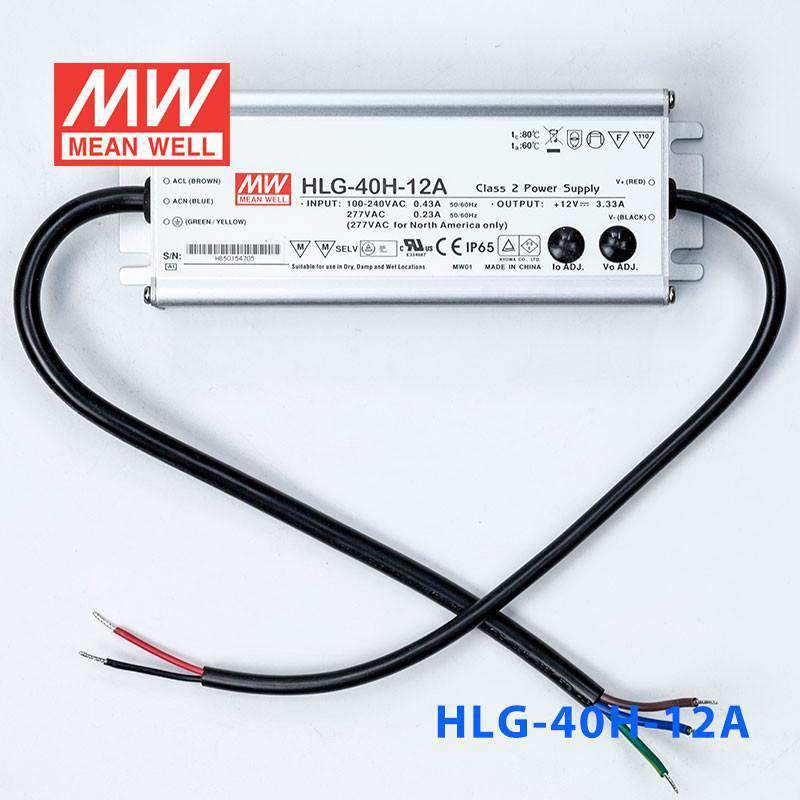

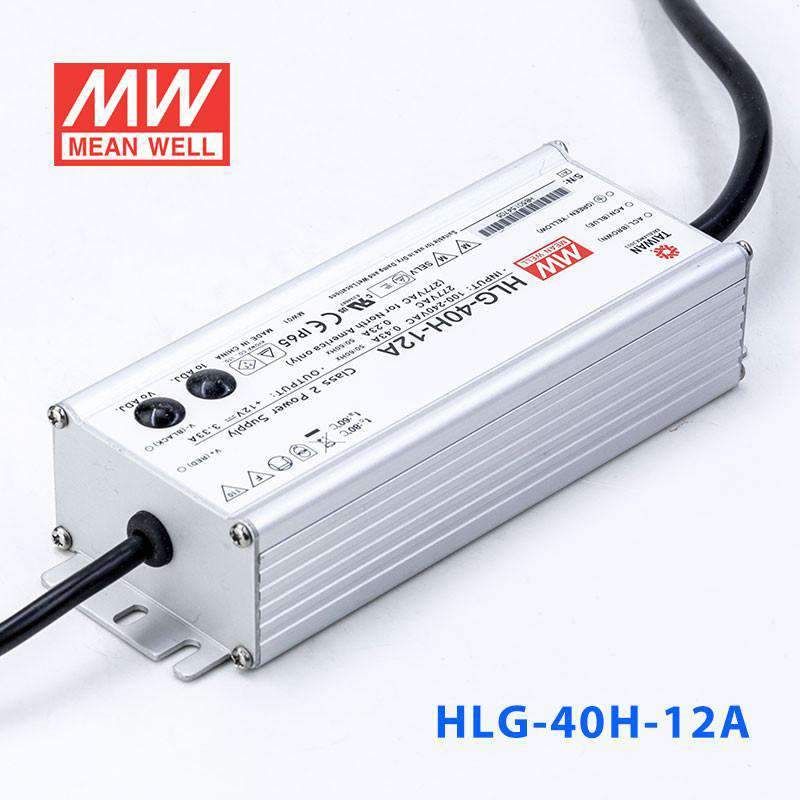

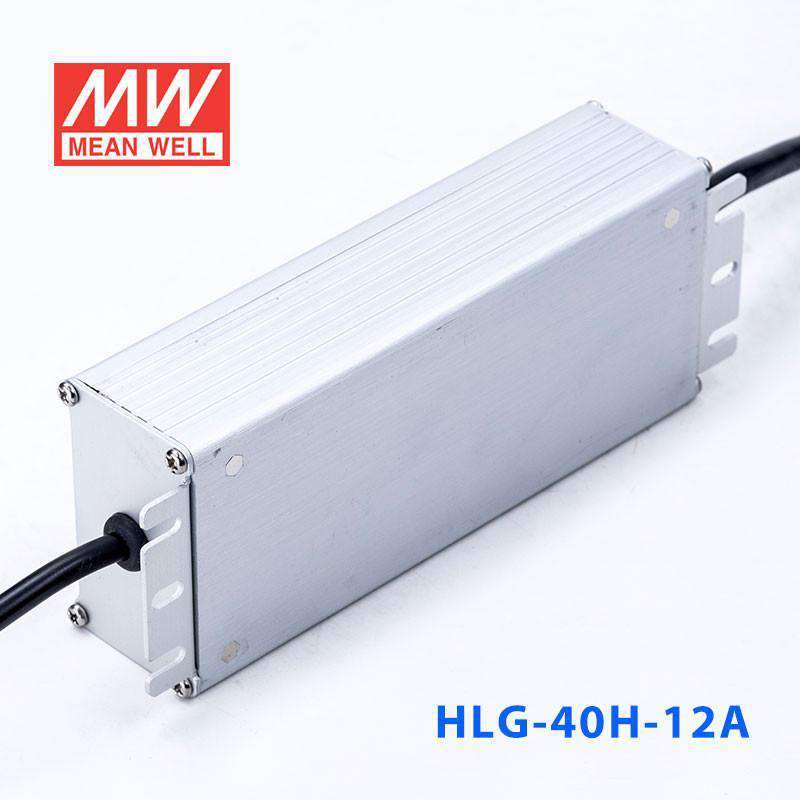

Mean Well HLG-40H-12A Power Supply | 40W 12V - Adjustable

Name: Mean Well HLG-40H-12A Power Supply 40W 12V - Adjustable
Brand: Mean Well
SKU: HLG-40H-12A
Price: 37.4 USD
Availability: InStock

The HLG-40H is a 40W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Brand

Mean Well
Series

HLG Series
Power Rating

40 Watt
Output Voltage

12 Volt
Rated Current

3.33 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

7 Year
Length

6.73 in
Width

2.42 in
Height

1.45 in
Weight

1.61 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well HLG-40H-12B Power Supply 40W 12V - Dimmable	40W	12V	3.33A	IP67	$31.16	View
Mean Well HLG-40H-24B Power Supply 40W 24V - Dimmable	40W	24V	1.67A	IP67	$33.90	View
Mean Well HLG-40H-24A Power Supply 40W 24V - Adjustable	40W	24V	1.67A	IP65	$37.32	View
Mean Well HLG-40H-12 Power Supply 40W 12V	40W	12V	3.33A	IP67	$37.32	View
Mean Well HLG-40H-15B Power Supply 40W 15V - Dimmable	40.5W	15V	2.67A	IP67	$35.33	View
Mean Well HLG-40H-15A Power Supply 40W 15V - Adjustable	40W	15V	2.67A	IP65	$37.32	View
