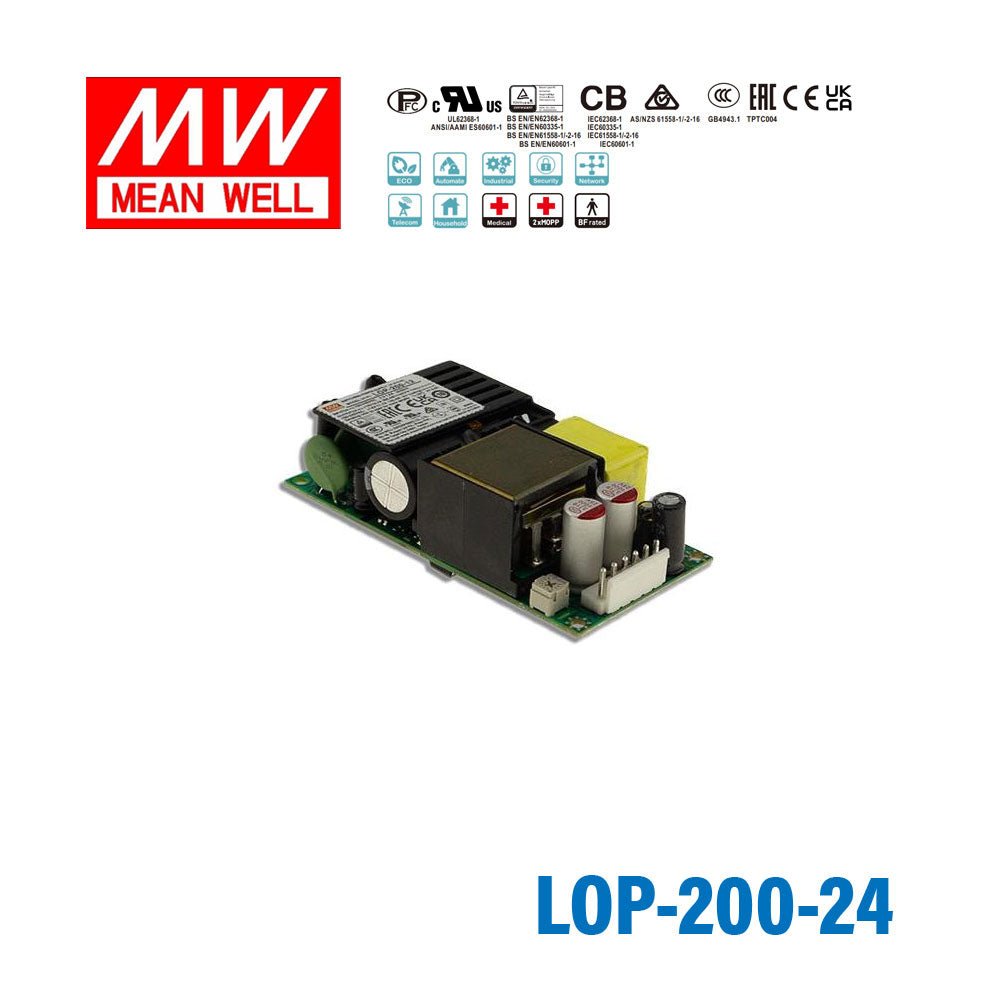

Mean Well LOP-200-24 200W 4"×2" Low Profile Open Frame Power Supply 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LOP-200-24 200W 4"×2" Low Profile Open Frame Po...
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓4"x2" compact size with low profile (25.4mm)
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-216
- ✓150% peak load @ 3s
- ✓140W convection, 200W with FAN 10.98CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 94%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating200 Watt
-
Output Voltage24 Volt
-
Rated Current5.9 Ampere
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
What are the main electrical specs of the Mean Well LOP-200-24?
The LOP-200-24 is a 200W open frame AC/DC power supply with a 24V DC output and a rated current of 5.9A. It accepts a wide 80 to 264VAC input range and includes active power factor correction. Efficiency is listed up to 94% for this series.
How compact is the LOP-200-24 for space-constrained equipment?
This model uses a 4 x 2 inch footprint and measures 101.6 x 50.8 x 25.4 mm. Its low-profile design makes it useful where vertical clearance is limited inside OEM equipment. The unit also weighs about 0.21 kg.
What types of applications is the LOP-200-24 designed for?
The LOP-200-24 is aimed at embedded equipment that needs a compact 24V AC/DC power supply in an open frame format. Its listed approvals span ITE, medical, household, and industrial standards, which makes it relevant for a broad range of OEM and B2B applications. It is also noted as suitable for BF medical applications due to extremely low leakage current and 2 x MOPP.
Can the LOP-200-24 handle demanding thermal environments?
This model is rated for operation from -40 to +80 degrees C, subject to the derating curve. That wide temperature range makes it a strong candidate for equipment exposed to cold starts or elevated internal cabinet temperatures. It is also specified for operating altitudes up to 5000 meters.
Does the LOP-200-24 support higher short-term power demand?
Yes. Mean Well specifies 150% peak load capability for 3 seconds on this model. The series is also listed at 140W convection cooling and up to 200W with 10.98CFM forced-air cooling.
What protection and compliance features does the LOP-200-24 include?
The LOP-200-24 includes short circuit, overload, overvoltage, and overtemperature protection. It is certified to multiple safety standards including IEC/EN/UL 62368-1 and IEC/EN/UL 60601-1, along with additional household and industrial standards listed by Mean Well. It is suitable for Class I or Class II installations and rated for OVC III.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LOP-200 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LOP-200-54 200W 4"×2" Low Profile Open Frame Power Supply 54V | 200W | 54V | 2.7A | Indoor | $65.06 | View |
| Mean Well LOP-200-48 200W 4"×2" Low Profile Open Frame Power Supply 48V | 200W | 48V | 3A | Indoor | $65.06 | View |
| Mean Well LOP-200-36 200W 4"×2" Low Profile Open Frame Power Supply 36V | 200W | 36V | 3.9A | Indoor | $65.06 | View |
| Mean Well LOP-200-27 200W 4"×2" Low Profile Open Frame Power Supply 27V | 200W | 27V | 5.3A | Indoor | $65.06 | View |
| Mean Well LOP-200-18 200W 4"×2" Low Profile Open Frame Power Supply 18V | 200W | 18V | 7.8A | Indoor | $65.06 | View |
| Mean Well LOP-200-15 200W 4"×2" Low Profile Open Frame Power Supply 15V | 200W | 15V | 9.4A | Indoor | $65.06 | View |
| Mean Well LOP-200-12 200W 4"×2" Low Profile Open Frame Power Supply 12V | 200W | 12V | 11.7A | Indoor | $65.06 | View |
